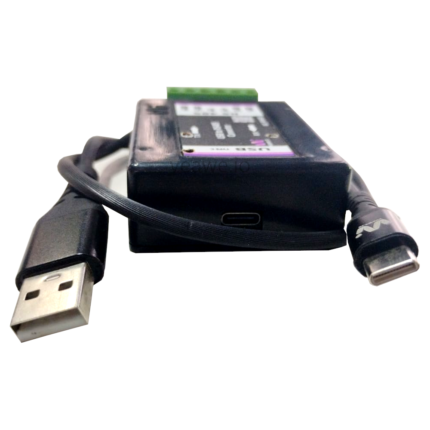

USB to RS485 Converter UC-RS485
Original price was: ₹1,800.00.₹1,500.00Current price is: ₹1,500.00.
Surge Protection Device RS485 SPD-RS485
Original price was: ₹1,000.00.₹900.00Current price is: ₹900.00.
Sale
Isolated 20mA splitter VW-HT-I222
Original price was: ₹3,500.00.₹3,000.00Current price is: ₹3,000.00.
Features & Specification
* Receive single 4-20mA input and outputs isolated dual 4-20mA
* Compact design din rail mountable.
* Isolated power and signals
* Low cost and high accuracy
Description
Features & Specification
- Receive single 4-20mA input and outputs isolated dual 4-20mA
- Compact design din rail mountable.
- Isolated power and signals
- Low cost and high accuracy
Electrical characteristics
Input Signal 0 ~ 20mA
Output :1 0 ~ 20mA
Output : 2 0 ~ 20mA
Accuracy : 0.1%F.S
Max Output Load resistance : RL ≤ 500Ω
Responds time : ≤10mS(0-90%)(TYP)
Insulation strength: 1500VAC/1min(Between input,
output and power)
Input power Voltage DC24V : ±10 %
Operating temperature : -20 ~ +55 ℃
Operating current 100mA : @ 24V DC
Dimension in mm : 110 X 47 X 25
Weight : 100g
