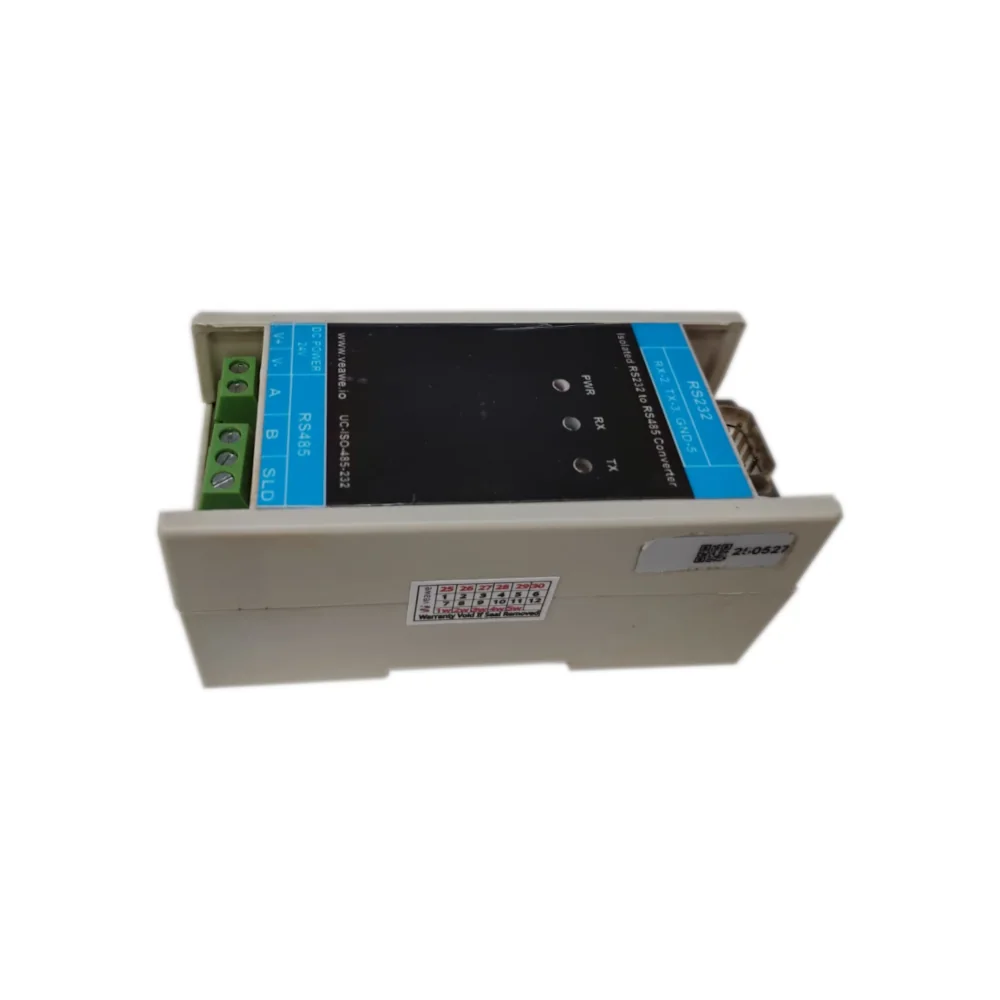

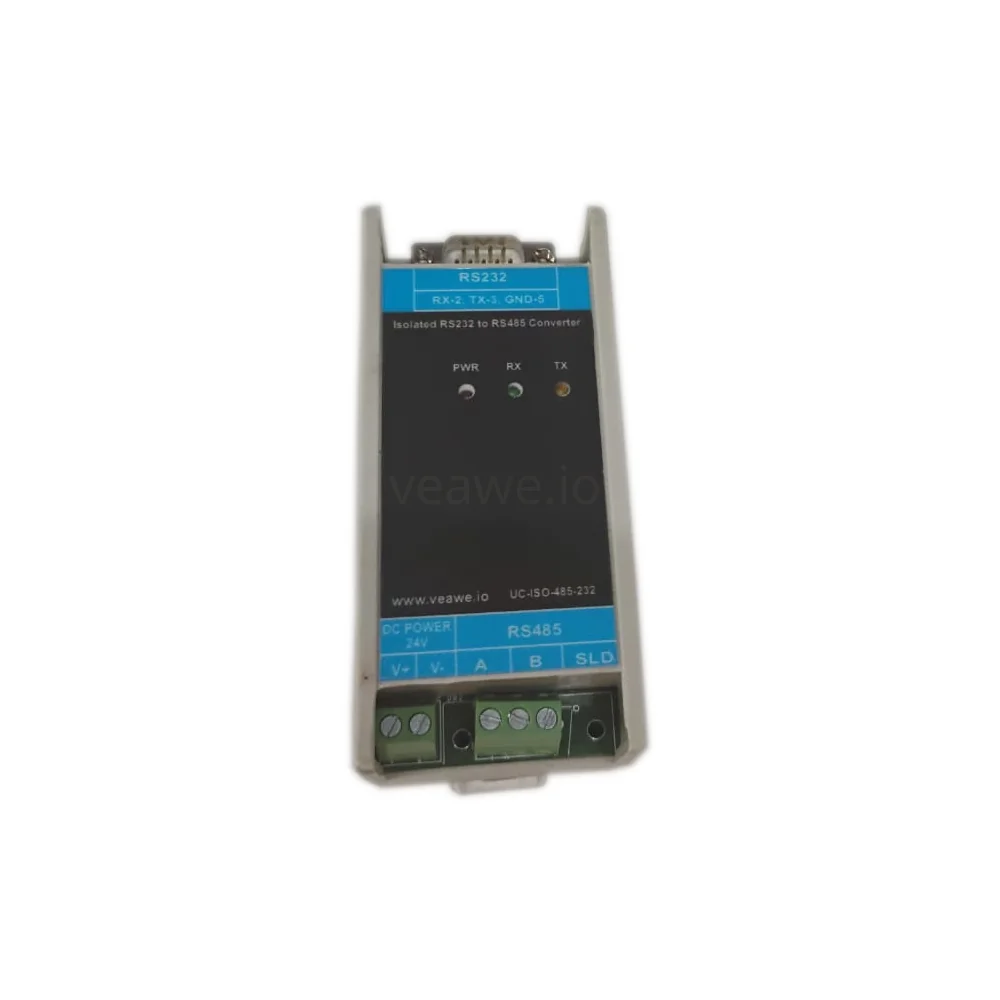

Isolated RS232 To RS485
Original price was: ₹4,000.00.₹2,500.00Current price is: ₹2,500.00.
Isolated RS485 Signals up to 2.5Vrms
Isolated RS485 Power up to 1KVrms.
Supports Auto-Direction Control. No flow
control signal required.
- Supports all Baud Rates from 300 to 250
kBaud.
– actual baud rate varies on the cable length
– also depends on the other devices
connected in the RS485 network
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc.
- RS485 Rx and Tx light indications for easy
visibility and troubleshooting
- ESD protection for RS232 and RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- Compact design suitable for both DIN Rail and
Wall mount
Dimension in mm – 110 x 74 x 35
1 Year Warranty against any manufacturing
defects
Features
- Isolated RS485 Signals up to 2.5Vrms
- Isolated RS485 Power up to 1KVrms.
- Supports Auto-Direction Control. No flow
control signal required. - Supports all Baud Rates from 300 to 250
kBaud. - actual baud rate varies on the cable length
– also depends on the other devices
connected in the RS485 network - Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc. - RS485 Rx and Tx light indications for easy
visibility and troubleshooting - ESD protection for RS232 and RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge - Compact design suitable for both DIN Rail and
Wall mount - Dimension in mm – 110 x 74 x 35
- 1 Year Warranty against any manufacturing
Power Input: 9V~24V DC
Operating Temperature: 0 ~ 85 °C
Working Current: 200mA Max
RS485 in Receive input: ± 12V between A and B max
RS485 in Transmit output: A pulled up to +5V, B pulled down to 0V
RS485 Termination: 120 Ω between A and B built-in
RS232 Connector : DB9 Male as per RS232C
| Part No | UC-ISO-232-485 |
|---|---|
| Brand | Veawe |
| Bus Interface Type | Isolated RS232 to RS485 |
| Channels | 1 Channel |
| Protocol | Transparent Serial, Modbus RTU |
| Baud Rate | 300 bps ~ 250 kbps |
| Port Type | DB9 Female, Screw Terminal |
| Supply Voltage | 24V DC (9V ~ 24V DC) |
| Isolation | 2.5 kV RMS Signal, 1 kV RMS Power |
| Protection | ESD Protection (±15kV), TVS Surge Clamping, Reverse Polarity |
| Mounting Type | DIN Rail, Wall Mount |
| Dimensions | 110mm x 74mm x 35mm |
| Warranty | 1 Year |
| Country of Origin | Made in India |
