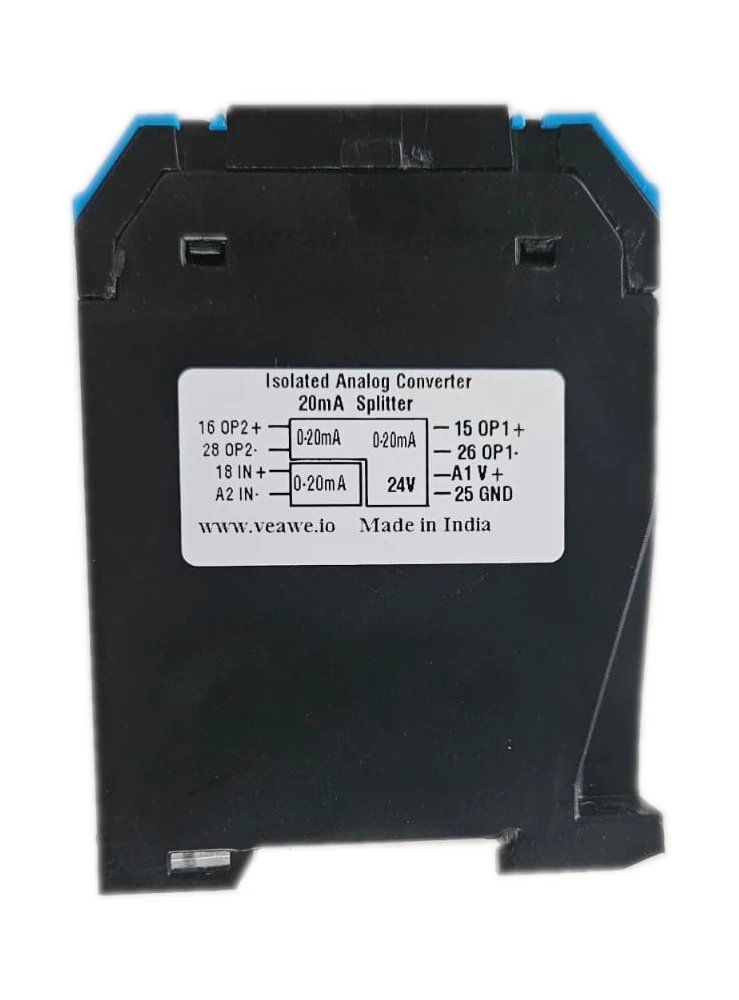

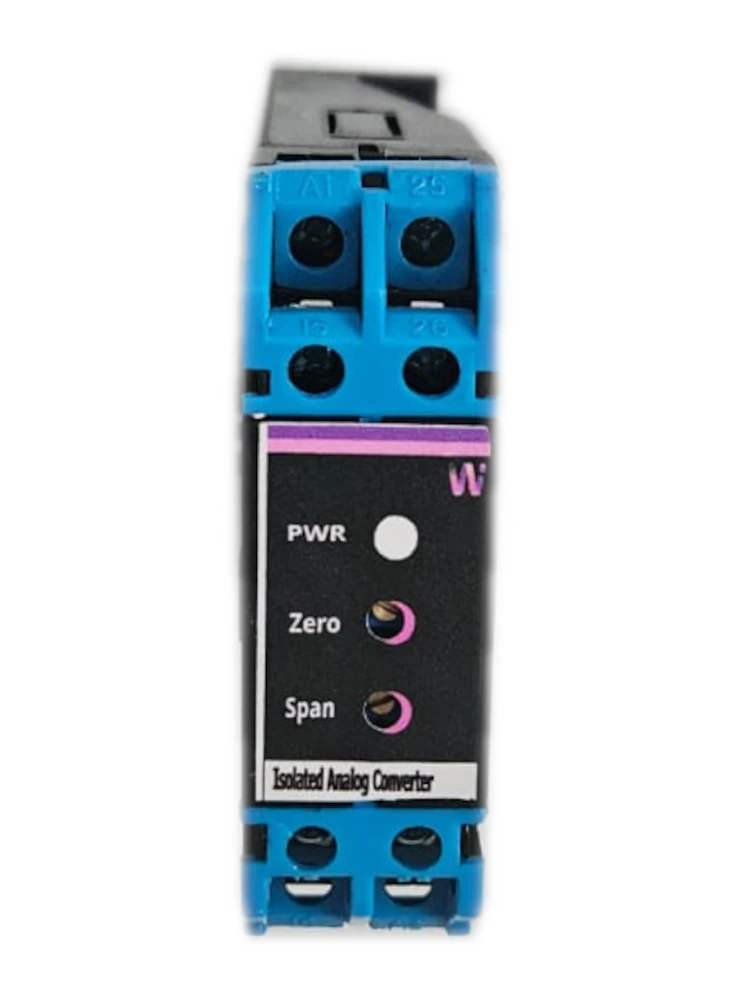

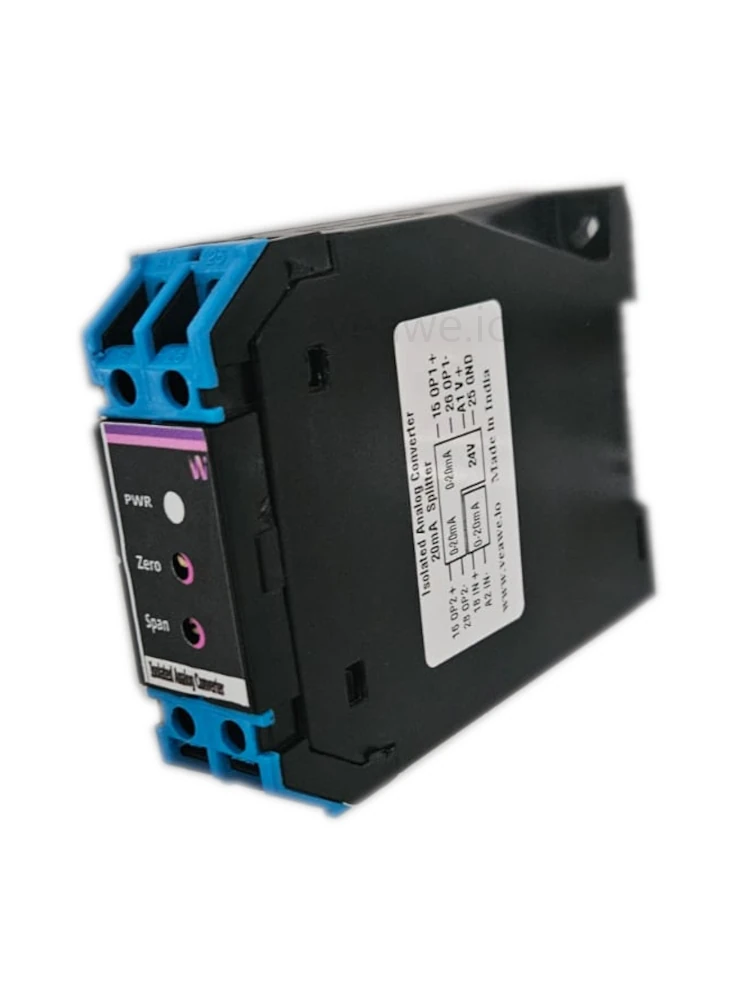

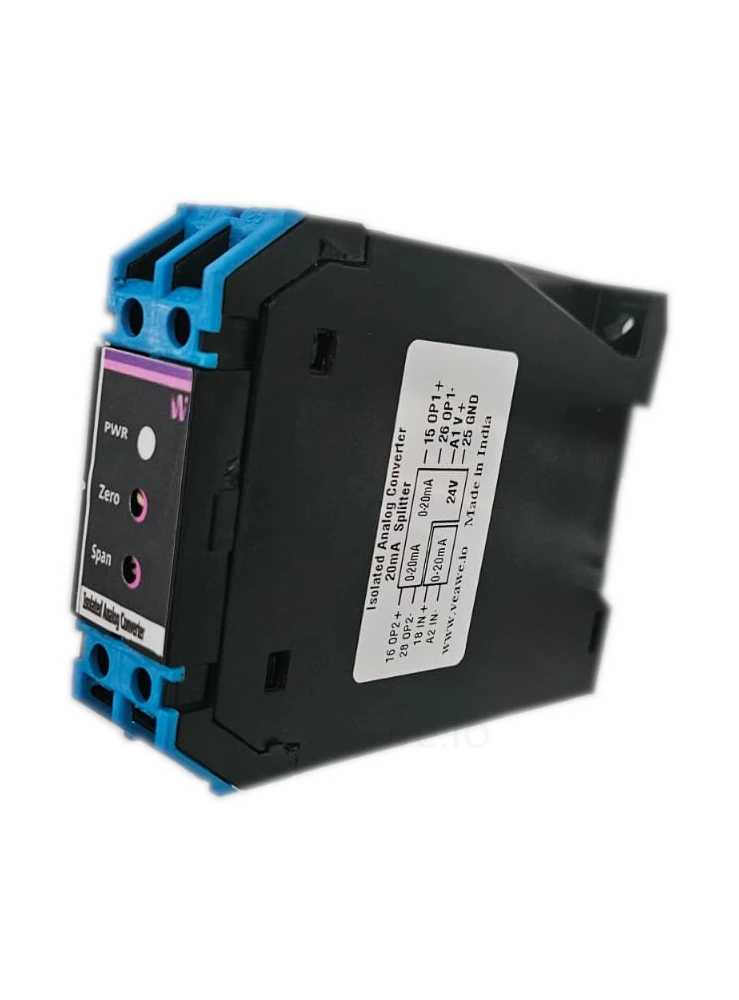

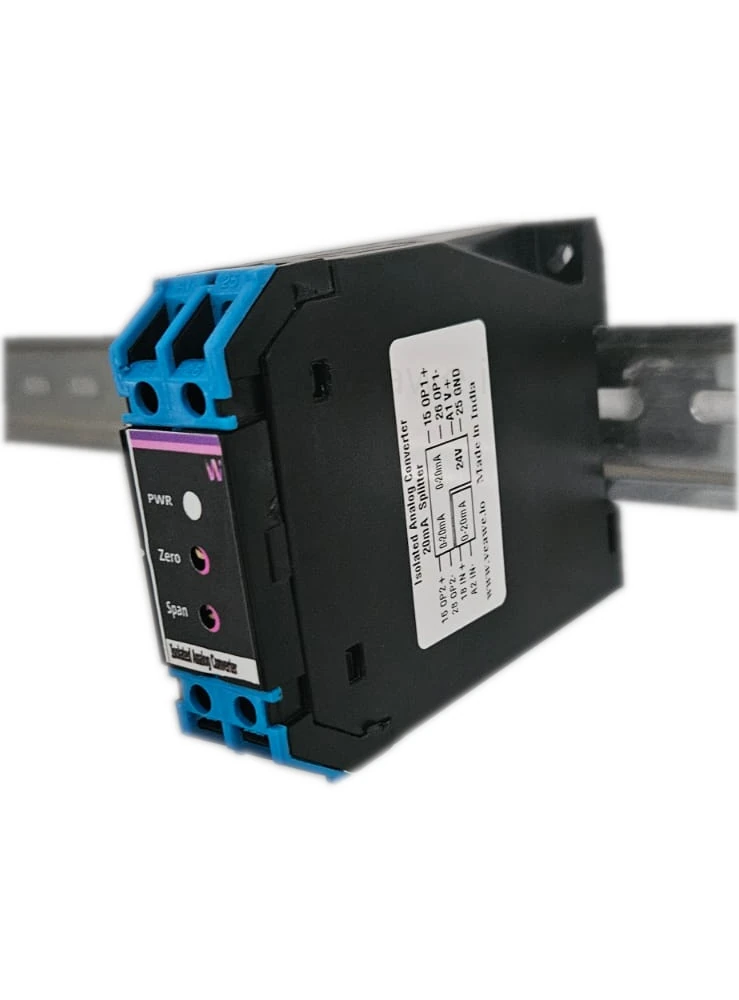

Isolated 20mA splitter AC-20mA-2
Original price was: ₹3,500.00.₹2,500.00Current price is: ₹2,500.00.
Features & Specification
Receive single 4-20mA input and outputs isolated dual 4-20mA
Compact design din rail mountable.
Isolated power and signals
Low cost and high accuracy
Application:-
- Dual-Receiver Monitoring: Splitting a single 4–20 mA transmitter loop to feed a PLC/SCADA and local panel display
- Redundant Control Systems: Feeding primary and backup automation controllers from a single critical sensor
- Industrial Automation & Process Control: Multi-channel isolated signal routing
- Ground Loop Elimination: Resolving common-mode voltage differences between control rooms and field instrumentation
- Control Panel Building: Compact 35 mm DIN rail mounting for clean cabinet layouts
Key Features:-
- 1 Input to 2 Isolated Outputs: Splits one 4–20 mA (or 0–20 mA) analog input into two independent, galvanically isolated 4–20 mA outputs
- High Galvanic Isolation: Up to 1,500 V RMS isolation between input, output 1, output 2, and auxiliary power
- True Continuous Analog Processing: No PWM or digital reconstruction artifacts, preserving true loop dynamics
- Ultra-Fast Dynamic Response: Step response time ≤ 10 ms (0–90% TYP)
- High Conversion Accuracy: Precision linear signal splitting with < ±0.1% F.S. accuracy
- Compact DIN Rail Enclosure: Slim 25 mm profile (110 mm × 47 mm × 25 mm) for dense cabinet packing
- Wide Supply Voltage: 24V DC auxiliary power with reverse polarity protection
- 1 Year Warranty: Full 1-year warranty against manufacturing defects
Dimension in mm: 110 x 47 x 25
Weight: 100g
| Part No | AC-20mA-2 |
|---|---|
| Brand | Veawe |
| Signal Type | Current Loop Splitter |
| Input Signal Type | 4-20mA DC (1 Channel) |
| Output Signal | Dual Isolated 4-20mA DC (2 Channels) |
| Supply Voltage | 24V DC (15 ~ 28V DC) |
| Mounting Type | DIN Rail, Wall Mount |
| Isolation | 1500 V RMS |
| Output Accuracy | < ±0.1% F.S. |
| Protection | Reverse Polarity, TVS Surge Clamping |
| Warranty | 1 Year |
| Country of Origin | Made in India |
| Dimensions | 110mm x 47mm x 25mm |
