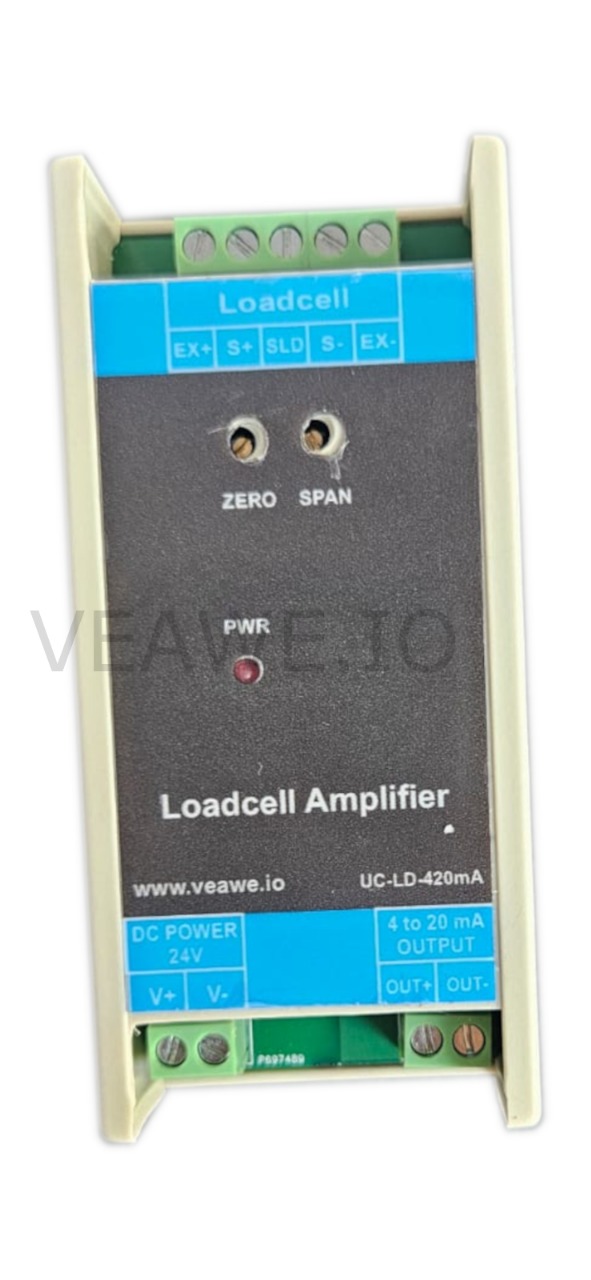

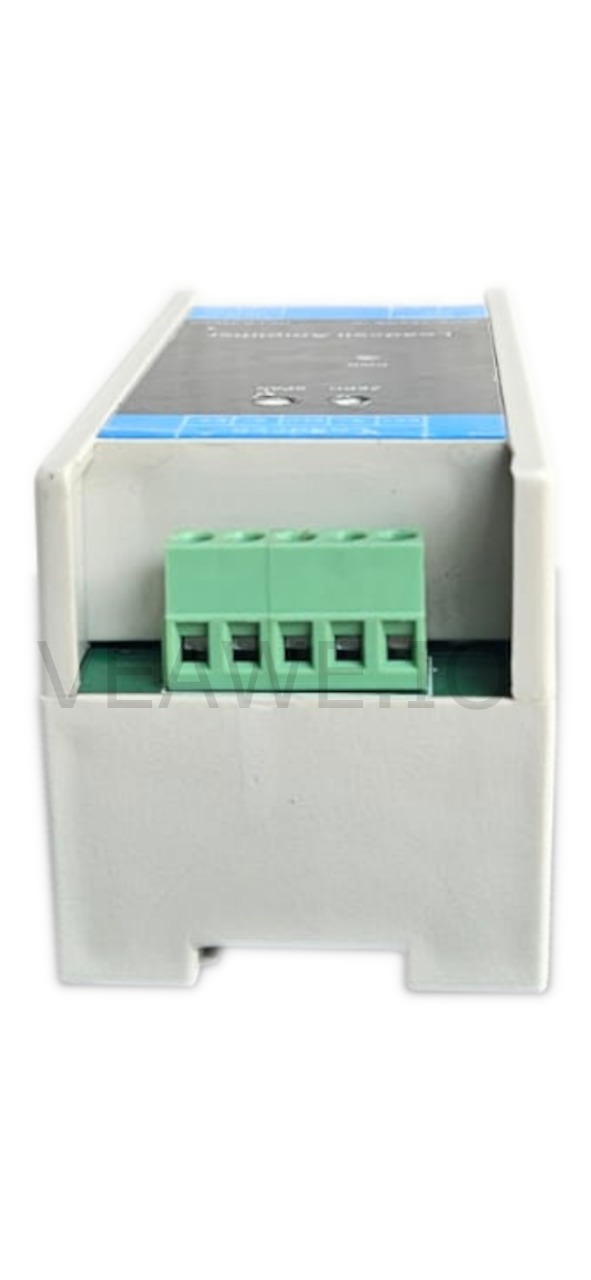

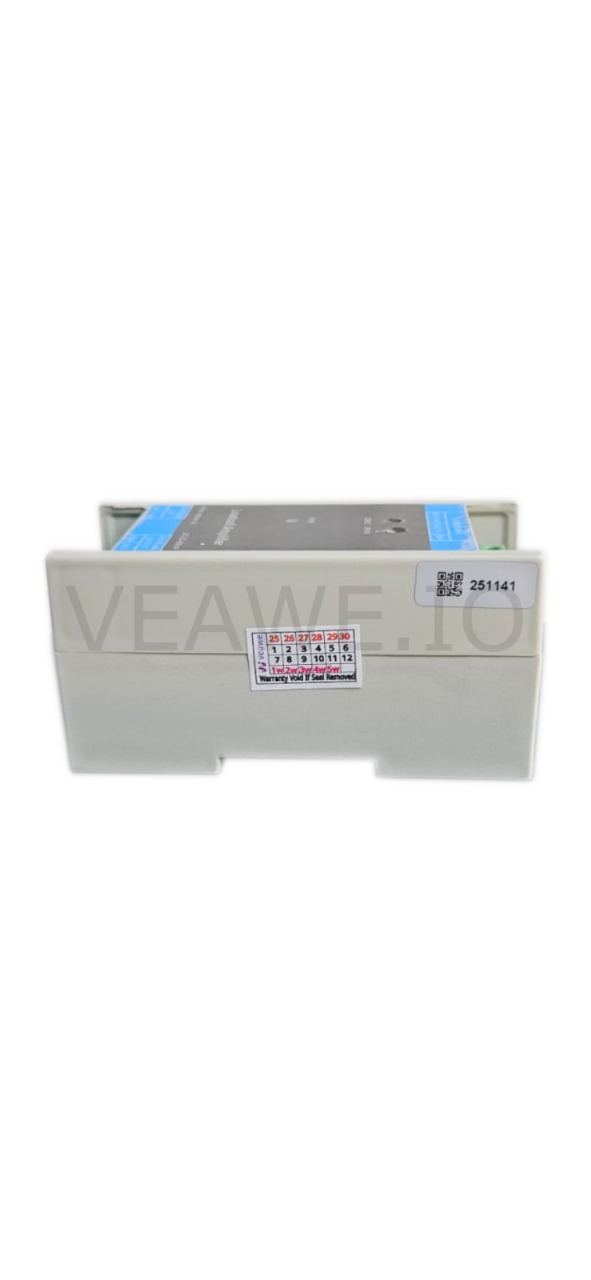

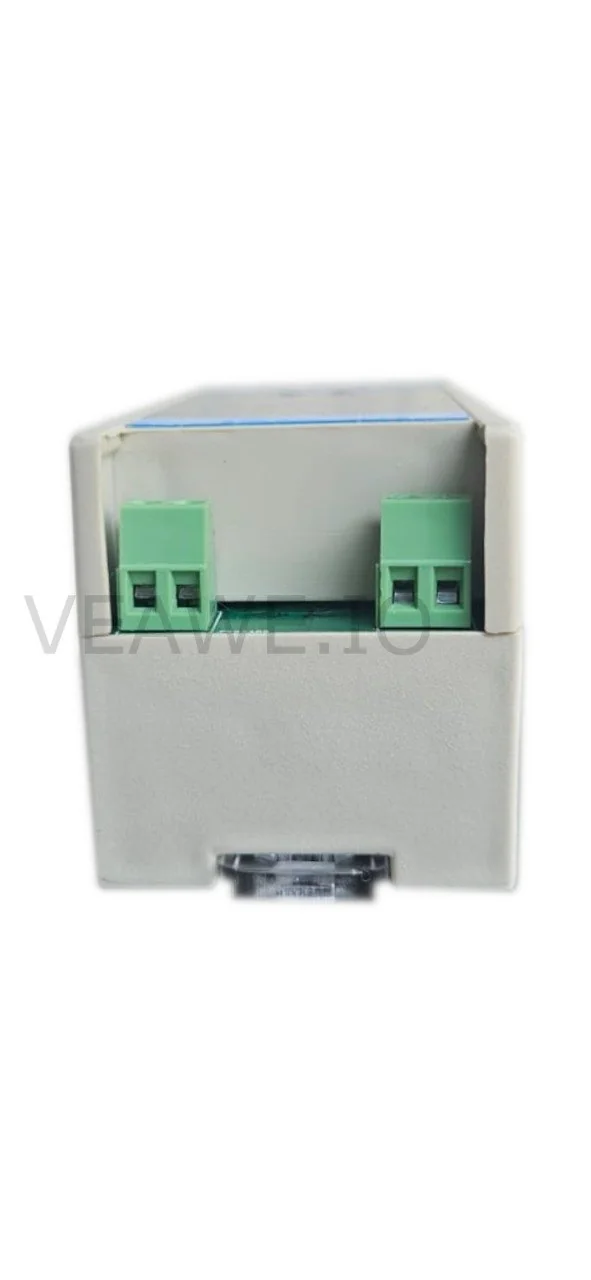

Load Cell Amplifier Module 0–20mA / 4–20mA DIN Rail Signal Transmitter
Original price was: ₹5,000.00.₹2,500.00Current price is: ₹2,500.00.
Features & Specification
* Suitable for all bridge sensor
* Precision excitation supply for the sensor
* Compact design suitable for both DIN Rail and
Wall mount
* Calibration with zero and span
* Lesser than 0.5% noise output for Full scale 0~20mA
* 1 Year Warranty against any manufacturing defects
The Veawe Load Cell Amplifier Module is a high-precision strain gauge signal conditioner designed for DIN rail and wall mounting, converting bridge sensor inputs into a stable 0–20mA analog output.
Specification
* Suitable for all bridge sensor
* Precision excitation supply for the sensor
* Compact design suitable for both DIN Rail and
Wall mount
* Calibration with zero and span
* Lesser than 0.5% noise output for Full scale 0~20mA
* 1 Year Warranty against any manufacturing defects
Zero Offset and Span Settings
Zero offset –
Connect the load cell sensor without load and and then
adjust the zero offset knob until you get ~4mA in the
meter / display
Span offset –
Connect the load cell sensor in full load and then adjust
the span offset knob until you get ~20mA in the
meter / display
Electrical characteristics
Input signal type: Load cell sensor with excitation
source
Output signal type: 0 - 20mA
Accuracy: Less than +/- 1% @ 25°C ambient temperature:
Ripple Noise in output: Less than +/- 0.5%
Responds time: Less than 1 milliSec
ESD protection all input
and output pins:
±15-kV Human-Body Model (HBM)IEC1000-4-
2, Contact Discharge V IEC1000-4-2, Air-Gap
Discharge
Max Output load resistance: 1.1K Ohm
Input Supply Voltage: 24V DC
Operating temperature: 0 to 85 C
Operating current: 200mA @ 24V DC
Dimension in mm: 110 x 50 x 55
Weight: 100g
| Mounting Type | DIN Rail, Wall Mount |
|---|---|
| Output Signal | 0-20mA, 4-20mA |
| Input Signal Type | Strain Gauge Bridge (1mV/V, 2mV/V, 3mV/V) |
| Supply Voltage | 24V DC |
| Brand | Veawe |
