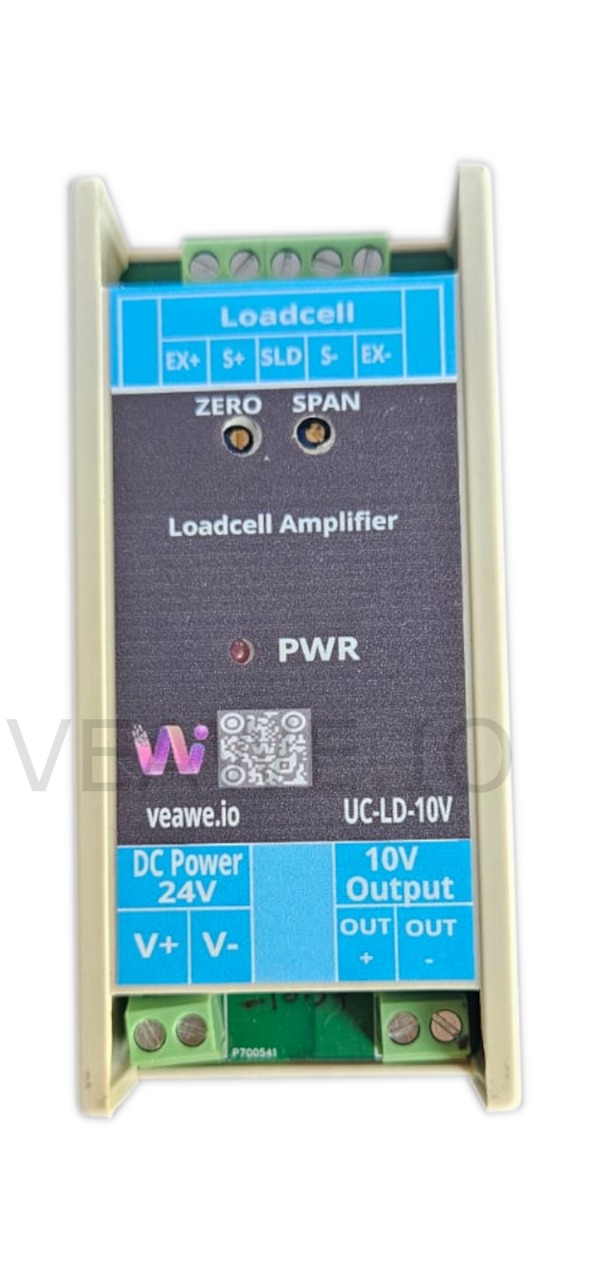

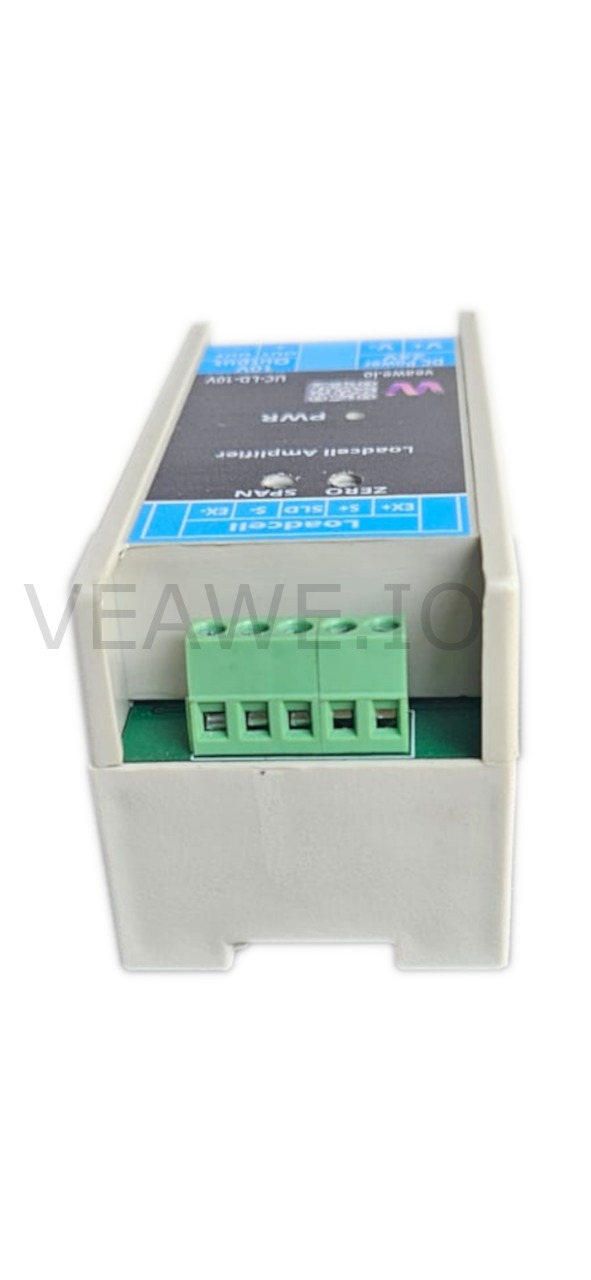

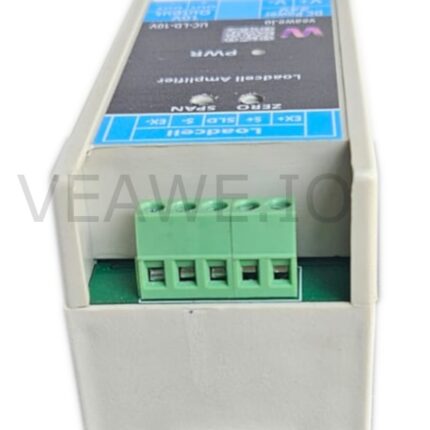

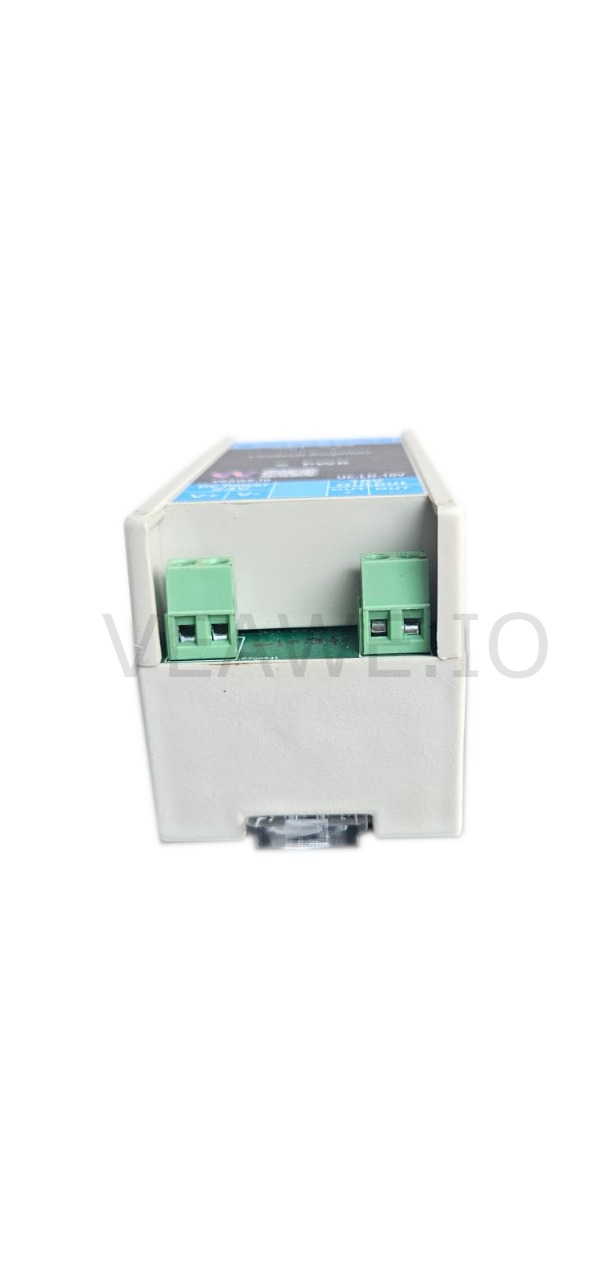

Loadcell Amplifier – 0-10V
₹2,500.00
Features & Specification
Suitable for all bridge sensor
Precision excitation supply for the sensor
Compact design suitable for both
DIN Rail and wall mount
Calibration with zero and span
Lesser than 0.5% noise output for Full scale 0~10V
1 Year Warranty against any manufacturing defects
Specification
- Suitable for all bridge sensor
- Precision excitation supply for the sensor
- Compact design suitable for both
DIN Rail and wall mount - Calibration with zero and span
- Lesser than 0.5% noise output for Full scale 0~10V
- 1 Year Warranty against any
- Zero Offset and Span Settings
Zero offset –
Connect the load cell sensor without load and and then
adjust the zero offset knob until you get ~0V in the
meter / display
Span offset –
Connect the load cell sensor in full load and then adjust
the span offset knob until you get ~10V in the
meter / display manufacturing defects
Electrical characteristics
Input signal type: Load cell sensor with excitation
source
Output signal type: 0-10v Accuracy: Less than +/- 1% @ 25°C ambient temperature
Ripple Noise in output: Less than +/- 0.5%
Responds time: Less than 1 milliSec
ESD protection all input
and output pins:
±15-kV Human-Body Model (HBM)IEC1000-4-
2, Contact Discharge V IEC1000-4-2, Air-Gap
Discharge
Output short circuit
protection: 20mA @ 10V
Input Supply Voltage: 24V DC
Operating temperature: 0 to 85 C
Operating current: 200mA @ 24V DC
Dimension in mm: 110 x 50 x 55
Weight: 100g
| Dimensions | 60mm x 40mm x 20mm |
|---|---|
| Part No | AC-LD-10 |
| Brand | Veawe |
| Mounting Type | DIN Rail, Wall Mount |
| Warranty | 1 Year |
| Country of Origin | Made in India |
