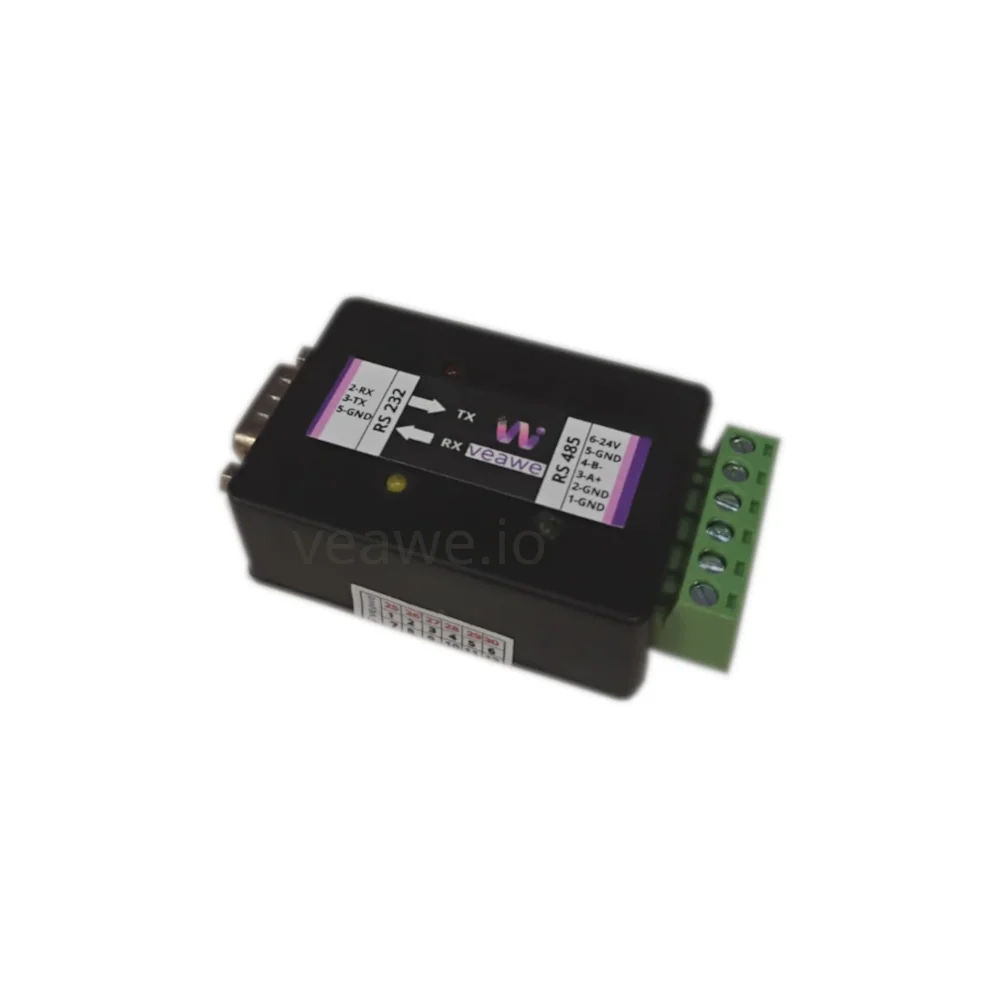

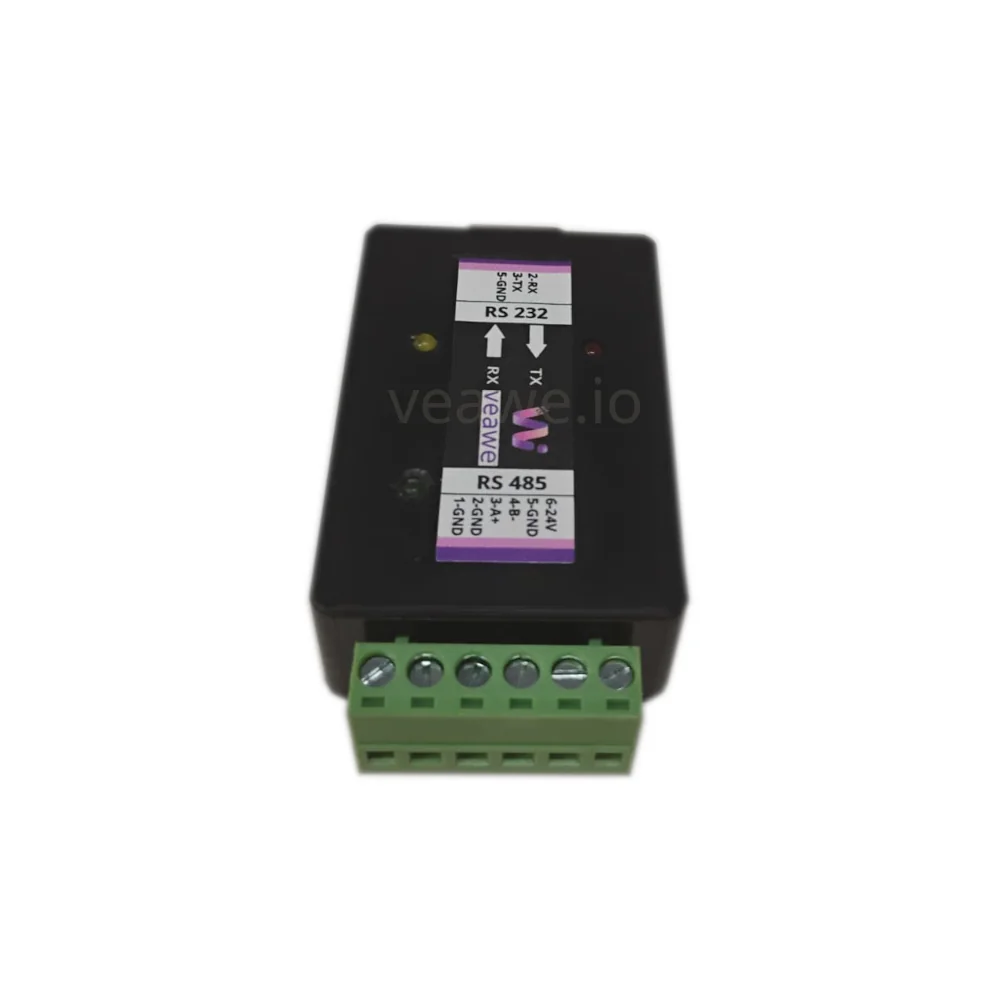

RS232 to RS485 Converter
Original price was: ₹2,500.00.₹1,500.00Current price is: ₹1,500.00.
Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures. But with the vast
use of equipments with these interfaces needs a connection with PC for monitoring,
configuring and working. Most of the market available converters are not equipments with
proper ESD protection circuits to work longer and with an industry equipment. So we have our
most suitable converter for both Industrial environment and general usage.
Supports Auto-Direction Control. No flow control signal required.
Supports all Baud Rates from 300 to 250 kBaud.
– actual baud rate varies on the cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS485 Rx and Tx light indications for easy visibility and troubleshooting
ESD protection for RS232 and RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
Very compact size 60mm x 40mm x 20mm
1 Year Warranty against any manufacturing defects
Features and Specification
- Supports Auto-Direction Control. No flow control
signal required. - Supports all Baud Rates from 300 to 250 kBaud.
- actual baud rate varies on the cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485
network - Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS,
Development Kits, etc. - RS485 Rx and Tx light indications for easy visibility and
troubleshooting - ESD protection for RS232 and RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge - Very compact size 60mm x 40mm x 20mm
- 1 Year Warranty against any manufacturing defects
Electrical characteristics
Power Input: 9V~24V DC
Operating Temperature: 0 ~ 85 °C
Working Current: 200mA Max
RS 485 in Receive Input: ± 12V between A and B max
RS485 in Transmit output: A pulled up to +5V, B pulled down to 0V
RS485 Termination: 120 Ω between A and B built-in
Dimention: 60mm X 40mm X 20mm
RS232 Connector: DB9 Male as per RS232C
| Part No | UC-RS232-RS485 |
|---|---|
| Brand | Veawe |
| Bus Interface Type | RS232 to RS485 |
| Channels | 1 Channel |
| Protocol | Transparent Serial, Modbus RTU |
| Baud Rate | 300 bps ~ 250 kbps |
| Port Type | DB9 Male, Screw Terminal |
| Supply Voltage | 24V DC (9V ~ 24V DC) |
| Isolation | Non-Isolated |
| Protection | ESD Protection (±15kV RS232 & RS485) |
| Mounting Type | DIN Rail, Wall Mount |
| Dimensions | 60mm x 50mm x 20mm |
| Warranty | 1 Year |
| Country of Origin | Made in India |
