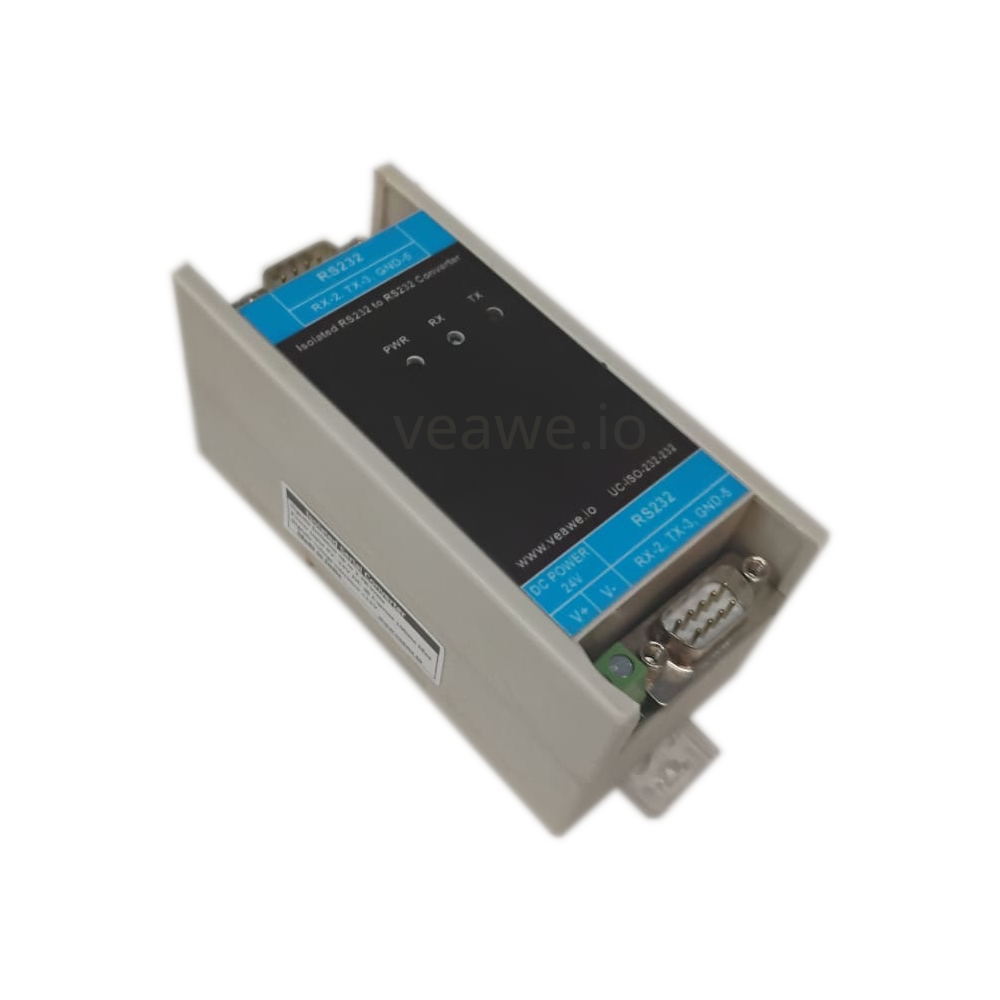

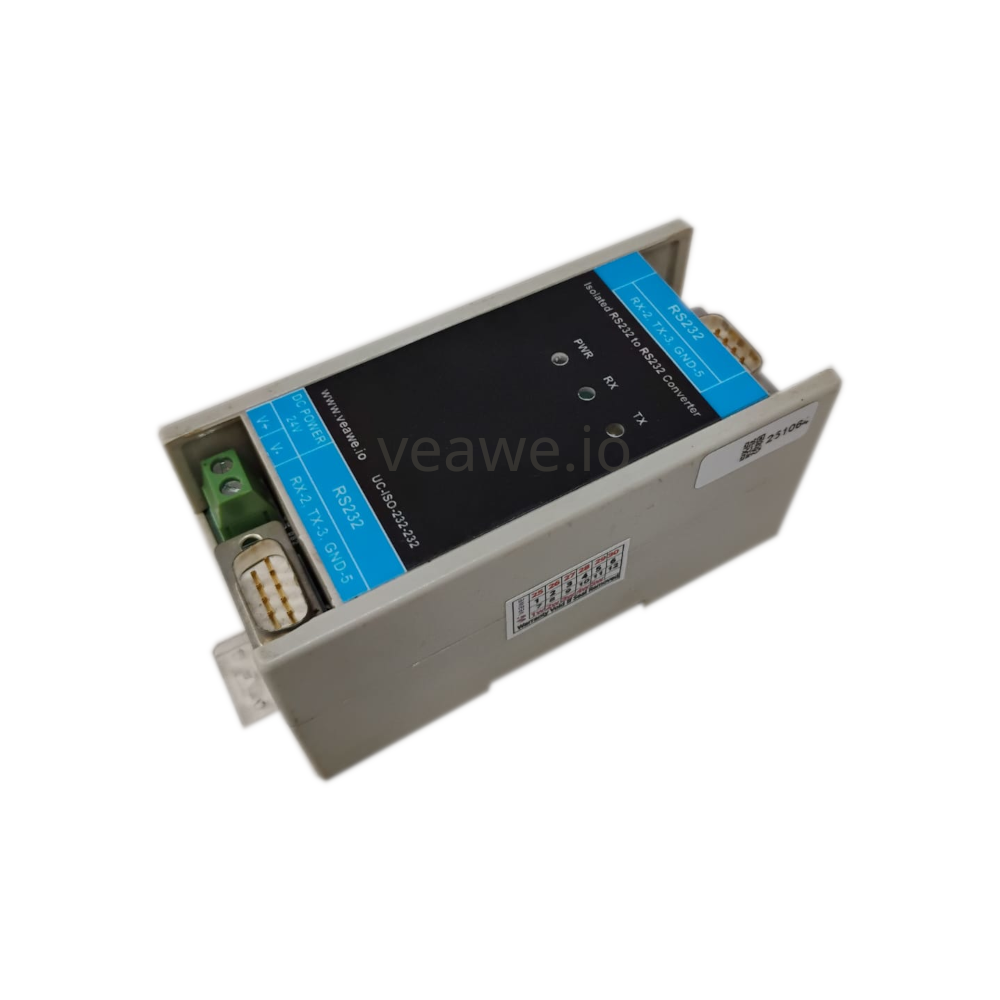

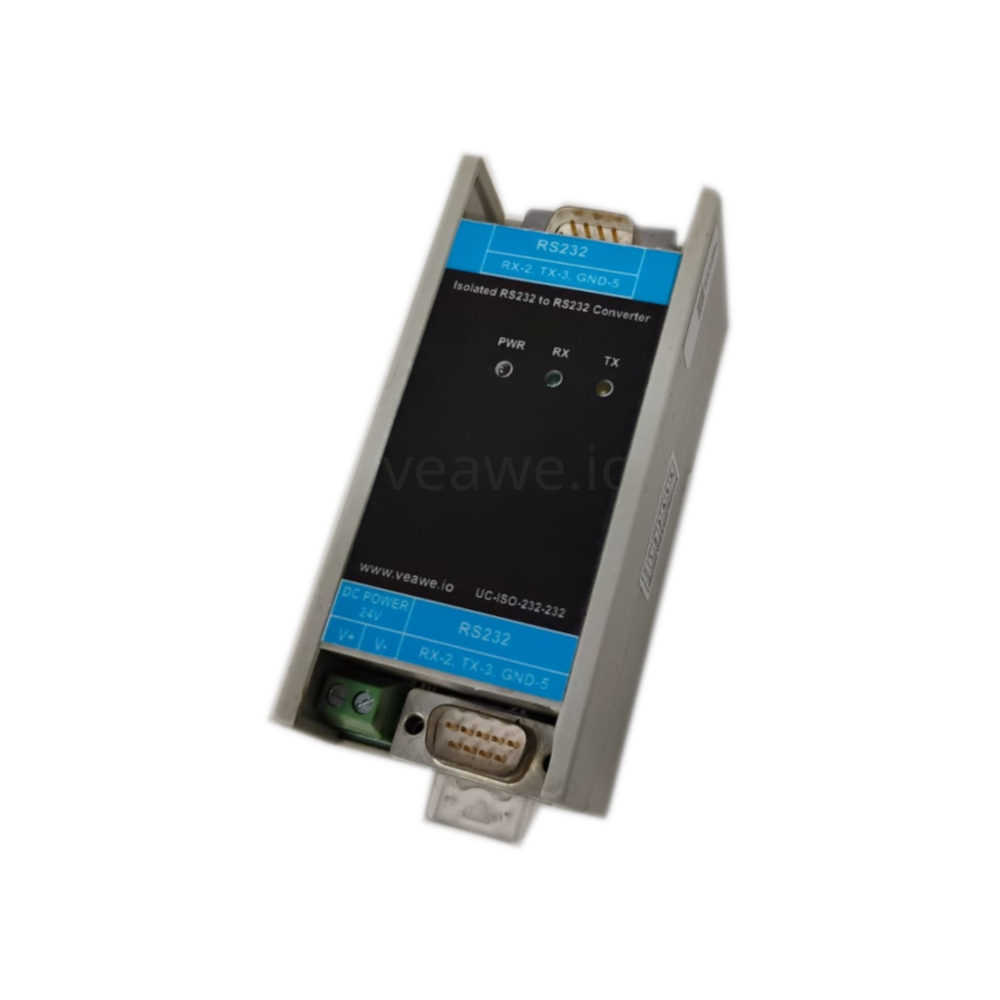

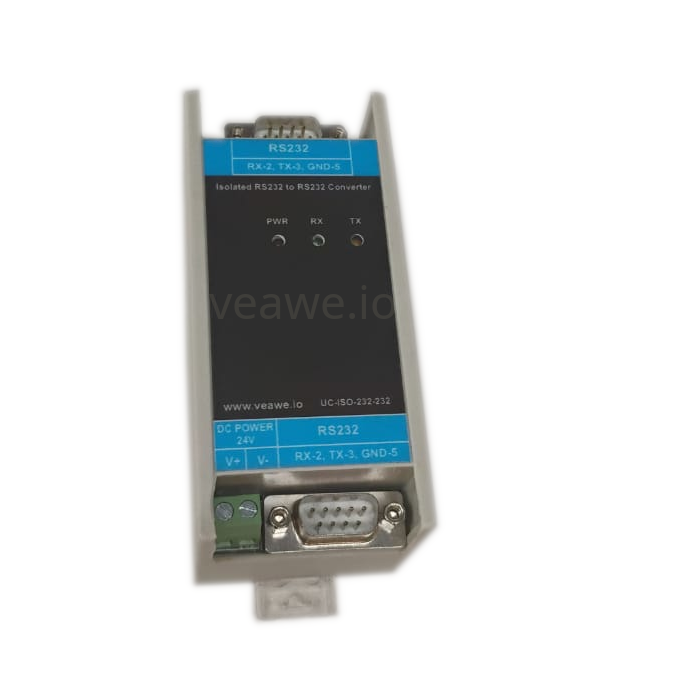

Isolated RS232 To RS232 Repeater
Original price was: ₹4,000.00.₹3,500.00Current price is: ₹3,500.00.
3 in stock
Application
* Isolated RS232 Signals up to 2.5Vrms
* Isolated RS232 Power up to 1KVrms.
* Supports all Baud Rates from 300 to 250 kBaud.
- actual baud rate varies on the cable length
* Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset,
UPS, Development Kits, etc.
* RS232 Rx and Tx light indications for easy
visibility and troubleshooting
* ESD protection for both RS232 port pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
* Compact design suitable for both DIN Rail and
Wall mount
* Dimension in mm – 110 x 74 x 35
* 1 Year Warranty against any manufacturing
defects
Electrical Characteristics
Power Input: 9V~24V DC
Operating Temperature: 0 ~ 85 °C
Working Current: 200mA Max
RS232 Connector: DB9 Male as per RS232C
Dimention: 110 x 74 x 35
