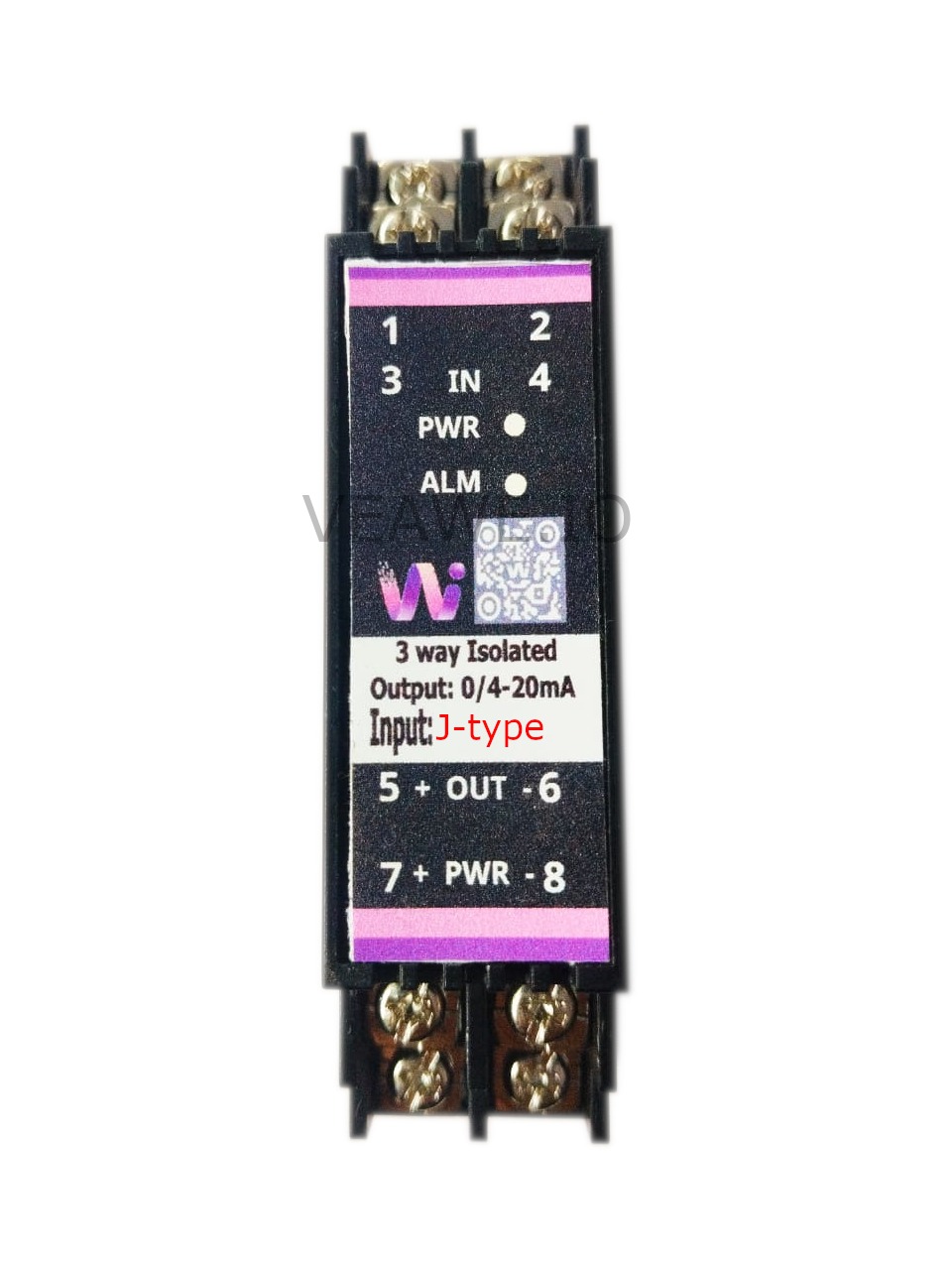

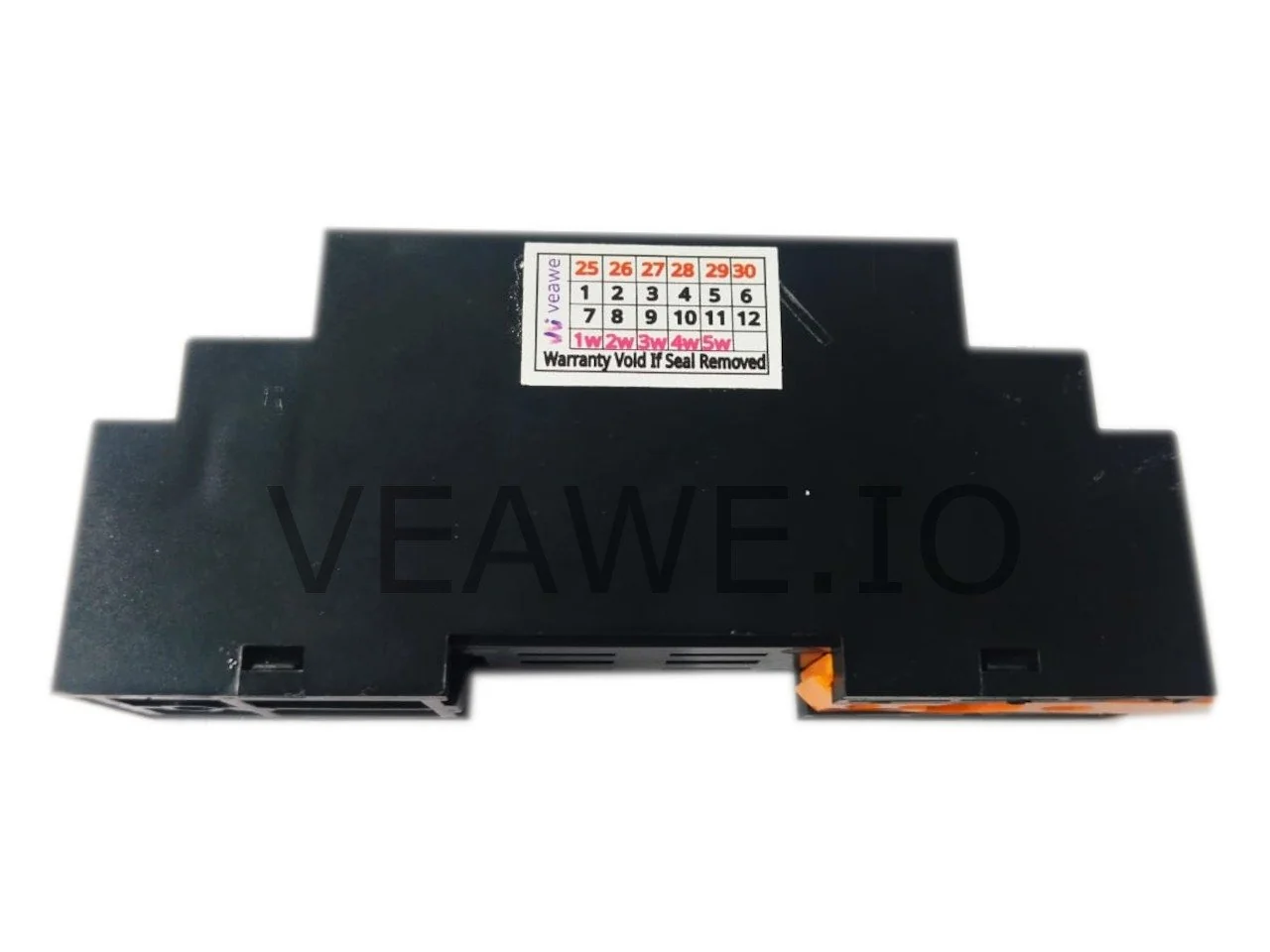

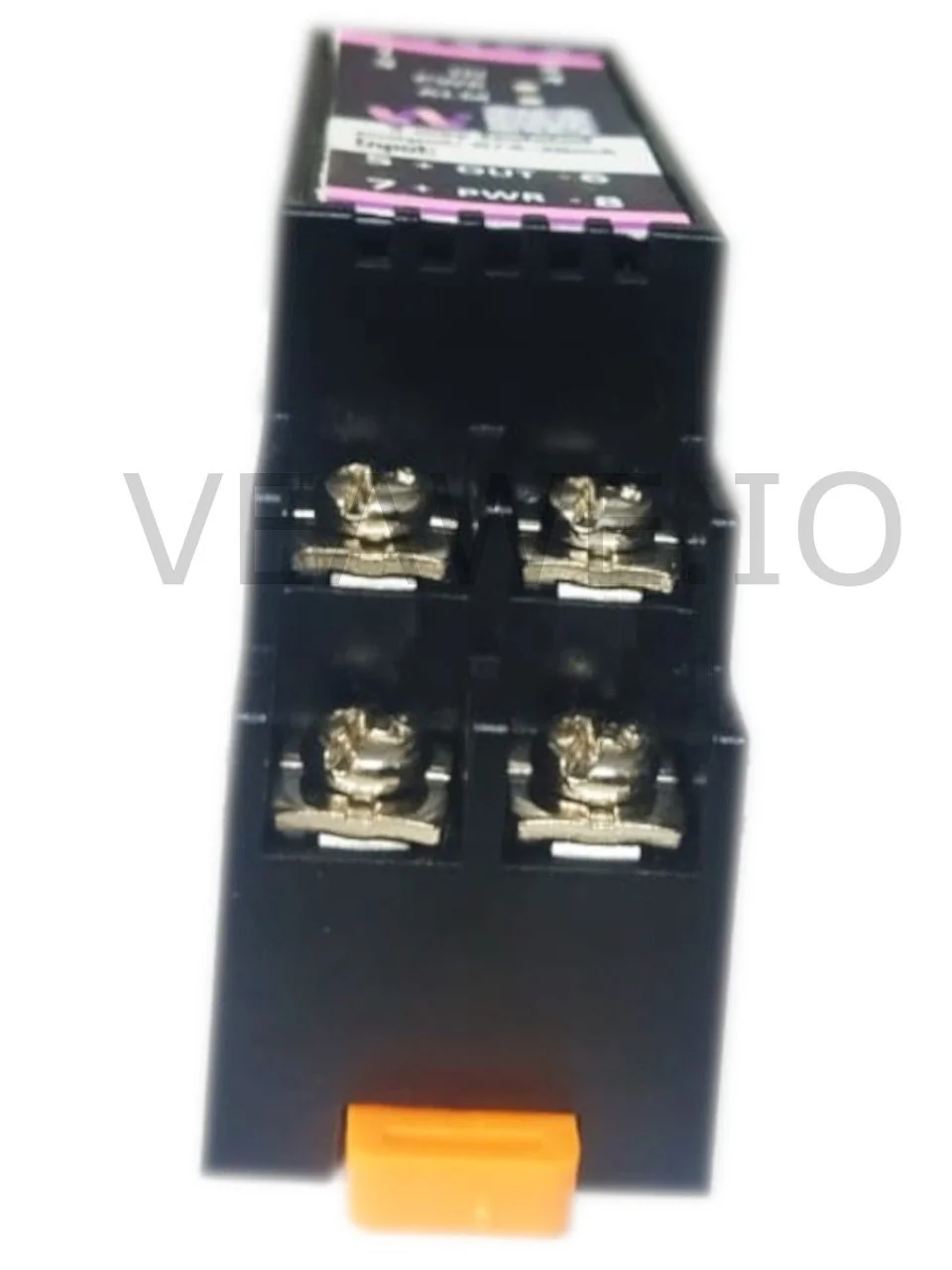

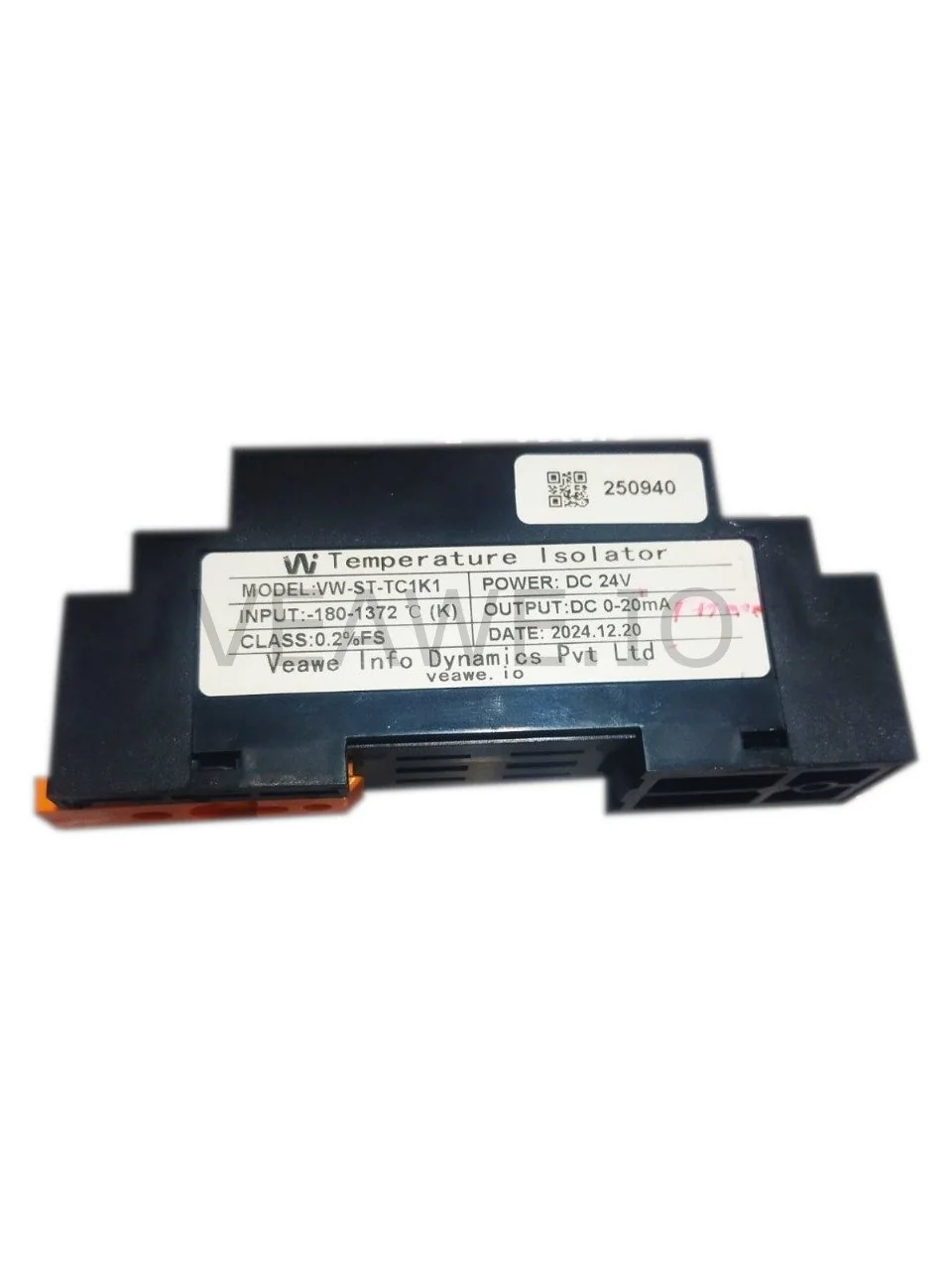

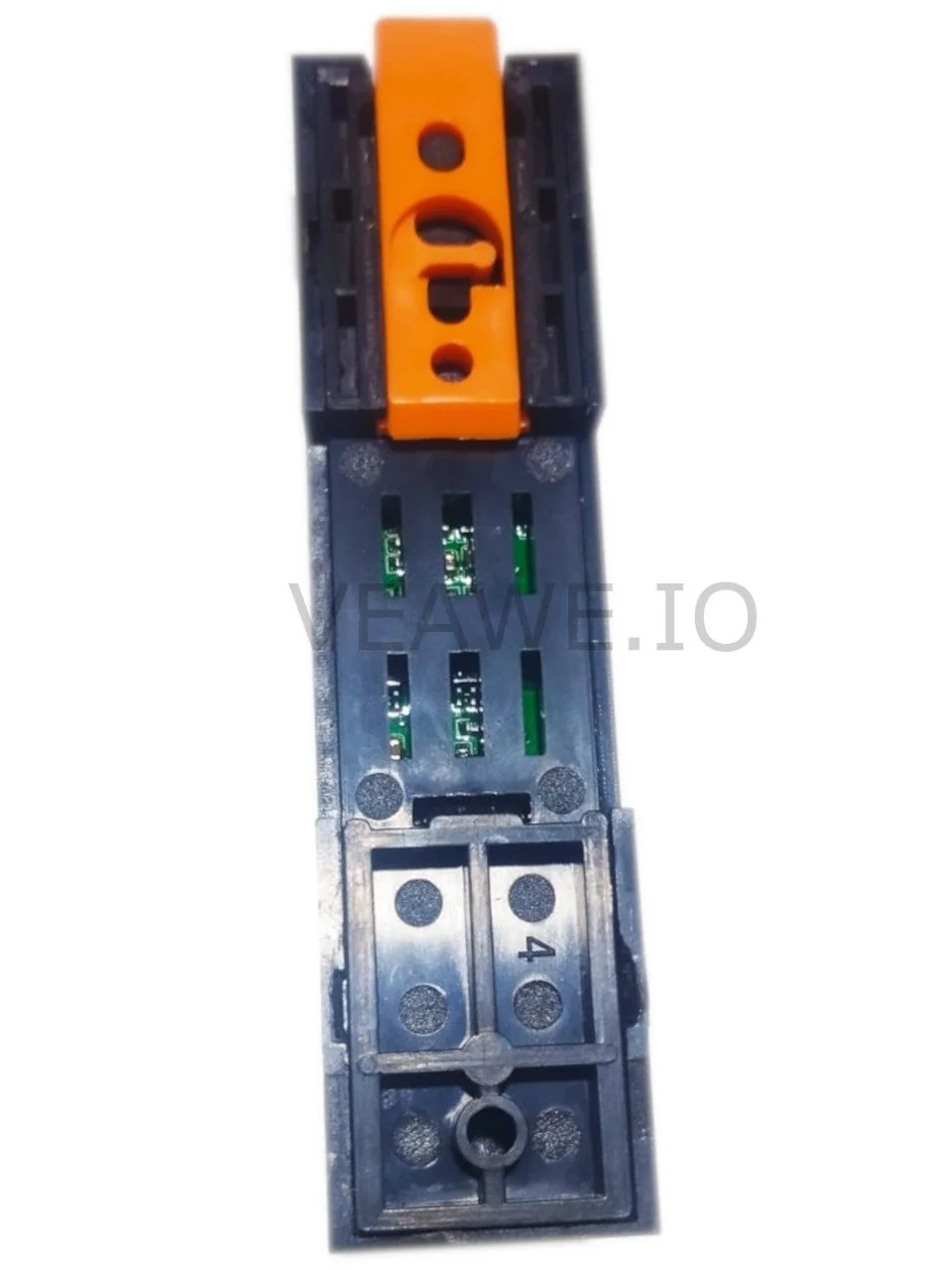

Isolated Analog Signal Converter J Type
Original price was: ₹4,500.00.₹3,000.00Current price is: ₹3,000.00.
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : J – type
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Application:-
• Modbus, Profibus and DMX applications or any RS485 field bus application
• 5 Volt differential or single ended data lines
• Industrial and building automation
• Solar power monitoring systems
• Industrial data communication systems
You may also like…
USB to RS485 Converter UC-RS485
*Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures.
*But with the vast use of equipments with these interfaces needs a connection with PC for monitoring, configuring and working.
*Most of the market available converters are not equipments with proper ESD protection circuits to work longer and with an industry equipment.
*So we have our most suitable converter for both Industrial environment and general usage.
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
Related products
DLMS to Modbus Converter
Features
● Supports reading of Cumulative Parameters, Insta Voltage and Current Values and Meter Serial No.
● RS485/RS232/Optical DLMS to RS485 Modbus converter
● 24V DC Input
● Modbus RS-485 Protocol Interface
● Convenient address selection rotatory switch from 1 – 99 Address for modbus
● Complete range of configurable baud rate settings supported for modbus
● Din Rail mounting
● Product Dimensions – 40mm x 110mm x 80mm (L x W x H)
Isolated Analog Signal Converter ±75mV to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : ± 75mV
Output Signal type : 0/4 - 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 10V – 10V
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 0-10V DC
Output Signal type : 0-10V DC
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 300V to 10V
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 0-300V DC
Output Signal type : 0-10V DC
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 75mV to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 75mV
Output Signal type : 0/4 - 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter K Type
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : K - type
Output Signal type : 0/4 - 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Loadcell Amplifier – ±10V
Features & Specification
* Suitable for all bridge sensor
* Precision excitation supply for the sensor
* Compact design suitable for both DIN Rail and
Wall mount
* Calibration with zero and span
* Lesser than 0.5% noise output for Full scale 0~20mA
* 1 Year Warranty against any manufacturing defects
