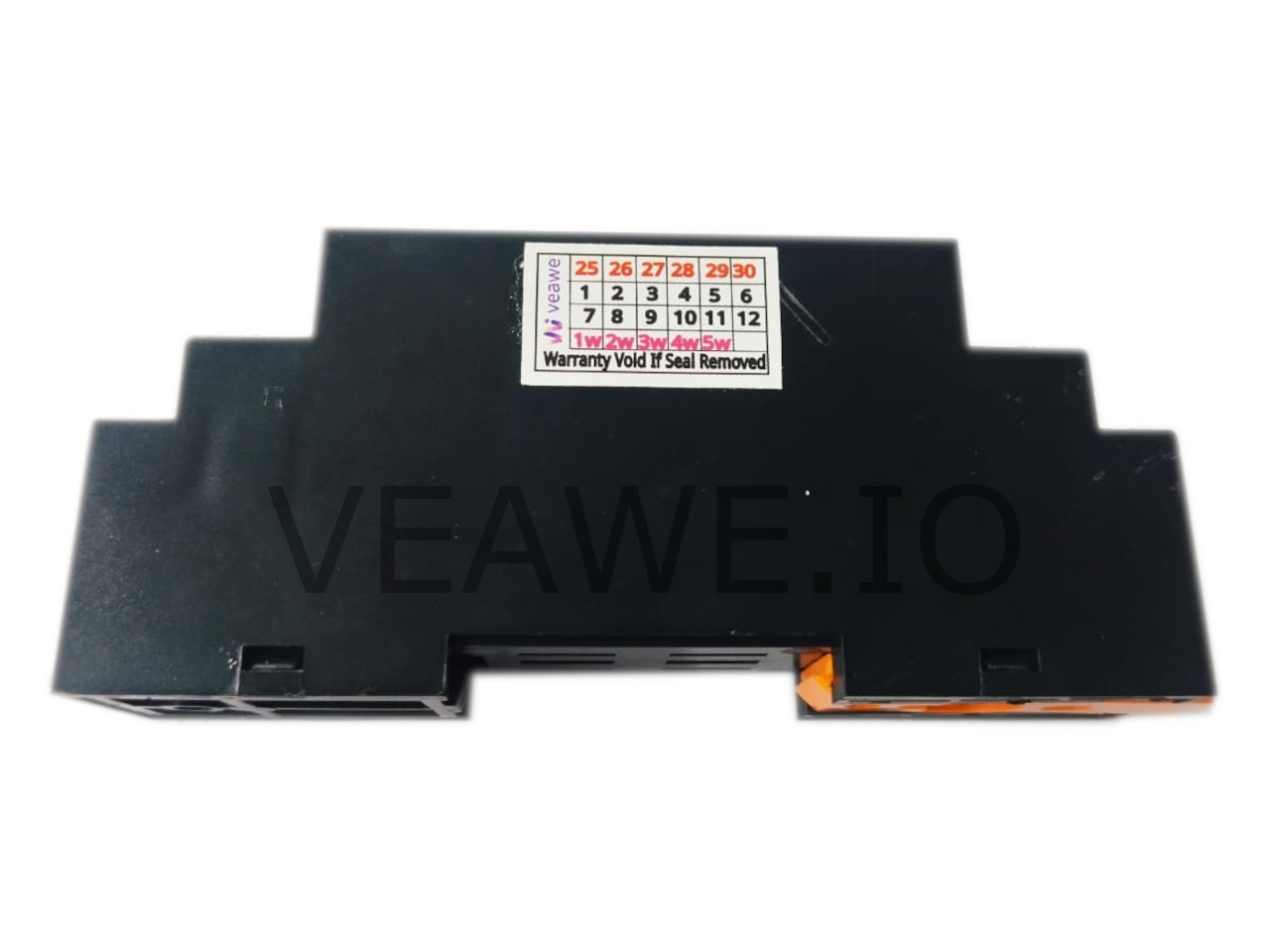

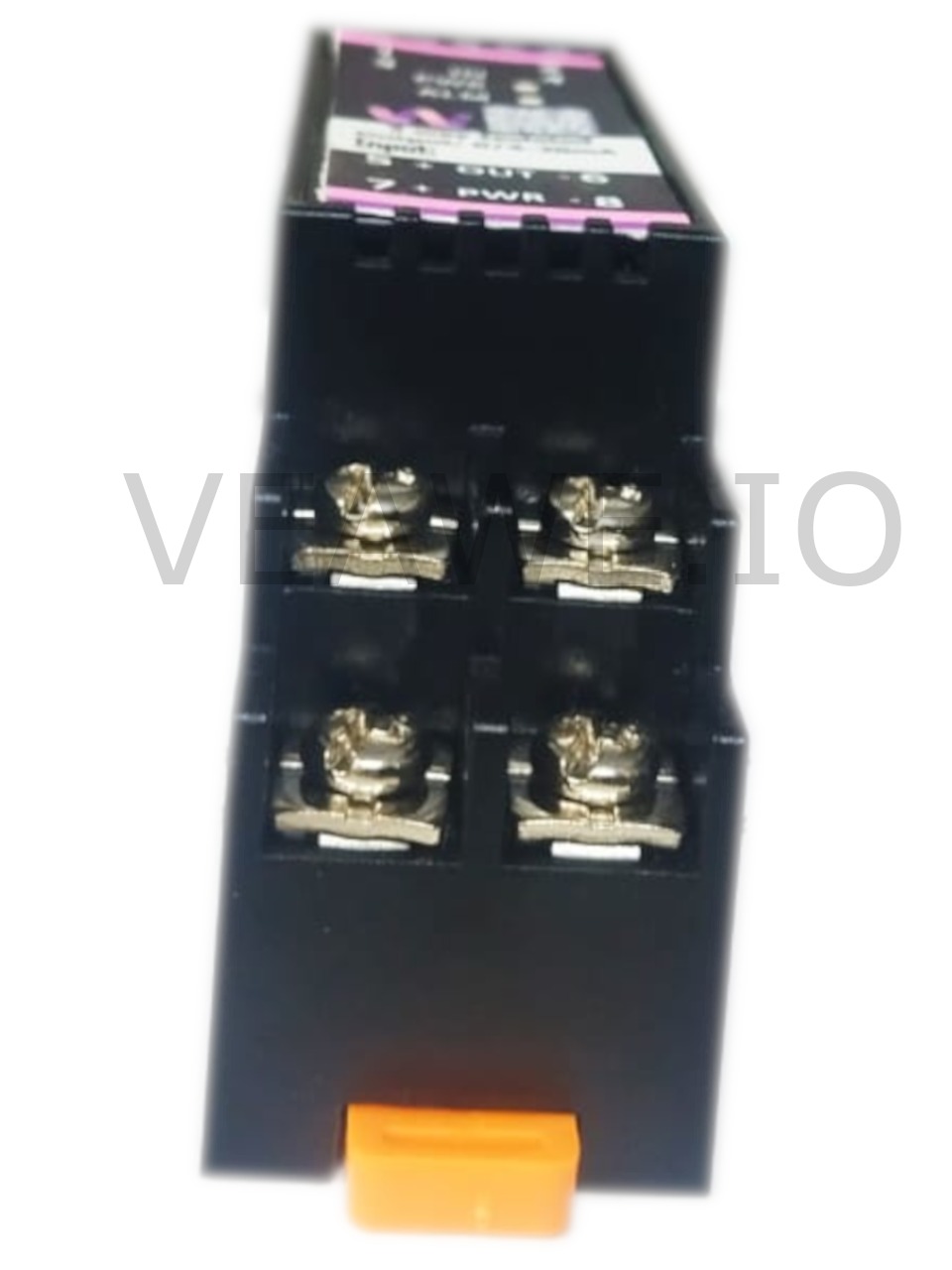

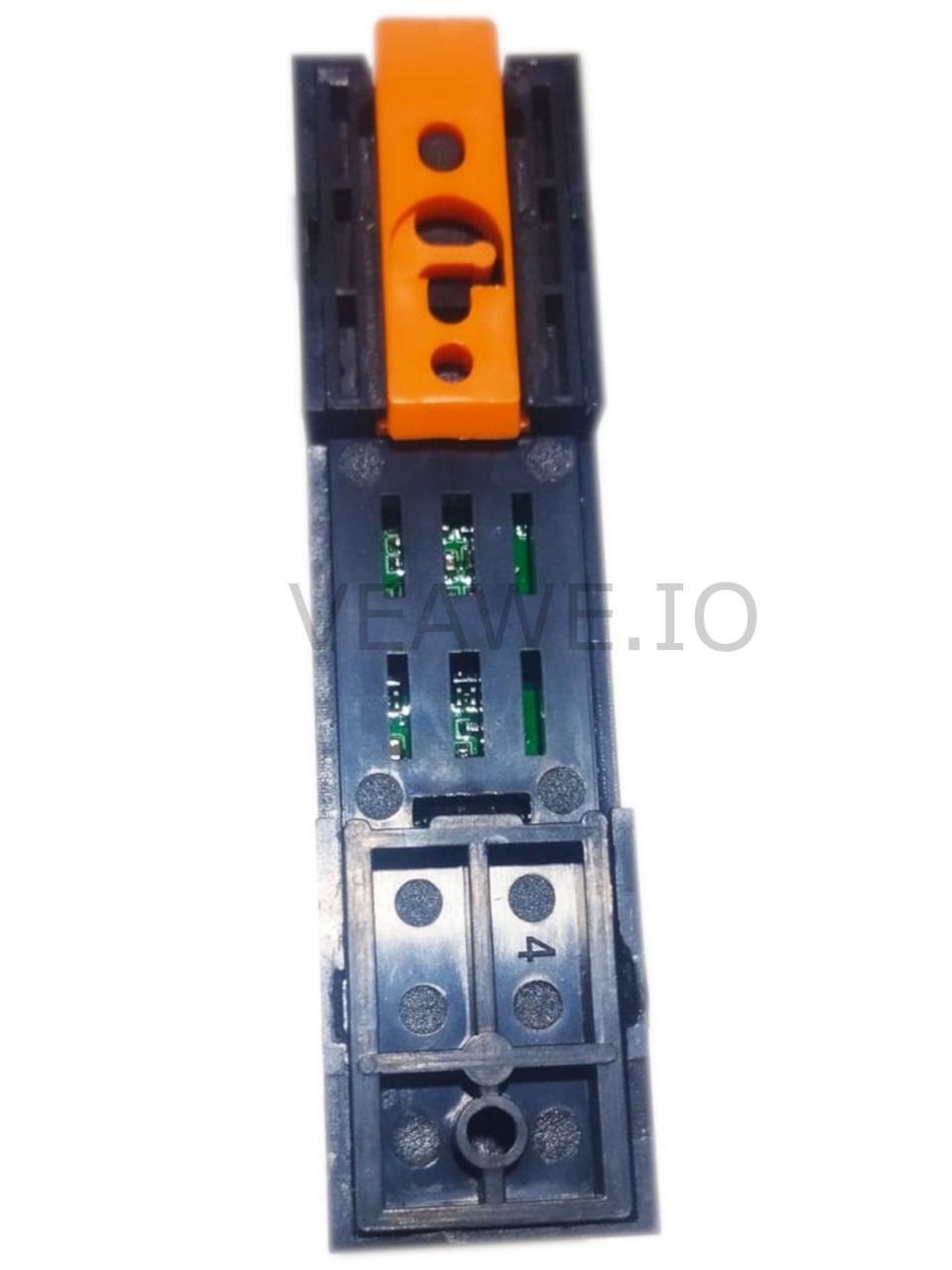

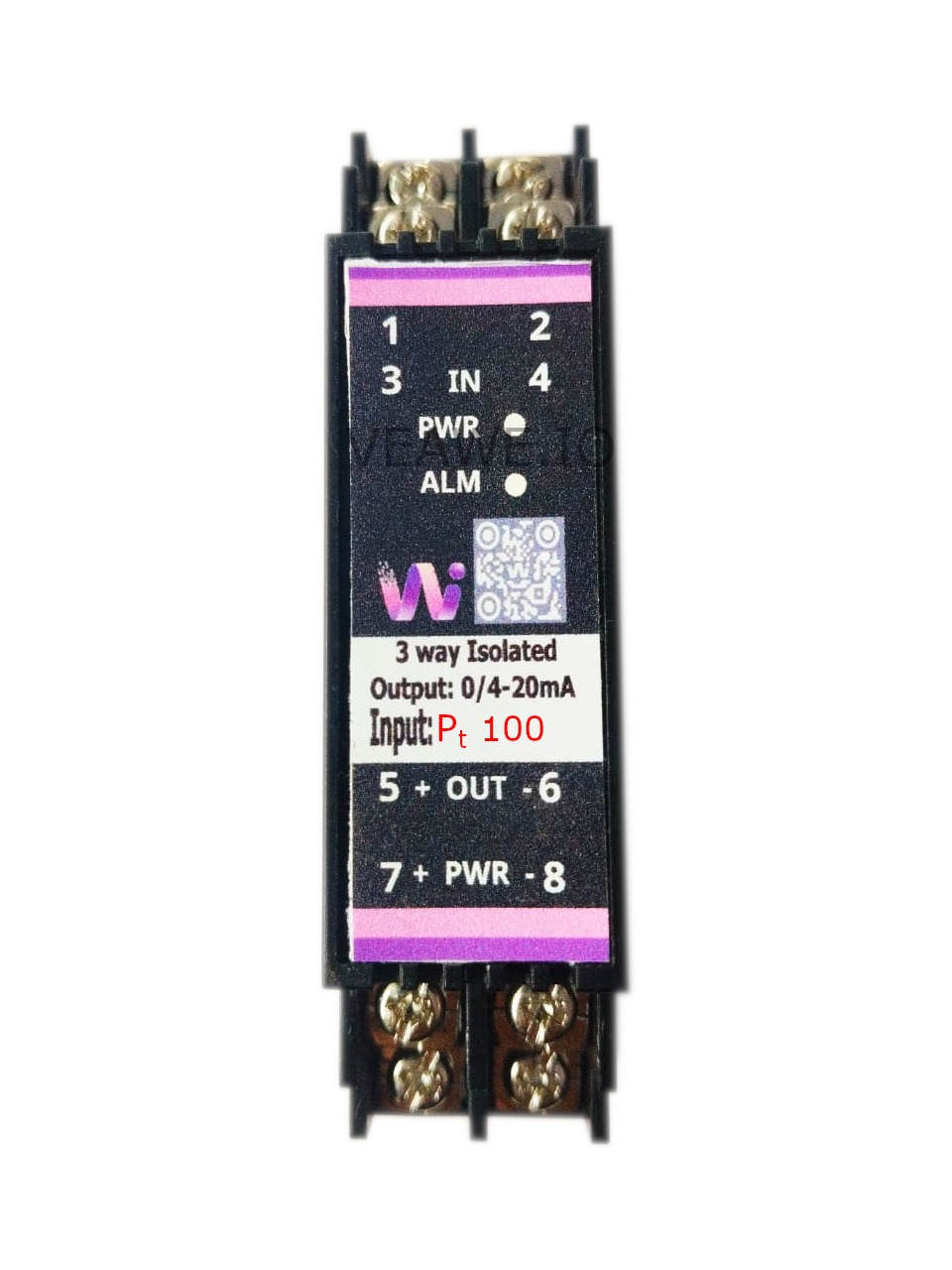

Isolated Analog Signal Converter Pt 100
Original price was: ₹4,500.00.₹2,800.00Current price is: ₹2,800.00.
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Pt 100
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Application:-
Modbus, Profibus and DMX applications or any RS485 field bus application
5 Volt differential or single ended data lines
Industrial and building automation
Solar power monitoring systems
Industrial data communication systems
| Part No | AC-PT100-420 |
|---|---|
| Brand | Veawe |
| Mounting Type | DIN Rail, Wall Mount |
| Dimensions | 110mm x 74mm x 22mm |
| Warranty | 1 Year |
| Country of Origin | Made in India |
