Isolated Analog Signal Converter Pt 100

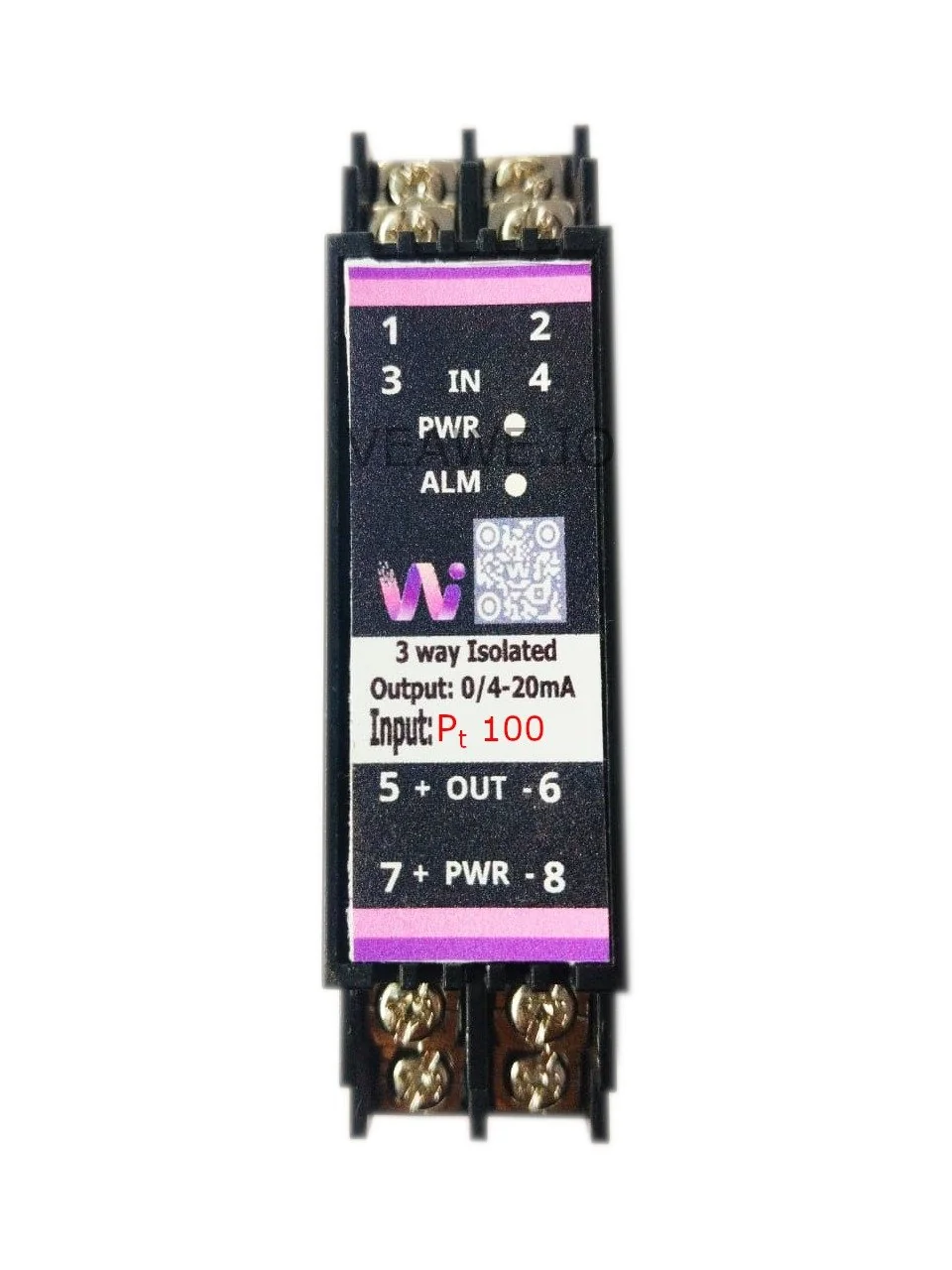

Isolated Analog Signal Converter Pt 100 AC-PT100-420
The AC-PT100-420 (VW-ST-TR1P1) is an industrial DIN-rail temperature transmitter engineered to convert Pt100 RTD sensor inputs into an isolated standard analog signal (4–20mA, 0–20mA, or 0–10V DC). Built with advanced 3-way galvanic isolation (1,500V AC between input, output, and power supply), it effectively eliminates ground loops, suppresses common-mode electrical noise, and protects downstream PLCs, DCS controllers, and SCADA data acquisition hardware in electrically harsh plant environments. It supports both 2-wire and 3-wire RTD configurations with automatic lead resistance compensation, customizable temperature ranges across -200 °C to +850 °C, and high Class 0.2% measurement accuracy.
Key Features
- 3-way 1.5 kV AC galvanic isolation (input, output, and power)
- 2-wire and 3-wire Pt100 RTD temperature sensor input
- Automatic lead-wire resistance compensation
- Factory customizable temperature spans across -200 °C to +850 °C
- 4–20mA active current loop output driving loads up to 500 Ω
- Fast response time (≤ 10 ms) for closed-loop temperature control
- Sensor open-circuit burnout alarm indicator (
ALM) - 24V DC industrial power supply input
- Slim 25 mm DIN rail mountable housing
- Dimensions: 110 mm × 47 mm × 25 mm
Ordering Information
| Product Code | Description |
|---|---|
| AC-PT100-420 | Isolated Analog Signal Converter Pt 100 (4–20mA, 24V DC, 3-Way Isolated) |
| AC-PT1000-420 | Isolated Analog Signal Converter Pt 1000 (4–20mA, 24V DC, 3-Way Isolated) |
| AC-RES-420 | Isolated Resistance Signal Converter 0–5k \(\Omega\) to 4–20mA |
| AC-TCK-420 | Isolated Thermocouple Converter K-Type to 4–20mA |
| AC-TCJ-420 | Isolated Thermocouple Converter J-Type to 4–20mA |
| SPD-20MA | 4–20mA Surge Protection Device |
| USS20M24V-D | Current Source Simulator 0/4 to 20mA with Display |
Applications
- Process Temperature Control: Measuring reactor, boiler, and distillation column temperatures in chemical and petrochemical facilities.
- HVAC & Building Automation: Chilled water, air handling units (AHU), and cleanroom environmental monitoring.
- Food & Pharmaceutical Processing: Cleanroom sanitary temperature monitoring and CIP pasteurization tracking.
- Rotating Machinery & Bearings: Real-time motor stator winding, bearing, and lubrication oil temperature measurement.
- Power Generation & Sub-stations: High-voltage electrical switchgear temperature monitoring with ground loop immunity.
Specifications
| Parameter | Value |
|---|---|
| Mounting Type | 35 mm DIN Rail Mounting |
| Dimensions | 110 mm x 47 mm x 25 mm (L x H x W) |
| Weight | 100 g |
| Enclosure Material | Industrial Grade ABS |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Voltage | 24V DC \(\pm 10\%\) |
| Operating Current | 100 mA @ 24V DC |
| Sensor Input Type | Pt100 RTD (2-wire or 3-wire) |
| Temperature Range | Customizable from -200 °C to +850 °C |
| Measurement Accuracy | 1 °C (Class 0.2% of Full Scale @ 25 °C) |
| Output Signal Range | 4.00 mA to 20.00 mA (or 0–20 mA / 0–10V DC on request) |
| Maximum Output Load Resistance | \(R_L \le 500\,\Omega\) |
| Response Time | \(\le 10\text{ ms}\) (0–90% TYP) |
| Galvanic Isolation Barrier | 1,500 V AC / 1 min (3-Way: Input / Output / Power Supply) |
| Status Indicators | PWR LED (Power ON), ALM LED (Sensor Fault / Disconnect) |
| Reverse Polarity Protection | Integrated diode on 24V DC input |
Mechanical Dimensions
Terminal Details & Wiring
Connection Pinouts
| Terminal Block | Pin | Label | Signal | Description |
|---|---|---|---|---|
| Input Terminals | 1 | SLD | Shield | Cable shield connection (Earth ground) |
| (Top Block) | 2 | IN 2 | RTD Return (-) | Pt100 sensor common return lead |
| 3 | IN 3 | RTD Excitation (+) | Pt100 positive excitation lead | |
| 4 | IN 4 | RTD Sense (+) | Pt100 sense lead (lead resistance compensation) | |
| Output Terminals | 5 | OUT + | Signal Out (+) | Active 4–20mA Analog Output (+) |
| (Bottom Block) | 6 | OUT - | Signal Out (-) | Analog Signal Ground / Current Return (-) |
| Power Terminals | 7 | PWR + | 24V DC (+) | +24V DC Operating Power Supply |
| (Bottom Block) | 8 | PWR - | 0V DC (-) | Power Supply Ground Return |
Sensor Wiring Configuration
- 3-Wire Pt100 Connection: Connect the single common lead of the RTD to terminal
2. Connect the two paired excitation and sense leads to terminals3and4. This configuration cancels out lead-wire resistance over long cable distances. - 2-Wire Pt100 Connection: Connect one RTD wire to terminal
2. Connect the second RTD wire to terminal3, and install a short jumper wire between terminals3and4.
LED Indications and Diagnostics
| LED | Color | Status | Description |
|---|---|---|---|
| PWR | Green | ON | Normal 24V DC operating power connected |
| ALM | Red | OFF | Normal operation; sensor input within valid range |
| ALM | Red | ON | Sensor open-circuit, broken wire, or burnout detected |
Revision History
| Revision | Date | Description of Change |
|---|---|---|
| Rev 1.0 | 2026-09-09 | Initial datasheet release |
Get the latest version of this datasheet : click here..
