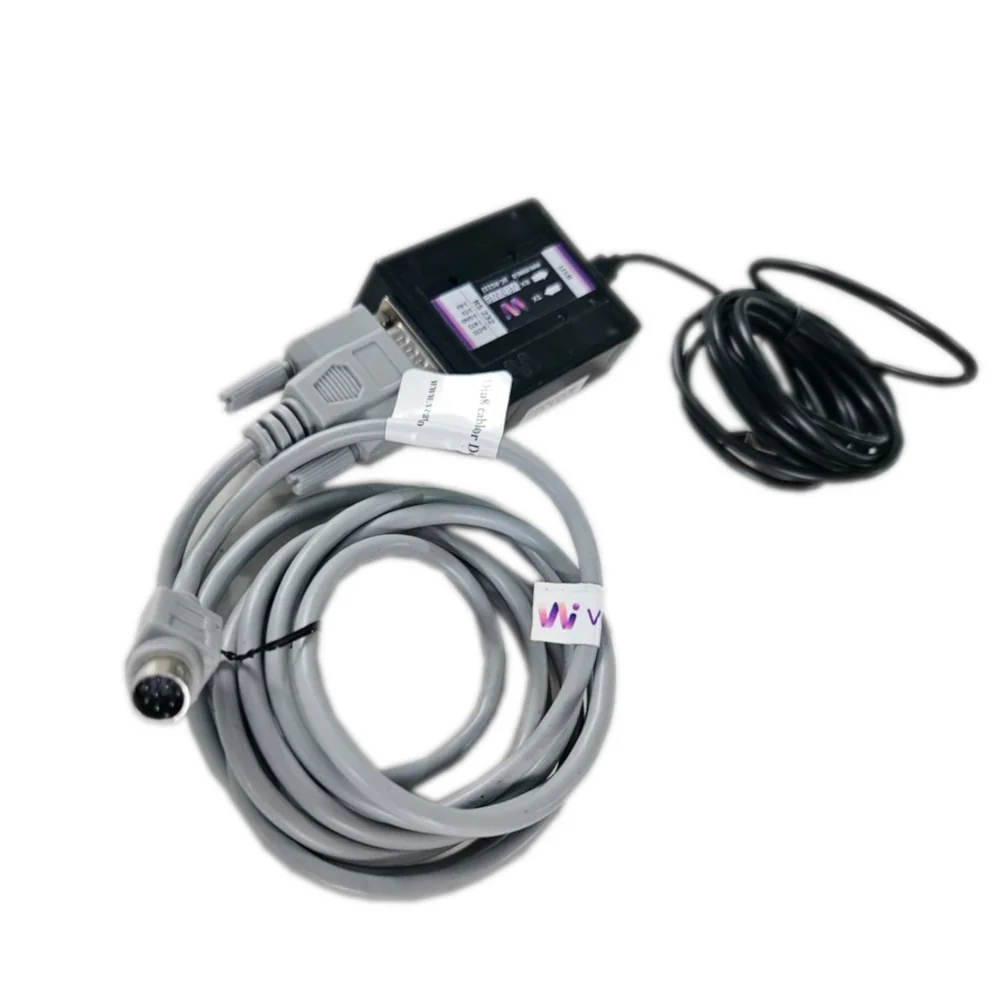

Industrial USB to RS232 programming cable designed for Delta DVP series PLCs (DVP-ES, DVP-EX, DVP-EH, DVP-EC, DVP-SV, DVP-SS, DVP-SX), providing reliable communication for programming, downloading, and diagnostics.
Key Features
- USB to Mini-DIN 8-pin programming cable for Delta DVP series PLCs
- Compatible with Delta DVP-ES, EX, EH, EC, SV, SS, SX and compatible HMIs
- Integrated high-speed USB-to-serial converter chipset
- Supports standard serial baud rates from 300 bps to 250 kbps
- Integrated LED activity indicators for TX and RX communication diagnostics
- Industrial shielded cable with molded 8-pin connector and strain relief
- Bus-powered directly from USB host (no external power supply required)
- Plug-and-play driver support for Windows 10/11 and Linux
Ordering Information
| Product Code | Description |
|---|---|
| USB-DVP-8PIN | Delta Plc Programming Cable DIN 8 |
| USB-SC09-FX | Mitsubishi PLC Programming Cable |
| UC-RS485 | USB to RS485 Converter |
| UC-ISO-RS485 | USB to ISO RS485 Converter |
| UC-RS232 | USB to RS232 Converter |
Applications
- Industrial Automation & Process Control: Reliable signal interfacing and device connectivity across automated production lines.
- SCADA & PLC Integration: Seamless communication between field instrumentation and control systems.
- Control Panel Building: Compact 35 mm DIN rail mounting for clean and space-efficient cabinet wiring.
- OEM Equipment & Diagnostics: Robust electrical protection and standard industrial ratings.
Specifications
| Parameter | Value |
|---|---|
| Mounting Type | Desktop |
| Dimensions | 60 mm x 50 mm x 20 mm (L x W x H) |
| Enclosure Material | Industrial ABS plastic |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V DC (Bus Powered) |
| Current Consumption | Low-power industrial design (< 50 mA) |
| Environmental Protection | IP54 / Industrial ABS Enclosure |
Wiring Details & Pinouts
Mini-DIN 8-Pin PLC Connector Pinout
| Pin | Signal | Direction | Description |
|---|---|---|---|
| 1 | GND | – | Signal Ground reference |
| 2 | 5V | Input | +5V DC supply from PLC programming port |
| 4 | RXD | Input | Data Receive (PLC transmit to PC receive) |
| 5 | TXD | Output | Data Transmit (PC transmit to PLC receive) |
| Shell | SHIELD | – | Cable shield and chassis ground |
LED Indications and Diagnostics
| LED | Color | Status | Description |
|---|---|---|---|
| PWR | Red | ON | USB host power connected and active |
| TX | Green | Blinking | Transmitting program / upload data to PLC |
| RX | Red | Blinking | Receiving program / monitor data from PLC |
Mechanical Dimensions
Revision History
| Revision | Date | Description of Change |
|---|---|---|
| Rev 1.0 | 2026-09-09 | Initial datasheet release |
Get the latest version of this datasheet : click here..
Support
Website: www.veawe.io
Email: info@veawe.io
