Mitsubishi PLC Programming Cable
Mitsubishi PLC Programming Cable

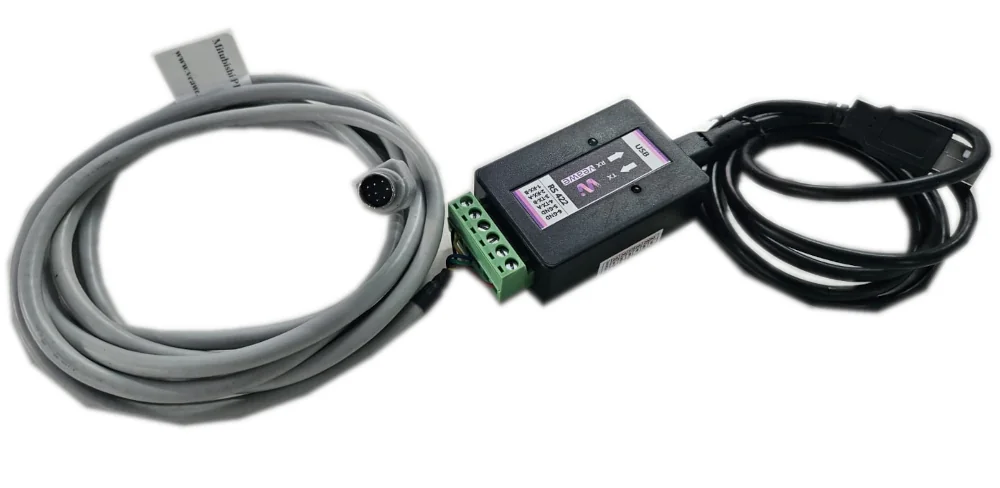

Industrial USB to RS422 programming cable designed for Mitsubishi MELSEC FX series PLCs (including FX1N, FX2N, FX3U, FX0N, and FX1S), providing reliable PC-to-PLC communication for programming, debugging, and monitoring.
Key Features
- USB to RS-422 programming cable for Mitsubishi FX series PLCs
- Compatible with Mitsubishi FX1N, FX2N, FX3U, FX0N, and FX1S series
- Integrated USB to differential RS-422 converter chipset
- Supports standard serial baud rates from 300 bps to 250 kbps
- Integrated LED activity indicators for TX and RX communication diagnostics
- Industrial shielded cable with molded Mini-DIN 8-pin connector
- Bus-powered directly from USB host (no external power supply required)
- Plug-and-play driver support for Windows 10/11 and Linux
Ordering Information
| Product Code | Description |
|---|---|
| USB-SC09-FX | Mitsubishi PLC Programming Cable |
| USB-DVP-8PIN | Delta Plc Programming Cable DIN 8 |
| UC-RS485 | USB to RS485 Converter |
| UC-ISO-RS485 | USB to ISO RS485 Converter |
| UC-RS232 | USB to RS232 Converter |
Applications
- Industrial Automation & Process Control: Reliable signal interfacing and device connectivity across automated production lines.
- SCADA & PLC Integration: Seamless communication between field instrumentation and control systems.
- Control Panel Building: Compact 35 mm DIN rail mounting for clean and space-efficient cabinet wiring.
- OEM Equipment & Diagnostics: Robust electrical protection and standard industrial ratings.
Specifications
| Parameter | Value |
|---|---|
| Mounting Type | 35 mm DIN Rail Mounting |
| Dimensions | 60 mm x 50 mm x 20 mm (L x W x H) |
| Enclosure Material | Industrial ABS plastic |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V DC (Bus Powered) |
| Current Consumption | Low-power industrial design (< 50 mA) |
| Environmental Protection | IP54 / Industrial ABS Enclosure |
Wiring Details & Pinouts
Mini-DIN 8-Pin PLC Connector Pinout
| Pin | Signal | Direction | Description |
|---|---|---|---|
| 1 | RXD+ | Input | RS-422 Receive non-inverting data from PLC |
| 2 | RXD- | Input | RS-422 Receive inverting data from PLC |
| 4 | TXD+ | Output | RS-422 Transmit non-inverting data to PLC |
| 7 | TXD- | Output | RS-422 Transmit inverting data to PLC |
| 3 | GND | – | Signal Ground reference |
| Shell | SHIELD | – | Cable shield and chassis ground |
LED Indications and Diagnostics
| LED | Color | Status | Description |
|---|---|---|---|
| PWR | Red | ON | USB host power connected and active |
| TX | Green | Blinking | Transmitting program / upload data to PLC |
| RX | Red | Blinking | Receiving program / monitor data from PLC |
Mechanical Dimensions
Revision History
| Revision | Date | Description of Change |
|---|---|---|
| Rev 1.0 | 2026-09-09 | Initial datasheet release |
