Isolated Analog Signal Converter Pt 1000

Isolated Analog Signal Converter Pt 1000 AC-PT1000-420 Datasheet pdf

The AC-PT1000-420 is an industrial DIN-rail temperature transmitter engineered to convert high-sensitivity Pt1000 RTD sensor inputs into an isolated standard analog signal (4–20mA, 0–20mA, or 0–10V DC). With 10 times higher nominal resistance and sensitivity than standard Pt100 sensors (\(3.85\,\Omega/\text{°C}\)), Pt1000 elements significantly minimize lead-wire resistance errors, making this converter particularly advantageous for extended cable runs and low-power telemetry. Featuring 3-way galvanic isolation (1,500V AC across input, output, and power supply), it protects control equipment against high common-mode surges, ground potential differences, and electrical noise.

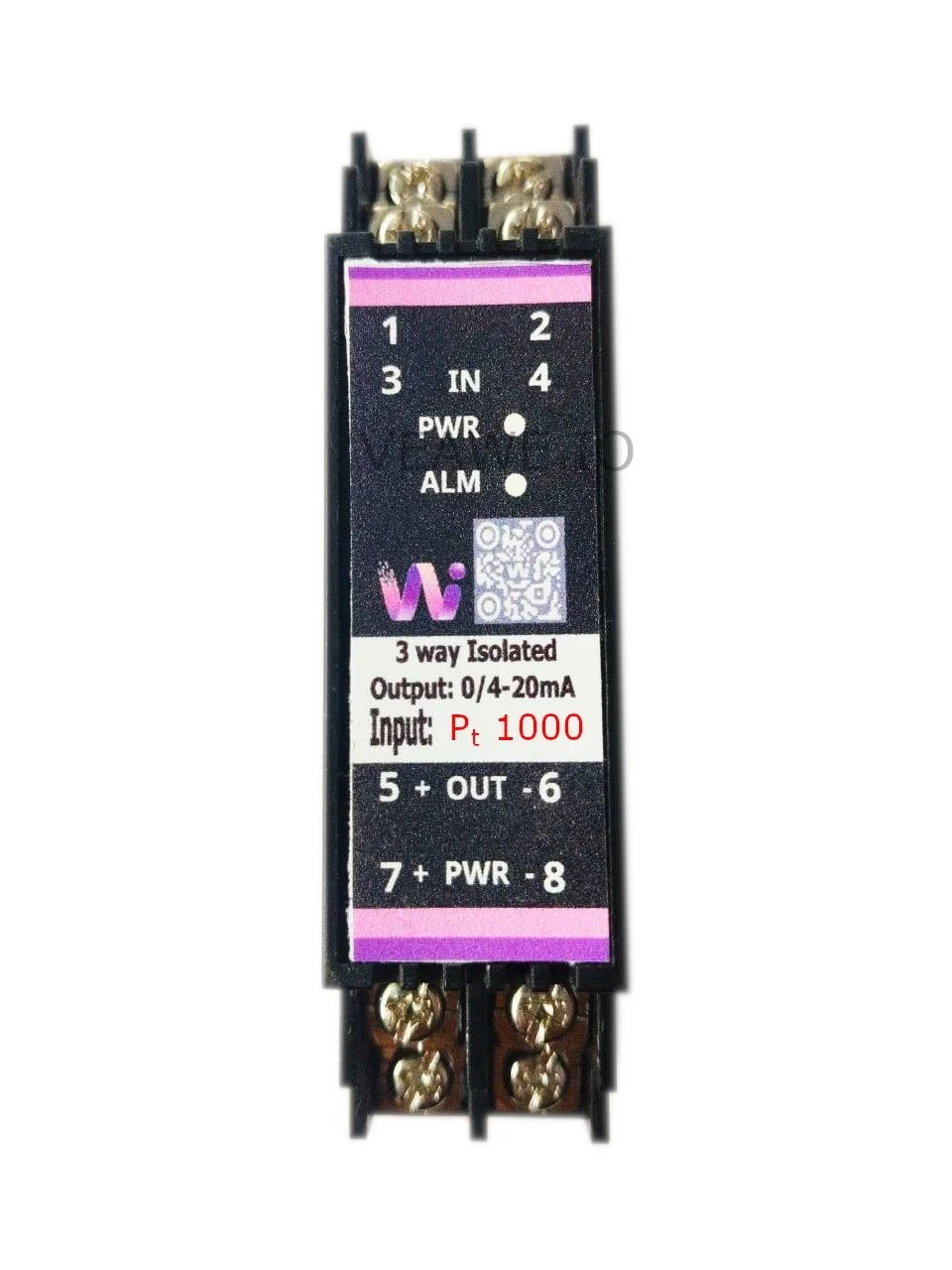

Product image

Key Features

  • 3-way 1.5 kV AC galvanic isolation (input, output, and power)
  • 2-wire and 3-wire Pt1000 high-sensitivity RTD sensor input
  • Automatic lead-wire resistance compensation
  • Factory customizable temperature spans across -200 °C to +850 °C
  • 4–20mA active current loop output driving loads up to 500 Ω
  • Fast response time (≤ 10 ms) for closed-loop temperature control
  • Sensor open-circuit burnout alarm indicator (ALM)
  • 24V DC industrial power supply input
  • Slim 25 mm DIN rail mountable housing
  • Dimensions: 110 mm × 47 mm × 25 mm

Ordering Information

Product Code Description
AC-PT1000-420 Isolated Analog Signal Converter Pt 1000 (4–20mA, 24V DC, 3-Way Isolated)
AC-PT100-420 Isolated Analog Signal Converter Pt 100 (4–20mA, 24V DC, 3-Way Isolated)
AC-RES-420 Isolated Resistance Signal Converter 0–5k \(\Omega\) to 4–20mA
AC-TCK-420 Isolated Thermocouple Converter K-Type to 4–20mA
AC-TCJ-420 Isolated Thermocouple Converter J-Type to 4–20mA
SPD-20MA 4–20mA Surge Protection Device
USS20M24V-D Current Source Simulator 0/4 to 20mA with Display

Applications

  • Extended-Distance Temperature Sensing: Remote monitoring over long cable runs where Pt100 lead-wire resistance would induce measurement offset.
  • HVAC & Precision Environmental Control: Energy management systems, cleanrooms, and climate test chambers.
  • Solar & Renewable Energy Systems: Photovoltaic surface temperature tracking and solar thermal collector loops.
  • Refrigeration & Cold Chain Logistics: Sub-zero temperature monitoring in industrial freezers and cryogenic storage.
  • Machinery & Electrical Cabinet Diagnostics: Continuous temperature monitoring for transformers, switchgear, and motor enclosures.

Specifications

Parameter Value
Mounting Type 35 mm DIN Rail Mounting
Dimensions 110 mm x 47 mm x 25 mm (L x H x W)
Weight 100 g
Enclosure Material Industrial Grade ABS
Operating Temperature -20 °C to +55 °C
Storage Temperature -40 °C to +85 °C
Relative Humidity 5% to 95% RH (non-condensing)

Electrical Specifications

Parameter Specification
Power Supply Voltage 24V DC \(\pm 10\%\)
Operating Current 100 mA @ 24V DC
Sensor Input Type Pt1000 RTD (2-wire or 3-wire)
Temperature Range Customizable from -200 °C to +850 °C
Measurement Accuracy 1 °C (Class 0.2% of Full Scale @ 25 °C)
Output Signal Range 4.00 mA to 20.00 mA (or 0–20 mA / 0–10V DC on request)
Maximum Output Load Resistance \(R_L \le 500\,\Omega\)
Response Time \(\le 10\text{ ms}\) (0–90% TYP)
Galvanic Isolation Barrier 1,500 V AC / 1 min (3-Way: Input / Output / Power Supply)
Status Indicators PWR LED (Power ON), ALM LED (Sensor Fault / Disconnect)
Reverse Polarity Protection Integrated diode on 24V DC input

Mechanical Dimensions

Mechanical dimensions

Terminal Details & Wiring

Wiring diagram

Connection Pinouts

Terminal Block Pin Label Signal Description
Input Terminals 1 SLD Shield Cable shield connection (Earth ground)
(Top Block) 2 IN 2 RTD Return (-) Pt1000 sensor common return lead
3 IN 3 RTD Excitation (+) Pt1000 positive excitation lead
4 IN 4 RTD Sense (+) Pt1000 sense lead (lead resistance compensation)
Output Terminals 5 OUT + Signal Out (+) Active 4–20mA Analog Output (+)
(Bottom Block) 6 OUT - Signal Out (-) Analog Signal Ground / Current Return (-)
Power Terminals 7 PWR + 24V DC (+) +24V DC Operating Power Supply
(Bottom Block) 8 PWR - 0V DC (-) Power Supply Ground Return

Sensor Wiring Configuration

  • 3-Wire Pt1000 Connection: Connect the single common lead of the RTD to terminal 2. Connect the two paired excitation and sense leads to terminals 3 and 4.
  • 2-Wire Pt1000 Connection: Connect one RTD wire to terminal 2. Connect the second RTD wire to terminal 3, and bridge terminals 3 and 4 together with a jumper wire.

LED Indications and Diagnostics

LED Color Status Description
PWR Green ON Normal 24V DC operating power connected
ALM Red OFF Normal operation; sensor input within valid range
ALM Red ON Sensor open-circuit, broken wire, or burnout detected

Revision History

Revision Date Description of Change
Rev 1.0 2026-09-09 Initial datasheet release
