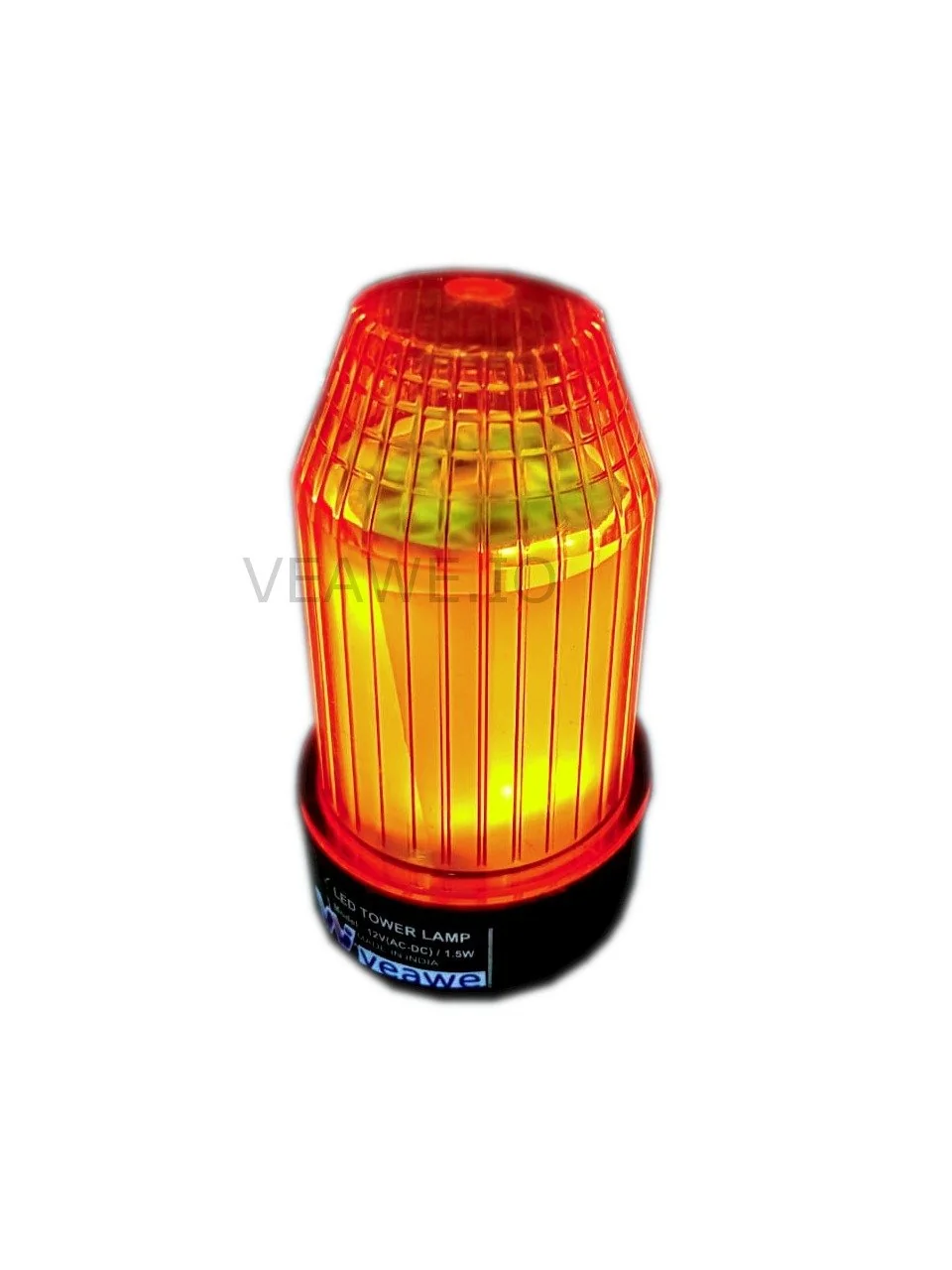

Industrial LED Tower Light Orange 12V AC/DC
Industrial single-tier orange/amber LED signal tower light designed for warning indication, standby status, and automation alert panels. Operates on 12V AC/DC with low power consumption.
Key Features
- Single-tier Orange/Amber high-brightness LED status beacon
- 360-degree radial visibility for machine warning and standby signaling
- 12V AC/DC universal supply operation
- Energy-efficient design consuming < 1.5W
- Continuous LED illumination mode with long operating life
- Direct surface or threaded bracket mounting
- Durable industrial polycarbonate housing
Ordering Information
| Product Code | Description |
|---|---|
| TWR-ORG-12V | Industrial LED Tower Light Orange 12V AC/DC |
| TWR-RED-12V | Industrial LED Tower Light RED 12V AC/DC |
| TWR-GRN-12V | Industrial LED Tower Light Green 12V AC/DC |
| TWR-RG-12V | Industrial LED Dual Tower Light RED/GREEN 12V AC/DC |
| TWR-ORG-24V | Industrial LED Tower Light Orange 24V AC/DC |
Applications
- Industrial Automation & Process Control: Reliable signal interfacing and device connectivity across automated production lines.
- SCADA & PLC Integration: Seamless communication between field instrumentation and control systems.
- Control Panel Building: Compact 35 mm DIN rail mounting for clean and space-efficient cabinet wiring.
- OEM Equipment & Diagnostics: Robust electrical protection and standard industrial ratings.
Specifications
| Parameter | Value |
|---|---|
| Mounting Type | 35 mm DIN Rail Mounting |
| Dimensions | 60 mm x 50 mm x 20 mm (L x W x H) |
| Enclosure Material | Industrial ABS plastic |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 12V DC |
| Current Consumption | Low-power industrial design (< 50 mA) |
| Environmental Protection | IP54 / Industrial ABS Enclosure |
Wiring Details & Pinouts
Flying Lead Wiring Connections
| Wire Color | Polarity | Function | Description |
|---|---|---|---|
| Red / Brown | (+) | Power Supply Input | Connects to operating AC/DC power supply (+) |
| Black / Blue | (-) | Common / Return | Power supply ground / neutral return (-) |
Mechanical Dimensions
Revision History
| Revision | Date | Description of Change |
|---|---|---|
| Rev 1.0 | 2026-09-09 | Initial datasheet release |
