Isolated Analog Signal Converter 300V to 10V AC-300V-10V Datasheet pdf

The AC-300V-10V is an industrial precision high-voltage analog signal conditioner designed to convert 0–300V DC voltage levels into a standardized, isolated 0–10V DC instrumentation signal. Built with a pure linear analog isolation amplifier without PWM conversion or digital reconstruction, it achieves ultra-fast response time (< 1 ms) and exceptional signal fidelity (< ±0.1% output ripple). With a robust 4.25 kV RMS galvanic isolation barrier between high-voltage input and low-voltage control circuitry, it protects PLC and DCS analog input modules from hazardous DC bus potentials, floating grounds, and high-energy transients across solar photovoltaic arrays, UPS DC battery banks, and electric vehicle charging systems.

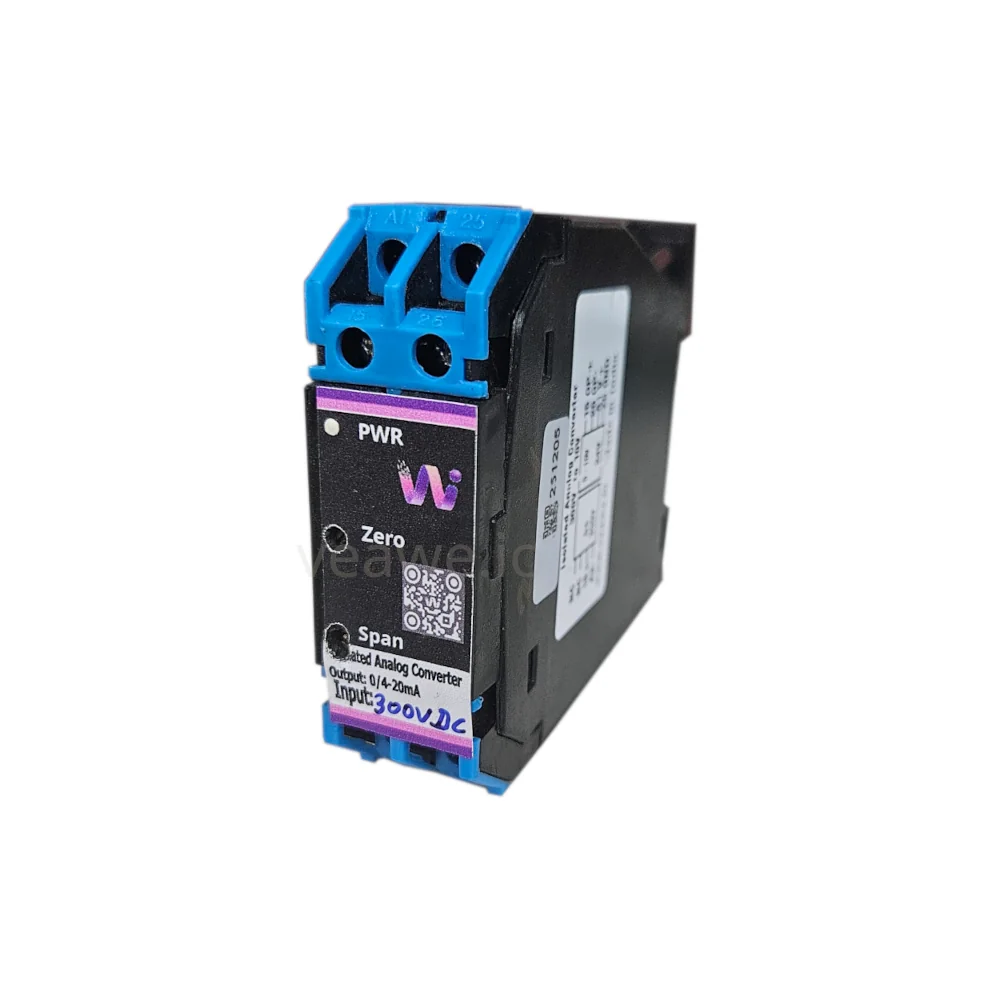

Product image

Key Features

  • 0–300V DC high-voltage input to 0–10V DC isolated linear conversion
  • 4.25 kV RMS galvanic isolation between input and output
  • 1.5 kV RMS isolation between input and auxiliary power
  • Ultra-fast response time (< 1 ms) for dynamic DC link monitoring
  • Low output ripple noise (< ±0.1%) with ±0.2% full-scale accuracy
  • Pure analog linear amplifier topology with zero digital sampling artifacts
  • Front-panel multi-turn Zero and Span calibration potentiometers
  • 24V DC auxiliary power supply (18V to 30V DC operating range)
  • Compact 22 mm DIN rail and wall mountable enclosure
  • Dimensions: 100 mm × 76 mm × 22 mm

Ordering Information

Product Code Description
AC-300V-10V Isolated High Voltage Converter 0–300V DC to 0–10V DC (24V DC, 4.25kV Isolation)
AC-B300V-10V Isolated Bipolar High Voltage Converter ±300V DC to 0–10V DC
AC-150V-10V Isolated High Voltage Converter 0–150V DC to 0–10V DC
AC-70V-10V Isolated High Voltage Converter 0–70V DC to 0–10V DC
SPD-24V-DC Surge Protection Device 24V DC SPD
USS10V24V-D Voltage Source Simulator 0–10V with Digital Display

Applications

  • Solar Photovoltaic Array Monitoring: Safely stepping down and isolating DC string voltages up to 300V DC into PLC analog inputs.
  • UPS & Central Battery Power Systems: Continuous monitoring of high-voltage battery links and DC charging buses.
  • Industrial DC Drive Systems: Measuring DC rail potential on motor drives and regenerative braking units.
  • Traction & Substation Telemetry: Isolating high-voltage DC auxiliary power systems from ground-referenced automation controllers.
  • Electrolyzer & Fuel Cell Stacks: Precision voltage monitoring across high-potential DC electrochemical stacks.

Specifications

Parameter Value
Mounting Type 35 mm DIN Rail & Wall Mounting
Dimensions 100 mm x 76 mm x 22 mm (L x H x W)
Weight 100 g
Enclosure Material Industrial Grade ABS
Operating Temperature 0 °C to +50 °C (Industrial: -10 °C to +60 °C)
Storage Temperature -40 °C to +85 °C
Relative Humidity 5% to 95% RH (non-condensing)

Electrical Specifications

Parameter Specification
Power Supply Voltage 24V DC \(\pm 25\%\) (18V to 30V DC)
Operating Current 100 mA @ 24V DC
Input Signal Range 0.0 V to 300.0 V DC (High Voltage DC)
Input Impedance \(> 1\,\text{M}\Omega\)
Output Signal Range 0.00 V to 10.00 V DC (Load \(\ge 2\,\text{k}\Omega\))
Conversion Accuracy \(\pm 0.2\%\) of Full Scale @ 25 °C (max \(\pm 0.5\%\))
Output Ripple Noise \(< \pm 0.1\%\) of Full Scale
Response Time \(< 1\text{ ms}\) (< 1 milliSec)
Temperature Drift \(< 100\text{ ppm} / \text{°C}\)
Status Indication Power LED ON (PWR)
Field Calibration Front-panel multi-turn Zero and Span trimpots

Isolation & Protection Specifications

Parameter Value Standard / Notes
Galvanic Isolation (Input to Output) 4,250 V RMS (4.25 kV) Optical & magnetic isolation barrier (1 min)
Galvanic Isolation (Input to Aux. Power) 1,500 V RMS (1.5 kV) Continuous dielectric isolation
Output to Aux. Supply Shared Common Ground Non-isolated reference ground
Reverse Polarity Protection Integrated Protects internal circuitry against reverse DC supply wiring
Transient Clamping 600W TVS Surge and spike suppression across all ports

Functional Isolation Architecture & Dynamic Response

The pure linear analog architecture provides true continuous signal isolation without quantization stepping or switching ripples.

Galvanic isolation functional diagram

Oscilloscope Dynamic Waveform Verification

Oscilloscope measurement verifying that the isolated output signal reproduces the input waveform with sub-millisecond response latency (< 1 ms) and clean signal fidelity:

Oscilloscope dynamic waveform

Mechanical Dimensions

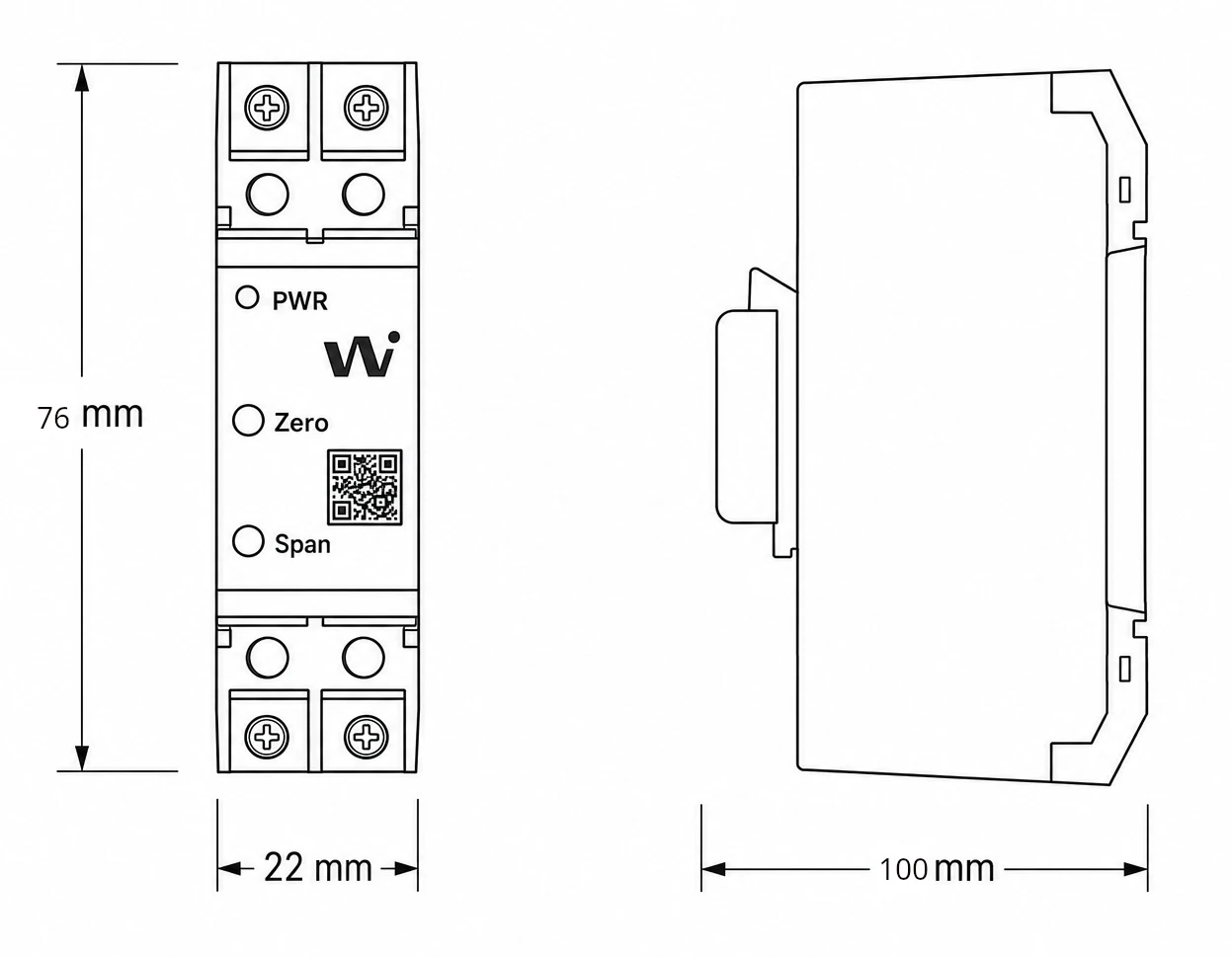

Mechanical dimensions

Terminal Details & Wiring

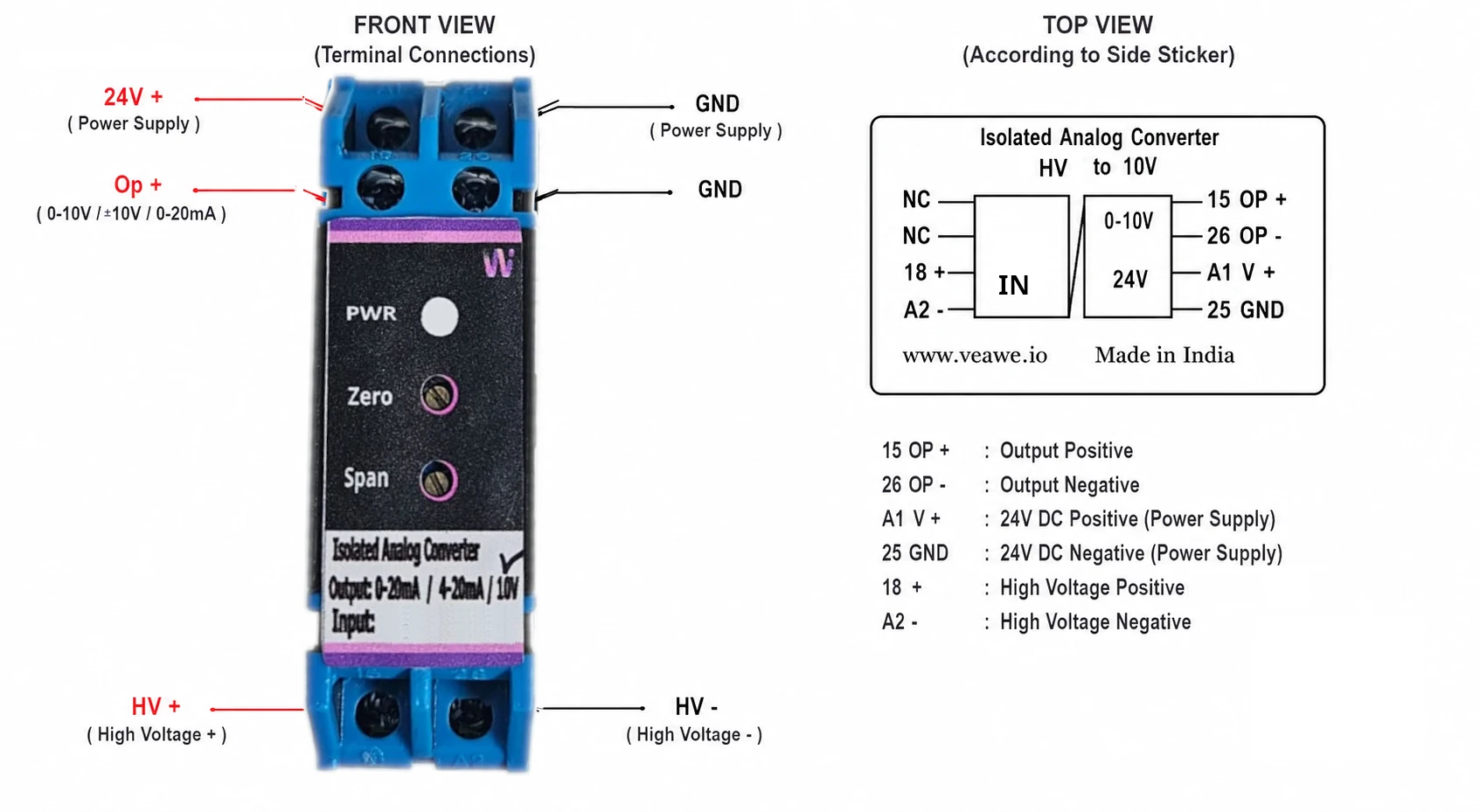

Wiring diagram

Connection Pinouts

Terminal Block Pin Label Signal Description
Input Terminals 18 18 + HV Input (+) 0–300V DC High Voltage Input (+)
(Bottom Block) A2 A2 - HV Input (-) High Voltage Input Ground Return (-)
– NC Unused Reserved / Not Connected
– NC Unused Reserved / Not Connected
Output Terminals 15 15 OP+ Output (+) Calibrated 0–10V DC Analog Output (+)
(Top Block) 26 26 OP- Output (-) Analog Output Ground Return (-)
Power Terminals A1 A1 V+ +24V DC Auxiliary Power Supply Input (+24V DC)
(Top Block) 25 25 GND Power 0V Auxiliary Power Supply Ground Return

Available Variants & Configurations

The Veawe Precision Analog Isolator family is available in standardized and custom input/output configurations:

Signal Converter Input Output High Voltage Input Output Transducer Input Output
0–20 mA 0–20mA, 4–20mA, 0–10V, ±10V 30V DC 0–20mA, 4–20mA, 0–10V Pt100 0–20mA, 4–20mA, 0–10V
4–20 mA 0–20mA, 4–20mA, 0–10V, ±10V 70V DC 0–20mA, 4–20mA, 0–10V Pt1000 0–20mA, 4–20mA, 0–10V
0–10 V DC 0–20mA, 4–20mA, 0–10V, ±10V 100V DC 0–20mA, 4–20mA, 0–10V K type 0–20mA, 4–20mA, 0–10V
0–5 V DC 0–20mA, 4–20mA, 0–10V, ±10V 150V DC 0–20mA, 4–20mA, 0–10V J type 0–20mA, 4–20mA, 0–10V
75 mV DC 0–20mA, 4–20mA, 0–10V, ±10V 300V / ±300V DC 0–20mA, 4–20mA, 0–10V Resistance 0–20mA, 4–20mA, 0–10V
±75 mV DC 0–20mA, 4–20mA, 0–10V, ±10V 350V DC 0–20mA, 4–20mA, 0–10V — —
— — 100V AC 0–20mA, 4–20mA, 0–10V — —
— — 5A AC (CT) 0–20mA, 4–20mA, 0–10V — —

LED Indications and Diagnostics

LED Color Status Description
PWR Green ON Auxiliary 24V DC operating power connected and regulated

Revision History

Revision Date Description of Change
Rev 1.0 2026-09-09 Initial datasheet release

Get the latest version of this datasheet : click here..
