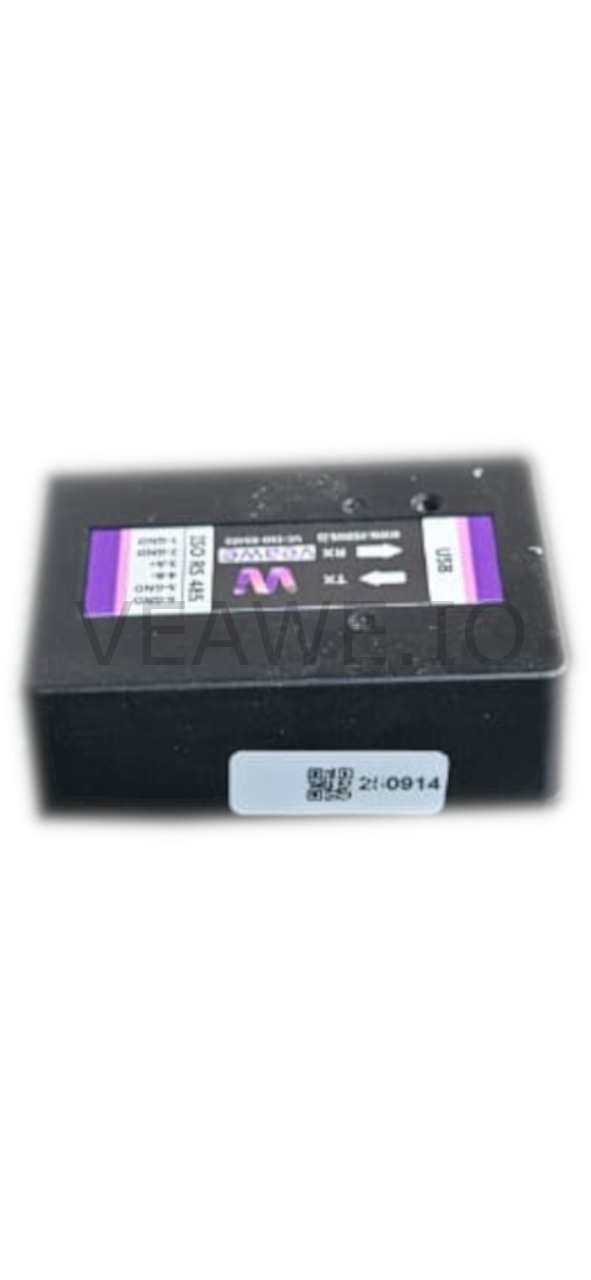

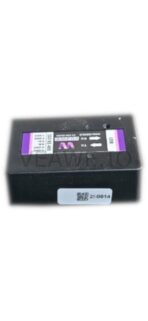

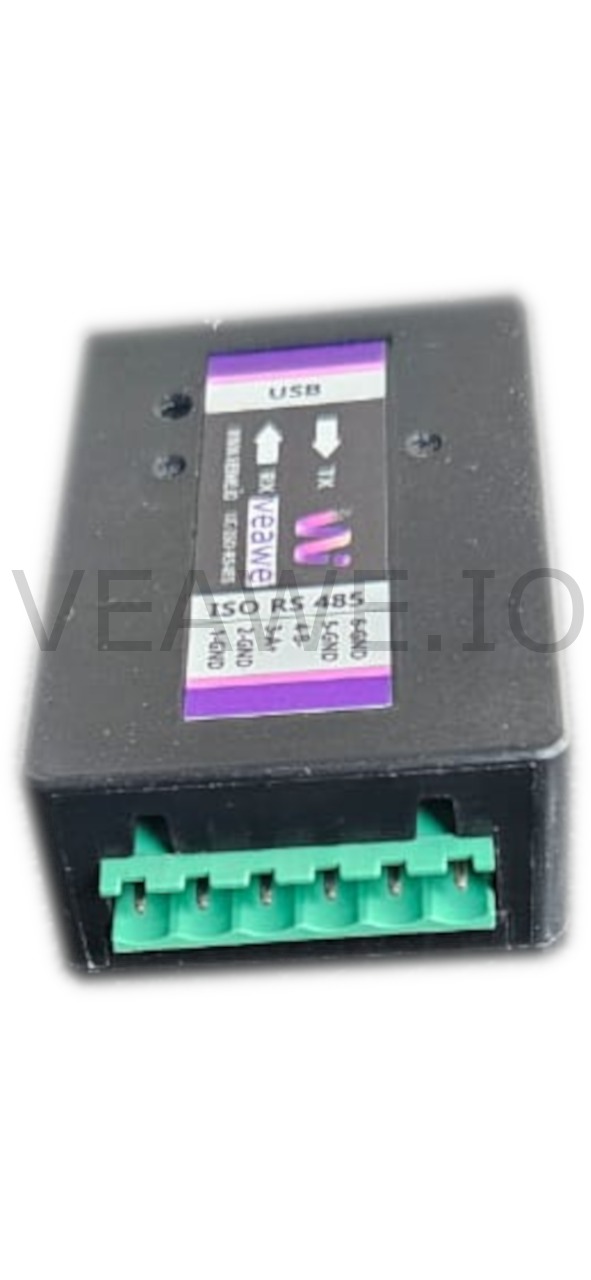

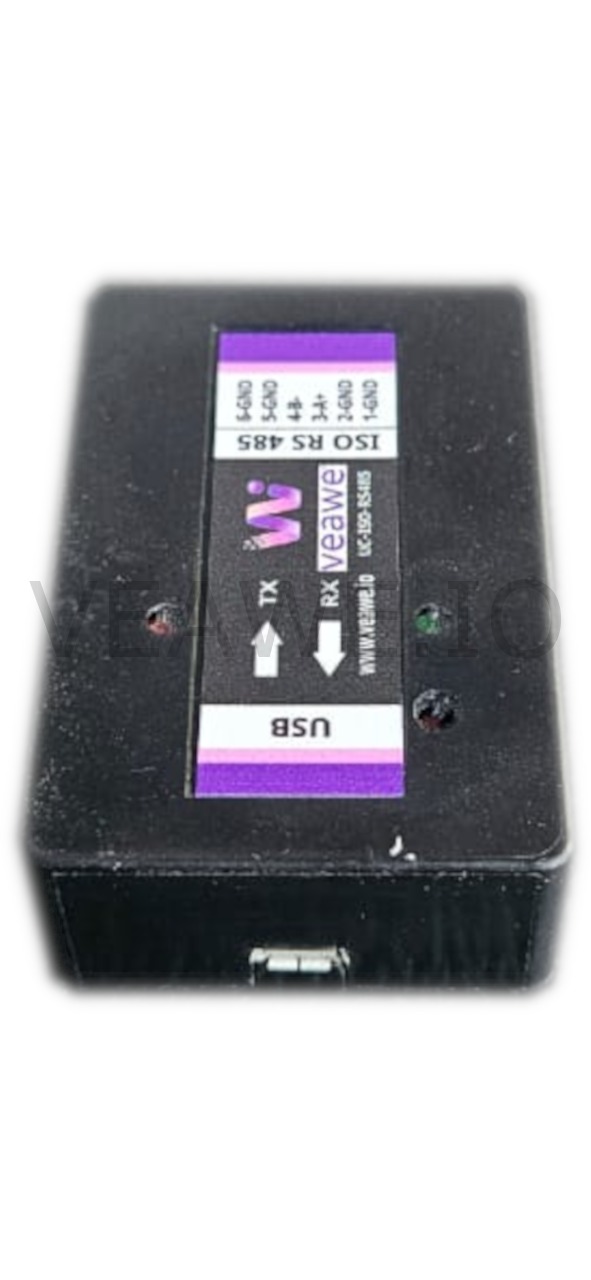

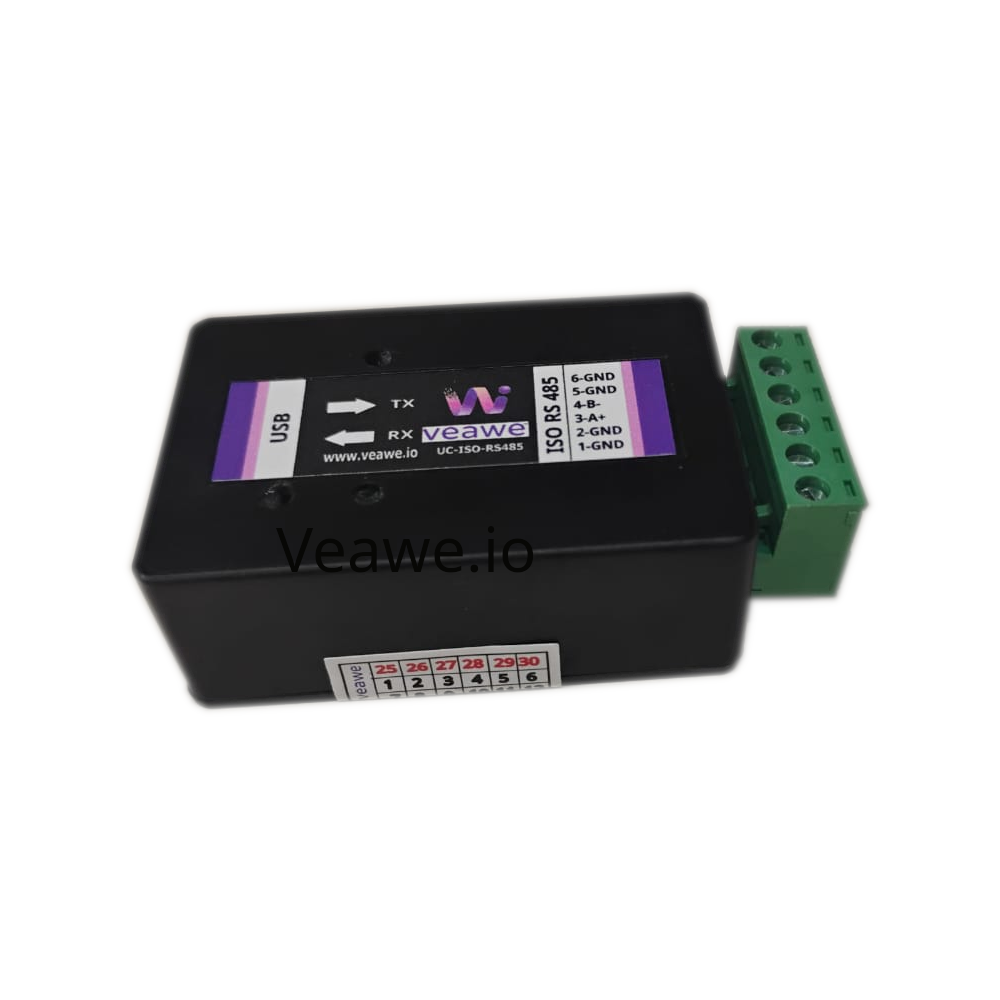

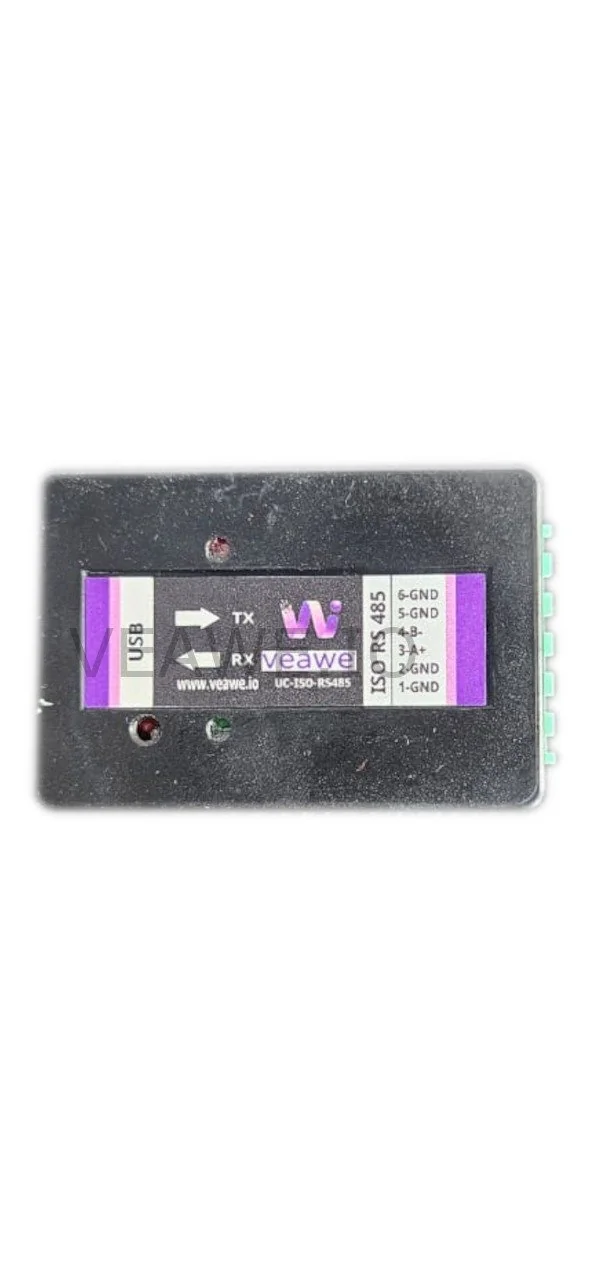

USB to ISO RS485 Converter UC-ISO-RS485
Original price was: ₹4,000.00.₹2,500.00Current price is: ₹2,500.00.
Specification
Isolated RS485 Power up to 1KVrms
Isolated RS485 Signals up to 2.5KVrms
Extended Common mode voltage between A an B ±25V
Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
USB Power, RS485 Rx and Tx light indications for easy visibility and troubleshooting
ESD and Surge protection for USB, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
Very compact size 60mm x 40mm x 20mm
ESD protection for RS485 pins
– ±16-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- ESD protection for USB
– ±2-kV Human-Body Model (HBM)
– ±200-kV Machine Mode (MM)
– ±500-kV Charged device mode (CDM)
- 1 Year Warranty against any manufacturing defects
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
Specification
- Isolated RS485 Power up to 1KVrms
- Isolated RS485 Signals up to 2.5KVrms
- Extended Common mode voltage between A an B ±25V
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc. - USB Power, RS485 Rx and Tx light indications for easy visibility and troubleshooting
- ESD and Surge protection for USB, RS485 and Power
- Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length - Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network - Very compact size 60mm x 40mm x 20mm
- ESD protection for RS485 pins
– ±16-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge - ESD protection for USB
– ±2-kV Human-Body Model (HBM)
– ±200-kV Machine Mode (MM)
– ±500-kV Charged device mode (CDM) - 1 Year Warranty against any manufacturing defects
Electrical characteristics
Power Input : 5V DC from USB Cable
Operating Temperature : 0 ~ 85 °C
Working Current : 200mA Max
RS485 in Receive input : ± 12V between A and B max
RS485 in Transmit output : A pulled up to +5V, B pulled down to 0V
RS485 Termination : 120 Ω between A and B built-in
| Dimensions | 60mm x 50mm x 20mm |
|---|---|
| Part No | UC-ISO-RS485 |
| Brand | Veawe |
| Bus Interface Type | USB to Isolated RS485 |
| Channels | 1 Channel |
| Chipset | FTDI |
| Protocol | Transparent Serial, Modbus RTU |
| Baud Rate | 300 bps ~ 250 kbps |
| Port Type | USB Type-C, Screw Terminal |
| Supply Voltage | 5V – USB Powered |
| Isolation | 2.5 kV RMS Signal, 1 kV RMS Power |
| Protection | ESD Protection (±15kV), TVS Surge Clamping, Reverse Polarity |
| Mounting Type | DIN Rail, Desktop |
| Warranty | 1 Year |
| Country of Origin | Made in India |
