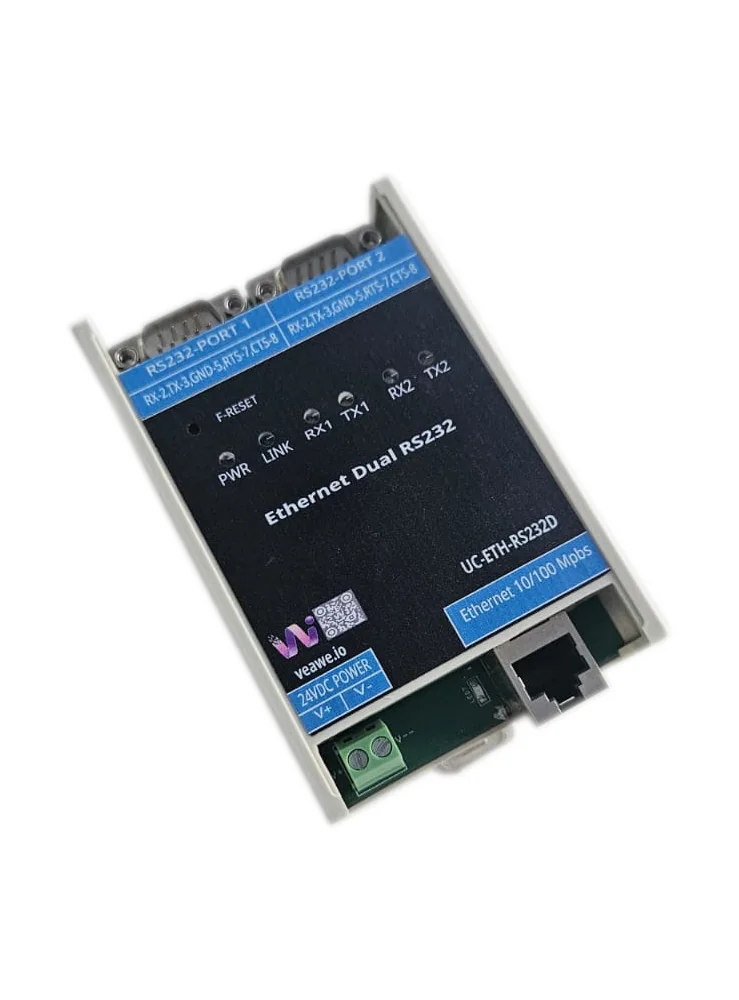

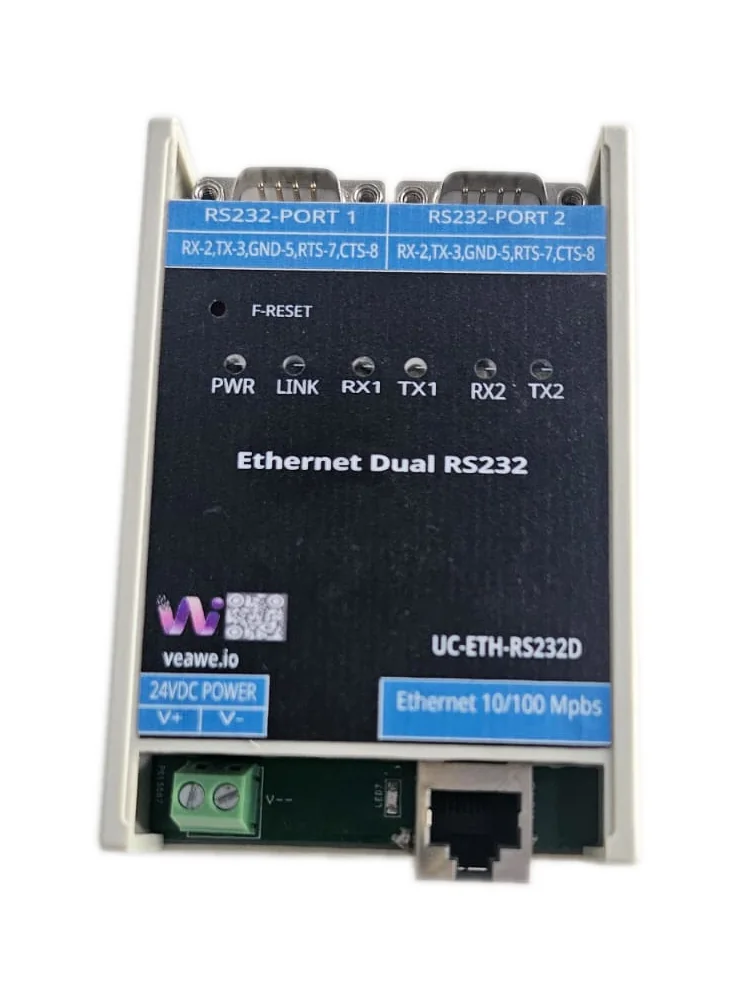

Ethernet Dual RS232 Converter UC-ETH-RS232-D
Original price was: ₹7,500.00.₹5,900.00Current price is: ₹5,900.00.
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS232 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option
Unique MAC address
Dimension in mm – 110 x 74 x 70
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion on both ports
ESD and Surge protection for Ethernet, RS232 and Power

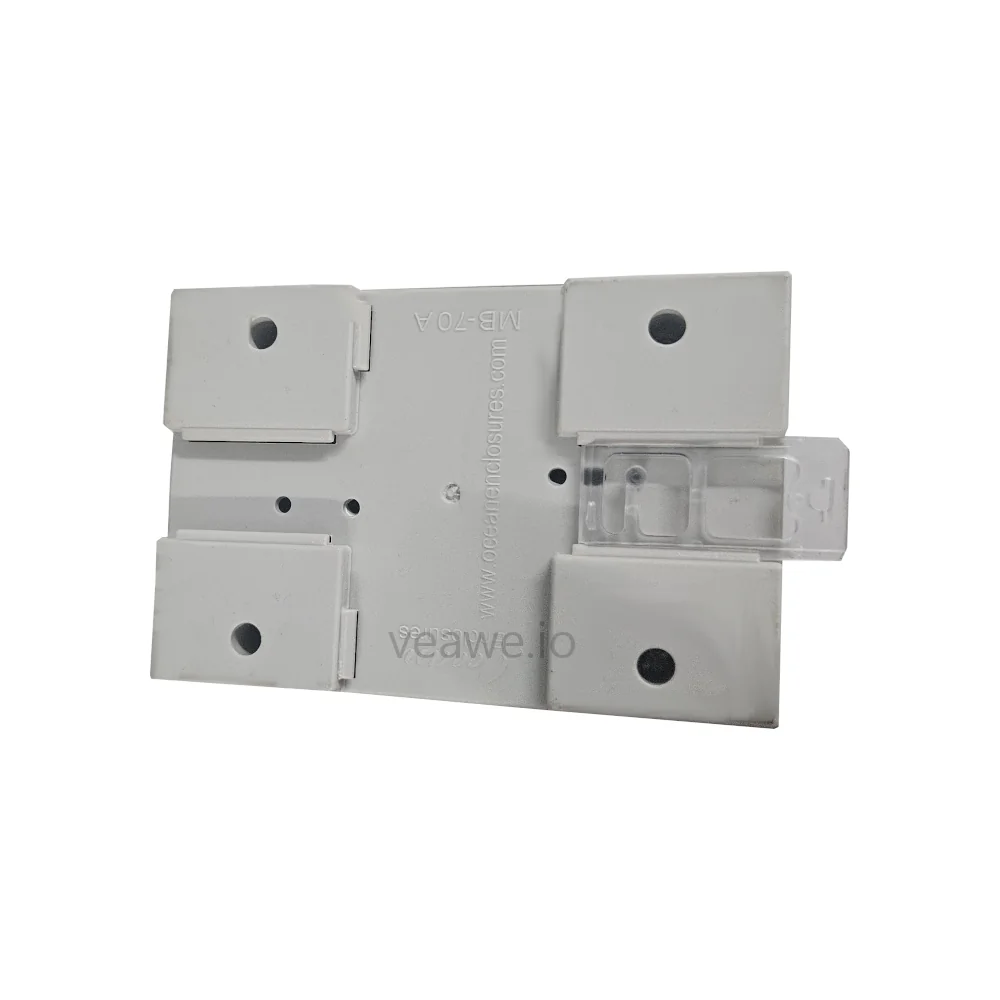

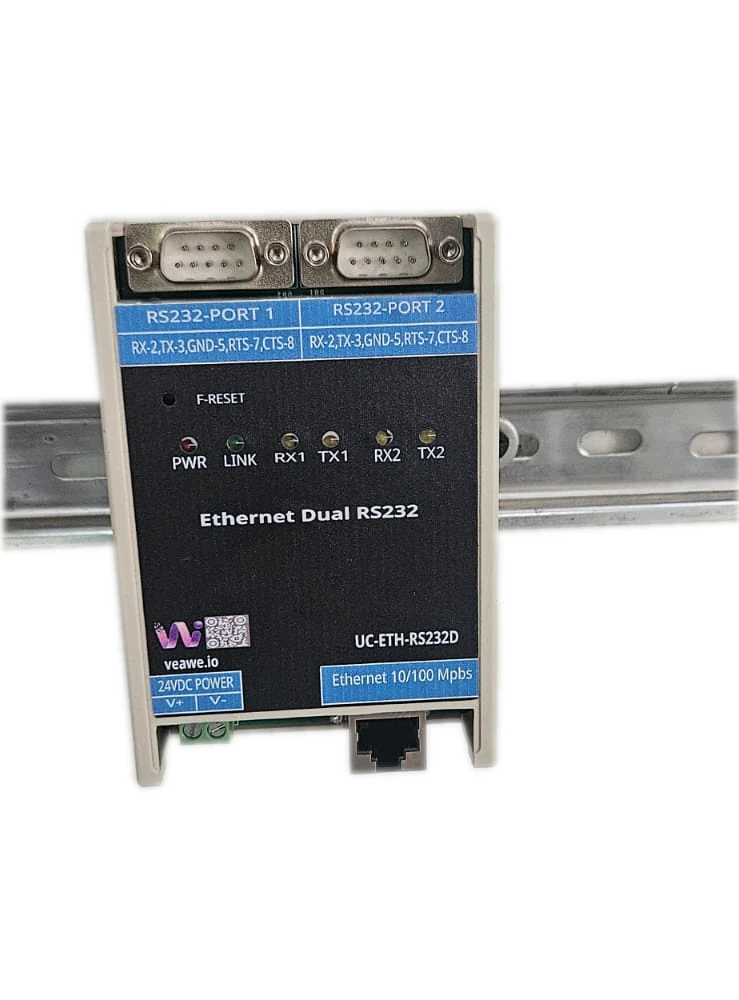

Compact design suitable for both DIN Rail and Wall mount
12~24V DC Supply
1 Year Warranty against any manufacturing defects
5 in stock
Application:-
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS232 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option
Unique MAC address
Compact design suitable for both DIN Rail and Wall mount
Dimension in mm – 110 x 74 x 70
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion on both ports
ESD and Surge protection for Ethernet, RS232 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- ESD protection for RS232 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
12~24V DC Supply
1 Year Warranty against any manufacturing defects
Works with all type of industrial equipments– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc. RS232 Rx and Tx light indications.
| length | Dimension in mm – 110 x 74 x 35 |
|---|---|
| Application | Modbus RTUModbus TCP/IP |
| Baud Rate | 600~115200 |
| Brand | Veawe |
| Channels | 2 channel |
| Country of Origin | Made in India |
| Interface | RS232 |
| Mounting Type | DIN Rail |
| Network Speed | 100Mbps |
| Part No | UC-ETH-RS232-D |
| Protocol | Modbus TCP |
| Serial Ports | 2 Ports |
| Supply Voltage | 24V DC |
| Warranty | 1 Year |
You may also like…
Ethernet Surge Protection Device SPD-ETH-RJ45
Ethernet SPD – Surge Protection Device
Protect your Ethernet network equipment from sudden voltage surges and transient overvoltage with our reliable Ethernet Surge Protection Device.
Designed for Ethernet communication lines, it helps safeguard network switches, routers, IP cameras, access points, and other connected equipment.
Key Features:
- High-speed Ethernet surge protection
- Protects against lightning-induced surges and transient voltage
- Compatible with Ethernet and PoE network applications
- Compact and easy-to-install design
- Helps reduce equipment damage and network downtime
- Suitable for CCTV, IP cameras, LAN networks, PoE switches, and communication systems
- Durable construction for reliable long-term operation
- Ideal for indoor and outdoor network installations
Applications:
LAN networks, IP CCTV cameras, network switches, routers, wireless access points, telecom and data communication equipment.
Product Benefit:
The Ethernet SPD provides an additional layer of protection for sensitive network equipment, helping maintain stable communication and extending equipment service life.
Features:-
Protection provided by high energy MOV and TVS
Replaceable modular design, DIN Rail compatible base
Application:-
All types PLC, HMI, IP Cameras, Outdoor ethernet
cabling, etc.,
Where to Use:
Noisy industrial lines like DC inductive load switching
Industrial power panels
Ethernet to Dual RS485 Converter UC-ETH-RS485-D
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS485 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option* Dimension in mm – 110 x 74 x 35
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion
ESD and Surge protection for Ethernet, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
12~24V DC Supply
1 Year Warranty against any manufacturing defects
Unique MAC address
Compact design suitable for both DIN Rail and Wall mount
USB to RS232 Converter UC-RS232
*Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures.
*But with the vast use of equipments with these interfaces needs a connection with PC for monitoring, configuring and working.
*Most of the market available converters are not equipments with proper ESD protection circuits to work longer and with an industry equipment.
*So we have our most suitable converter for both Industrial environment and general usage.
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
USB to RS485 Converter UC-RS485
*Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures.
*But with the vast use of equipments with these interfaces needs a connection with PC for monitoring, configuring and working.
*Most of the market available converters are not equipments with proper ESD protection circuits to work longer and with an industry equipment.
*So we have our most suitable converter for both Industrial environment and general usage.
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
Related products
Ethernet to RS485 Converter UC-ETH-RS485
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS485 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option
Unique MAC address
Compact design suitable for both DIN Rail and Wall mount
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion
ESD and Surge protection for Ethernet, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.– varies on cable length
Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- 1 Year Warranty against any manufacturing defects

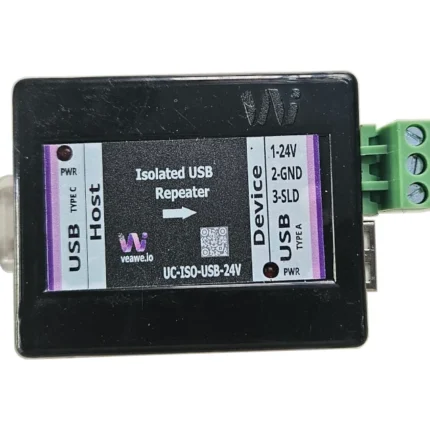

Industrial Isolated USB Repeater UC-ISO-USB-24V
