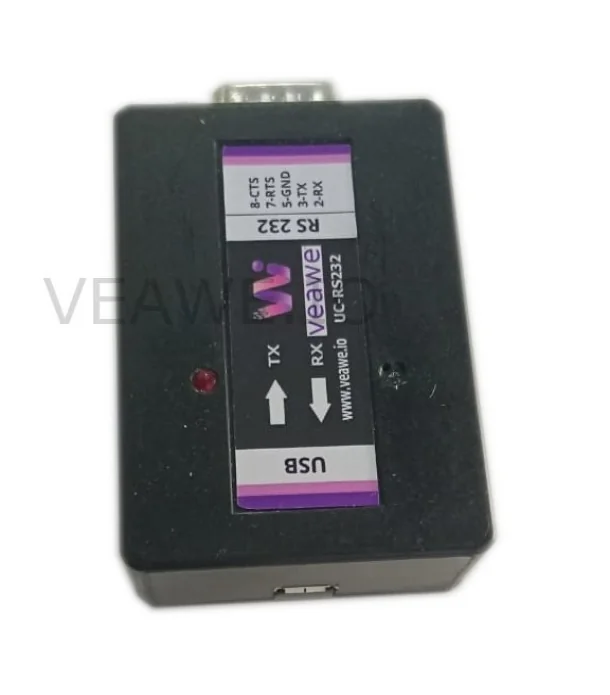

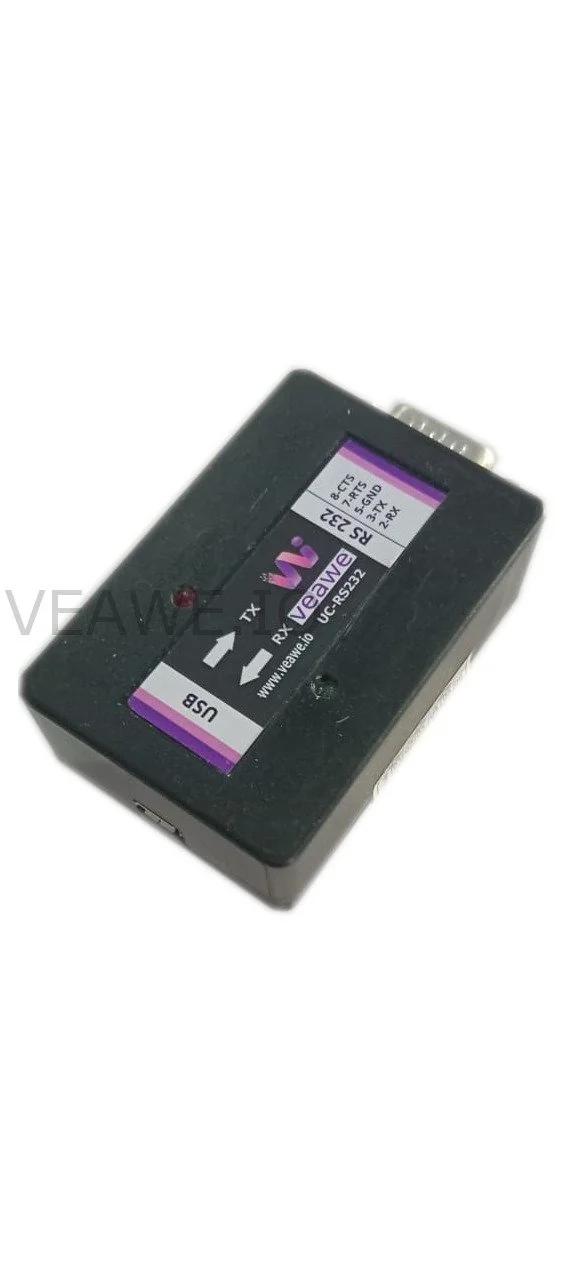

USB to RS232 Converter UC-RS232
Original price was: ₹1,800.00.₹1,500.00Current price is: ₹1,500.00.
*Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures.
*But with the vast use of equipments with these interfaces needs a connection with PC for monitoring, configuring and working.
*Most of the market available converters are not equipments with proper ESD protection circuits to work longer and with an industry equipment.
*So we have our most suitable converter for both Industrial environment and general usage.
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
Bridge modern PCs and legacy industrial equipment effortlessly with the Veawe USB to RS232 Converter (UC-RS232). Engineered to solve the challenge of modern computers lacking native COM/RS-232 ports, this converter provides a reliable serial communication interface for PLCs, SCADA systems, HMIs, drives, Inverters, MFM, and UPS units. Featuring robust ±15 kV ESD protection, automatic driver installation on Windows and Linux, and baud rate support up to 250 kBaud, it delivers durable, plug-and-play performance suited for harsh industrial environments and everyday bench testing alike.
Features and Specification
Supports all Baud Rates from 300 to 250 kBaud.
Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS,
Development Kits, etc.
- Rx and Tx light indications for easy visibility and
troubleshooting
Exceeds TIA/RS-232-F and ITU Recommendation V.28
ESD protection for all RS232 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- ESD protection for USB
– >±2-kV Human-Body Model (HBM)
– >±200-kV Machine Mode (MM)
– >±500-kV Charged device mode (CDM)
Very compact size 60mm x 40mm x 20mm
Easy replaceable mini-USB Cable
1 Year Warranty against any manufacturing defectsSpecification
Electrical characteristics
Power Input : 5V DC from USB Cable
Operating Temperature : 0 ~ 85 °C
Working Current : 200mA Max
RS232 Maximum Input level Voltage: ±30V
RS232 high level Output Voltage: 7 V
RS232 low level Output Voltage: -7 V
| Brand | Veawe |
|---|---|
| Supply Voltage | 5V – USB Powered |
| Warranty | 1 Year |
| Mounting Type | Desktop |
| Cable Length | 2 m |
| Part No | UC-RS232 |
| Bus Interface Type | USB to RS232 |
| Channels | 1 Channel |
| Chipset | FTDI |
| Protocol | Transparent Serial |
| Baud Rate | 300 bps ~ 250 kbps |
| Port Type | USB Type-C, DB9 Male |
| Isolation | Non-Isolated |
| Protection | ESD Protection (±15kV RS232 & USB) |
| Dimensions | 60mm x 50mm x 20mm |
| Country of Origin | Made in India |
