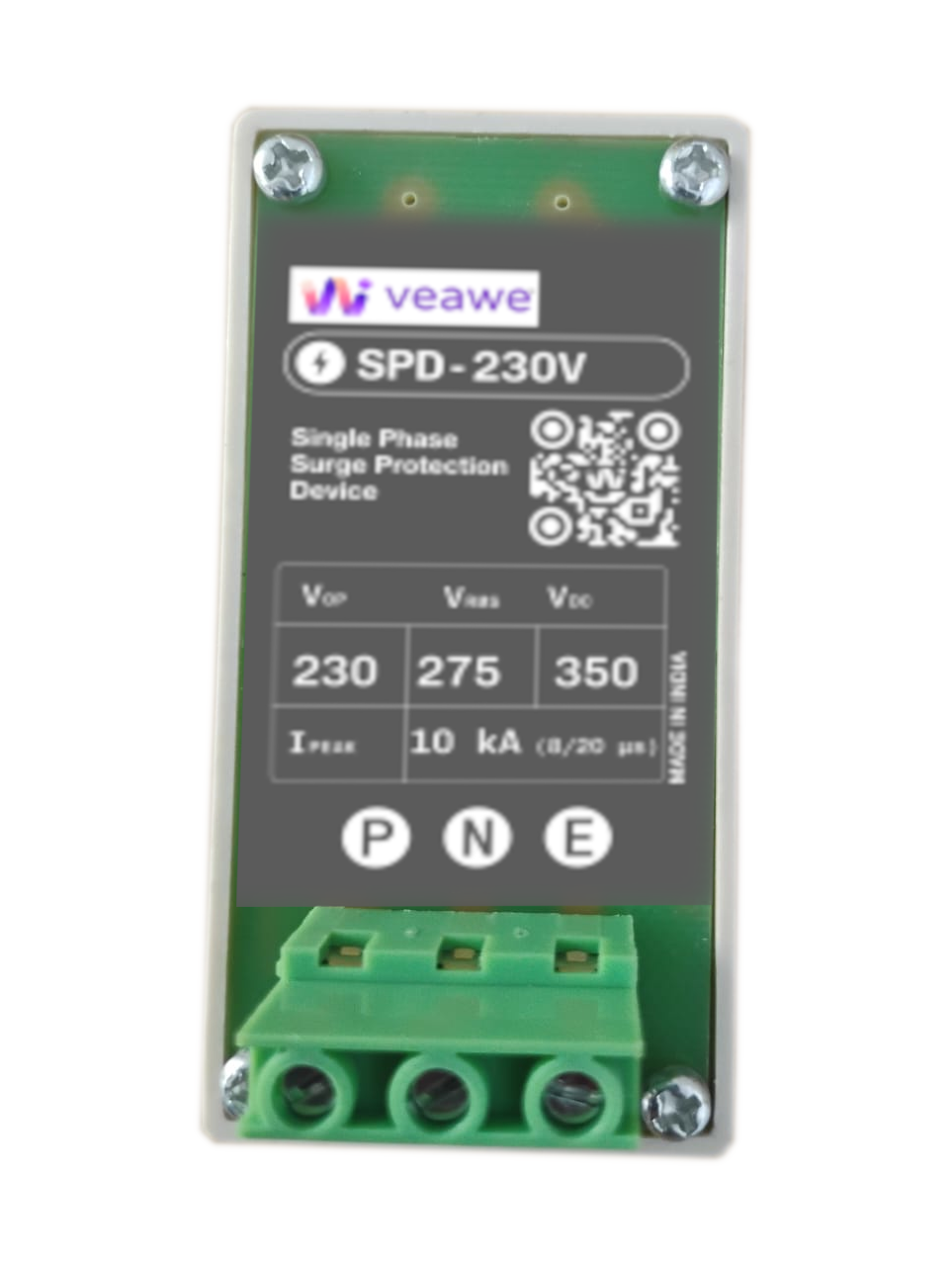

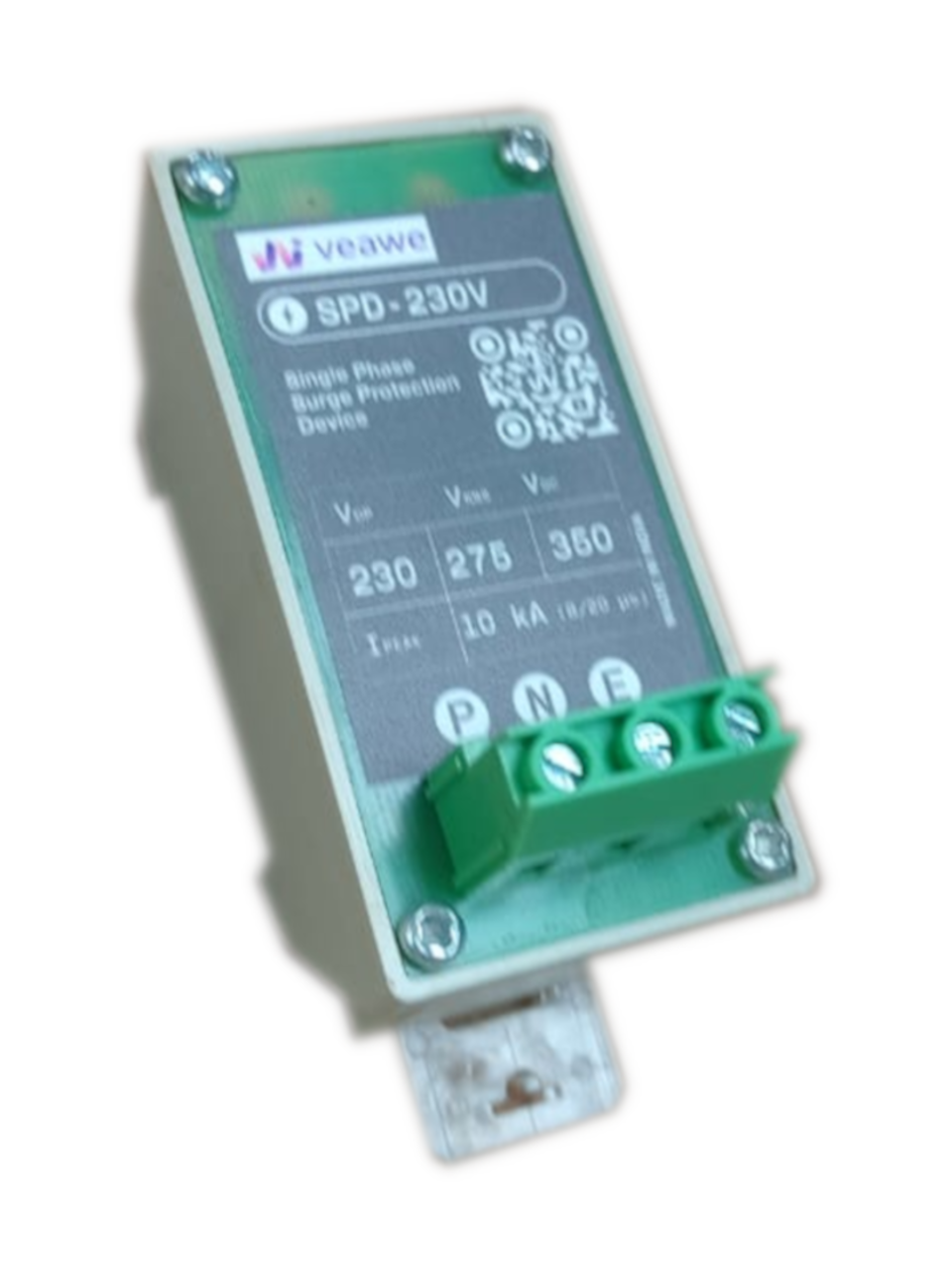

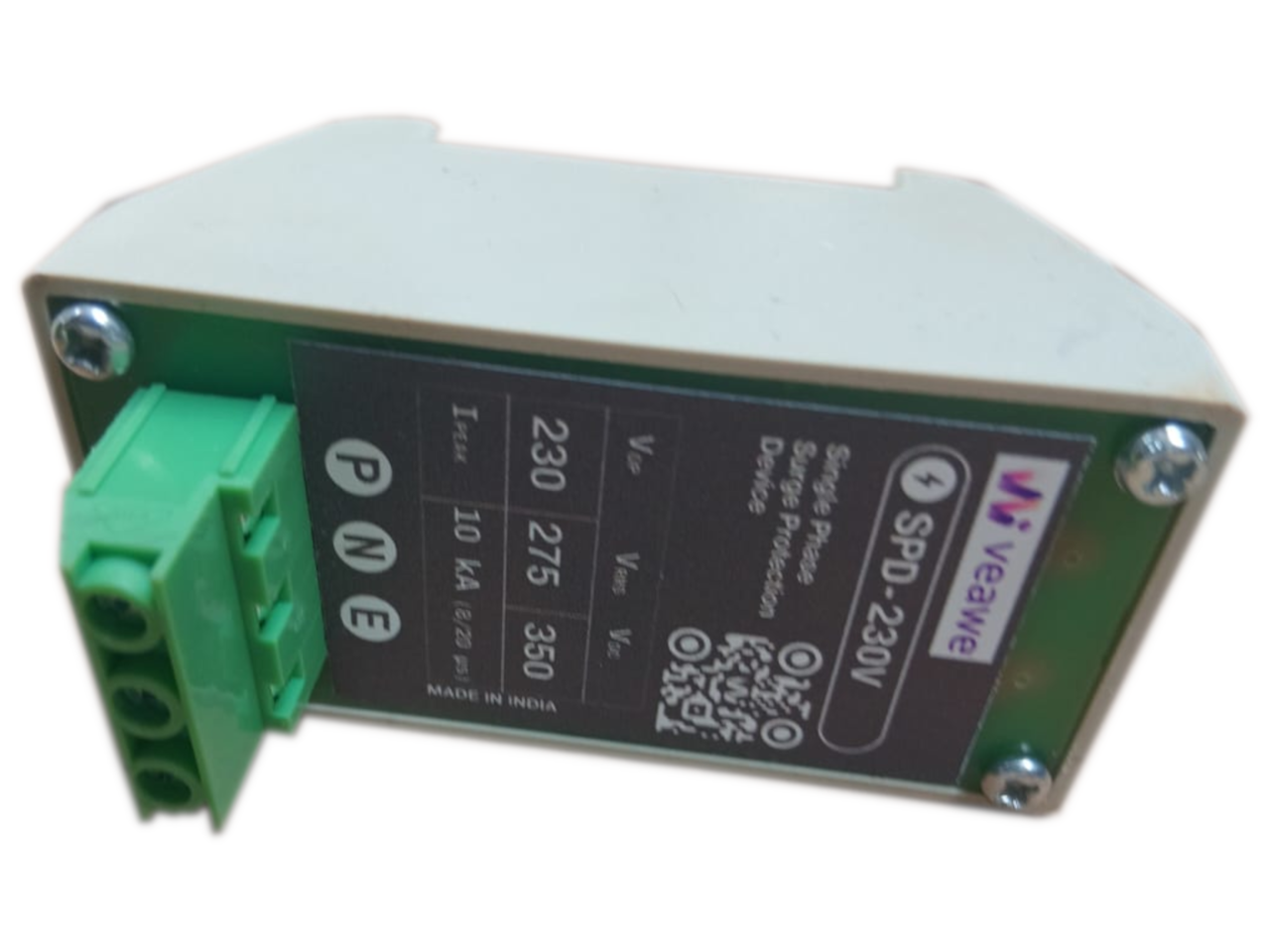

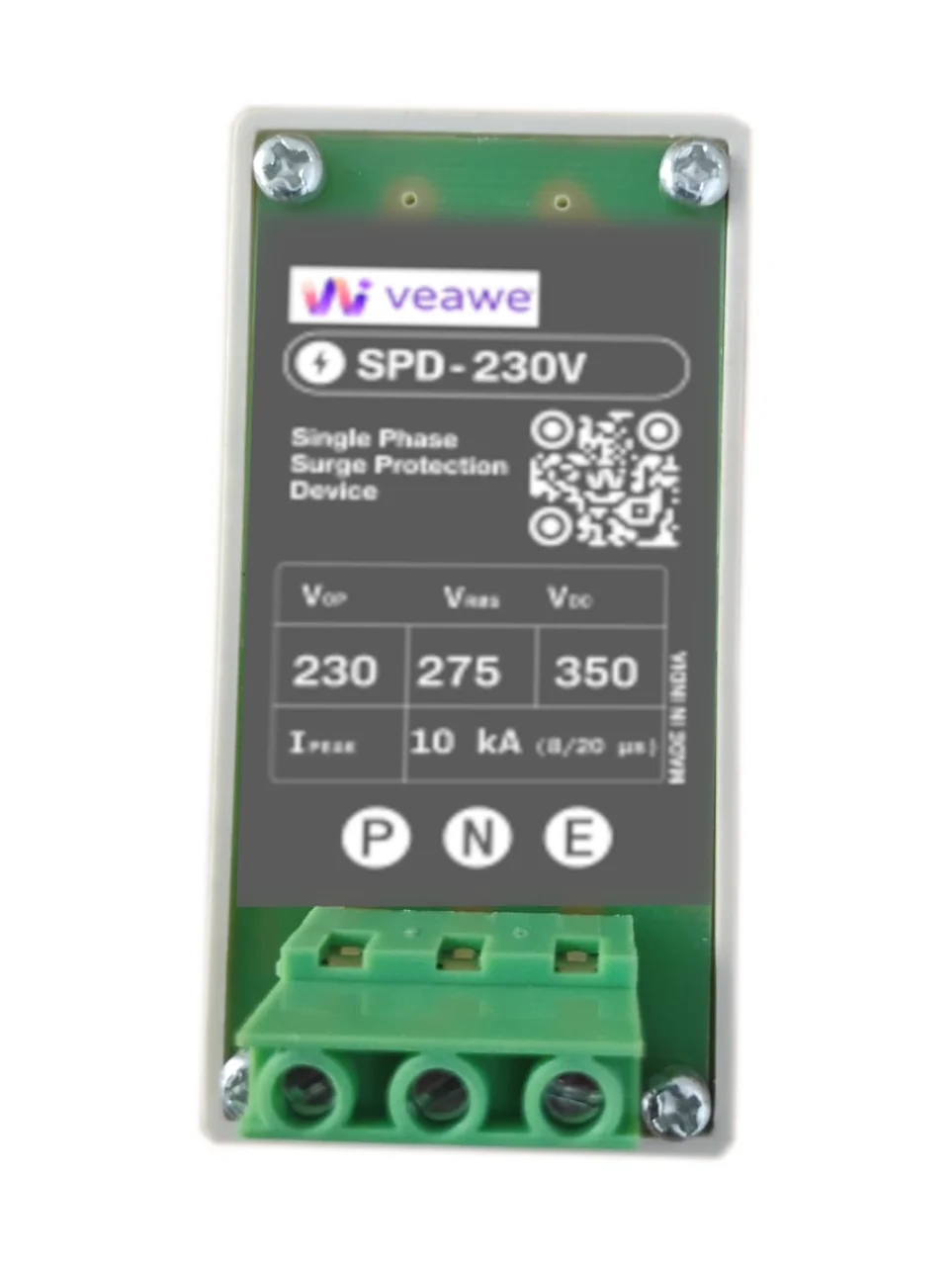

Surge Protection Device 230V SPD / Single Phase SPD
Original price was: ₹1,000.00.₹650.00Current price is: ₹650.00.
Three-stage SPD230V surge protection device meets standard protection against power surges, voltage surges and
disturbances with three stages of protection.

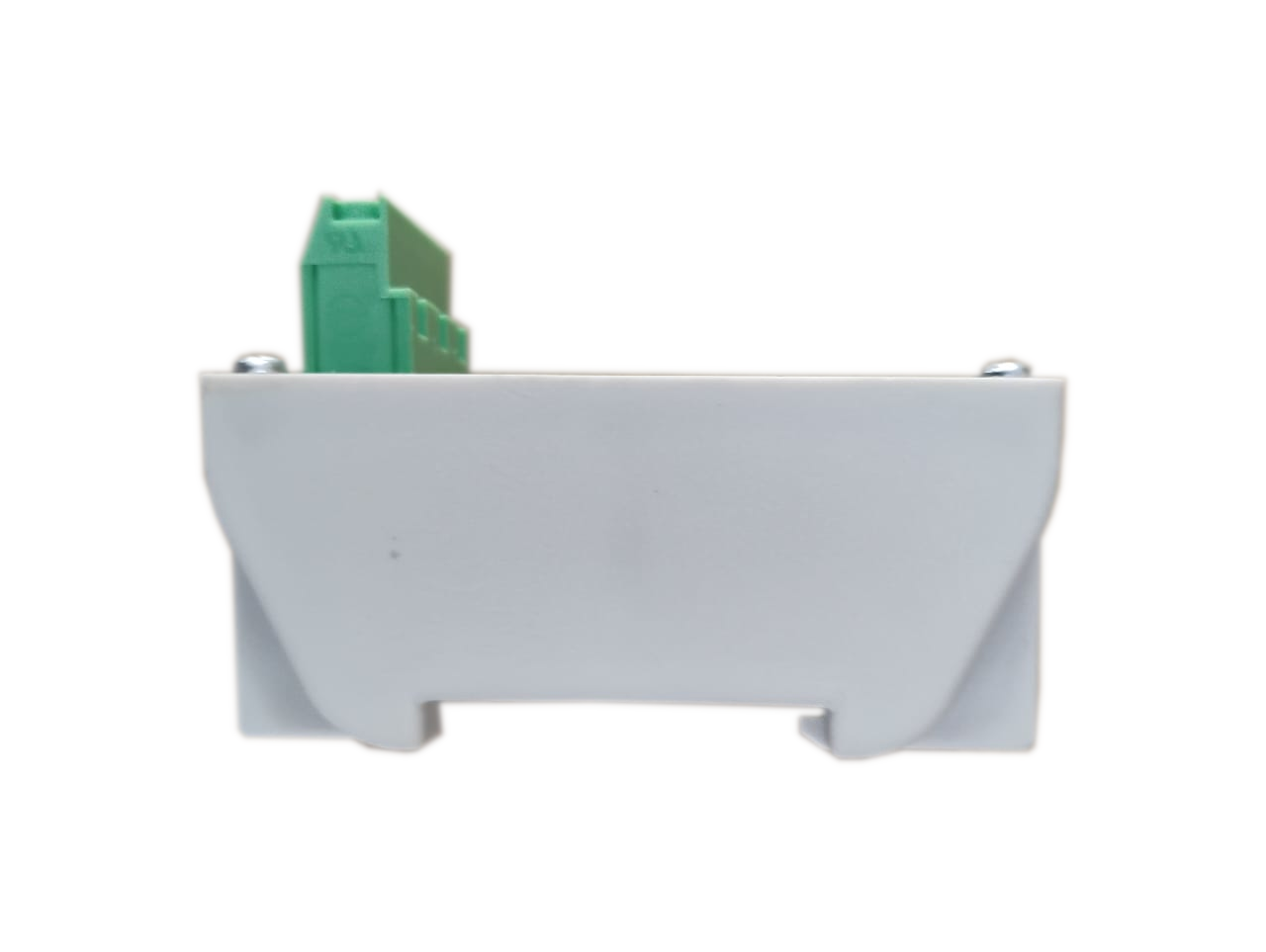

Housed in a din rail panel mount case with a protected earth ground.
In order to work properly, it is important to have a good connection in E terminal to solid earth ground.
Unknown electronic device failure and misbehave in controller units might be avoided by using SPD-230V
Features and Specification
- Three stage Protection for Power lines – L – N,
L – E and N – E - Suitable for 230 V AC Applications and 310 V DC
applications - Optional fault indication
- All types 230V power line panels, Industrial and building
automation, Solar power systems, Wind power systems, etc. - For frequent SMPS power supply failures. Connect as close as
to the
Supply and after the MCB in the circuit - Noisy industrial lines like AC drives
- Industrial power linesApplication:-
| Part No | SPD-230V-AC |
|---|---|
| Brand | Veawe |
| Mounting Type | DIN Rail |
| Warranty | 1 Year |
| Country of Origin | Made in India |
