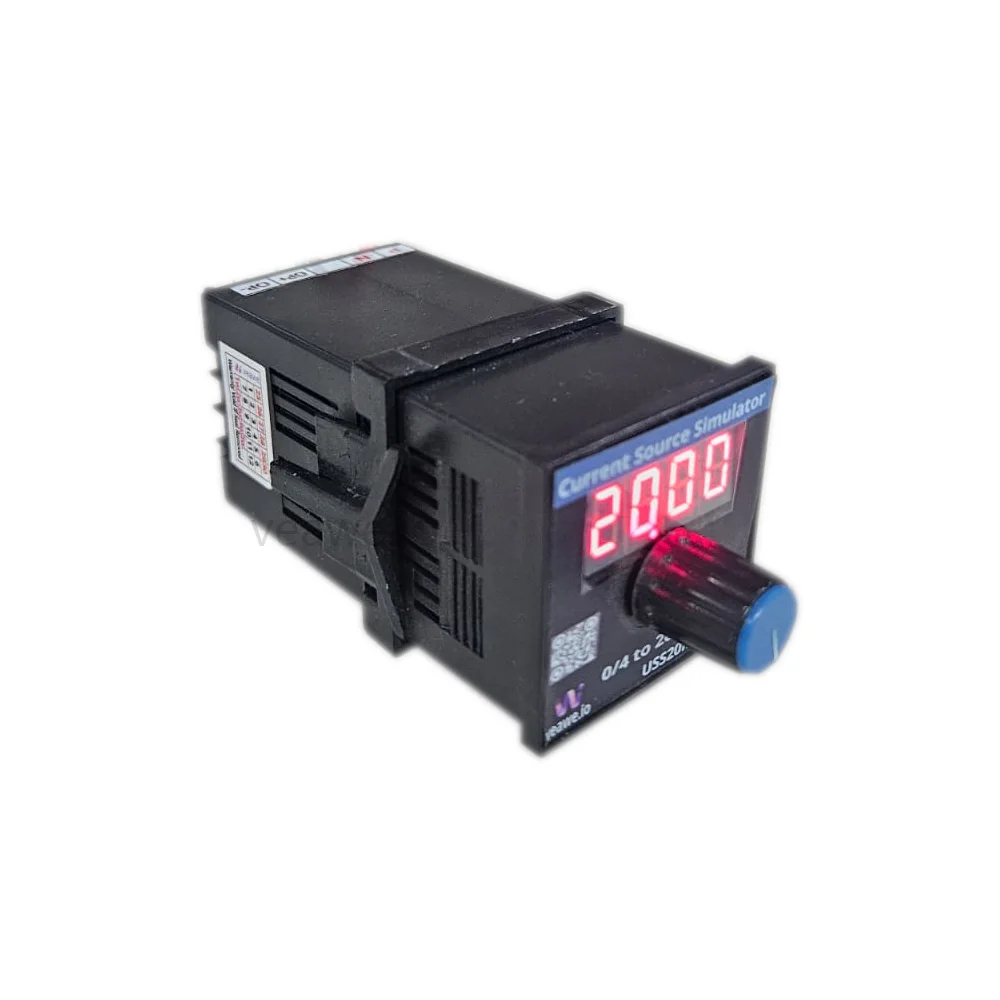

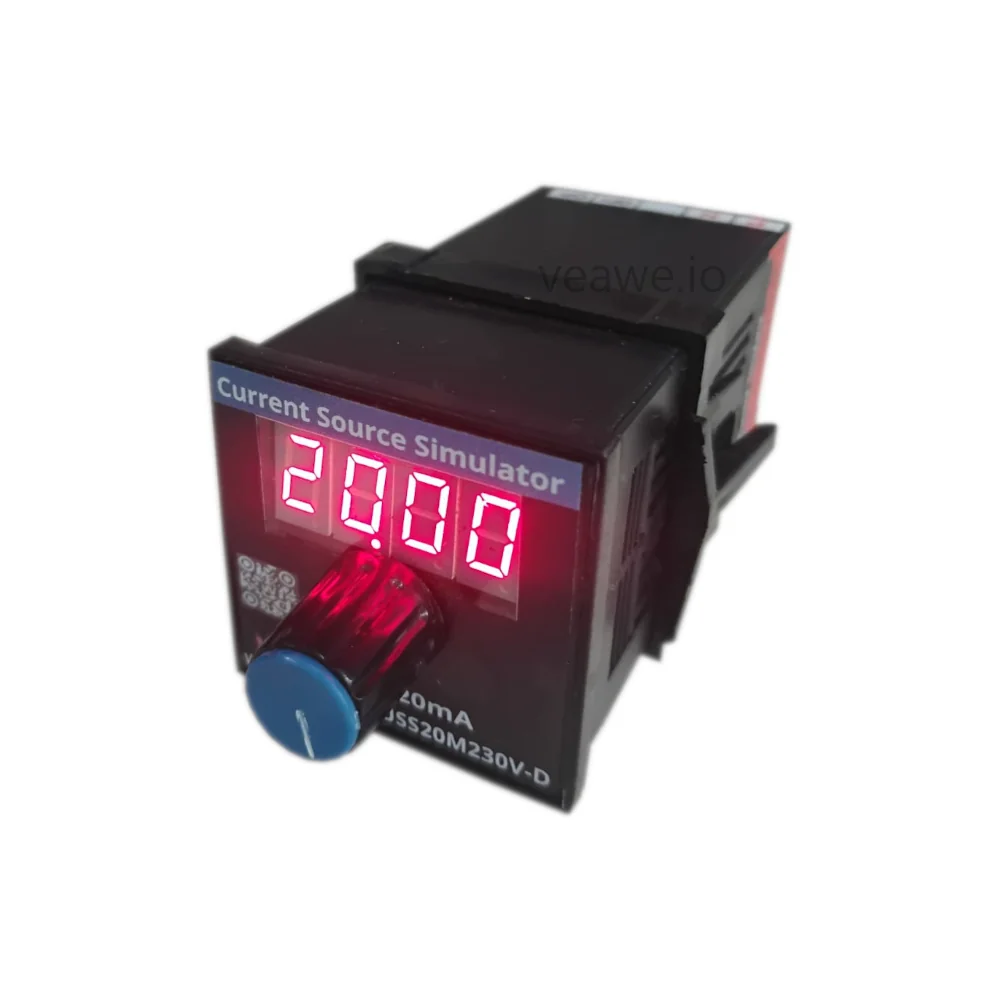

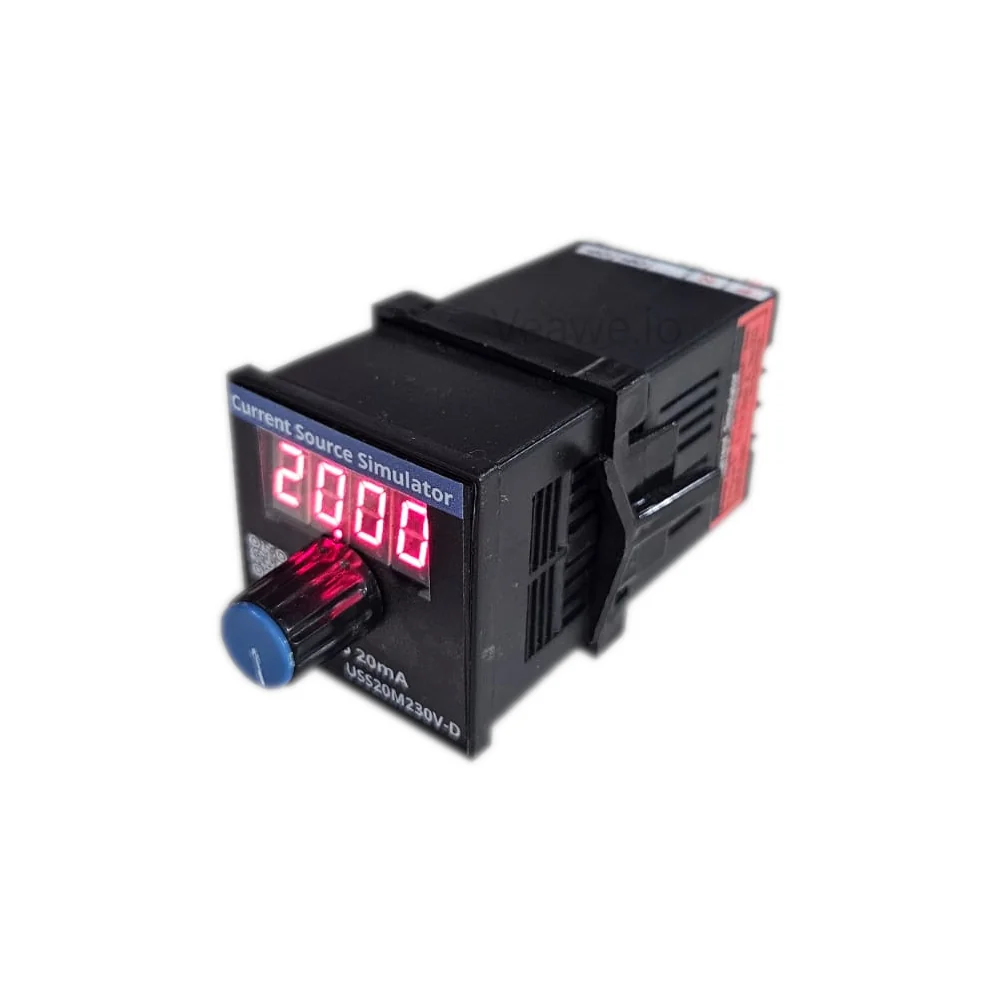

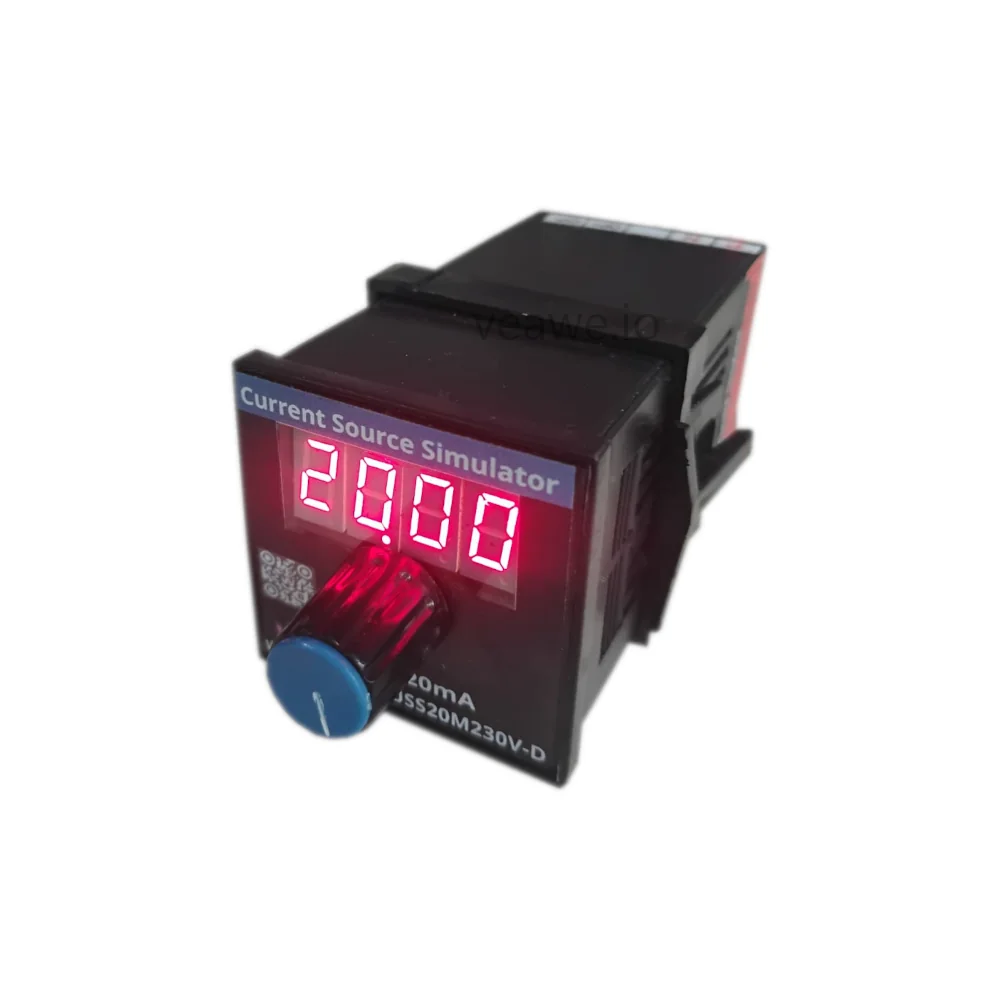

Current Source Simulator -230VAC Input Supply ( 0 – 20mA )
Original price was: ₹7,000.00.₹4,200.00Current price is: ₹4,200.00.
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Functionality :
Perfect 3 wire 0-20mA Signal Source Generator. Protection:
Input Reverse Polarity , Output Short Circuit Protection
DIMENSION:
Product size - 48x48x90mm. Weight ~ 150 gms
Preferred Panel cut out 45x45mm.
Variable using 5 turns Potentiometer.
• Selectable range 0 mA ~ 20 mA in 0.01mA steps
resolution or more.

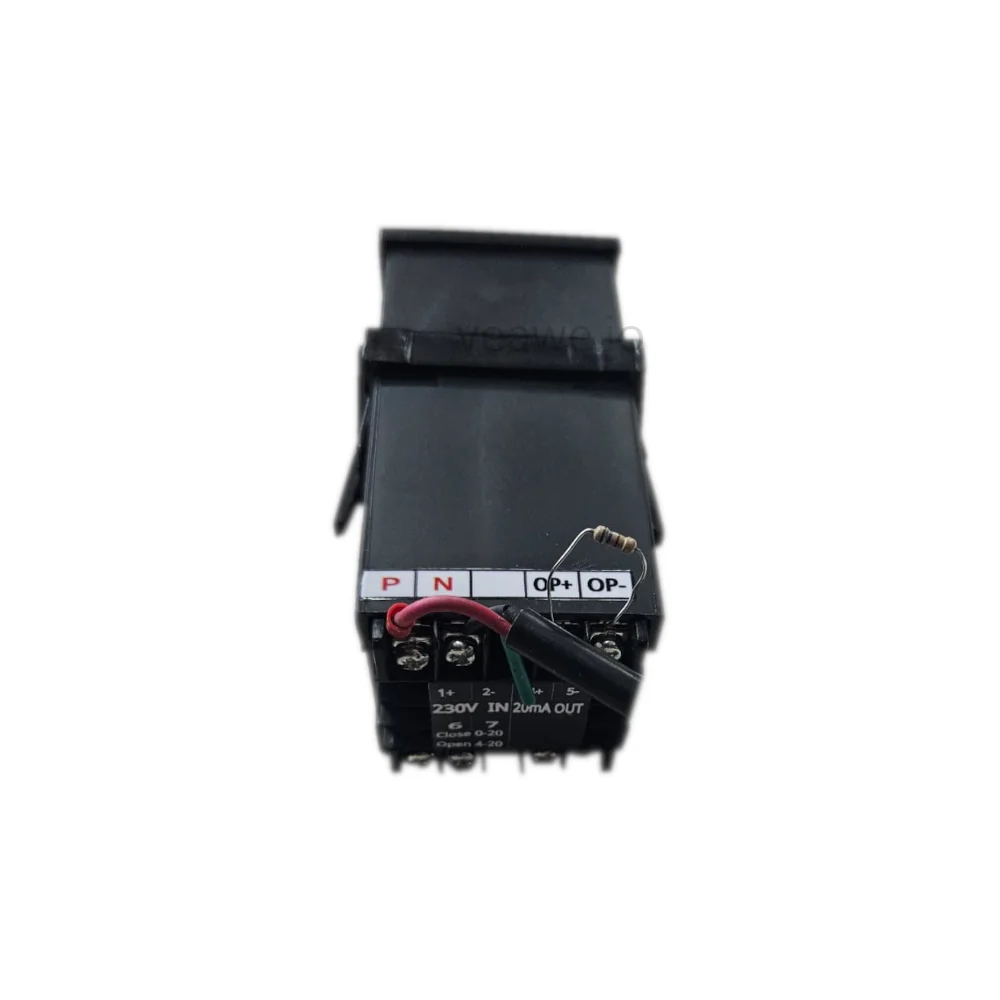

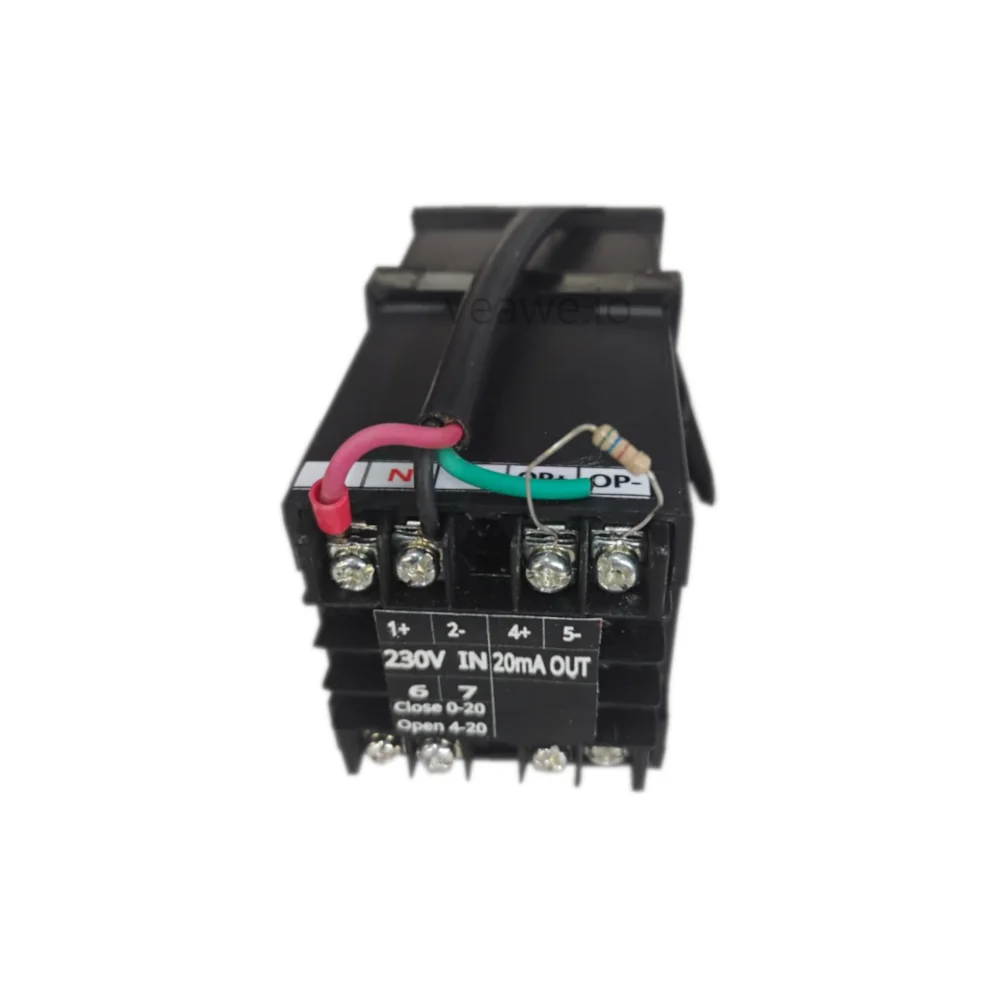

• 0 ~ 20mA or 4 ~ 20mA selection by external jumper.
• Current output values are set by rotating the knob.
Electrical characteristics
Power Supply
230V AC External

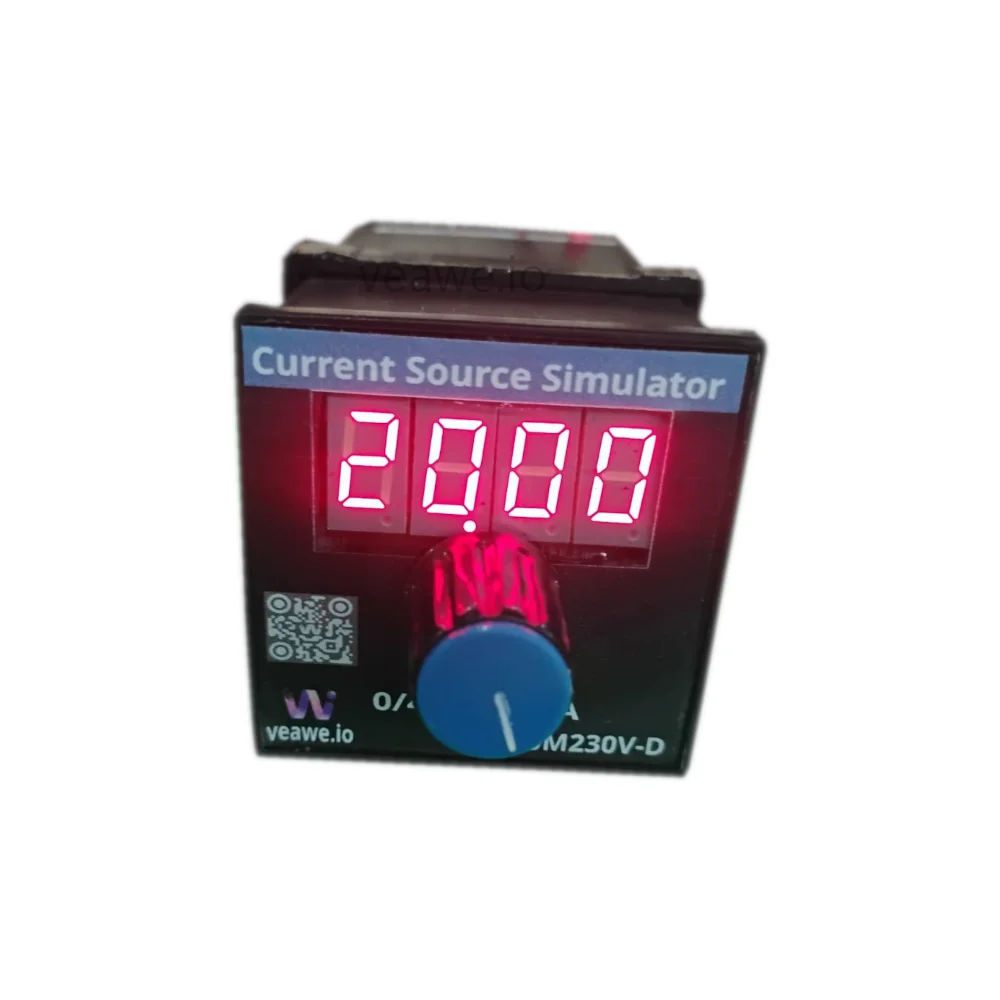

Display
4 digit Segment display
Current Output
Output Range 0/4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 1.1k Ω
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
| Brand | Veawe |
|---|---|
| Channels | 1 channel |
| Controle Type | Analog Controle |
| Country of Origin | Made in India |
| Display Digit | 4 Digit |
| Display Type | LED |
| Encloser Material | ABS |
| Maximum Current Output | 20mA |
| Mounting Type | Panel Mount |
| Output Accuracy | 0.1% |
| Output Range | 0-20mA |
| Part No | USS20MA230V-D |
| Phase | Single Phase |
| Supply Voltage | 230V AC |
| Warranty | 1 Year |
