Voltage and Current Source Simulator Without Display (USS10V20MA)
Original price was: ₹7,000.00.₹3,500.00Current price is: ₹3,500.00.
Features:-
- Dual Output Signal Simulation: 1 Channel 0–10V DC Voltage Source and 1 Channel 0/4–20mA DC Current Source.
- Independent Dial Controls: Precision analog potentiometers for simultaneous voltage and current signal adjustment.
- Without Display Operation: Rugged, direct analog dial control ideal for fast testing and commissioning without digital menus.
- Jumper-Selectable Current Span: Select between 0–20mA (Jumper Closed) and 4–20mA (Jumper Open).
- Compact Design: Standard 35mm DIN Rail and panel mount enclosure suitable for industrial control cabinets.
- Industrial Protection: Built-in input reverse polarity protection and output short-circuit protection.
- 24V DC Supply: Operates directly from standard industrial 24V DC automation power.

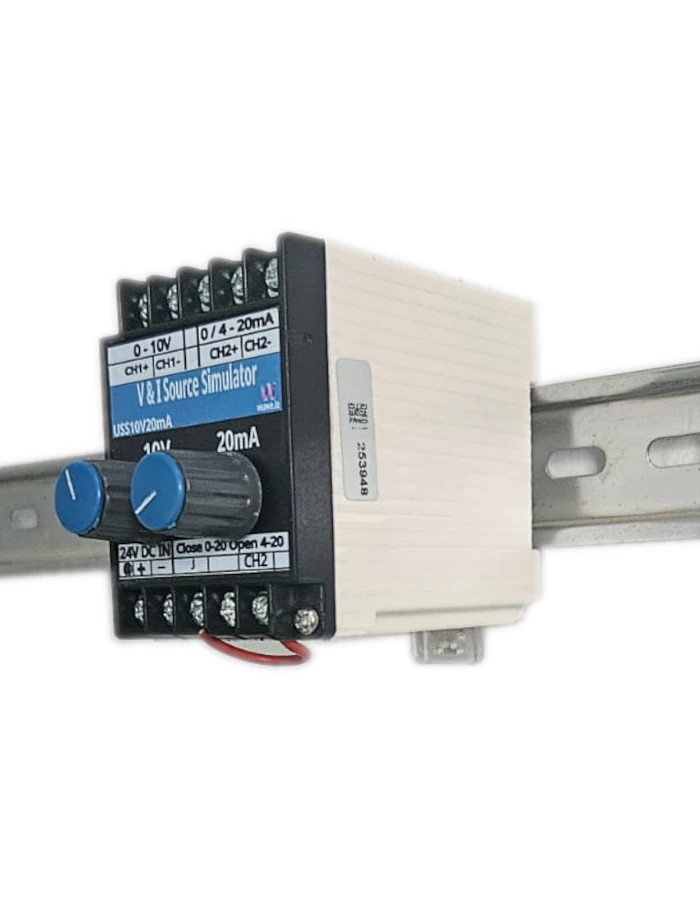

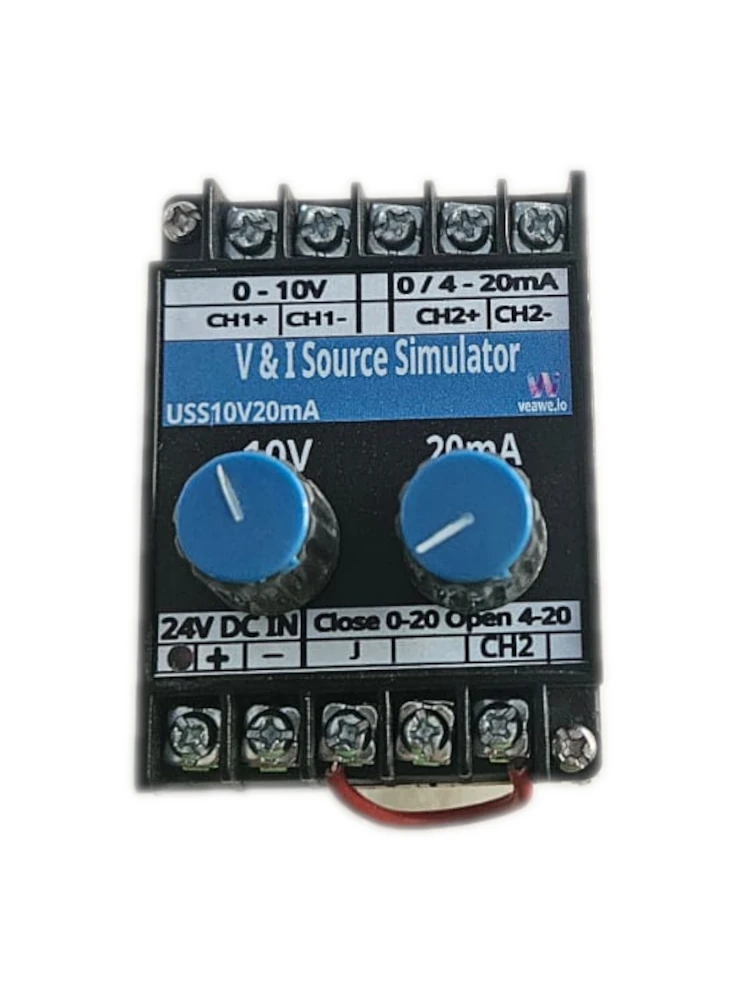

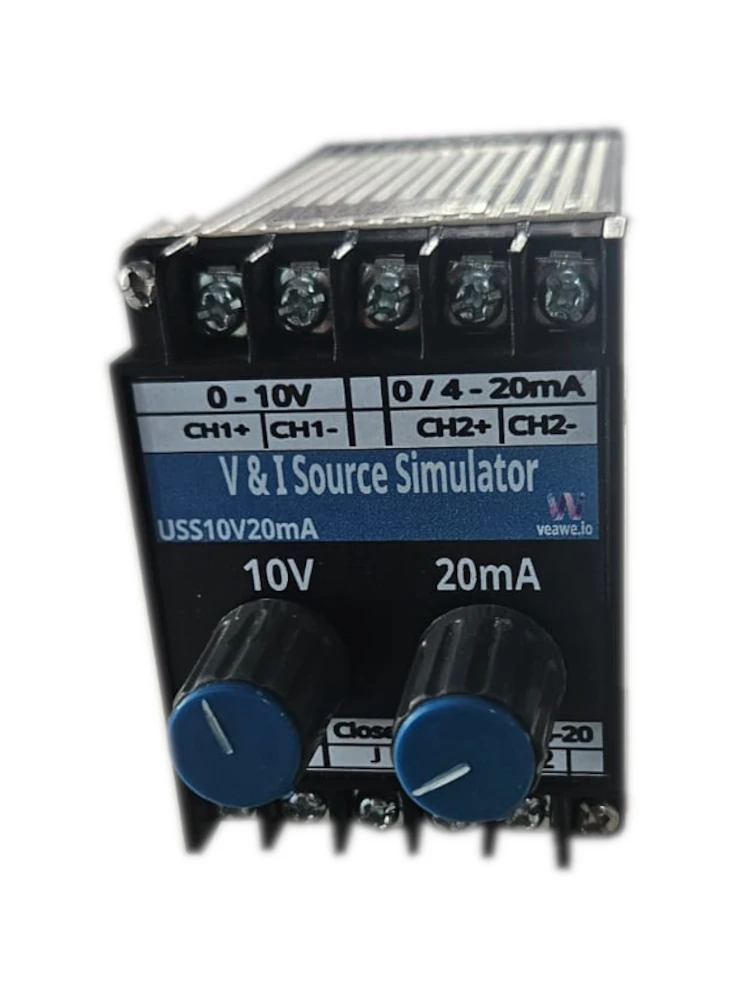

The Veawe USS10V20MA (V & I Source Simulator) is a dual-channel analog signal simulator designed for industrial automation engineers, PLC programmers, panel builders, and maintenance technicians. It combines a 0–10V DC voltage source and an active 0/4–20mA DC current source into a single compact DIN-rail unit without requiring a digital display.
Equipped with dual precision analog dials, the simulator allows simultaneous testing, calibration, and loop simulation of voltage and current inputs on PLCs, DCS systems, RTUs, paperless recorders, PID controllers, and analog indicators.
Key Features
- Dual Independent Channels: Generates 0–10V DC on Channel 1 (CH1) and 0/4–20mA DC on Channel 2 (CH2) simultaneously.
- Without Display Simplicity: Direct potentiometer knobs allow instantaneous adjustment across full spans without navigating digital menu trees.
- Selectable Current Range: Configure Channel 2 for 0–20mA or standard 4–20mA operation via the front panel jumper terminals (Close = 0–20mA, Open = 4–20mA).
- Integrated Protection: Includes reverse polarity protection on the 24V DC power input and output short-circuit protection.

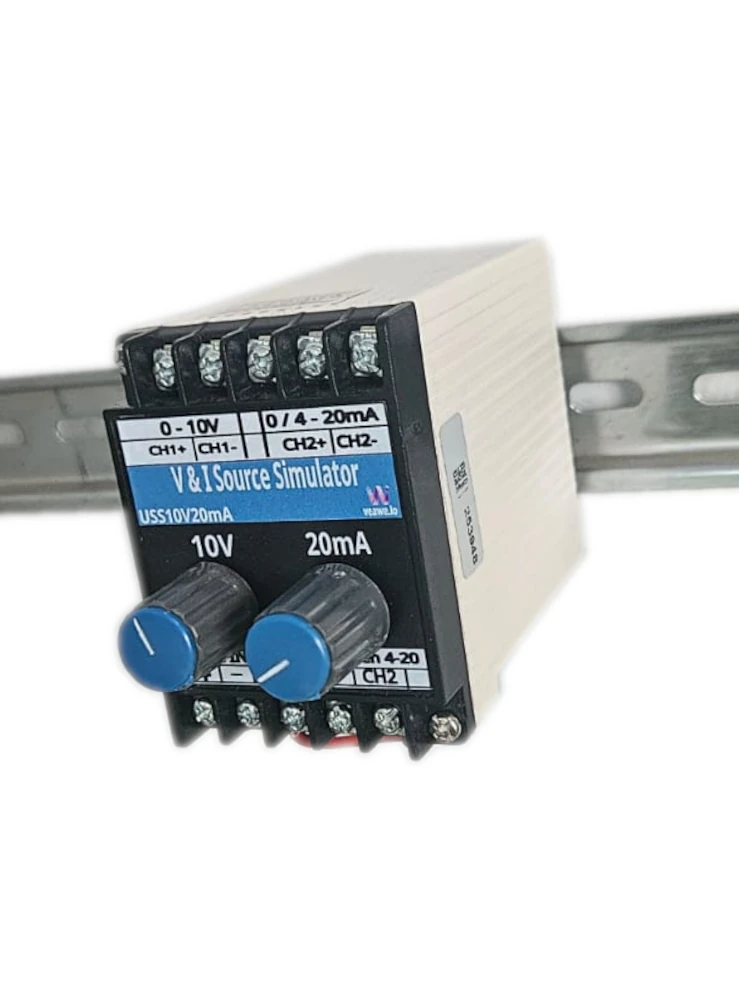

- Standard 35mm DIN Rail Mount: Easily mounts onto standard 35mm DIN rails or flat panel surfaces.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | USS10V20MA |
| Product Type | Dual Channel V & I Source Simulator (Without Display) |
| Channel 1 Output (Voltage) | 0 to 10V DC (Terminals: CH1+, CH1-) |
| Channel 2 Output (Current) | 0 to 20mA / 4 to 20mA DC (Terminals: CH2+, CH2-) |
| Current Mode Selection | Jumper: Close for 0–20mA, Open for 4–20mA |
| Control Mechanism | Dual analog multi-turn potentiometer knobs (10V and 20mA) |
| Power Supply | 24V DC (12 ~ 28V DC external supply, Terminals: +, -) |
| Power Indicator | Red LED for 24V DC input status |
| Output Accuracy | ±1% of full scale |
| Load Impedance (Current Loop) | 10 Ω to 500 Ω |
| Mounting | 35mm DIN Rail Mount, Wall Mount |
| Enclosure Dimensions | 70 mm x 50 mm x 85 mm |
| Operating Temperature | -10°C to +60°C |
Applications
- PLC and DCS analog input card testing and verification (0-10V and 4-20mA channels).
- SCADA telemetry commissioning and loop check-out.
- Control valve, actuator, and VFD reference signal simulation.
- Signal injection and troubleshooting in industrial process instrumentation.
| Brand | Veawe |
|---|---|
| Part No | USS10V20MA |
| Signal Type | Dual Output V & I Source Simulator |
| Channels | 2 Channel |
| Output Channels | 1x 0-10V DC & 1x 0/4-20mA DC |
| Voltage Output | 0 to 10V DC |
| Current Output | 0 to 20mA, 4 to 20mA DC |
| Control Type | Analog Multi-turn Potentiometer Dials (Without Display) |
| Supply Voltage | 24V DC (12 ~ 28V DC) |
| Mounting Type | DIN Rail, Wall Mount |
| Output Accuracy | ±1% of full scale |
| Protection | Input Reverse Polarity, Output Short Circuit Protection |
| Warranty | 1 Year |
| Country of Origin | Made in India |
| Dimensions | 70mm x 50mm x 85mm |
