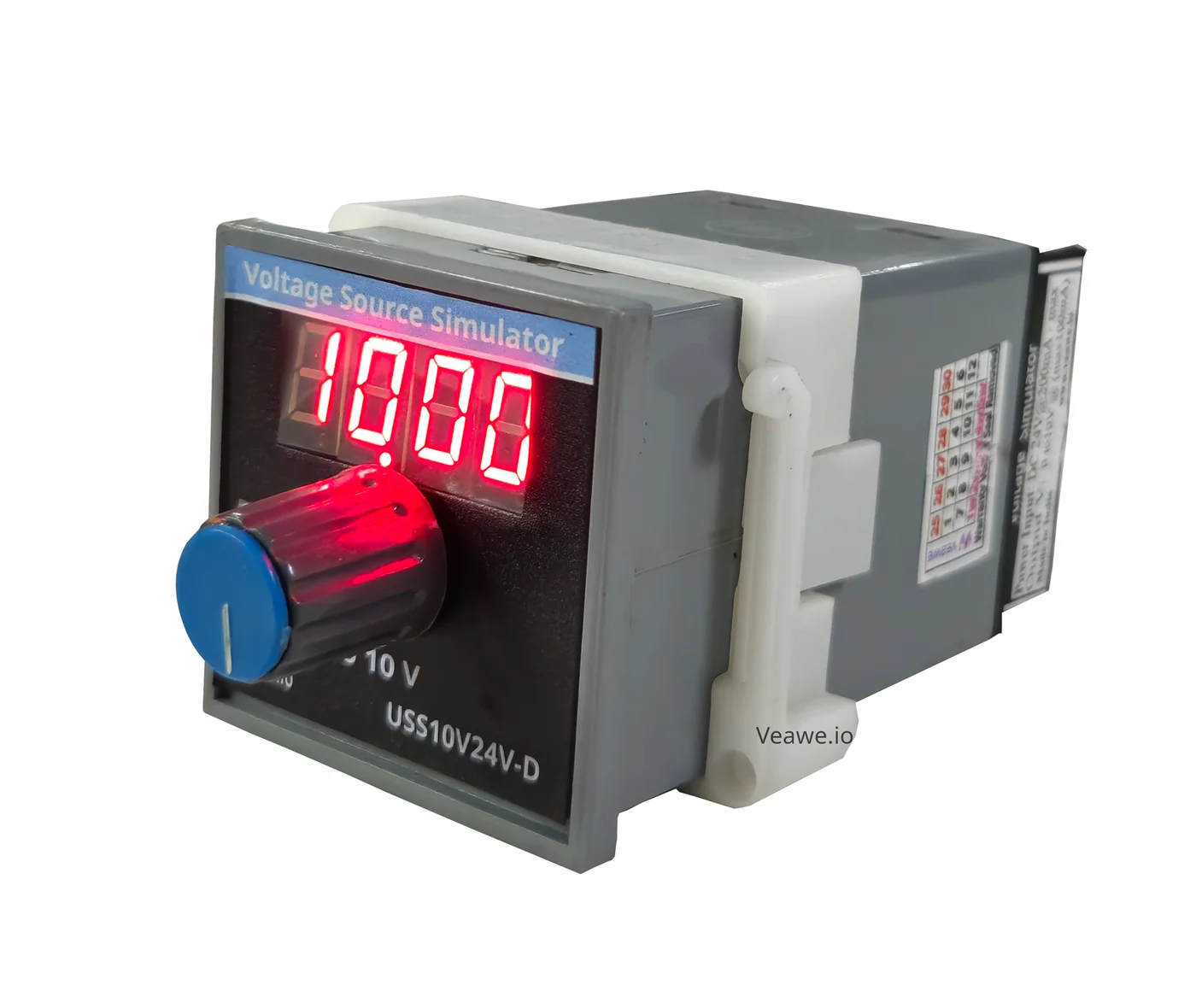

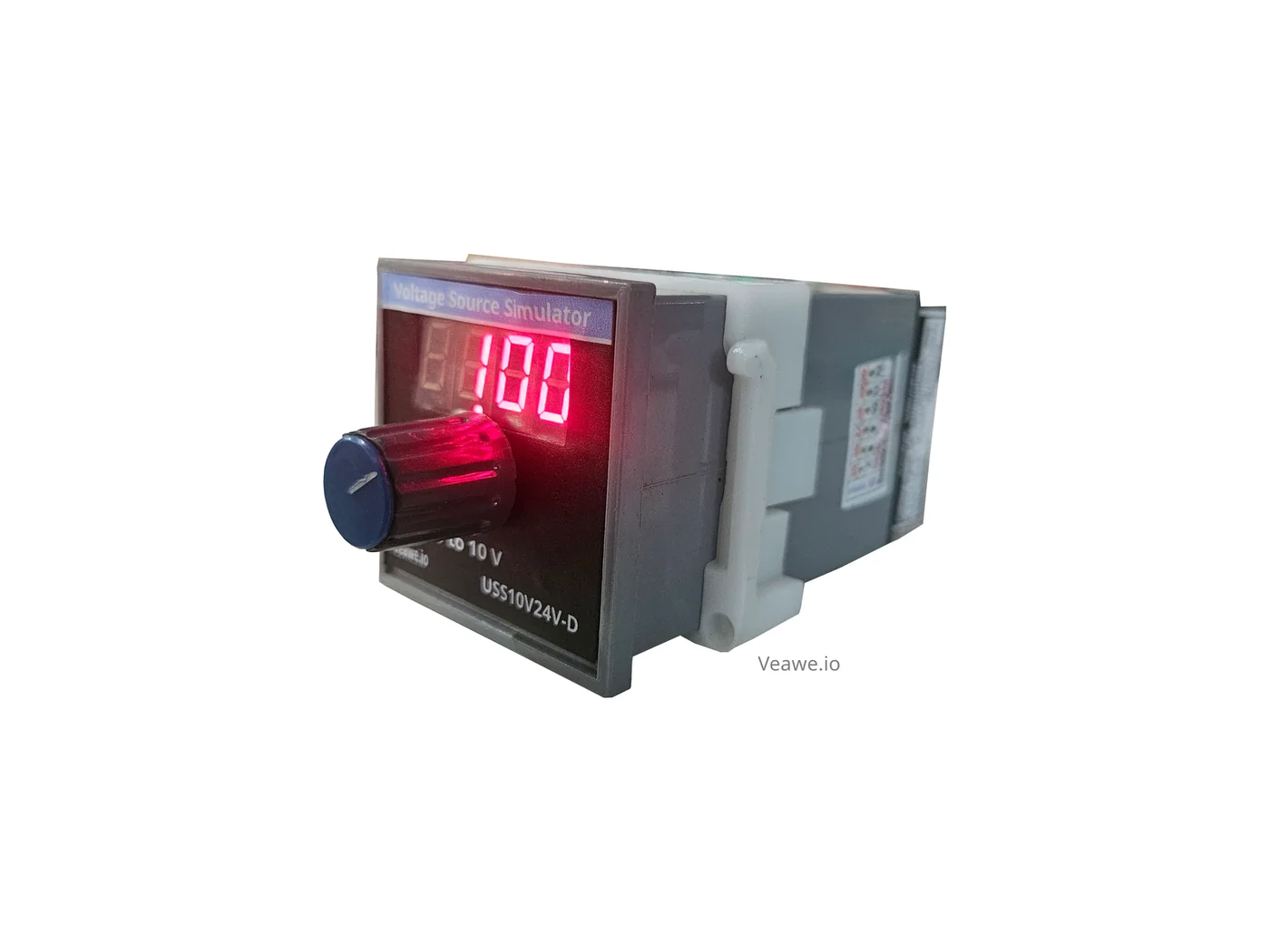

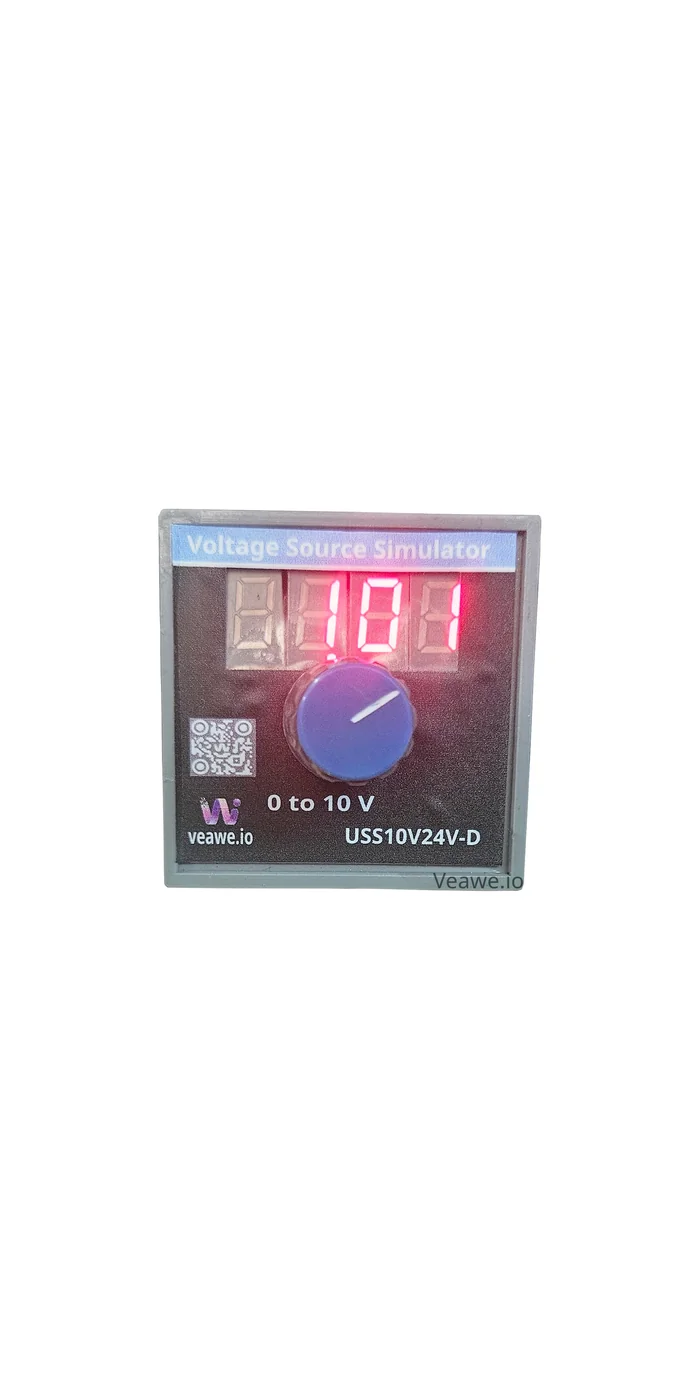

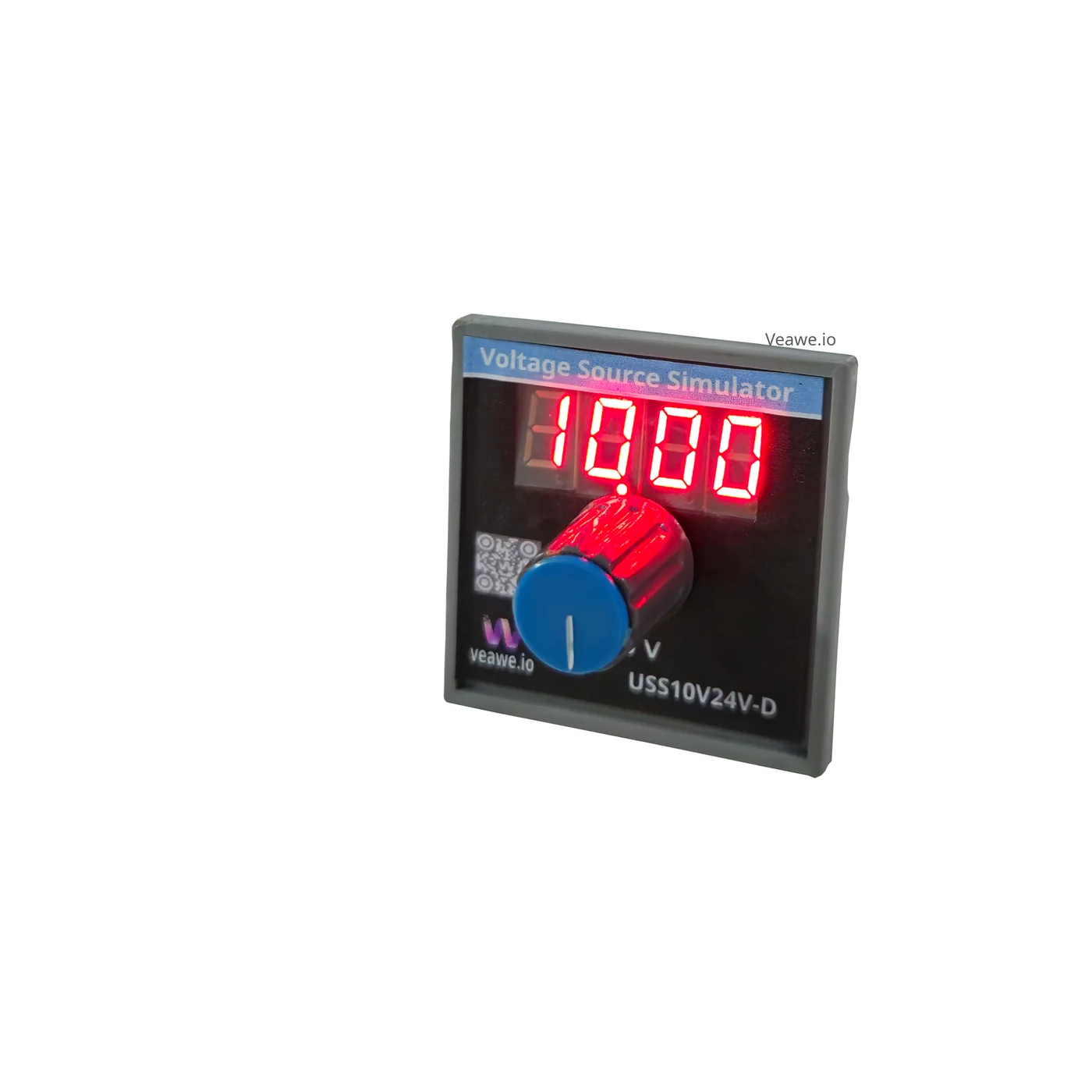

Voltage Source Simulator 0-10V (USS10V24V-D)
Original price was: ₹7,000.00.₹4,200.00Current price is: ₹4,200.00.
The Analog Source Generator(0-10v) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc..,
SPECIFICATION
Functionality
Perfect 0-10v Signal Source Generator
Power Supply
24V DC External
Display
4 digit Segment display
Voltage Output
Output Range 0-10V DC
Output Accuracy ±1% of full scale
Load range 100mA Max
Protection
Input Reverse Polarity , Output Short Circuit Protection
DIMENSION
Product size 48x48x90mm.
Preffered Panel cut out 45x45mm.
Specification
- The Analog Source Generator(0-10v) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor
Functionality Perfect 0-10v Signal Source Generator
Protection Input Reverse Polarity, Output Short Circuit Protection DIMENSION Product size 48x48x90mm. Preffered Panel cut out 45x45mm.
Electrical characteristics
Power Supply
24V DC External
Display
4 digit Segment display
Voltage Output
Output Range 0-10V DC
Output Accuracy ±1% of full scale
Load range 100mA Max
| Dimensions | 60mm x 40mm x 20mm |
|---|---|
| Part No | USS10V24V-D |
| Brand | Veawe |
| Mounting Type | DIN Rail |
| Warranty | 1 Year |
| Country of Origin | Made in India |
You may also like…

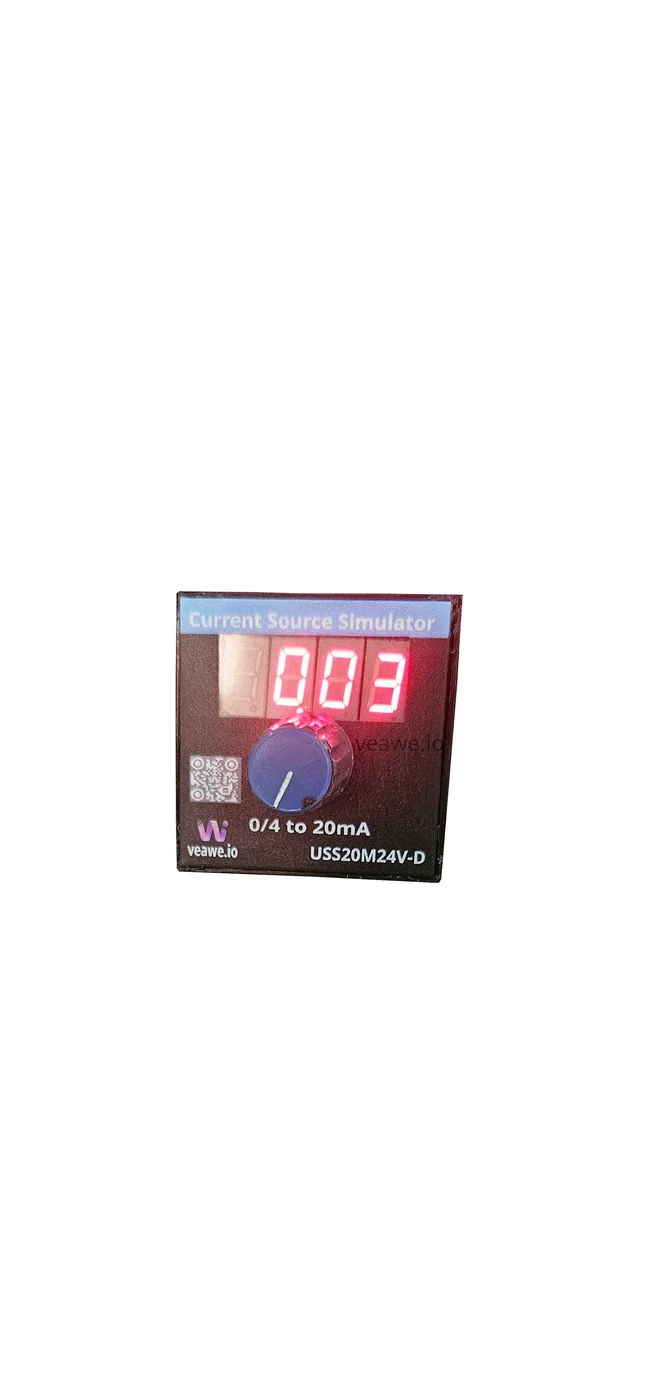

Current Source Simulator 0/4 to 20mA
