Current Source Simulator -230VAC Input Supply ( 0 – 20mA )
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Current Source Simulator 0/4 to 20mA
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Current Source Simulator Without Display
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Dual Output Current Source Simulator 0 to 20mA
Perfect 3 wire 0-20mA Signal Source Generator – Dual
Output
Power Supply
24V DC External
Current Output
Output Range 0/4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 1.1k Ω
Protection
Input Reverse Polarity, Output Short Circuit Protection
DIMENSION
Product size 70 x 50 x 85 mm
Din rail mountable
Variable using 5 turns Potentiometer.
Selectable range 0 mA ~ 20 mA in 0.01mA steps
resolution or more.
0 ~ 20mA or 4 ~ 20mA selection by external jumper.
Current output values are set by rotating the knob.
Loop Current Source Simulator
The Analog Source Generator(4-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.

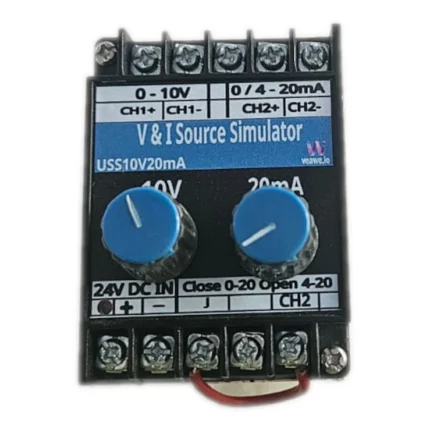

Voltage and Current Source Simulator Without Display (USS10V20MA)
Features:-
- Dual Output Signal Simulation: 1 Channel 0–10V DC Voltage Source and 1 Channel 0/4–20mA DC Current Source.
- Independent Dial Controls: Precision analog potentiometers for simultaneous voltage and current signal adjustment.
- Without Display Operation: Rugged, direct analog dial control ideal for fast testing and commissioning without digital menus.
- Jumper-Selectable Current Span: Select between 0–20mA (Jumper Closed) and 4–20mA (Jumper Open).
- Compact Design: Standard 35mm DIN Rail and panel mount enclosure suitable for industrial control cabinets.
- Industrial Protection: Built-in input reverse polarity protection and output short-circuit protection.
- 24V DC Supply: Operates directly from standard industrial 24V DC automation power.
Voltage Source Simulator 0-10V (USS10V24V-D)
The Analog Source Generator(0-10v) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc..,
SPECIFICATION
Functionality
Perfect 0-10v Signal Source Generator
Power Supply
24V DC External
Display
4 digit Segment display
Voltage Output
Output Range 0-10V DC
Output Accuracy ±1% of full scale
Load range 100mA Max
Protection
Input Reverse Polarity , Output Short Circuit Protection
DIMENSION
Product size 48x48x90mm.
Preffered Panel cut out 45x45mm.
