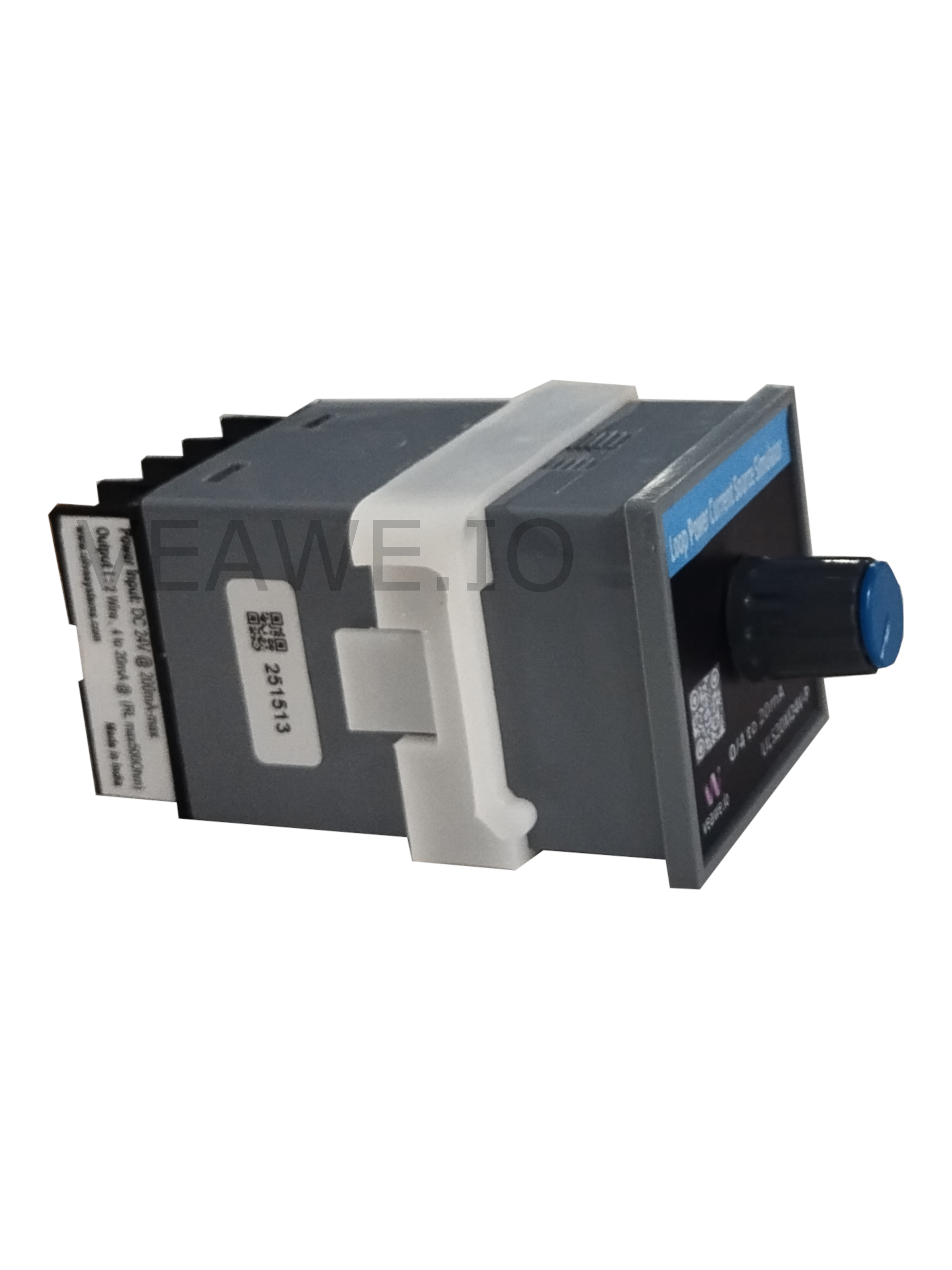

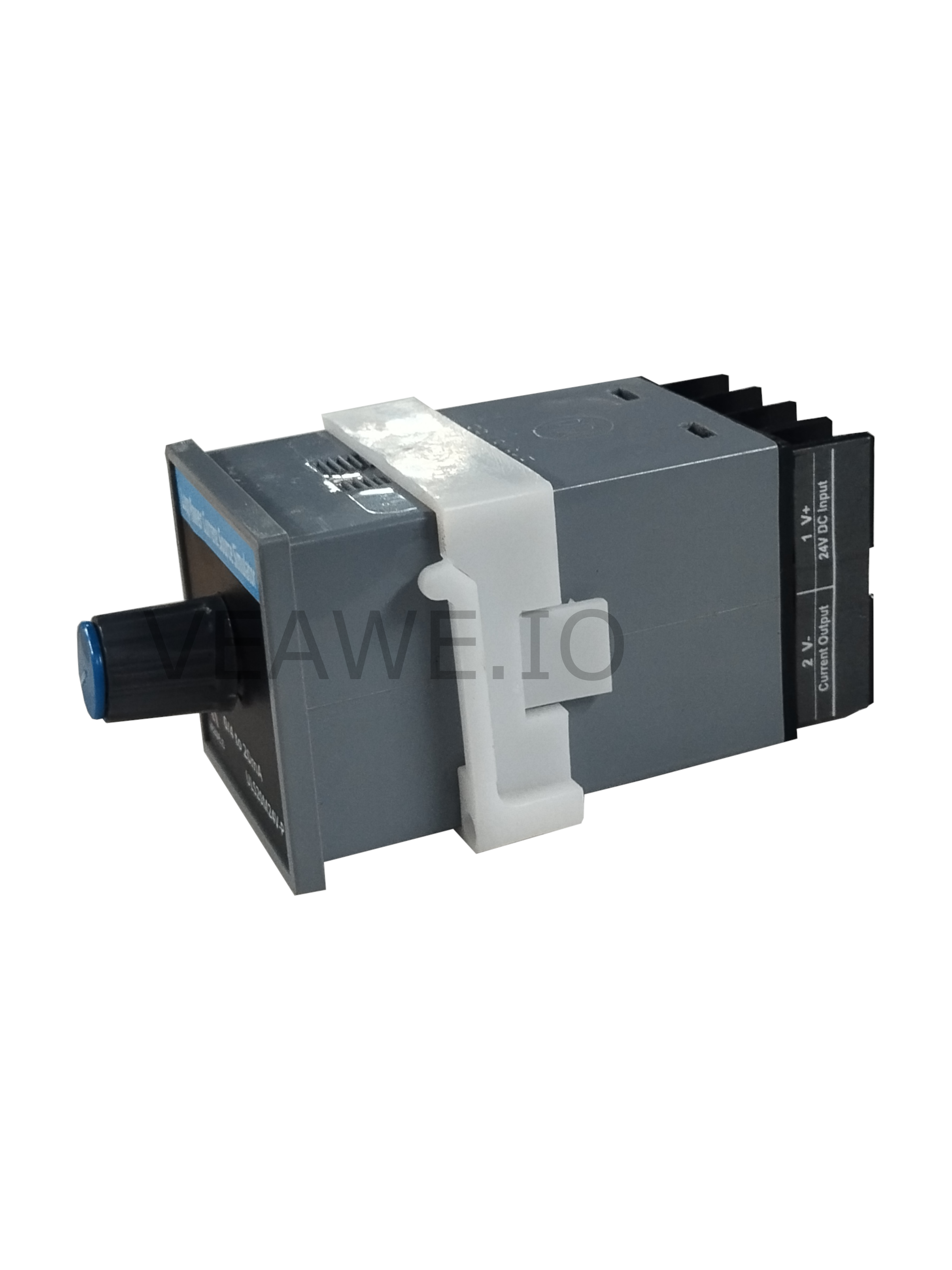

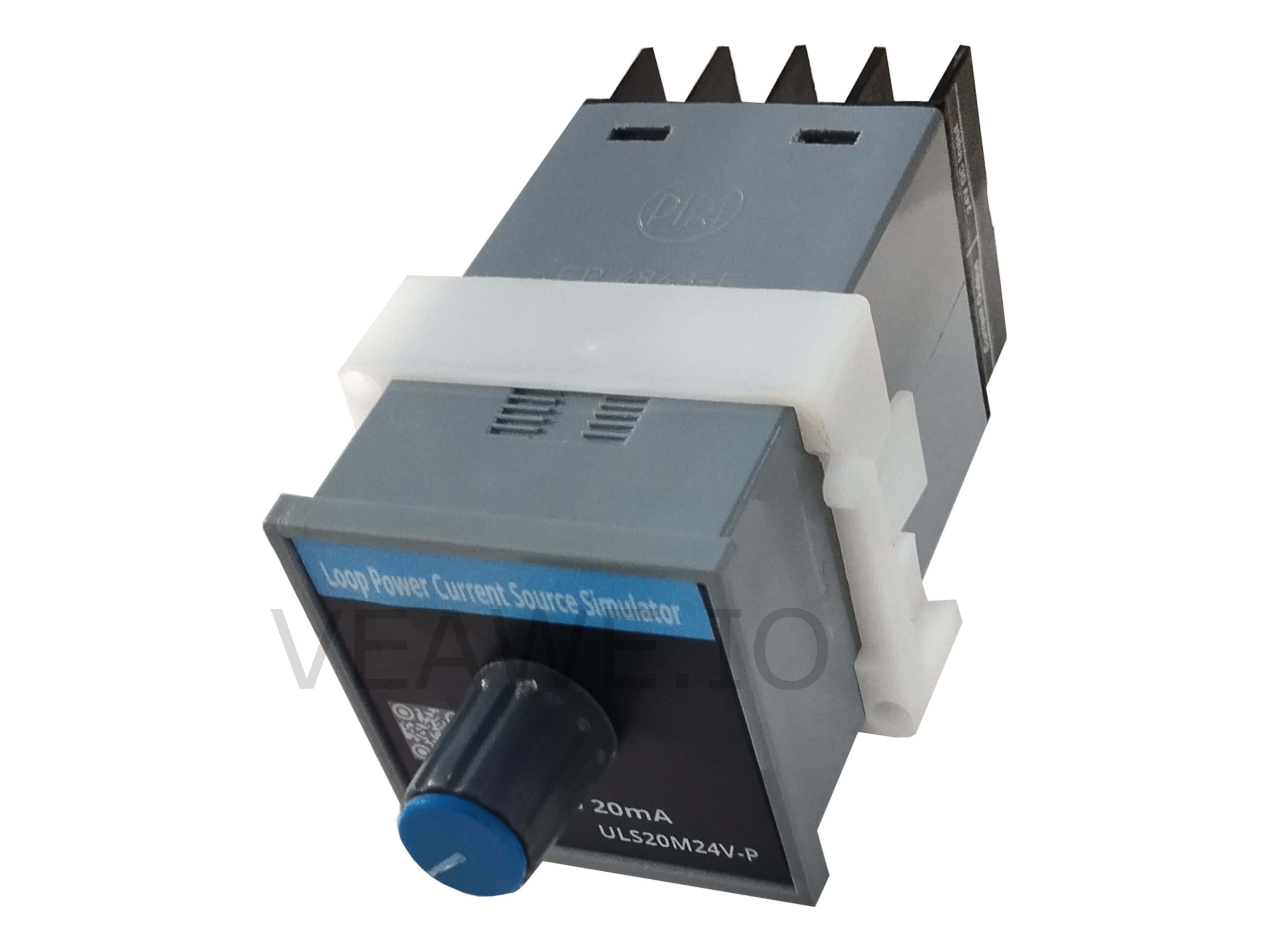

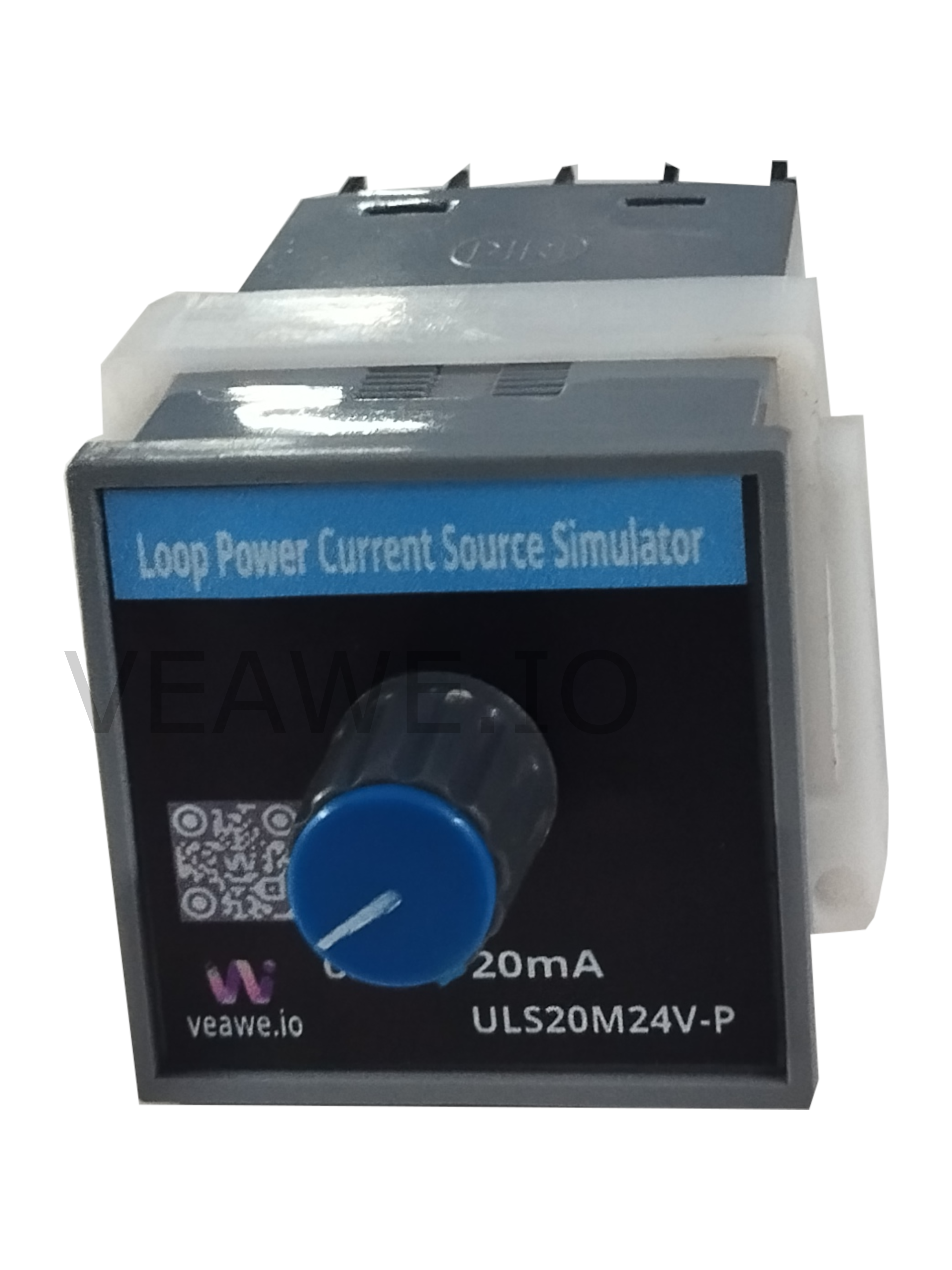

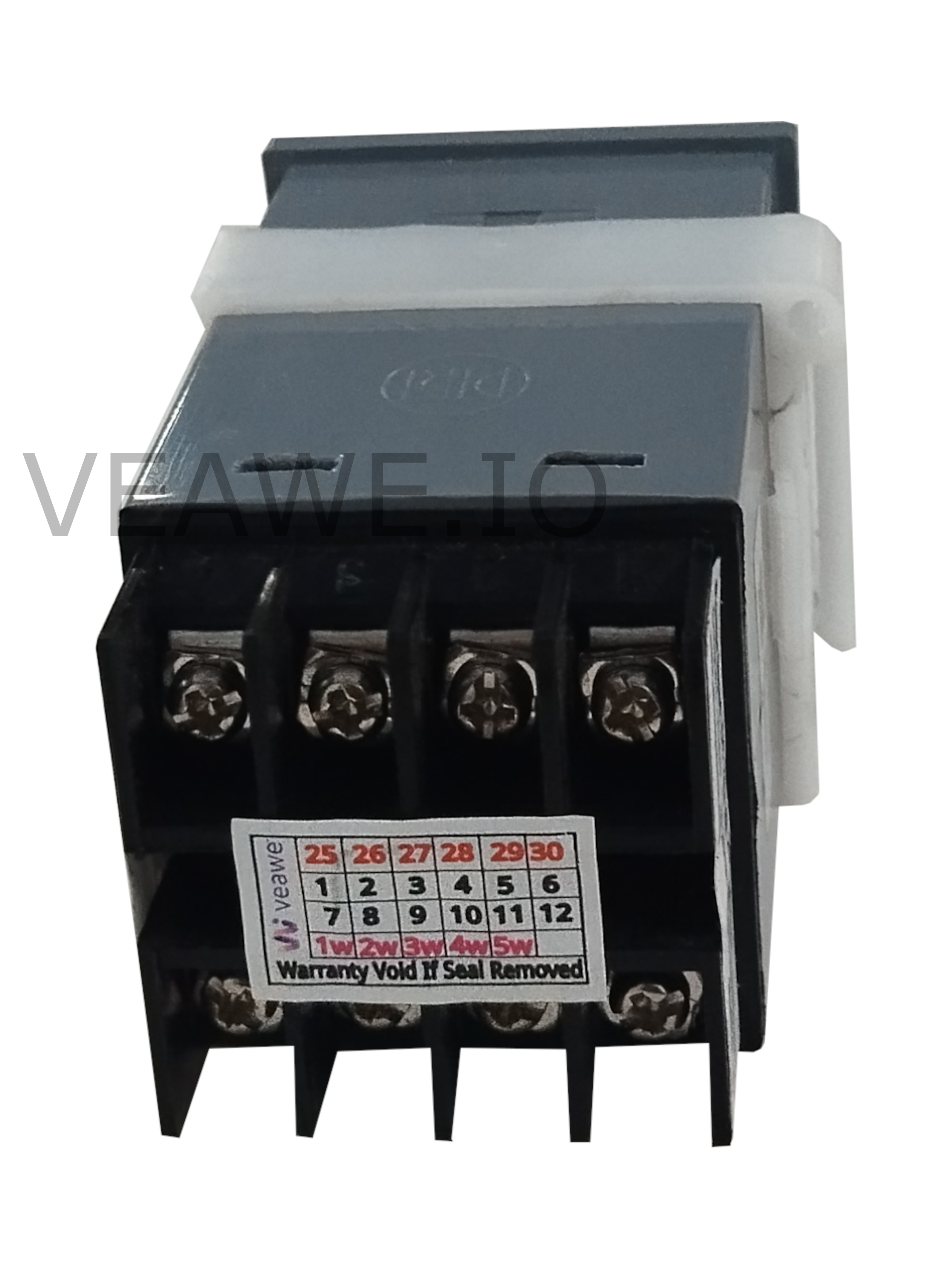

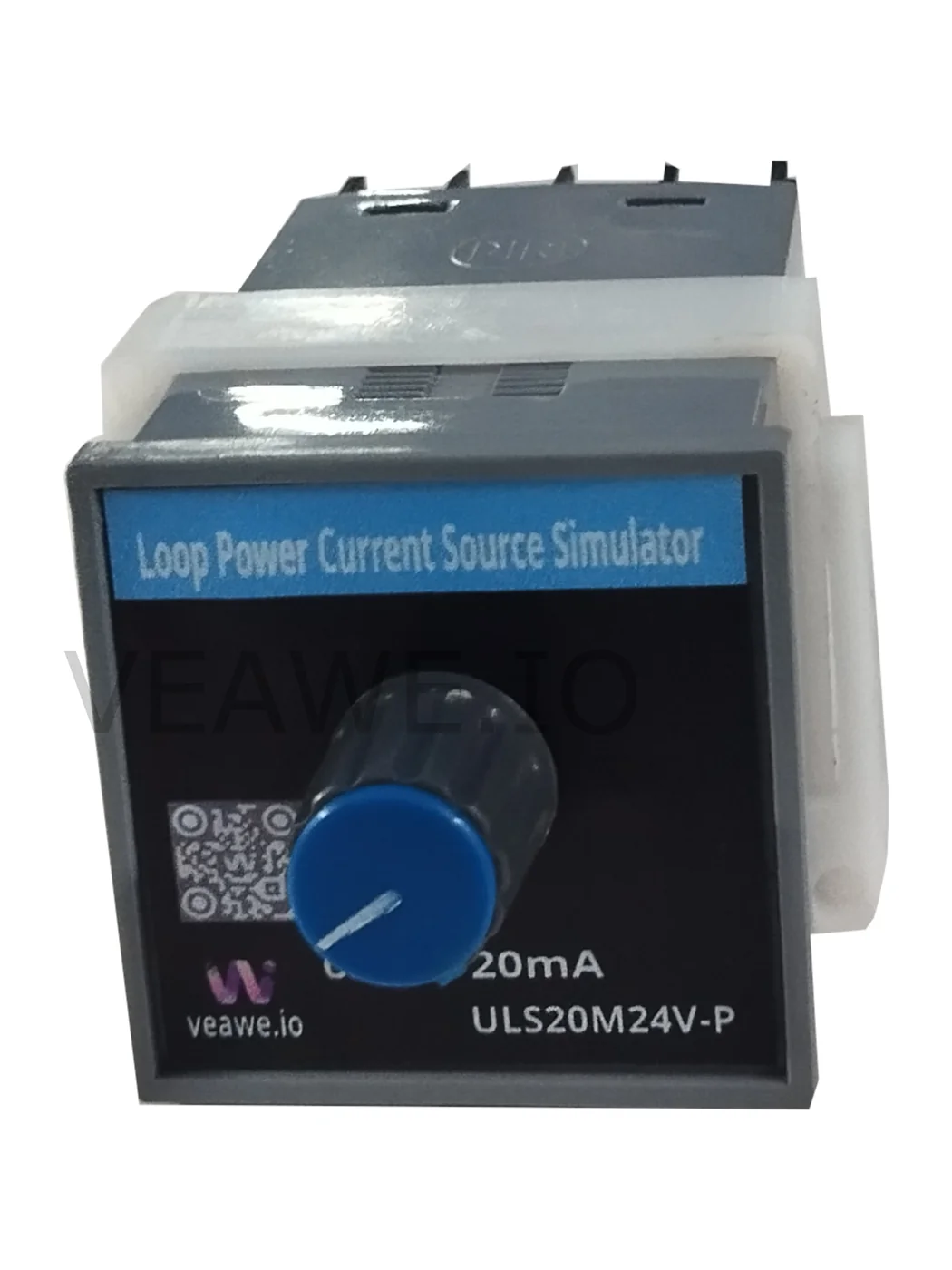

Loop Current Source Simulator
Original price was: ₹5,000.00.₹3,500.00Current price is: ₹3,500.00.
The Analog Source Generator(4-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Specification
- The Analog Source Generator(4-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC's
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor, Temperature sensor, Level Sensor, Position Sensor etc., - Functionality
Perfect 2 wire 4-20mA Current Loop - Protection
Input Reverse Polarity , Output Short Circuit Protection
Simulator defects
Electrical characteristics
Power Supply
Supply Nominal 24V DC
Supply (min) 5 V DC
Supply (max) 30 V DC
Current Output
Output Range 4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 500 Ω.
Current (min) 3.5mA
Current (max) 20.5mA built-in
| Dimensions |
60mm x 40mm x 20mm |
|---|
