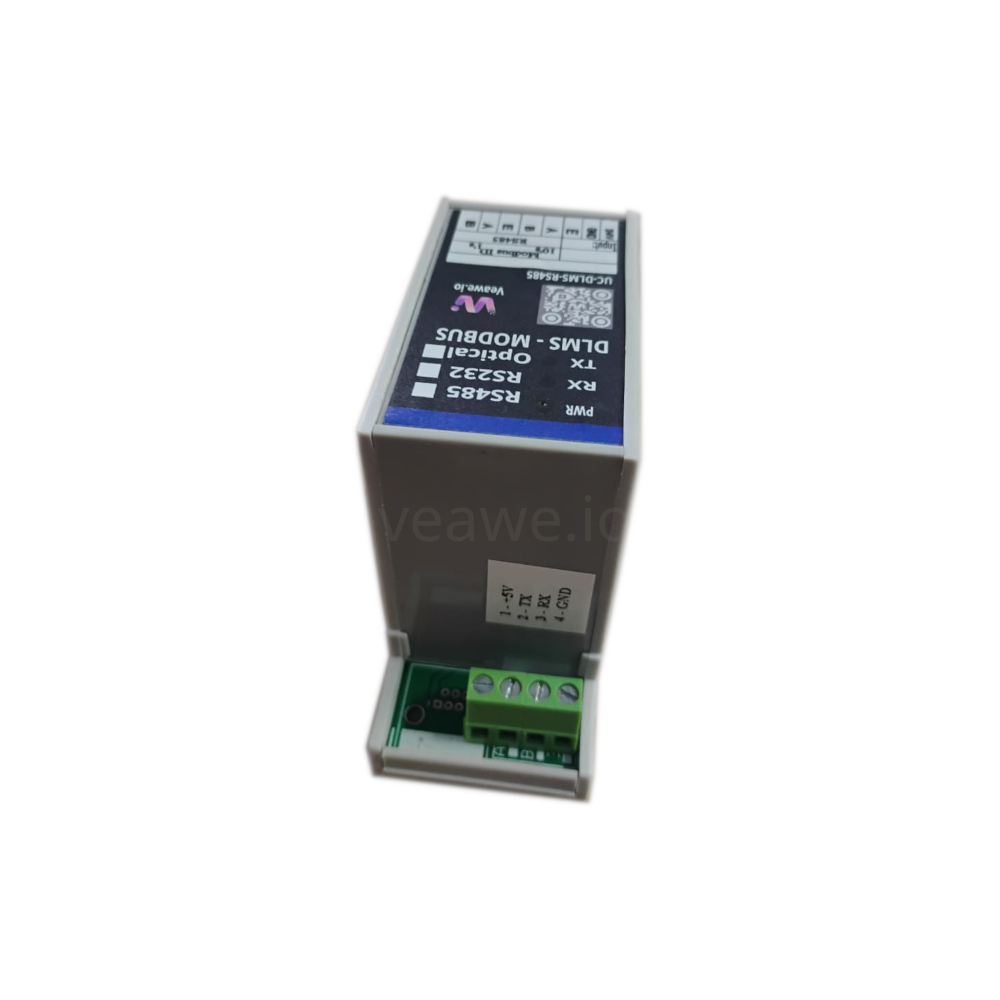

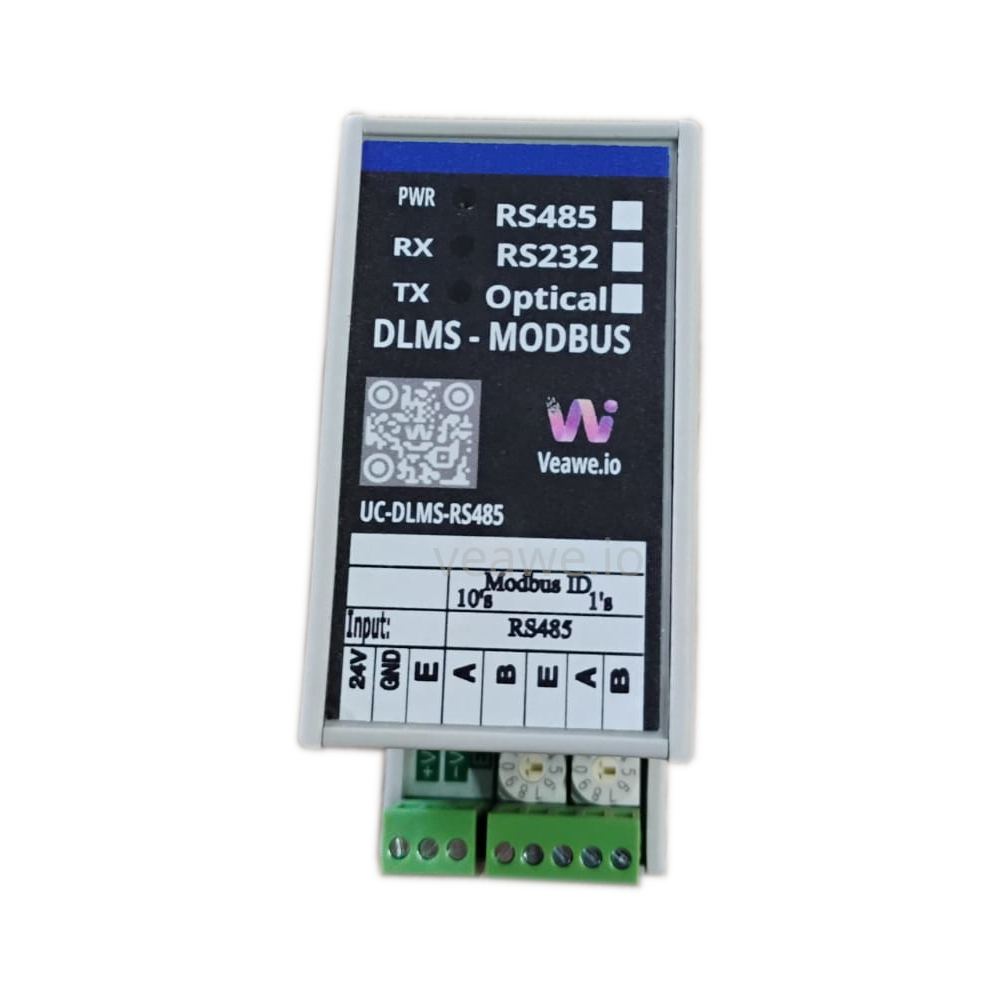

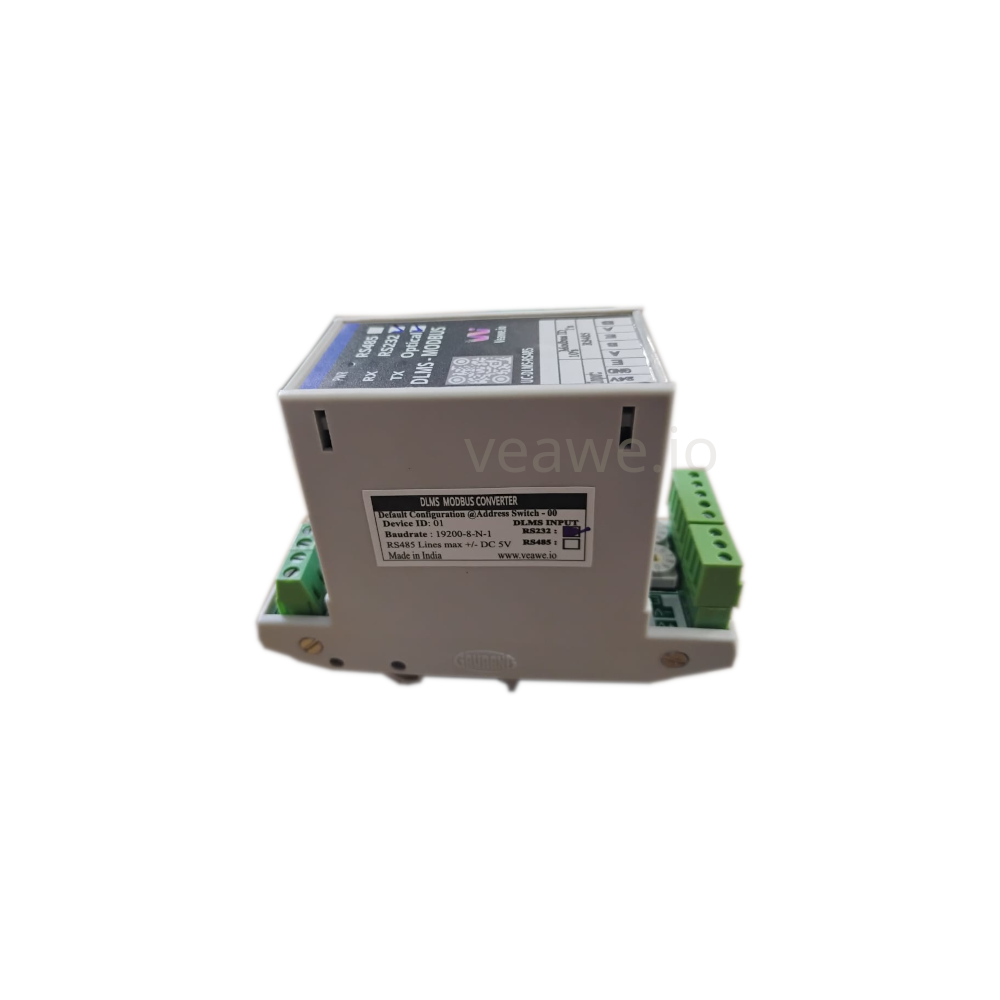

DLMS to Modbus Converter
Original price was: ₹14,000.00.₹9,000.00Current price is: ₹9,000.00.
Features
- Supports reading of Cumulative Parameters, Insta Voltage and Current Values and Meter Serial No.
- RS485/RS232/Optical DLMS to RS485 Modbus converter
- 24V DC Input
- Modbus RS-485 Protocol Interface
- Convenient address selection rotatory switch from 1 – 99 Address for modbus
- Complete range of configurable baud rate settings supported for modbus
- Din Rail mounting
- Product Dimensions – 40mm x 110mm x 80mm (L x W x H)
Application:-
- Modbus, Profibus and DMX applications or any RS485 field bus application
- 5 Volt differential or single ended data lines
- Industrial and building automation
- Solar power monitoring systems
- Industrial data communication systems
Configuration Software
| Part No | UPC-DLMS-RS485 |
|---|---|
| Brand | Veawe |
| Mounting Type | DIN Rail, Wall Mount |
| Dimensions | 40mm x 110mm x 80mm |
| Warranty | 1 Year |
| Country of Origin | Made in India |
You may also like…

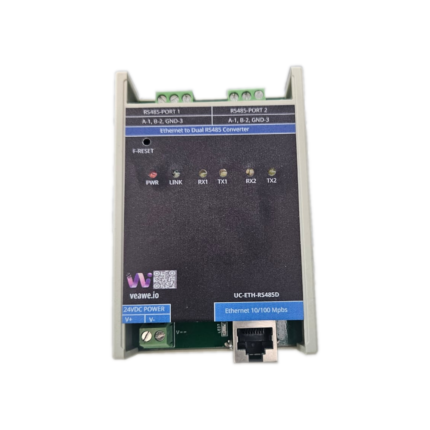

Ethernet to RS485 Converter UC-ETH-RS485
