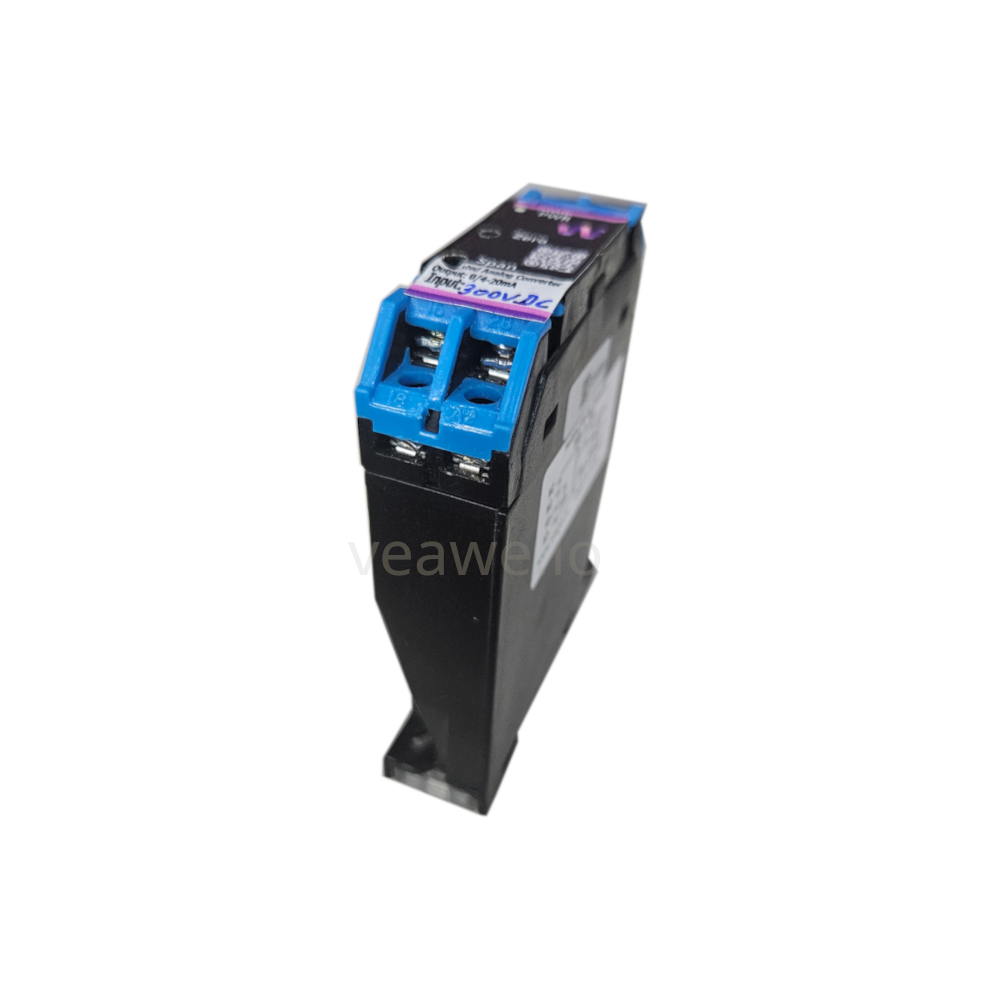

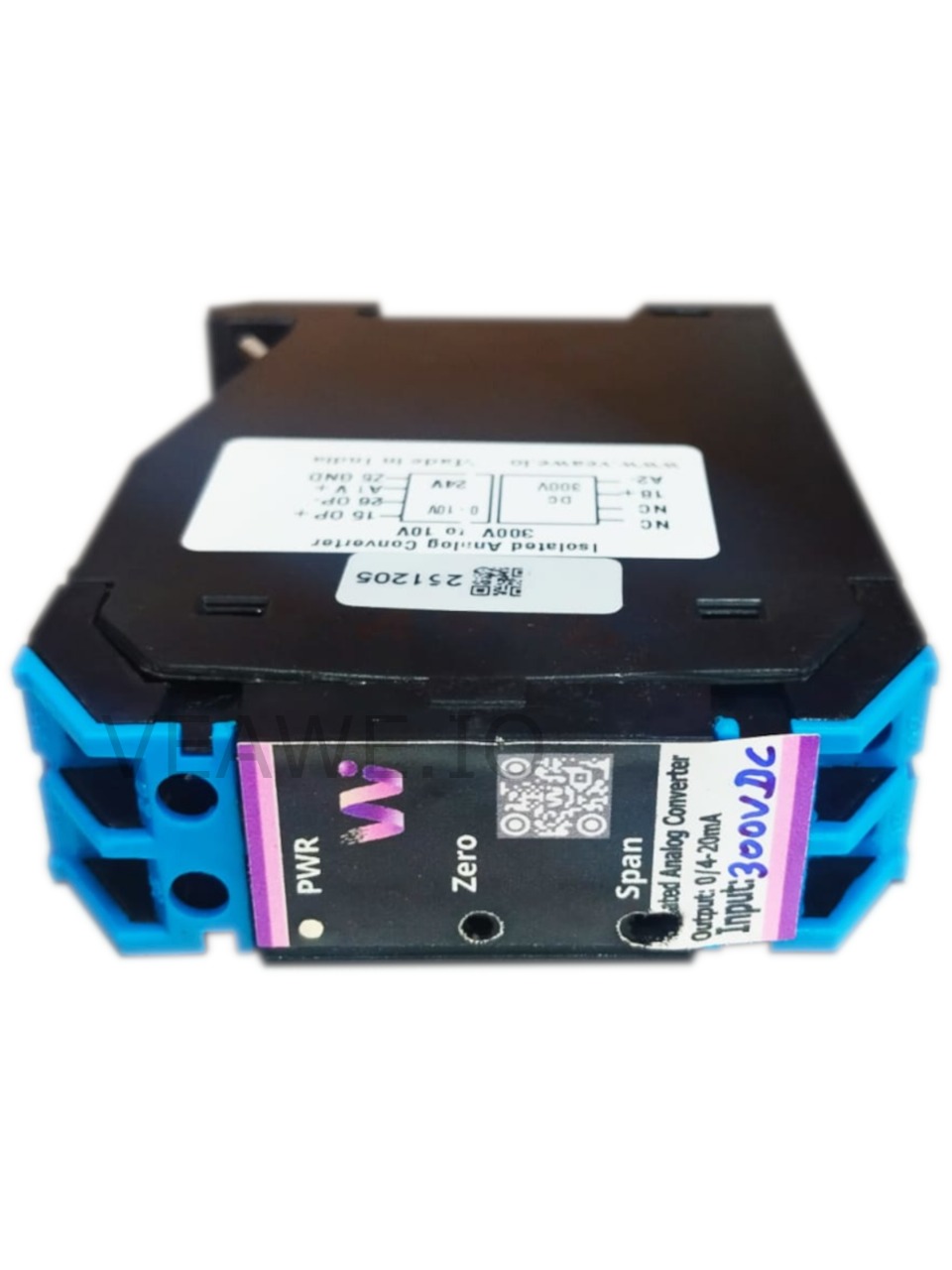

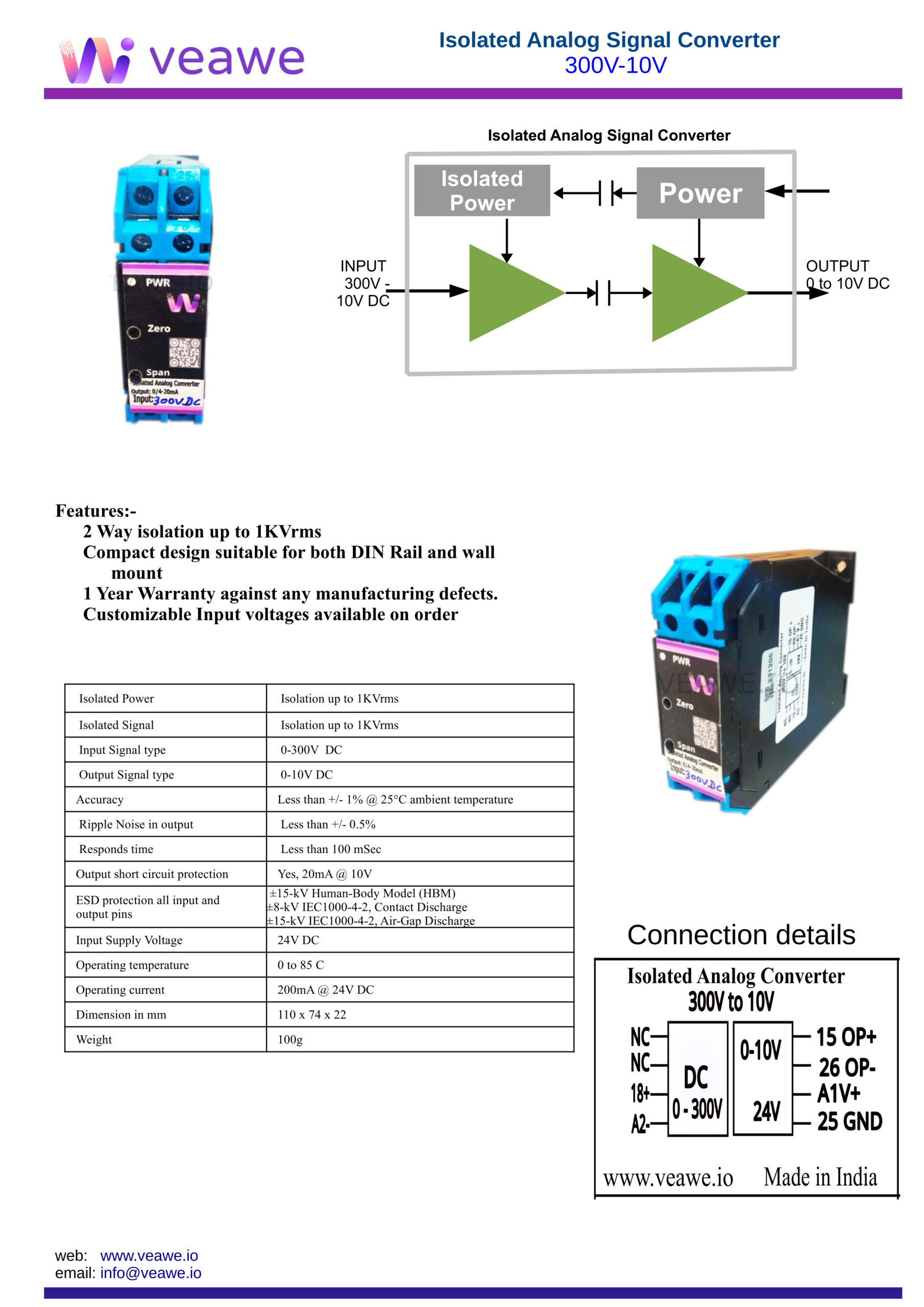

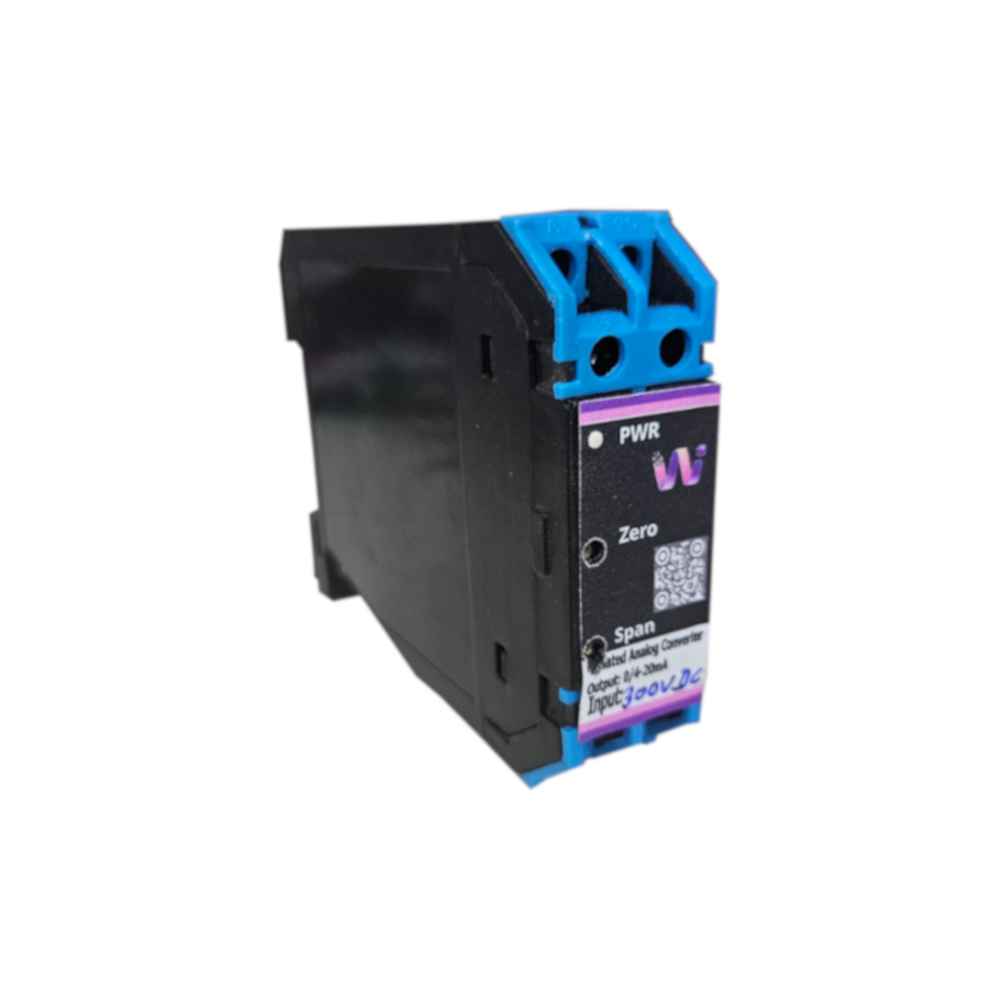

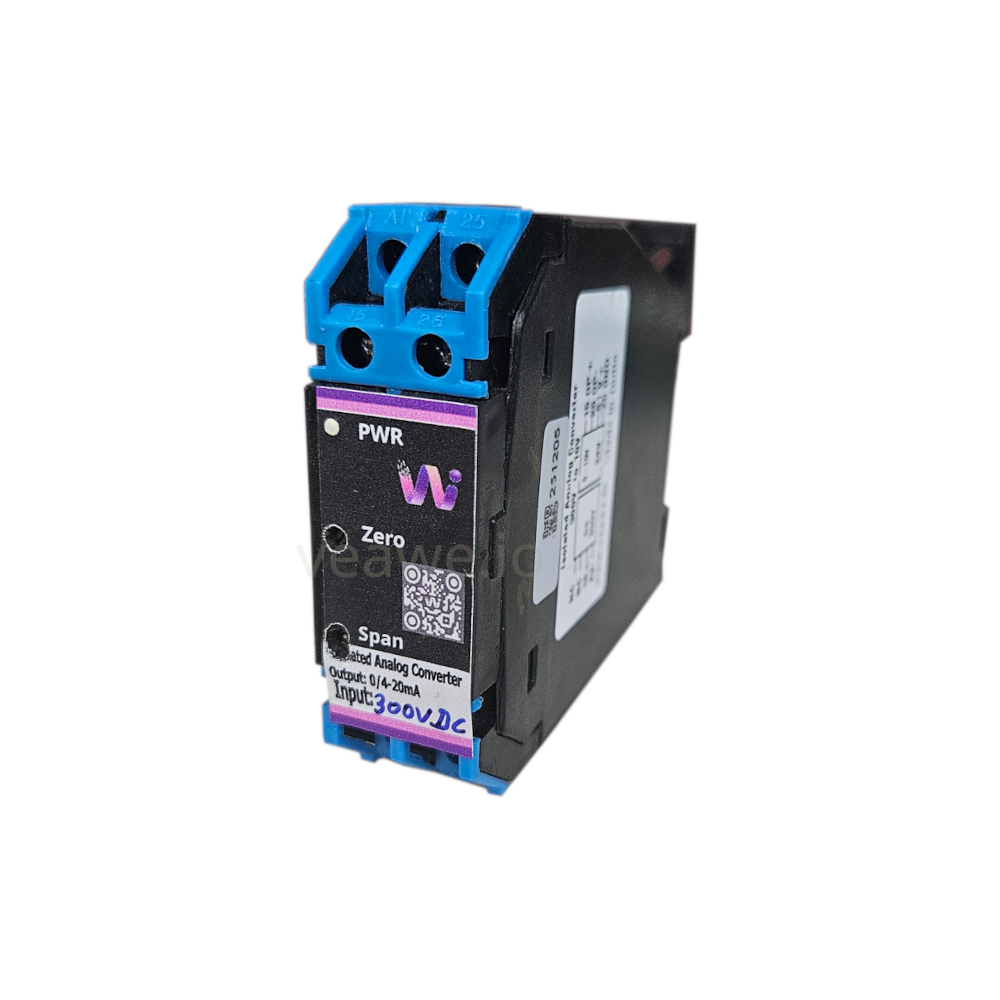

Isolated Analog Signal Converter 300V to 10V
Original price was: ₹4,000.00.₹2,250.00Current price is: ₹2,250.00.
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 0-300V DC
Output Signal type : 0-10V DC
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Application:-
- High-voltage DC bus and power system monitoring
- Industrial Automation & Process Control signal isolation
- SCADA & PLC Analog Input protection from high-voltage DC lines
- Control panel building and signal conditioning
Key Features:-
- High Voltage DC Input: Directly interfaces 0–300V DC to standard 0–10V DC instrumentation
- 2-Way Galvanic Isolation up to 1 kV RMS
- True Analog Signal Isolation – Preserves original analog waveform fidelity
- No PWM conversion or digital reconstruction artifacts
- Fast dynamic response with minimal signal processing delay (< 50 ms)
- High noise immunity against industrial electrical interference
- High linear conversion accuracy (< ±0.5% F.S.)

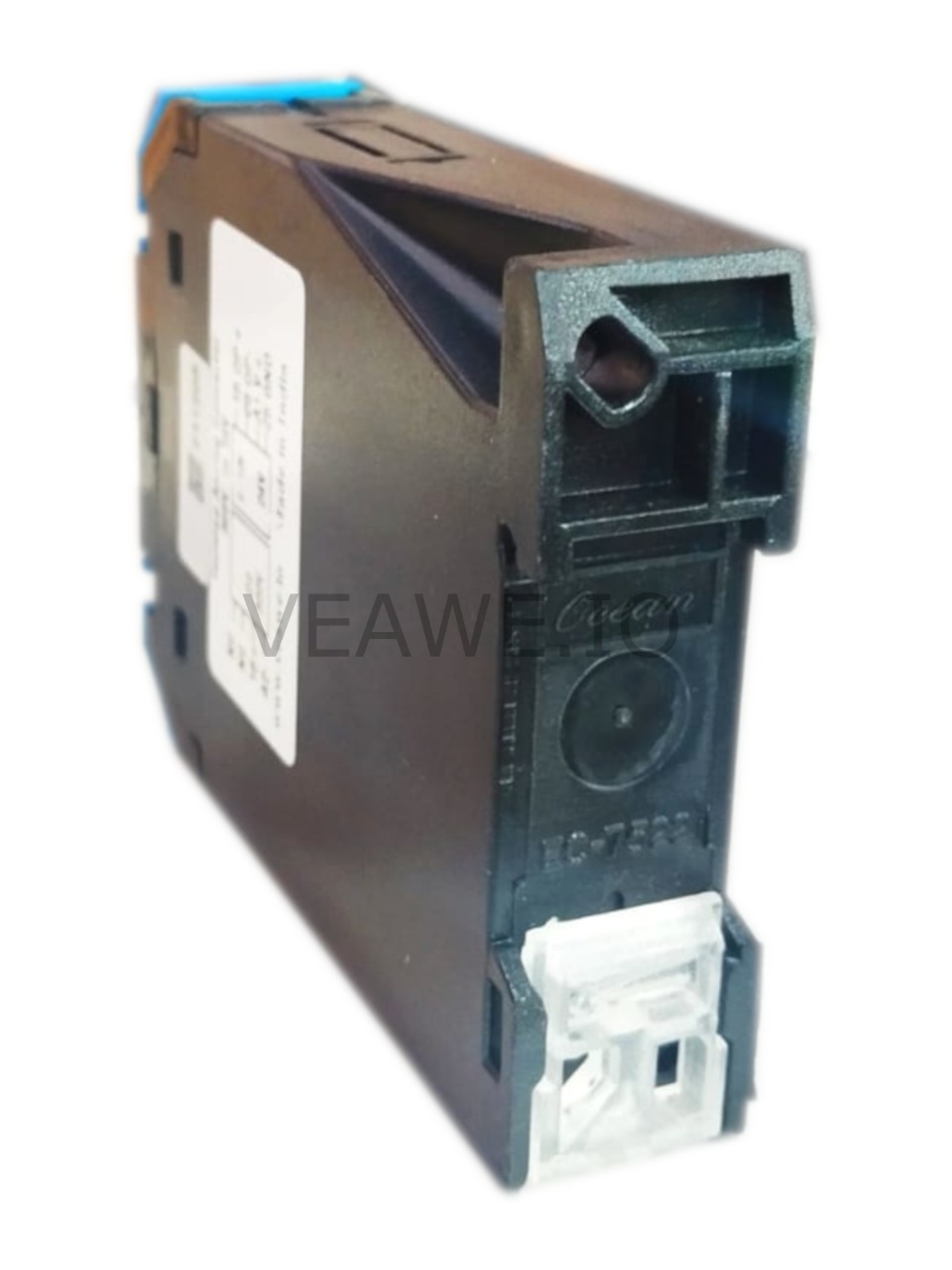

- Compact design suitable for both 35 mm DIN Rail and wall mount
- 1 Year Warranty against any manufacturing defects
- Customization of input and output spans available on order
Dimension in mm: 110 x 74 x 22
Weight: 100g
| Part No | AC-300V-10V |
|---|---|
| Brand | Veawe |
| Signal Type | High Voltage DC |
| Input Signal Type | 0-300V DC |
| Output Signal | 0-10V DC |
| Supply Voltage | 24V DC (15 ~ 28V DC) |
| Mounting Type | DIN Rail, Wall Mount |
| Isolation | 1000 V RMS |
| Output Accuracy | < ±0.5% F.S. |
| Protection | Reverse Polarity, TVS Surge Clamping |
| Warranty | 1 Year |
| Country of Origin | Made in India |
| Dimensions | 110mm x 74mm x 22mm |
