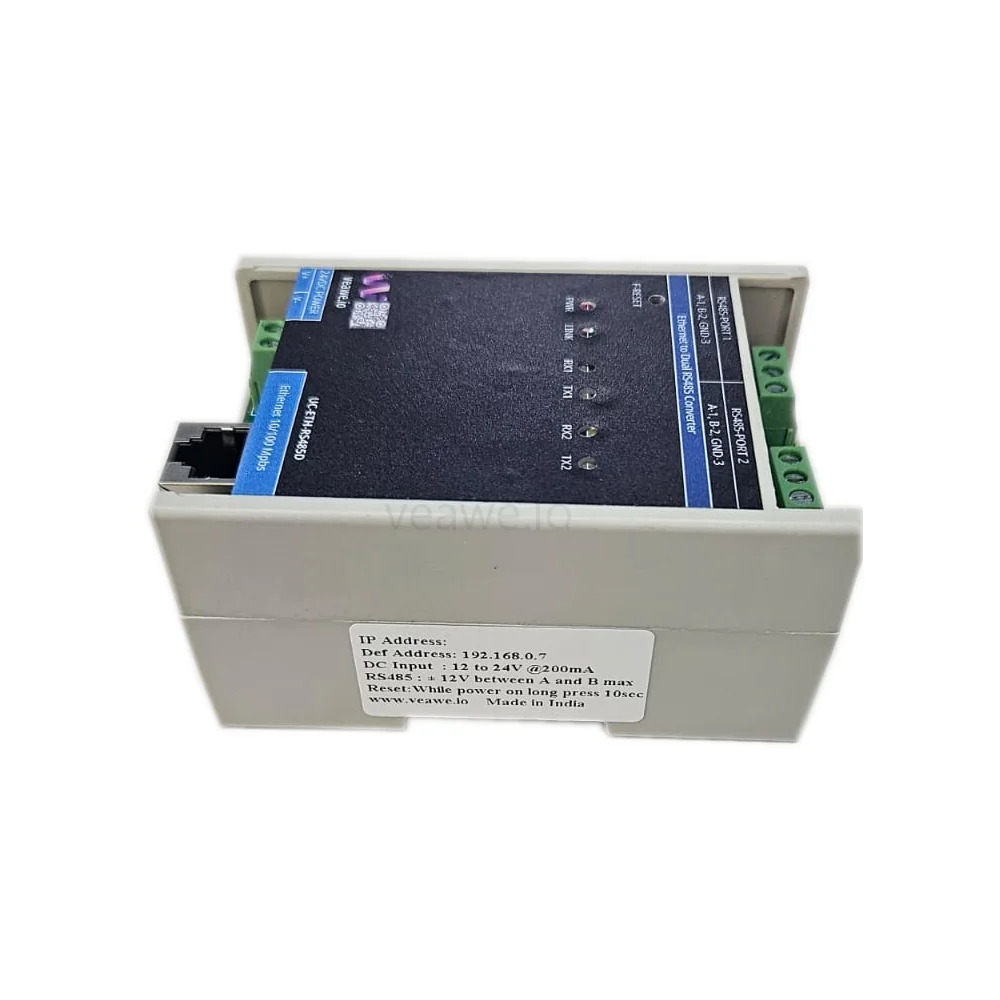

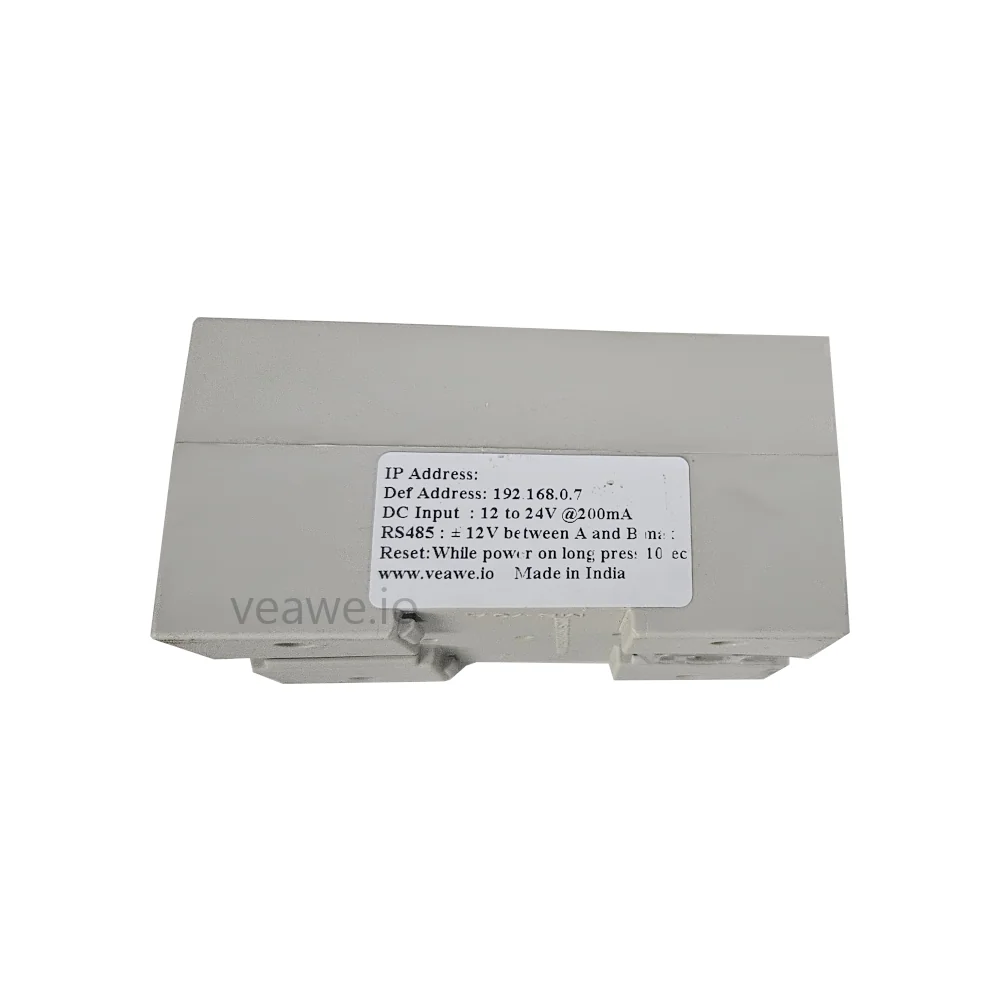

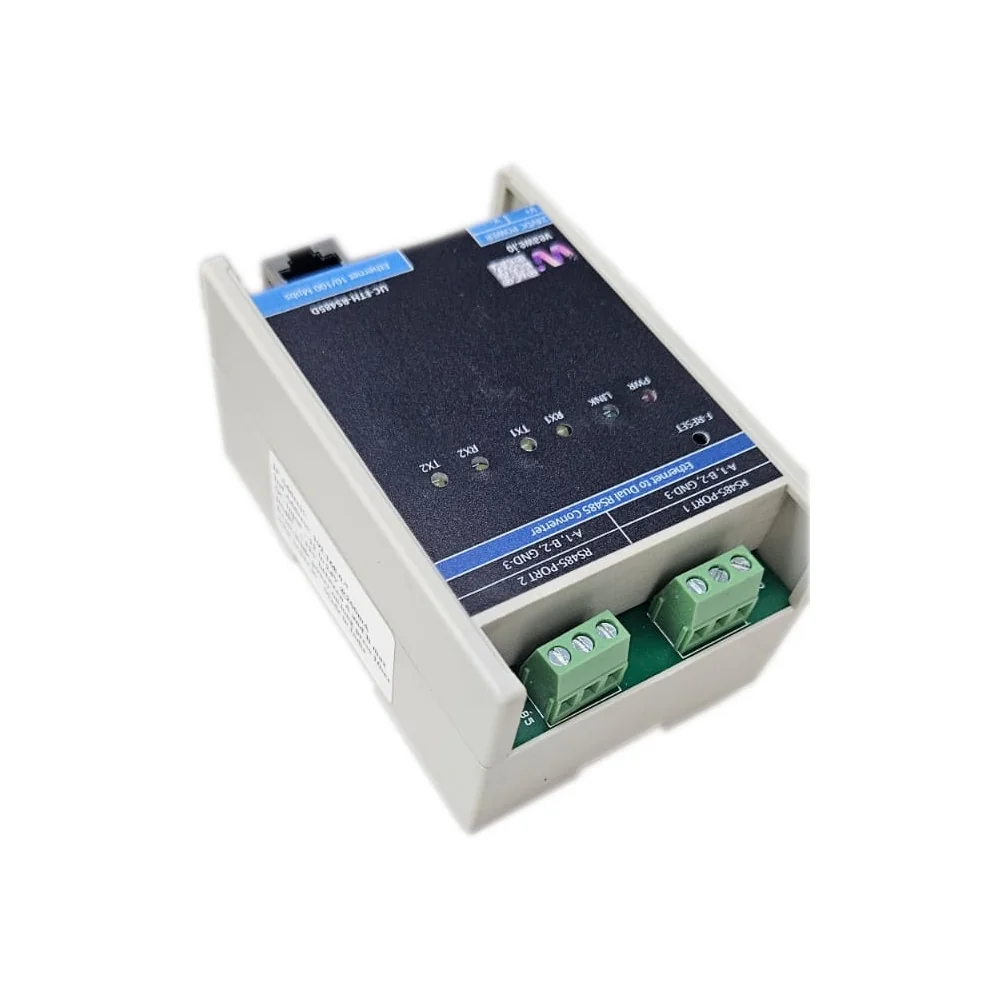

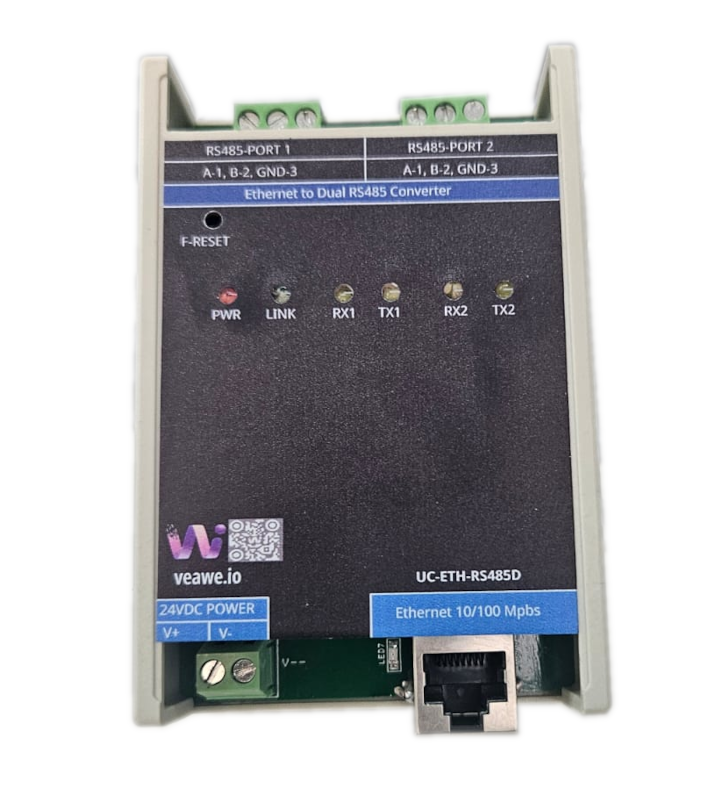

Ethernet to Dual RS485 Converter UC-ETH-RS485-D
Original price was: ₹7,500.00.₹5,900.00Current price is: ₹5,900.00.
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS485 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option* Dimension in mm – 110 x 74 x 35
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion
ESD and Surge protection for Ethernet, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
12~24V DC Supply
1 Year Warranty against any manufacturing defects
Unique MAC address

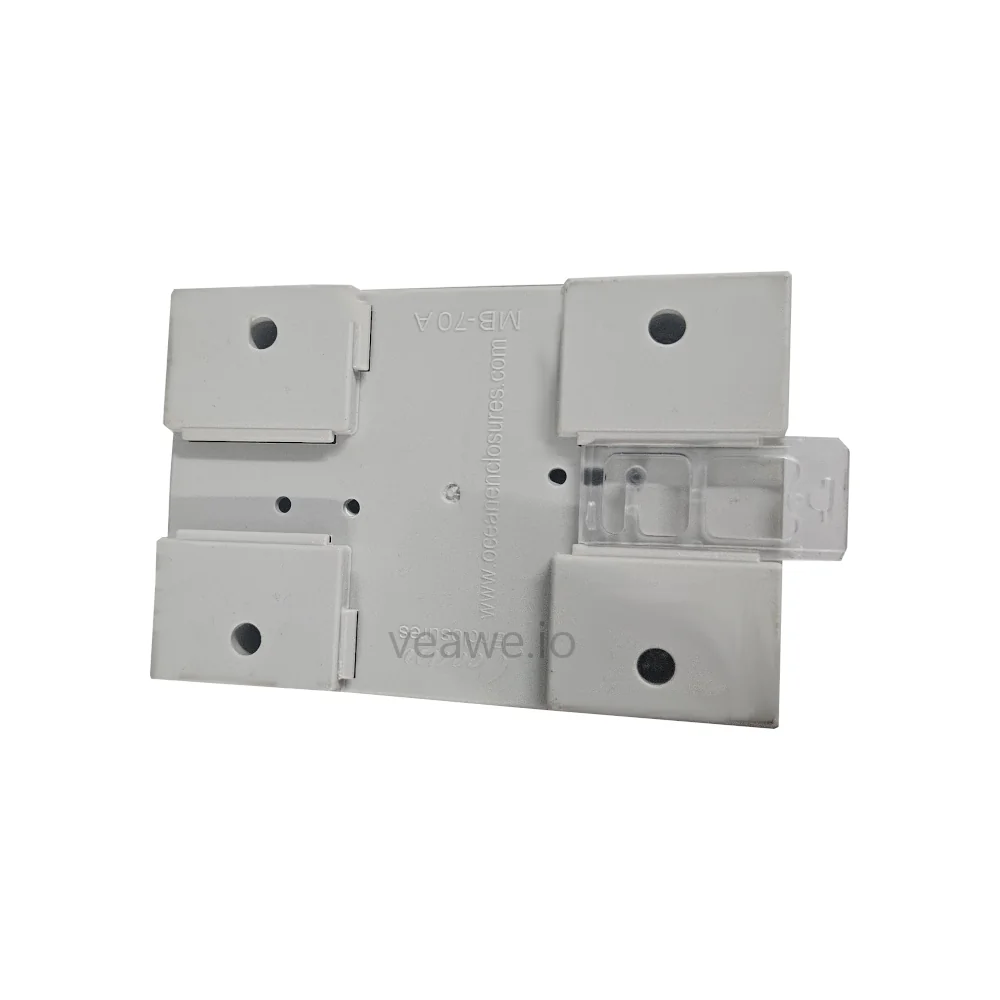

Compact design suitable for both DIN Rail and Wall mount
5 in stock
Application:-
Features
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
RS485 Rx and Tx light indications for easy visibility and troubleshooting
RJ45 Status light indications, RJ45 built-in 2KV isolation
Easy to use web page configuration option
Unique MAC address
Compact design suitable for both DIN Rail and Wall mount
Dimension in mm – 110 x 74 x 35
Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
Supports Transparent Mode data transmission
Supports Modbus TCP to Modbus RTU protocol conversion
ESD and Surge protection for Ethernet, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
12~24V DC Supply
1 Year Warranty against any manufacturing defects
| Baud Rate | 600~115200 |
|---|---|
| Brand | Veawe |
| Channels | 2 channel |
| Country of Origin | Made in India |
| Mounting Type | DIN Rail |
| Port Type | RJ45 |
| Supply Voltage | 24V DC |
| Serial Ports | 2 Ports, RS485 |
| Network Speed | 100Mbps |
| Part No | UC-ETH-RS485-D |
| Protocol | Modbus TCP |
| Warranty | 1 Year |
