4-20mA Surge Protection Device SPD 4 to 20mA
- Three-stage SPD-20mA surge protection device meets standard
protection against power surges, voltage surges and
disturbances with three stages of protection.
- Housed in a din rail panel mount case with a protected earth
ground.
- In order to work properly, it is important to have a good
connection in E terminal to solid earth ground.
- Unknown electronic device failure and misbehave in controller
units might be avoided by using SPD-20mA
Features:
Protection provided by high energy MOV and TVS
Replaceable modular design, DIN Rail compatible base
All types of 20mA current loop devices, Also works for HART
interface
Where to Use:
*Noisy industrial lines like DC inductive load switching
*Industrial power panels
*Solar plants
*Gas stations

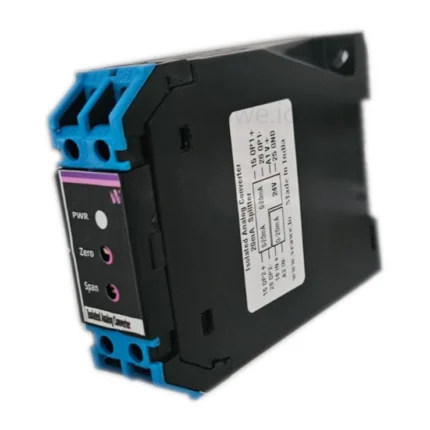

Isolated 20mA splitter AC-20mA-2
Isolated Analog Signal Converter ±75mV to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : ± 75mV
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 150V to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 70V DC
Output Signal type : 0-20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 70V to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 70V DC
Output Signal type : 0-20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter 75mV to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 75mV
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter J Type
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : J – type
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter K Type
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : K – type
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter Pt 100
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Pt 100
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter Pt 1000
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Pt 1000
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC

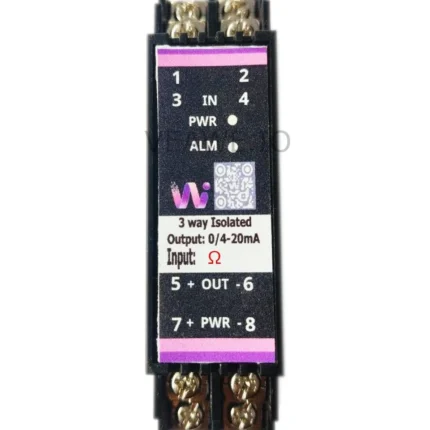

Isolated Analog Signal Converter Resistance to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Ω
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Signal Isolator 4 20ma
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 0-20mA
Output Signal type : 0-20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
