Isolated Analog Signal Converter 150V to 20mA

Original price was: ₹4,000.00.Current price is: ₹2,600.00.

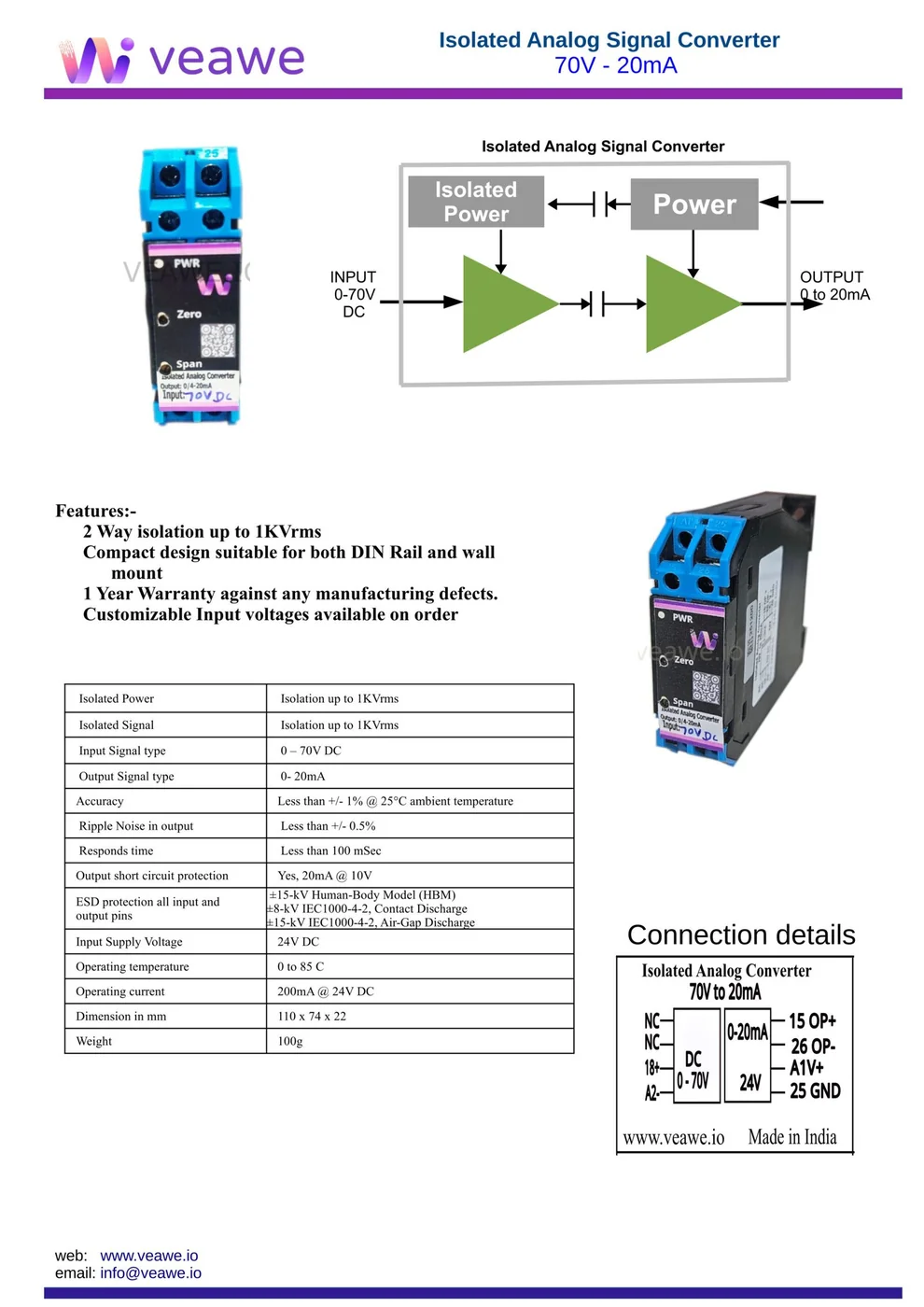

Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order

Input Signal type  :  70V DC

Output Signal type  : 0-20mA

Accuracy : Less than +/- 1% @ 25°C ambient temperature

Input Supply Voltage : 24V DC

Add to wishlist
Categories: , , , Tags: , , ,
Description

Application:-

• Modbus, Profibus and DMX applications or any RS485 field bus application
• 5 Volt differential or single ended data lines
• Industrial and building automation
• Solar power monitoring systems
• Industrial data communication systems

User Manual / Datasheet / Example Codes Etc.
