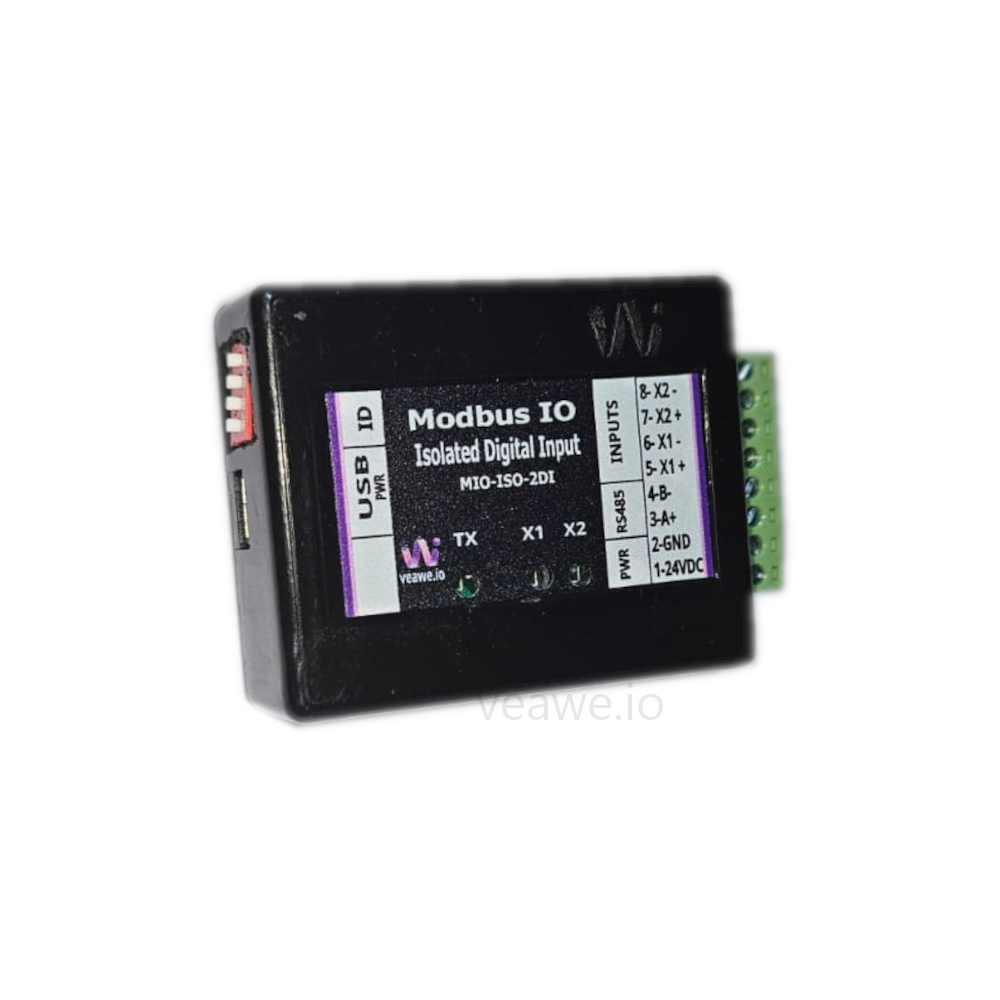

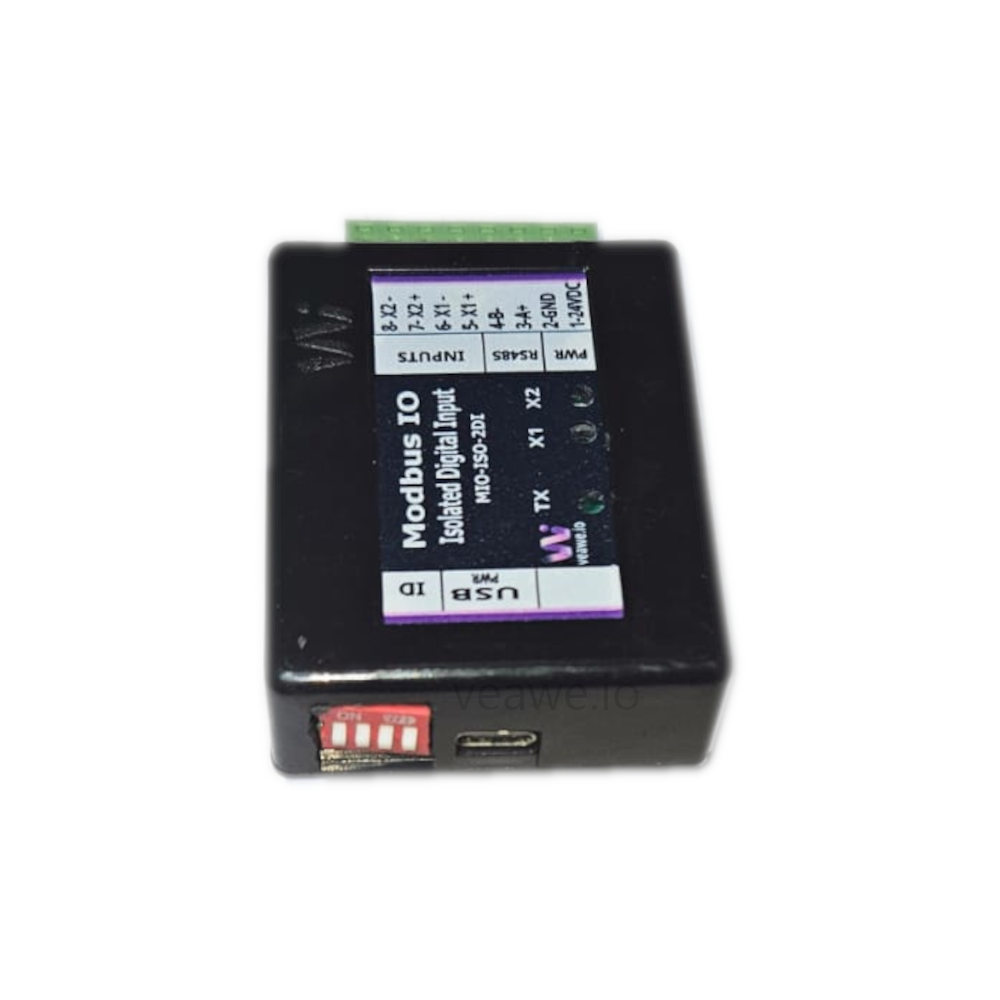

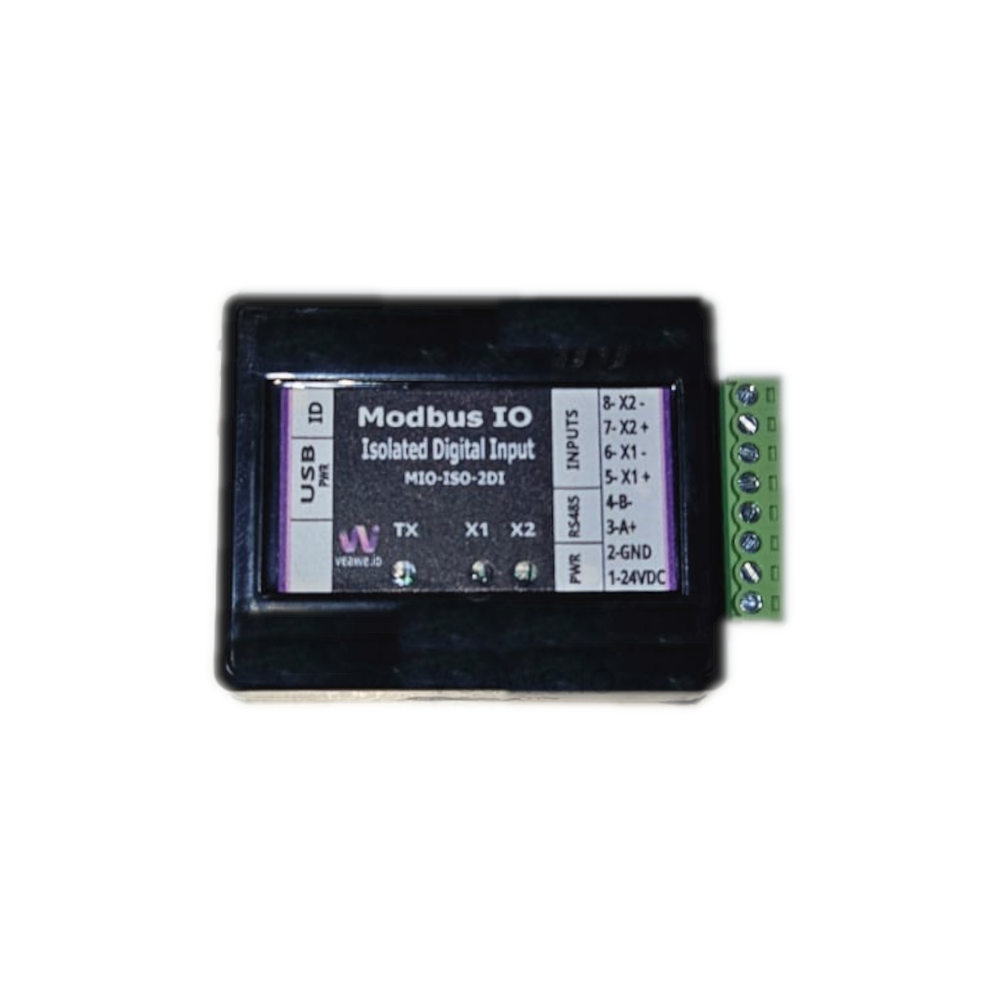

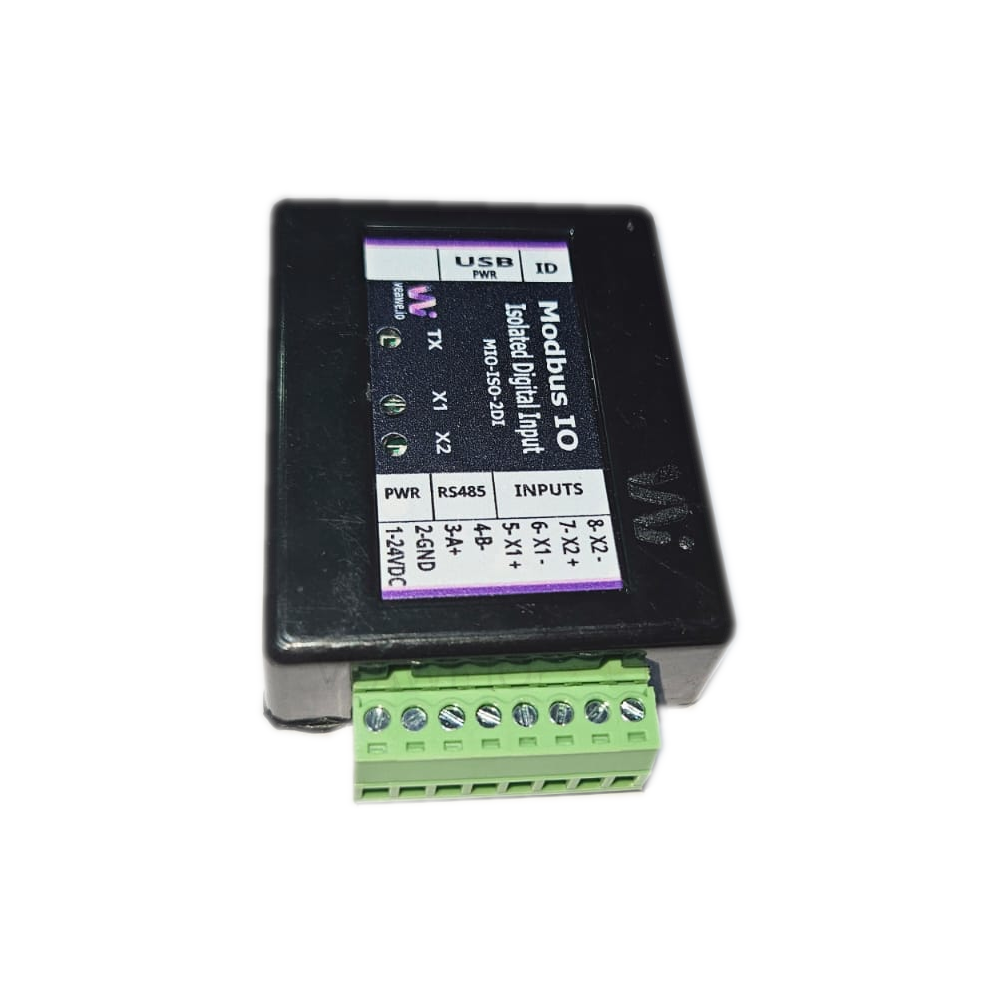

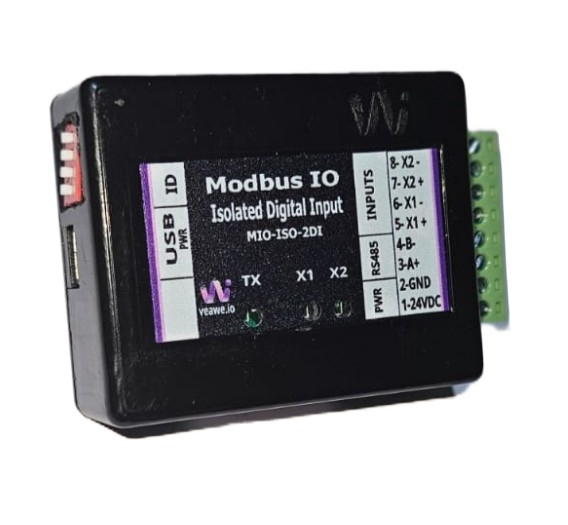

2 Channel Isolated Digital Input Modbus RTU RS485 Module
Original price was: ₹3,500.00.₹2,500.00Current price is: ₹2,500.00.
- ● Multiple Digital Sensors support
● Modbus RS-485 Protocol Interface.
● Convenient address selection dip switch from 1 – 15 Address
● Complete range of baud rate settings supported
● Sensor open indication, Analog values in integer and float values
● Product Dimensions 60mm x 50mm x 20mm (L x W x H)
2 Isolated Digital Inputs, 5~24V compatible
2 High speed Production counter and RPM measurement
All Inputs has latched status, Never miss an input change
All Inputs has individual counter functions
Modbus RTU over RS-485
Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
| Material |
Wood |
|---|---|
| Height |
79.5 cm |
| Length |
46.5 cm |
