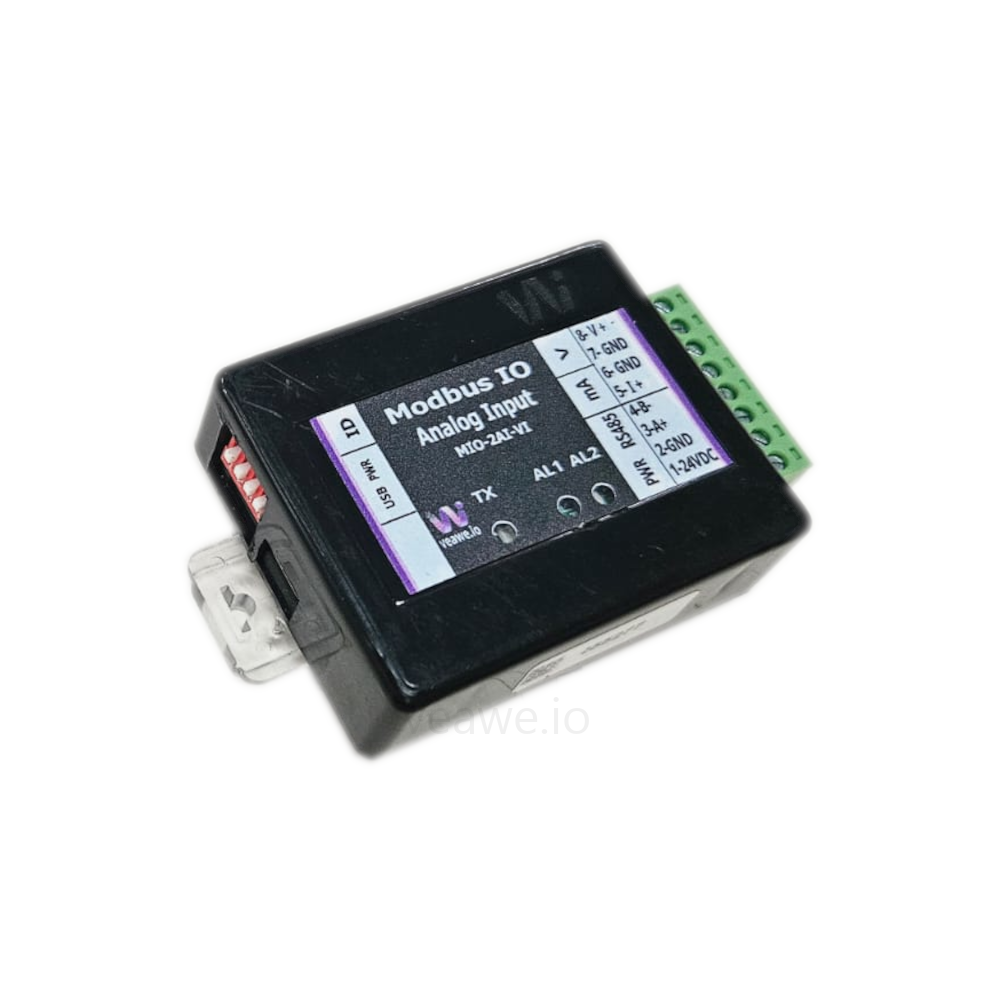

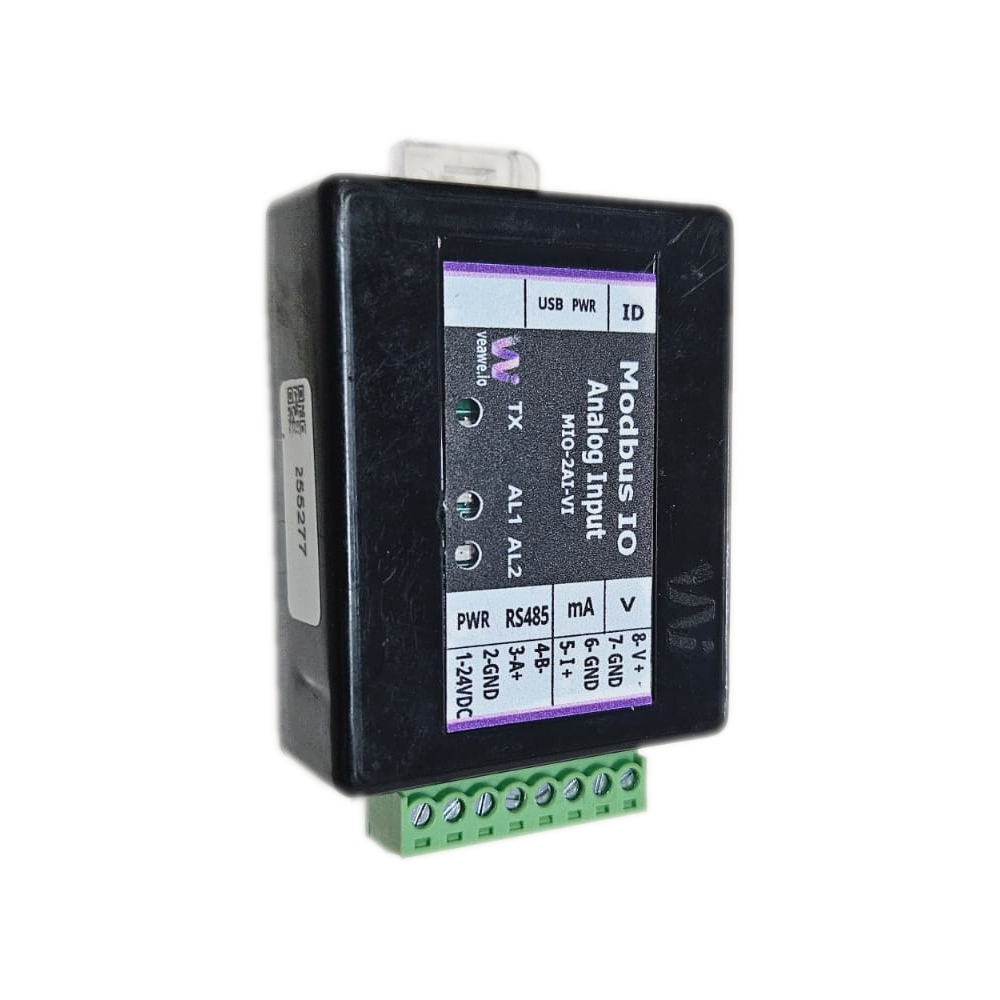

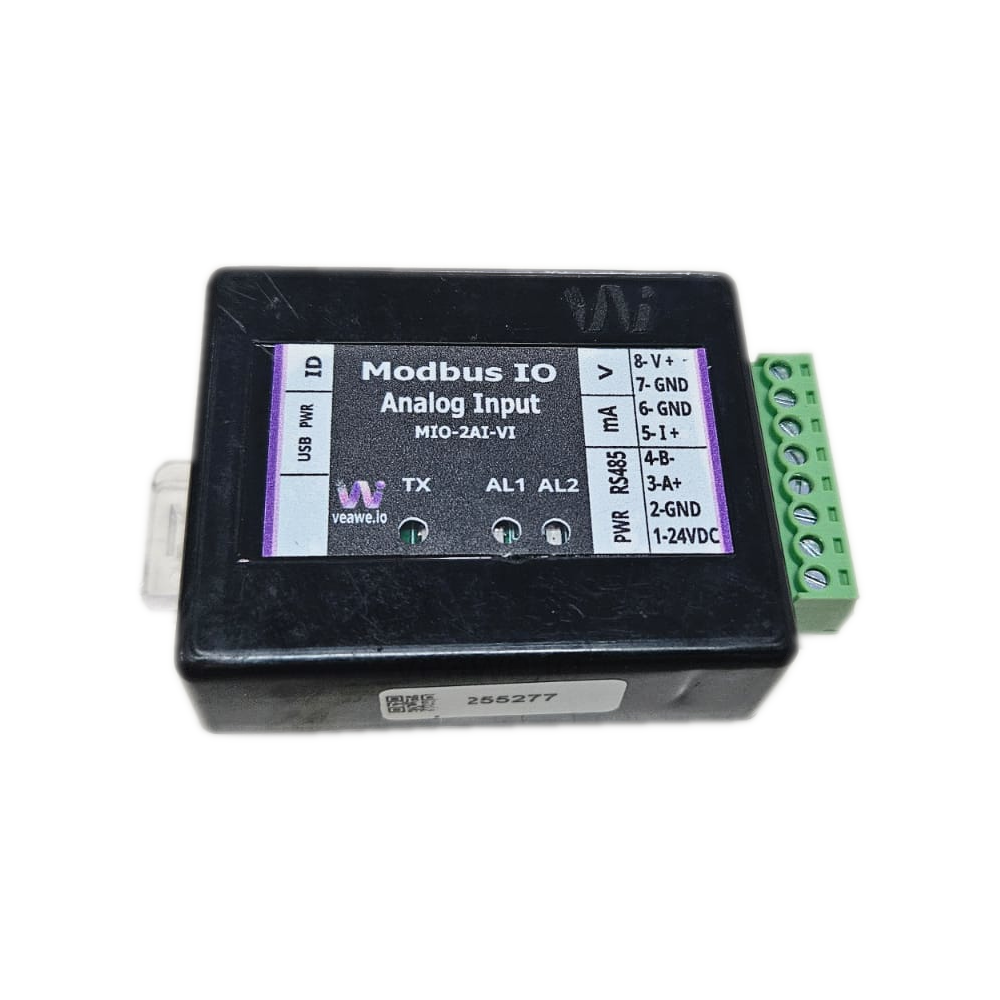

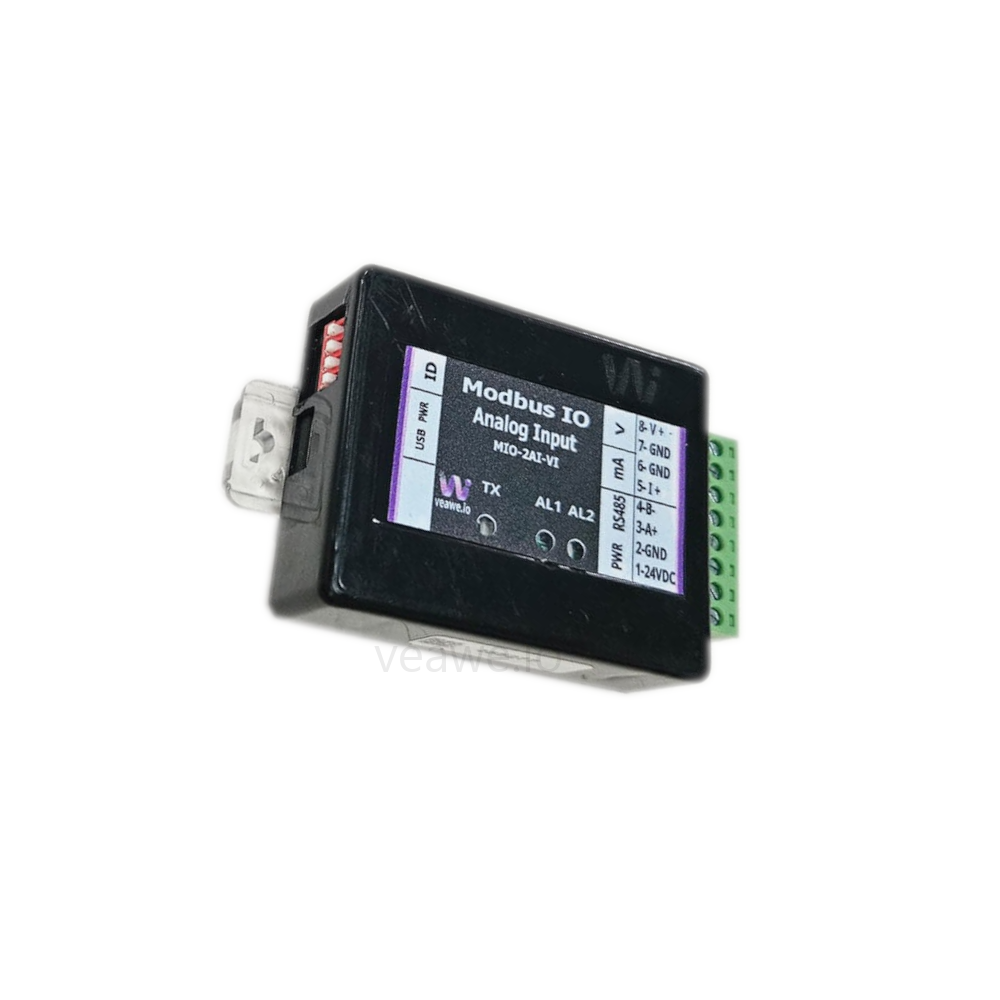

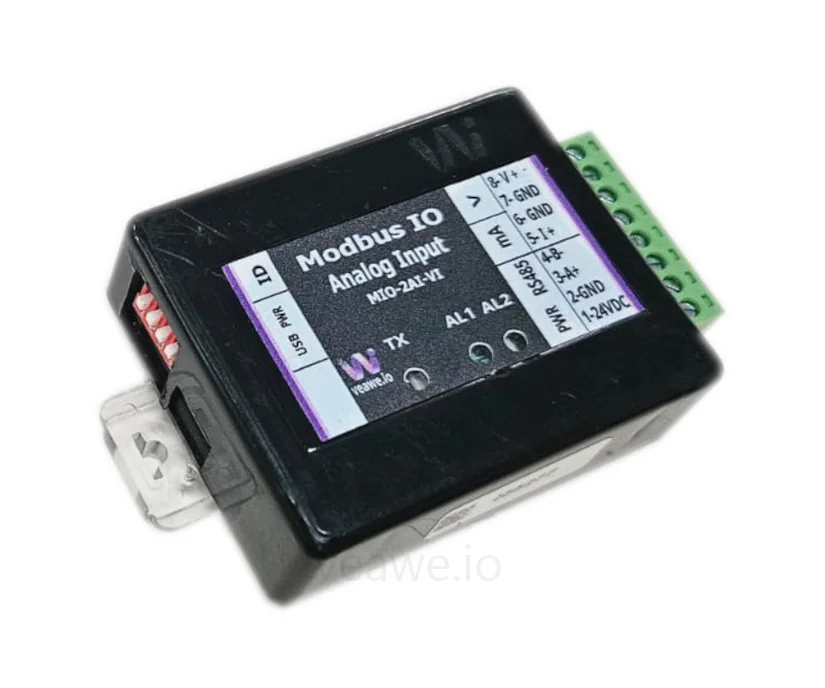

2 Channel Analog Input Modbus RTU RS485 Module
Original price was: ₹3,500.00.₹2,500.00Current price is: ₹2,500.00.
- One 0 – 20mA and one 0 – 36V DC Analog Inputs
- 16-bit analog resolution
- Modbus RS-485 Protocol Interface.
- Integer and IEEE754 float value support
- Offset and Gain support

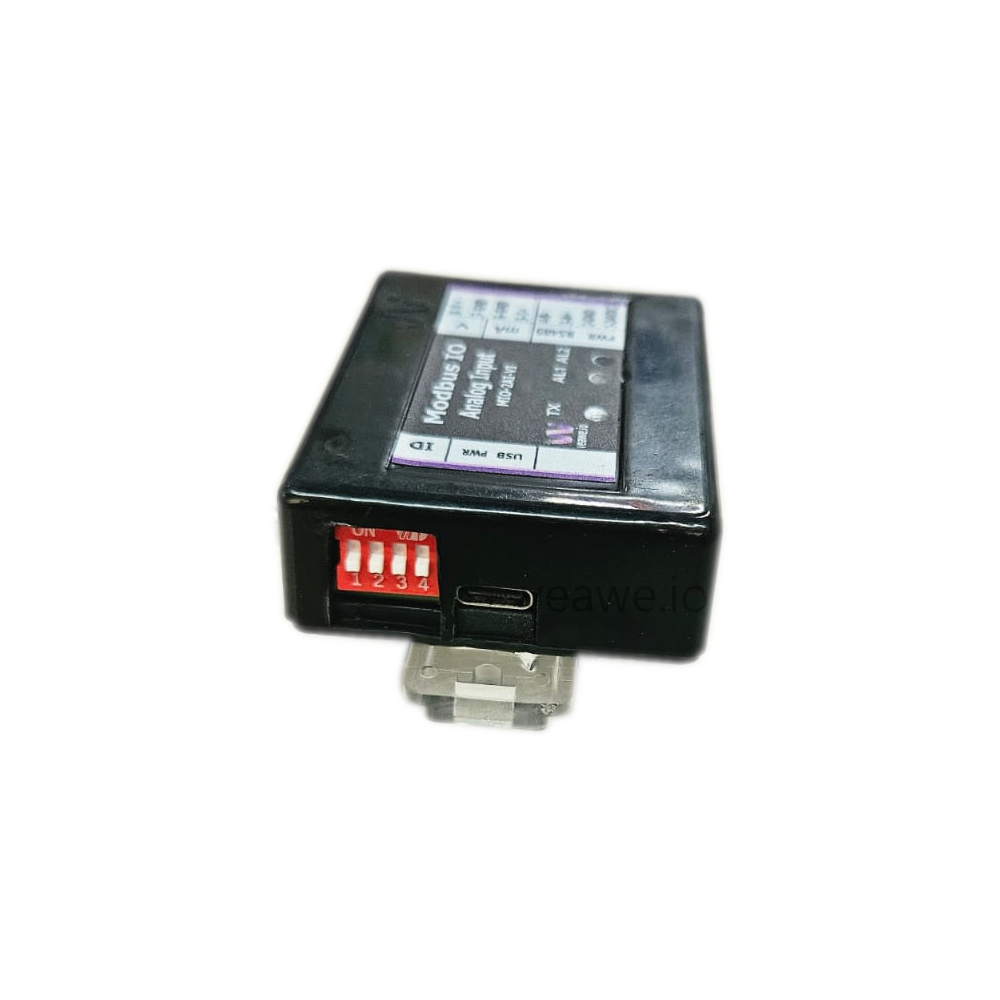

- Convenient address selection dip switch from 1 – 15 Address
- Complete range of baud rate settings supported
- Sensor open indication, Analog values in integer and float values
- DIN Rail mount support
- Product Dimensions 60mm x 50mm x 20mm (L x W x H)
One 0 – 20mA and one 0 – 36V DC Analog Inputs
Modbus RTU over RS-485
Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
| Material |
Wood |
|---|---|
| Height |
79.5 cm |
| Length |
46.5 cm |
