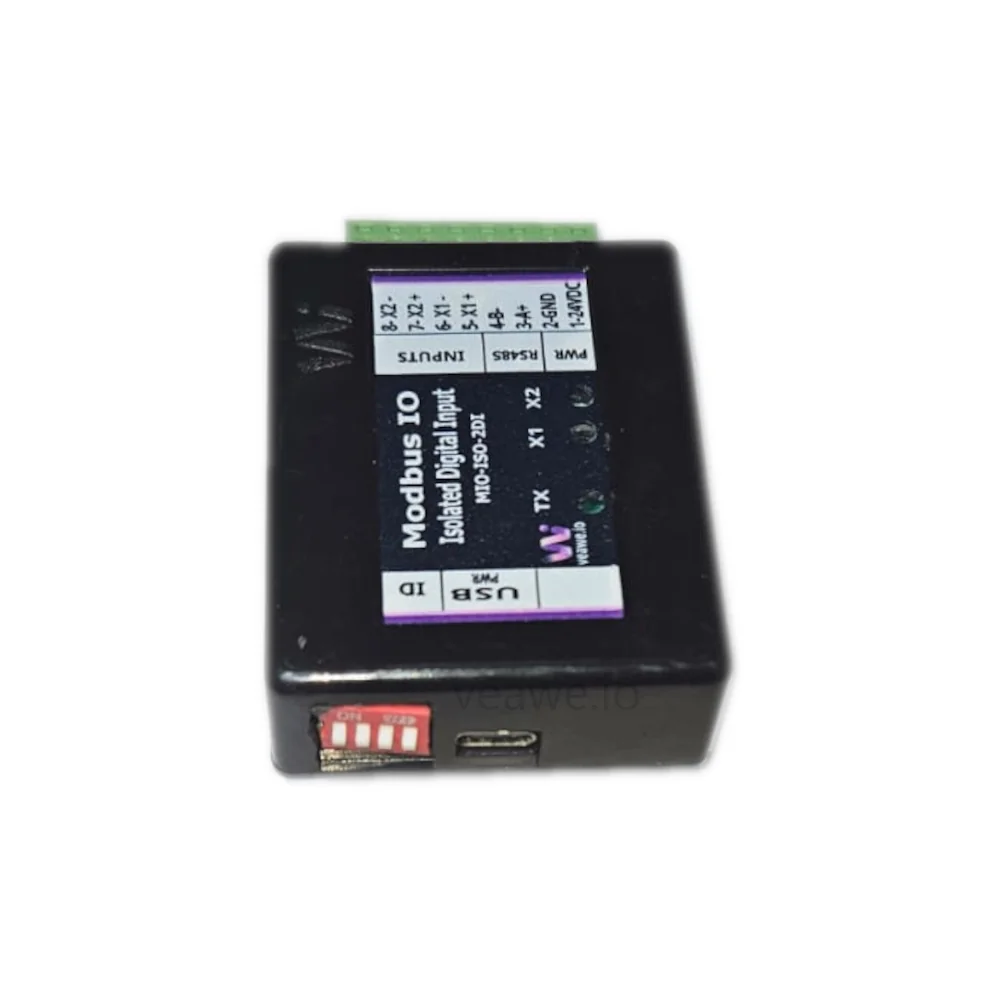

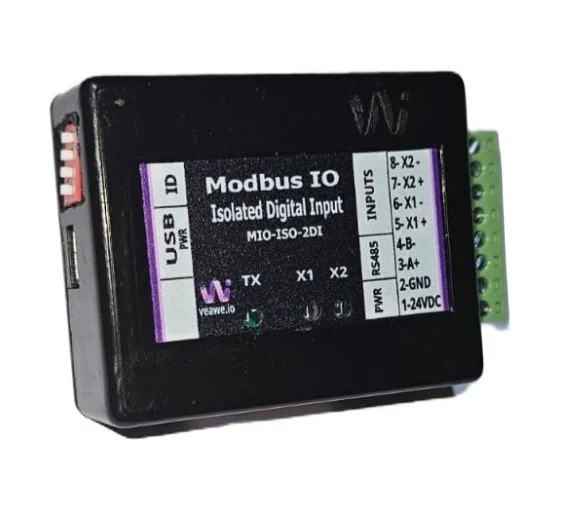

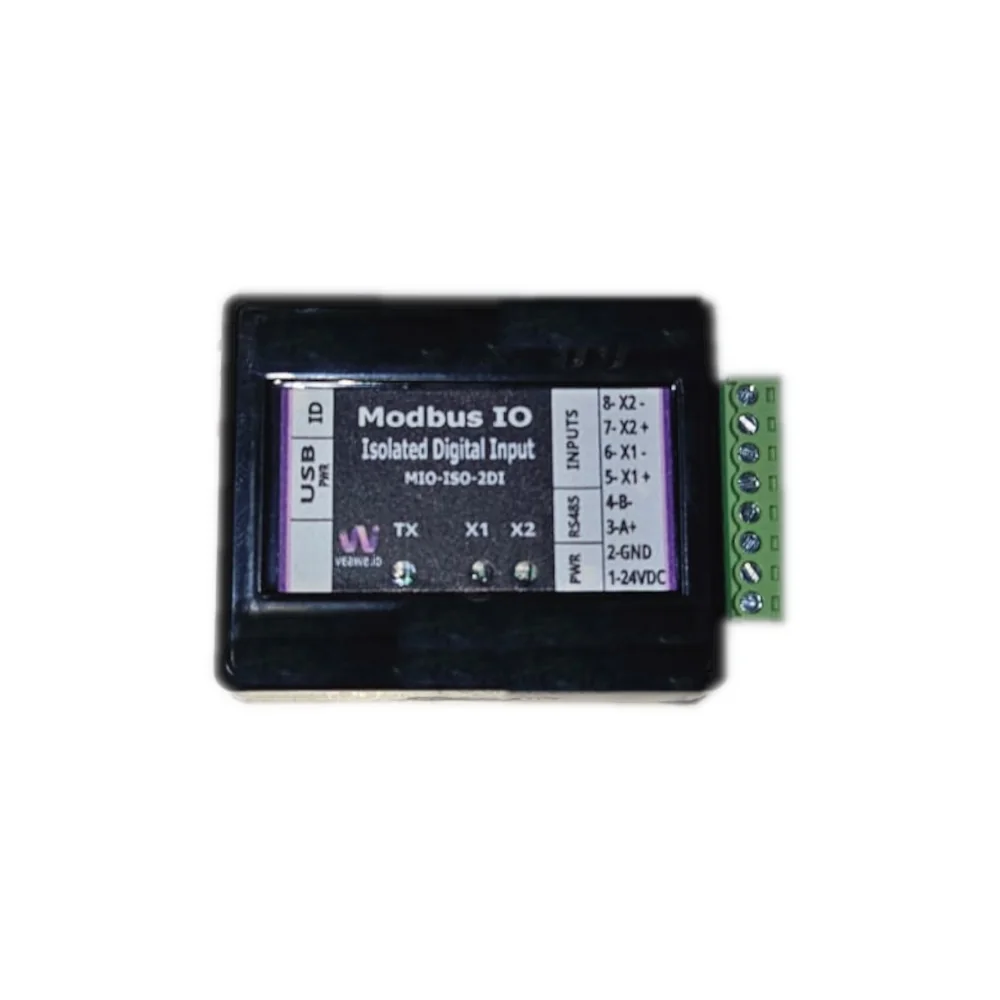

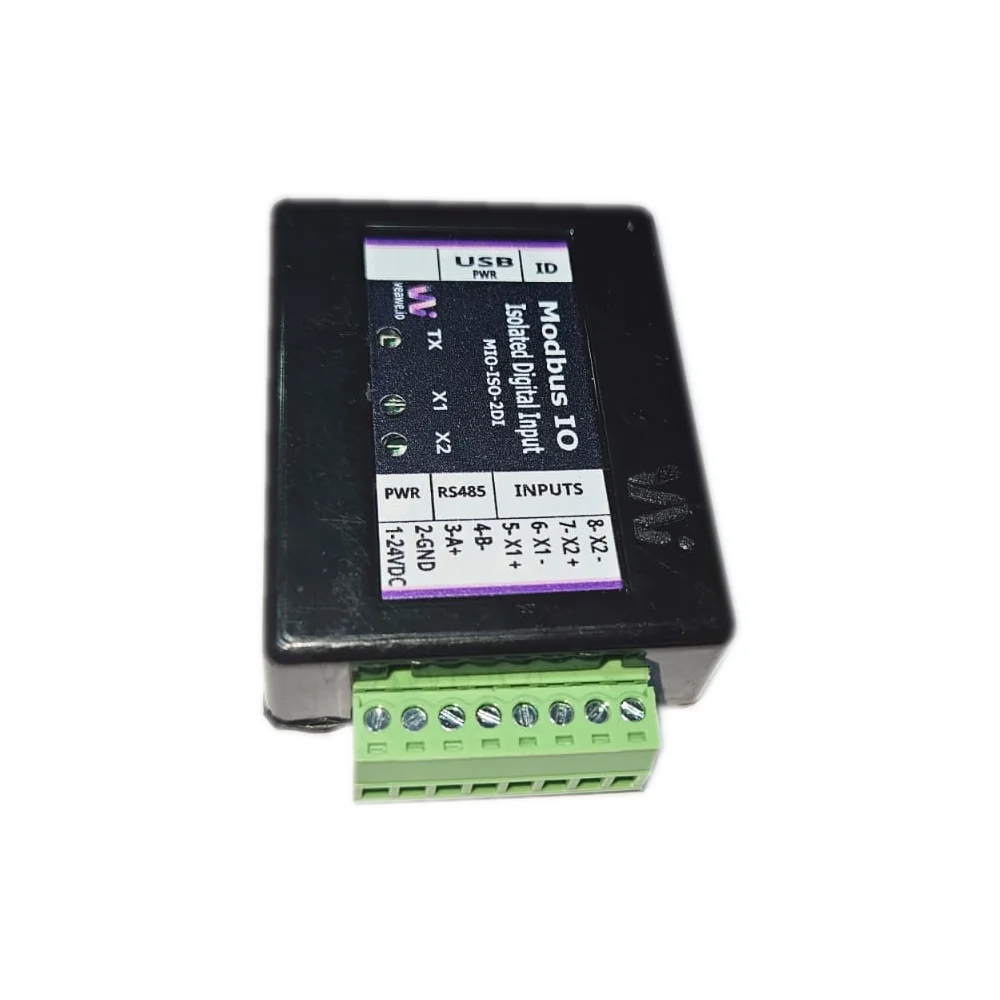

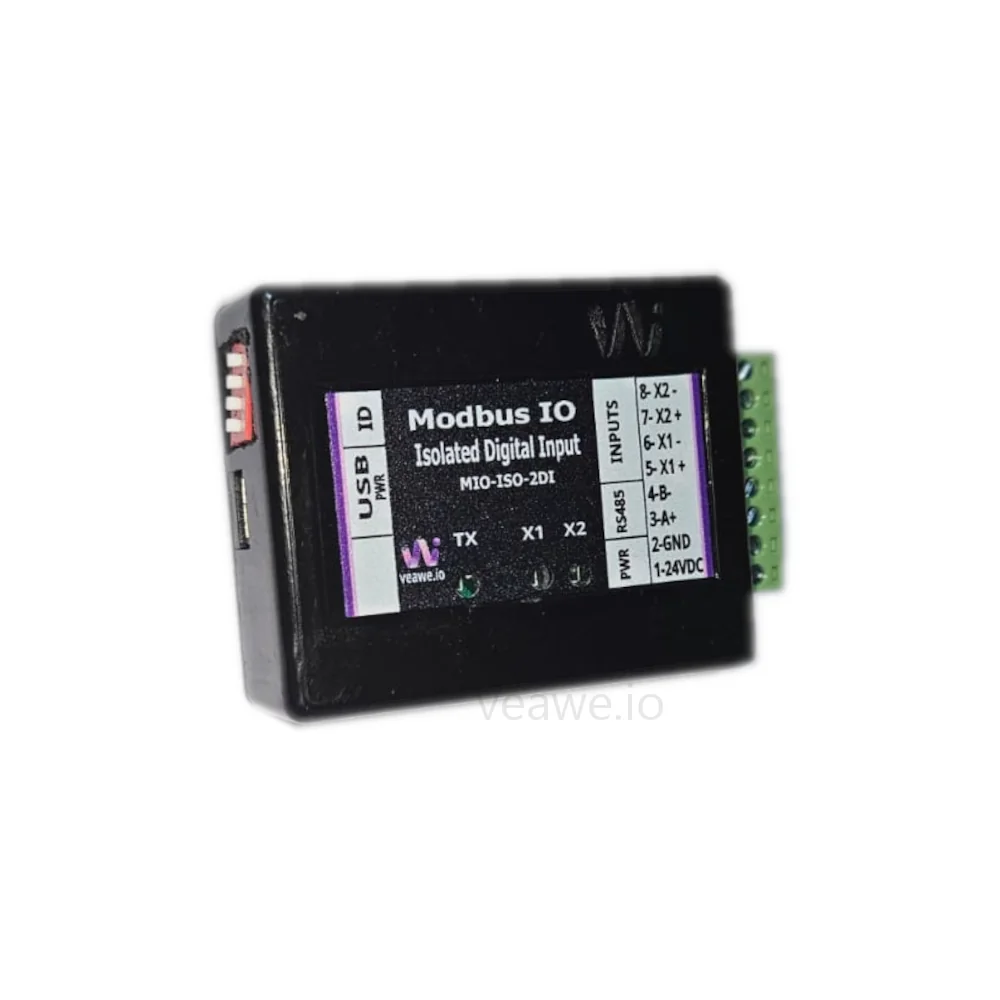

2 Channel Digital Input Modbus RTU RS485 Module
Original price was: ₹3,500.00.₹1,650.00Current price is: ₹1,650.00.
- Multiple Digital Sensors support
Modbus RS-485 Protocol Interface.
Convenient address selection dip switch from 1 – 15 Address
Complete range of baud rate settings supported
Sensor open indication, Analog values in integer and float values
Product Dimensions 60mm x 50mm x 20mm (L x W x H)
2 Channel Isolated Digital Input Modbus RTU RS485 Module
2 Isolated Digital Inputs, 5~24V compatible
2 High speed Production counter and RPM measurement
All Inputs has latched status, Never miss an input change
All Inputs has individual counter functions
Modbus RTU over RS-485

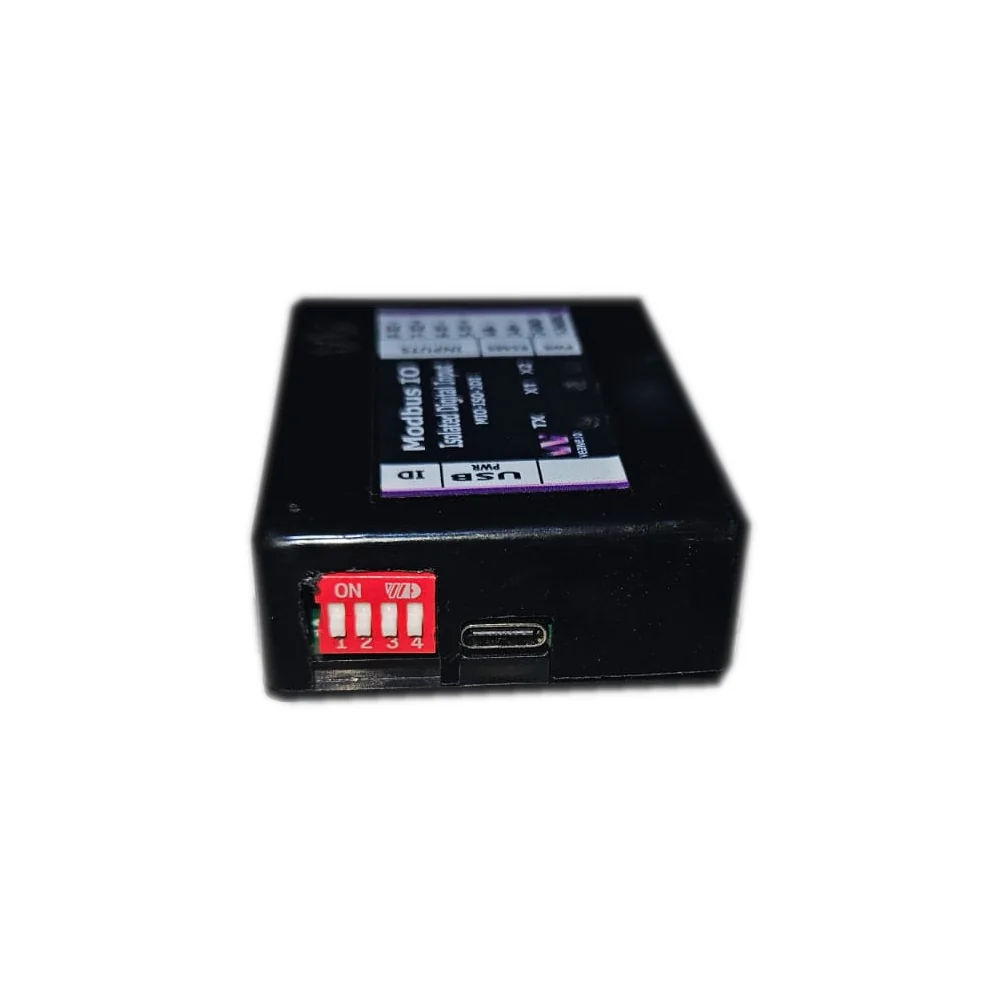

Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
Compact Modbus RTU remote I/O module with two isolated digital inputs, pulse counting, RPM calculation.
Configuration Software
| Brand | Veawe |
|---|---|
| Bus Interface Type | RS485 |
| Channels | 2 channel |
| Country of Origin | Made in India |
| Isolation | Isolated Inputs |
| Mounting Type | DIN Rail |
| Supply Voltage | 24V DC, 5V – USB Powered |
| USB Type | Type C |
| Warranty | 1 Year |
| Protocol | Modbus RTU |
| Controle Type | Digital |
| Part No | MIO-ISO-2DI |
