temperature humidity sensors to Modbus RTU RS485
Original price was: ₹3,500.00.₹1,650.00Current price is: ₹1,650.00.

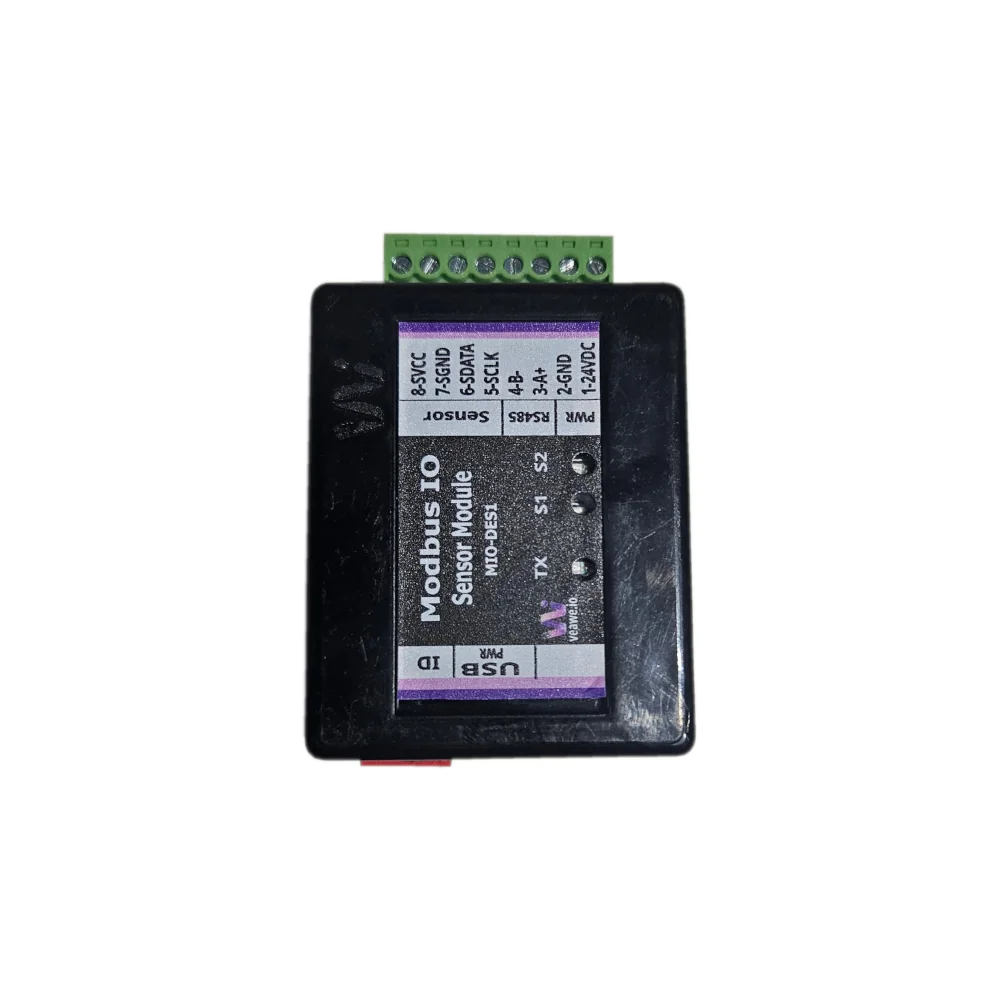

The MIO-DES1 Modbus IO Module is a compact digital environmental sensor interface designed for industrial monitoring and automation.
It supports DS18B20 and SHT40 sensors with Modbus RS-485 communication, providing temperature and humidity data.
● Multiple Digital Sensors support
● Modbus RS-485 Protocol Interface.
● Convenient address selection dip switch from 1 – 15 Address
● Complete range of baud rate settings supported
● Sensor open indication, Analog values in integer and float values
● Product Dimensions 60mm x 50mm x 20mm (L x W x H)
The MIO-DES1 Modbus IO Module is a compact digital environmental sensor interface designed for industrial monitoring and automation.
It supports DS18B20 and SHT40 sensors with Modbus RS-485 communication, providing temperature and humidity data.
Up to four DS18B20 sensors or one SHT40 senor can be connected with wide baud rate support
Four DS18B20 Temperature sensor or one SHT40 Humidity and Temperature sensor
Modbus RTU over RS-485
Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
| Material | Wood |
|---|---|
| Height | 79.5 cm |
| Length | 46.5 cm |
