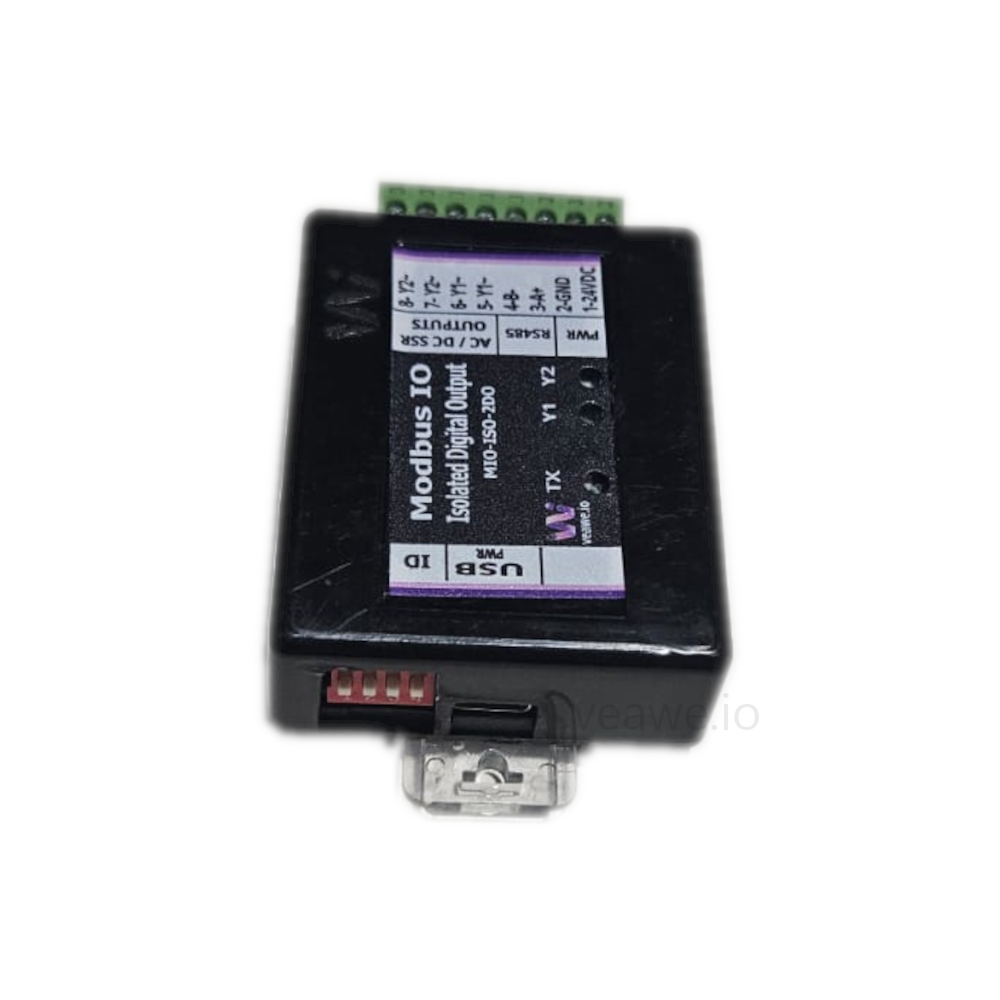

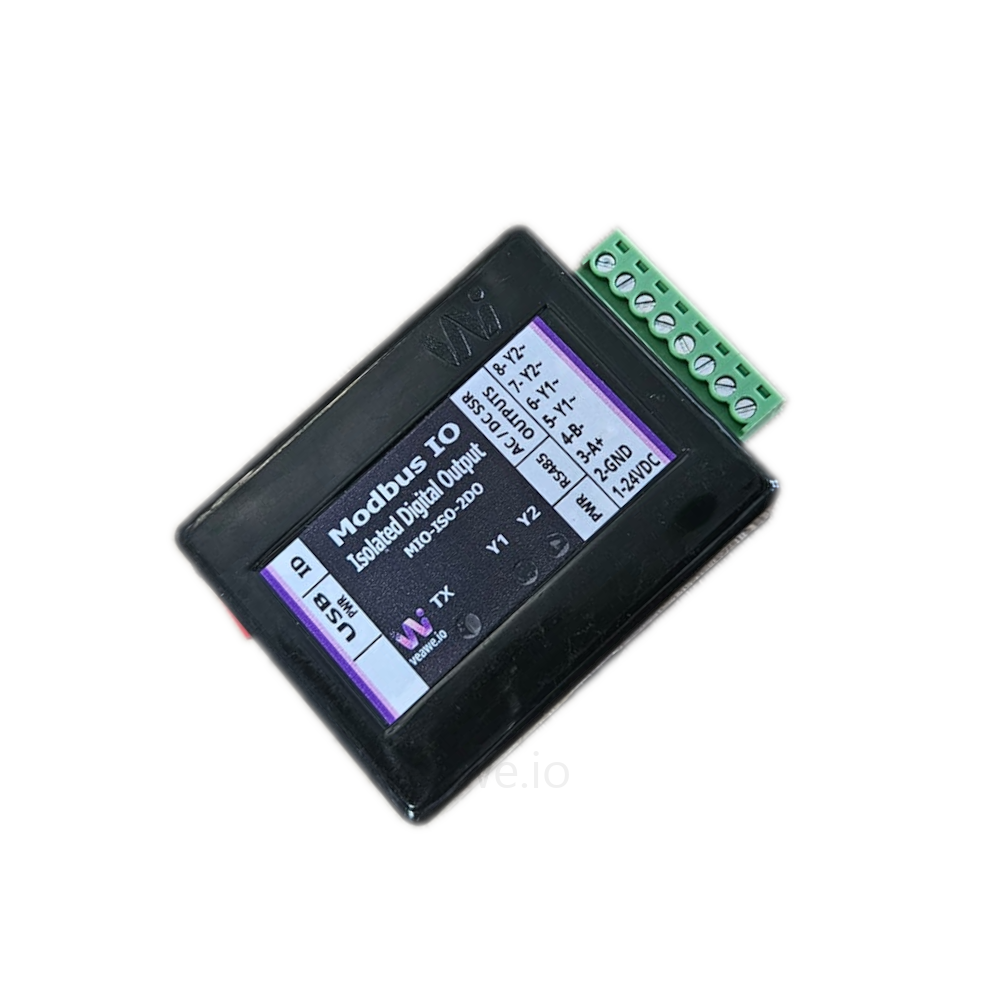

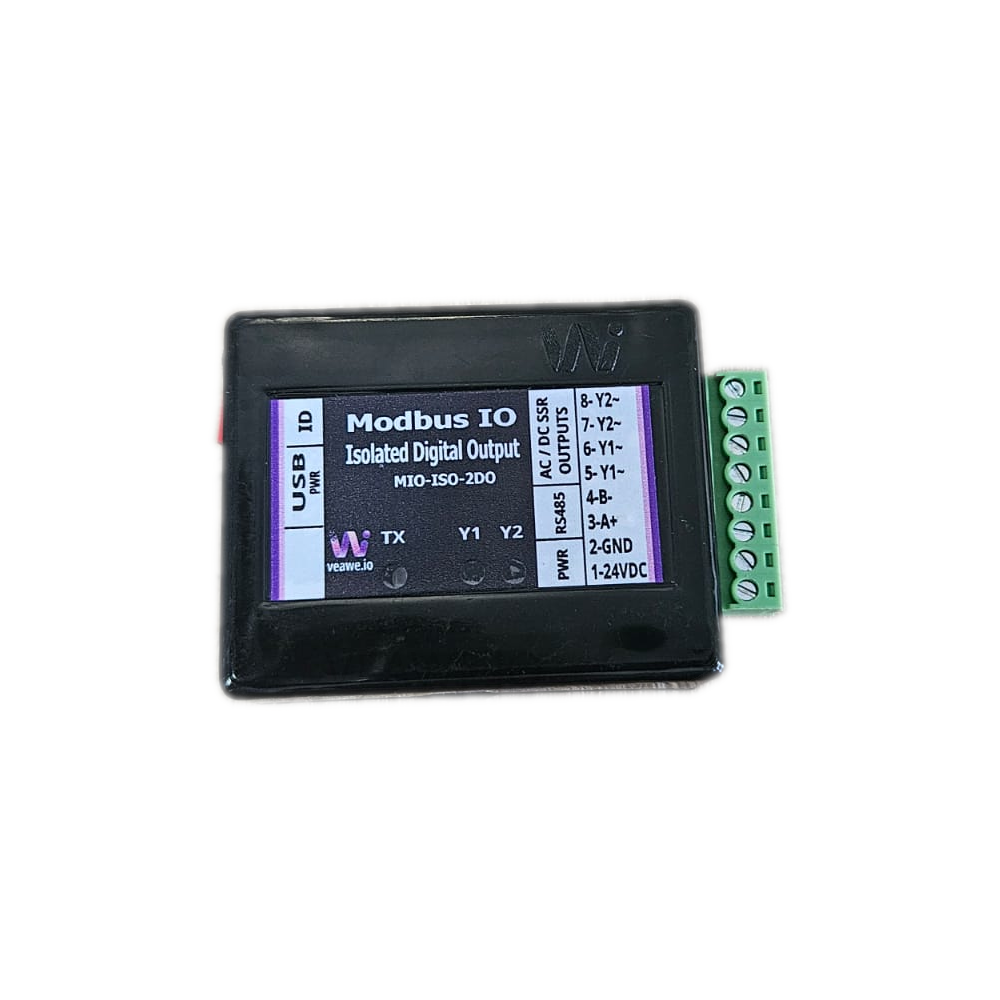

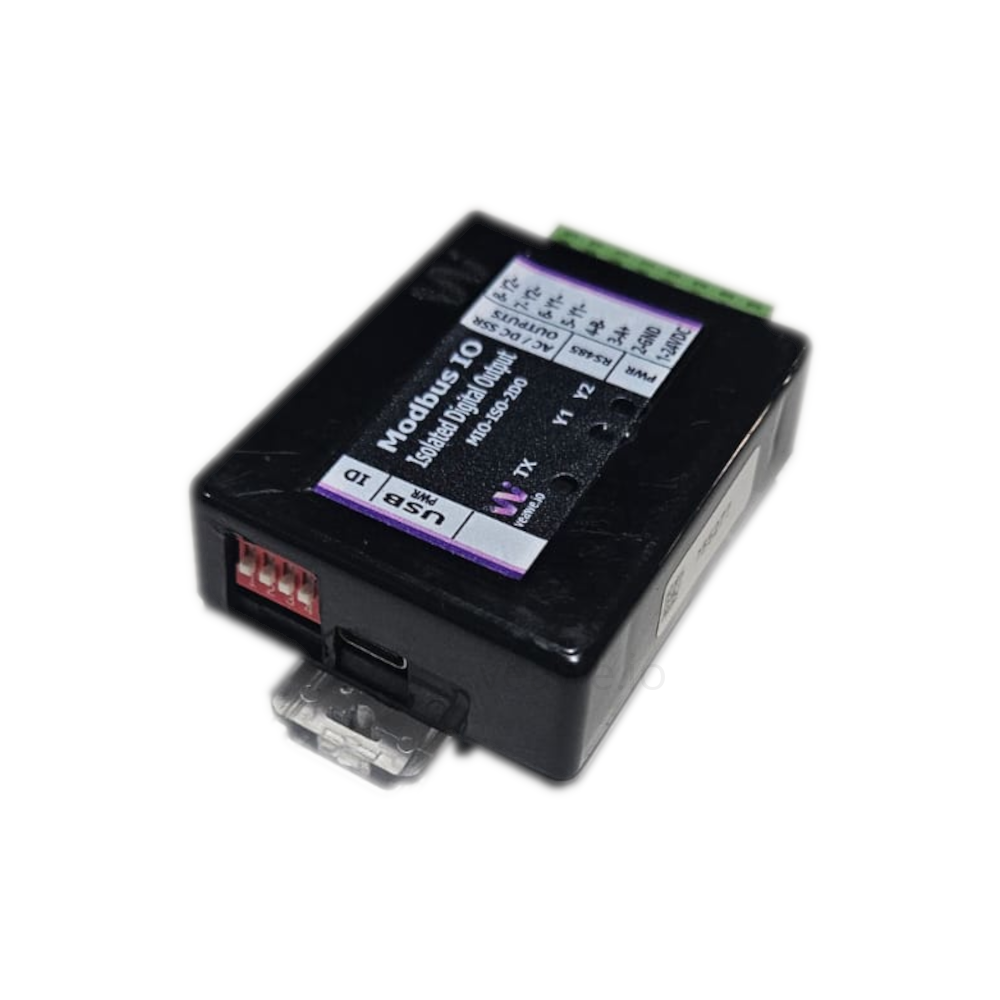

2 Channel Digital Output Modbus RTU RS485 Module
Original price was: ₹3,500.00.₹1,650.00Current price is: ₹1,650.00.
• 2 Isolated Digital SSR Outputs, 0~60V DC, 1.0 Amp
• 1 High speed Output with Variable Frequency and Duty
• Modbus RTU over RS-485

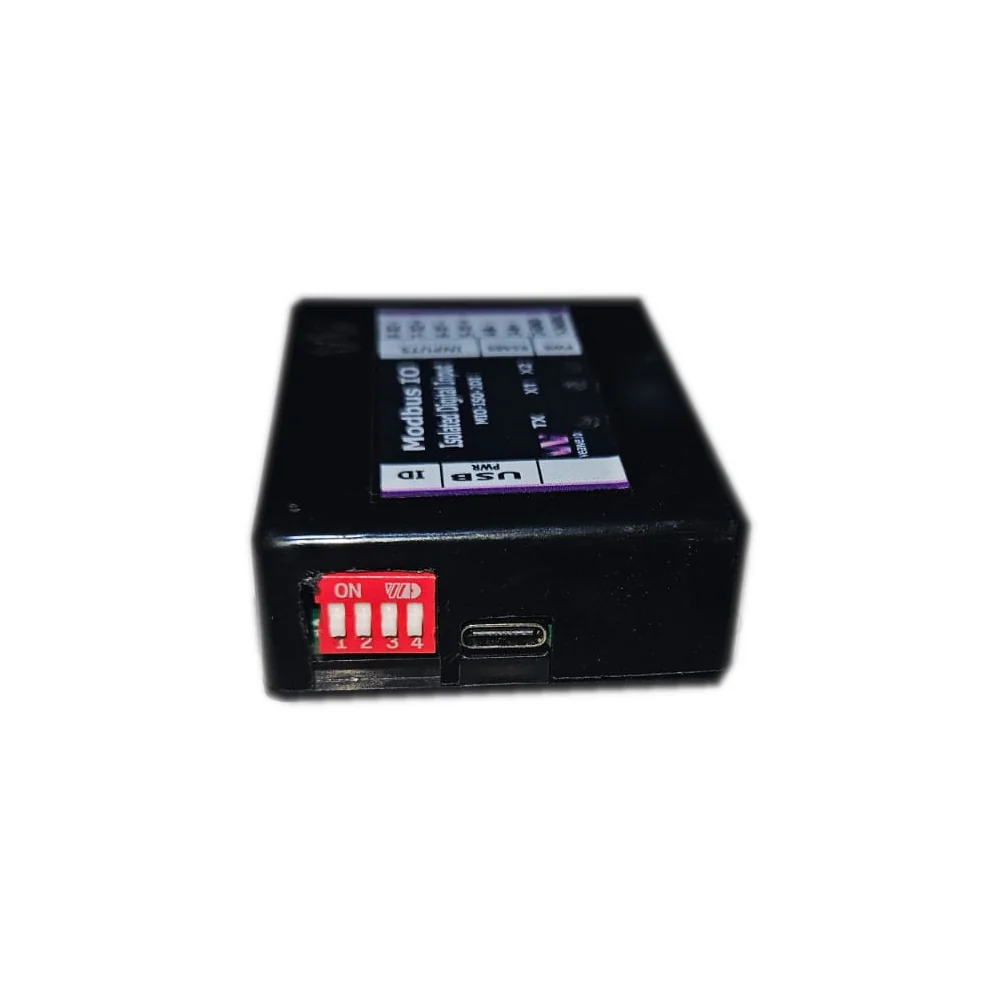

• Dip address switch for address selection from 1 to 15
• Wide Supported baud rates from 300 to 115200
• DIN Rail mount support
• Dimensions: 60mm x 50mm x 20mm (L x W x H)
2 Channel Digital Output Modbus RTU RS485 Module
2 Isolated Digital Inputs, 5~24V compatible
2 High speed Production counter and RPM measurement
All Inputs has latched status, Never miss an input change
All Inputs has individual counter functions
Modbus RTU over RS-485
Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
Compact Modbus RTU remote I/O module with two isolated digital outputs and PWM support.
| Brand | Veawe |
|---|---|
| Bus Interface Type | RS485 |
| Channels | 2 channel |
| Country of Origin | Made in India |
| Isolation | Isolated Outputs |
| Mounting Type | DIN Rail |
| Output Isolation Voltage | 2500 Vrms |
| Protection | ESD, Reverse Polarity |
| Protocol | Modbus RTU |
| Supply Voltage | 24V DC, 5V – USB Powered |
| Warranty | 1 Year |
| Controle Type | Digital Controle |
| Part No | MIO-ISO-2DO |
