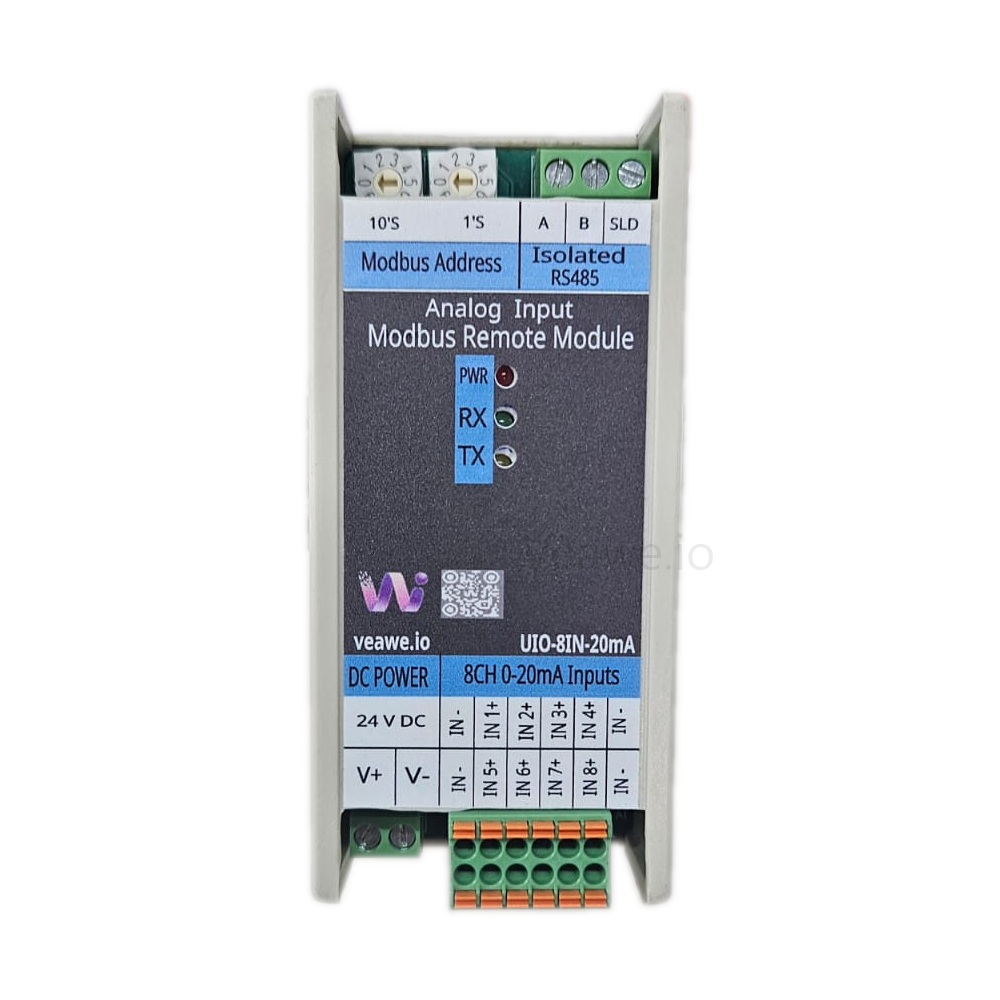

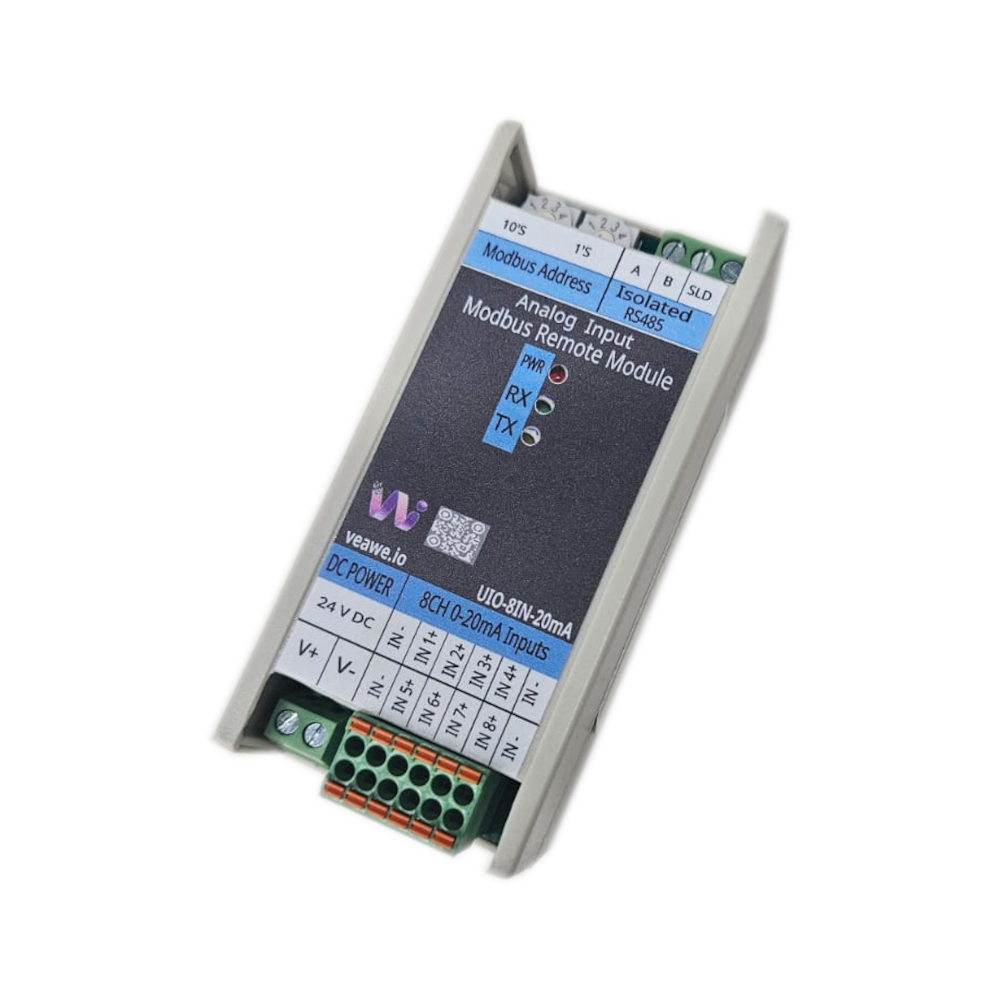

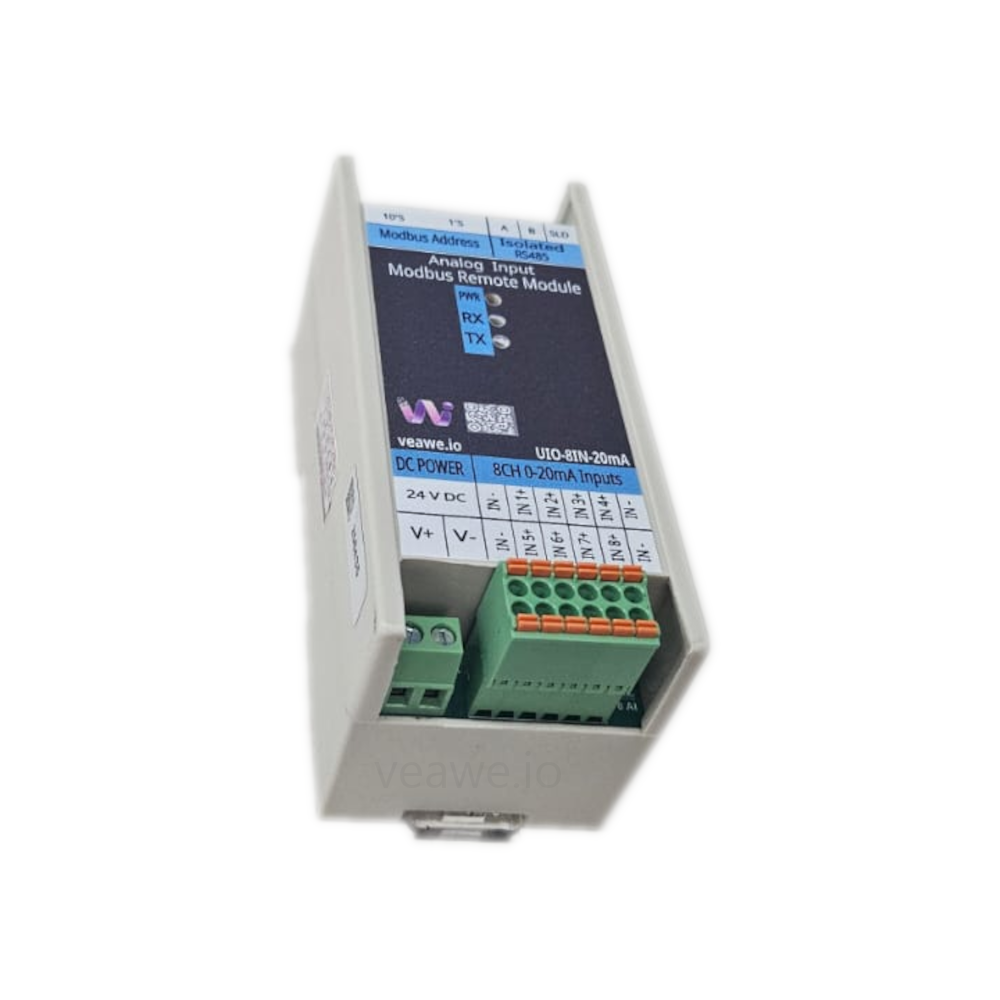

8 CH 20mA Remote Input Module UIO-8IN-20mA
Original price was: ₹8,000.00.₹7,000.00Current price is: ₹7,000.00.
Key Features
- 8 Channel 0–20mA Analog Inputs
- 16-bit analog resolution
- Factory calibrated accuracy: ± 0.1% from upper-range
- Raw analog value resolution in steps of 0.001mA
- Sensor open / broken wire indication
- Configurable individual alarms indication
- Retentive alarm counters on power cycle
- Individual channel offset and gain calibration
- Integer and IEEE754 float value support
- Modbus RTU over Isolated RS-485
- Modbus RTU remote write master mode
- Easy to use free ModViz software
- Rotary address switch for address selection from 1 to 99
- Wide Supported baud rates from 300 to 115200
- DIN rail mountable
- Dimensions: 110mm × 50mm × 55mm
Features
● Eight Channel 0 ~ 20mA 16 bit Resolution ADC
.● Modbus RS-485 Protocol Interface.
● Individual Channel offset calibration
● Resolution at 0.005 mA
● Convenient address selection rotatory switch from 1 – 99 Address
● Complete range of baud rate settings supported
● Sensor open indication
● Suitable for both Din Rail and Wall Mountable
● Product Dimensions 110mm x 50mm x 55mm (L x W x H)
Default Mode Switch
Default mode is handy when the serial communication setting are forgotten.
Setting the Address switch to 00 will put the device in default mode
Address Set to 00 - Default mode ON
– Slave Address – 1, Baud 19200, 8N1
Address Set to non 00 - Default mode OFF
– As per the saved configuration values.
Note:
No parameter selection is changed just by entering the default mode. All the parameters
remains same including the communication settings unless changed by the master or if there is a
corruption in data error indicated in normal mode the device will try to recover to Factory settings.
This mode can be used to read the present settings and/or change the settings
Sensor Open indication
If Channel 1 or 2 Sensor is not connected value is read as 0.0 mA and corresponding
Discrete Input bit is set.
Diagnostics
Tx LED - Quick Blink Indicates Tx Data in Normal operation
Rx LED - Quick Blink Indicates Rx Data in Normal operation
Power LED - Power Supply Status
Supported Modbus Function Codes
02 – Read Discrete Inputs
03 – Read Holding Registers
04 – Read Input Registers
06 – Write Single Register
16 – Write Multiple Registers
| Material | Wood |
|---|---|
| Height | 79.5 cm |
| Length | 46.5 cm |
