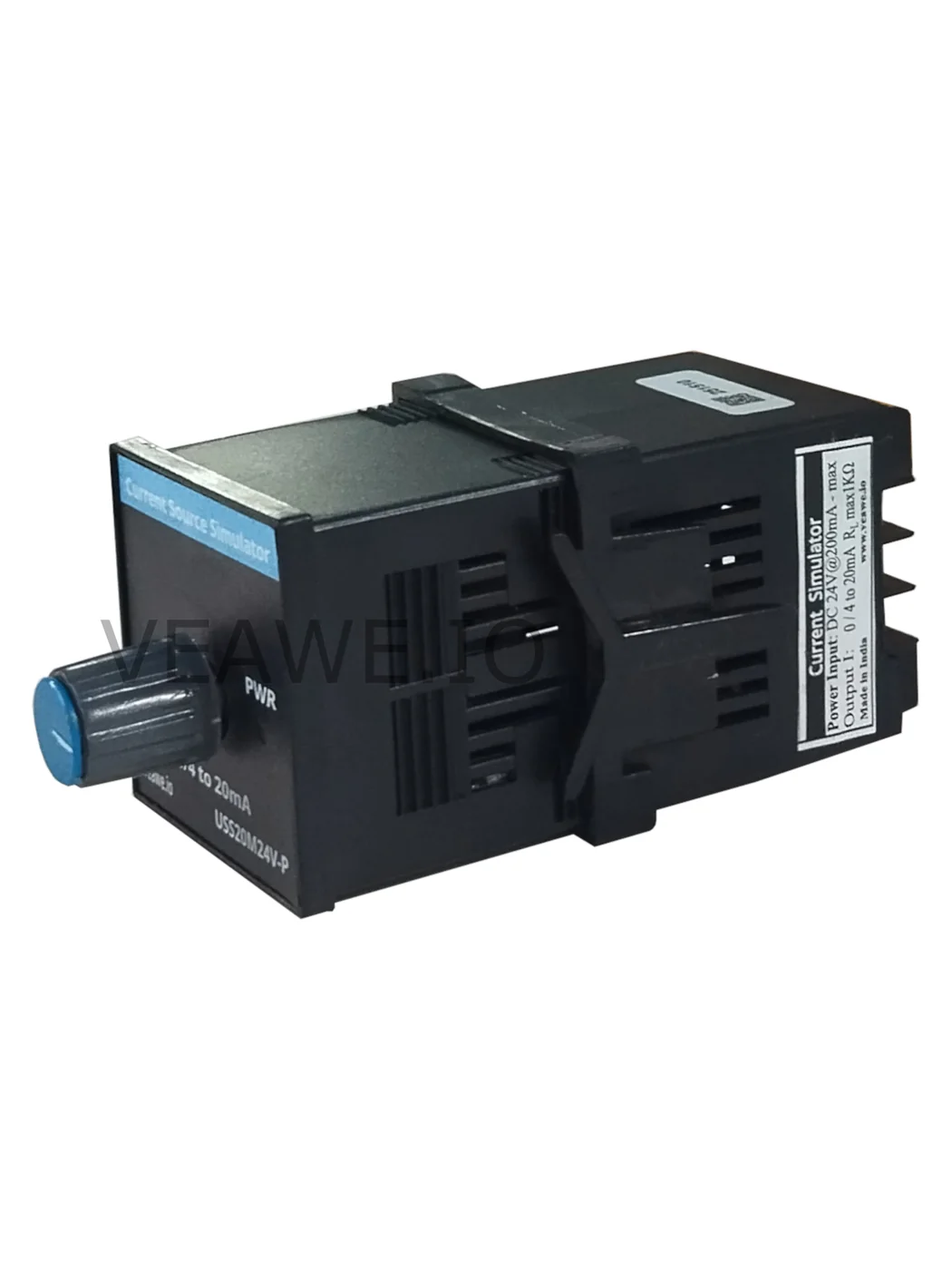

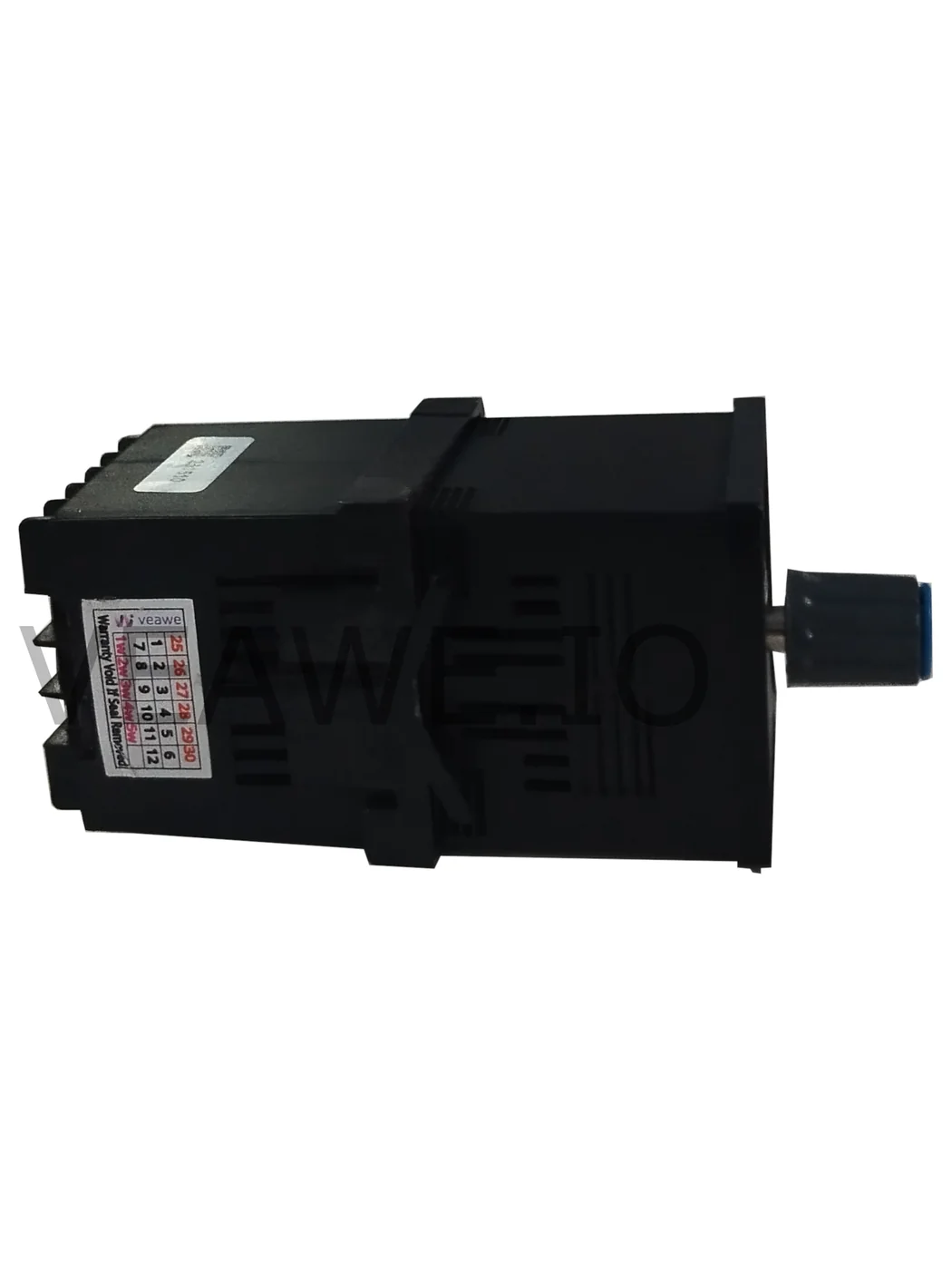

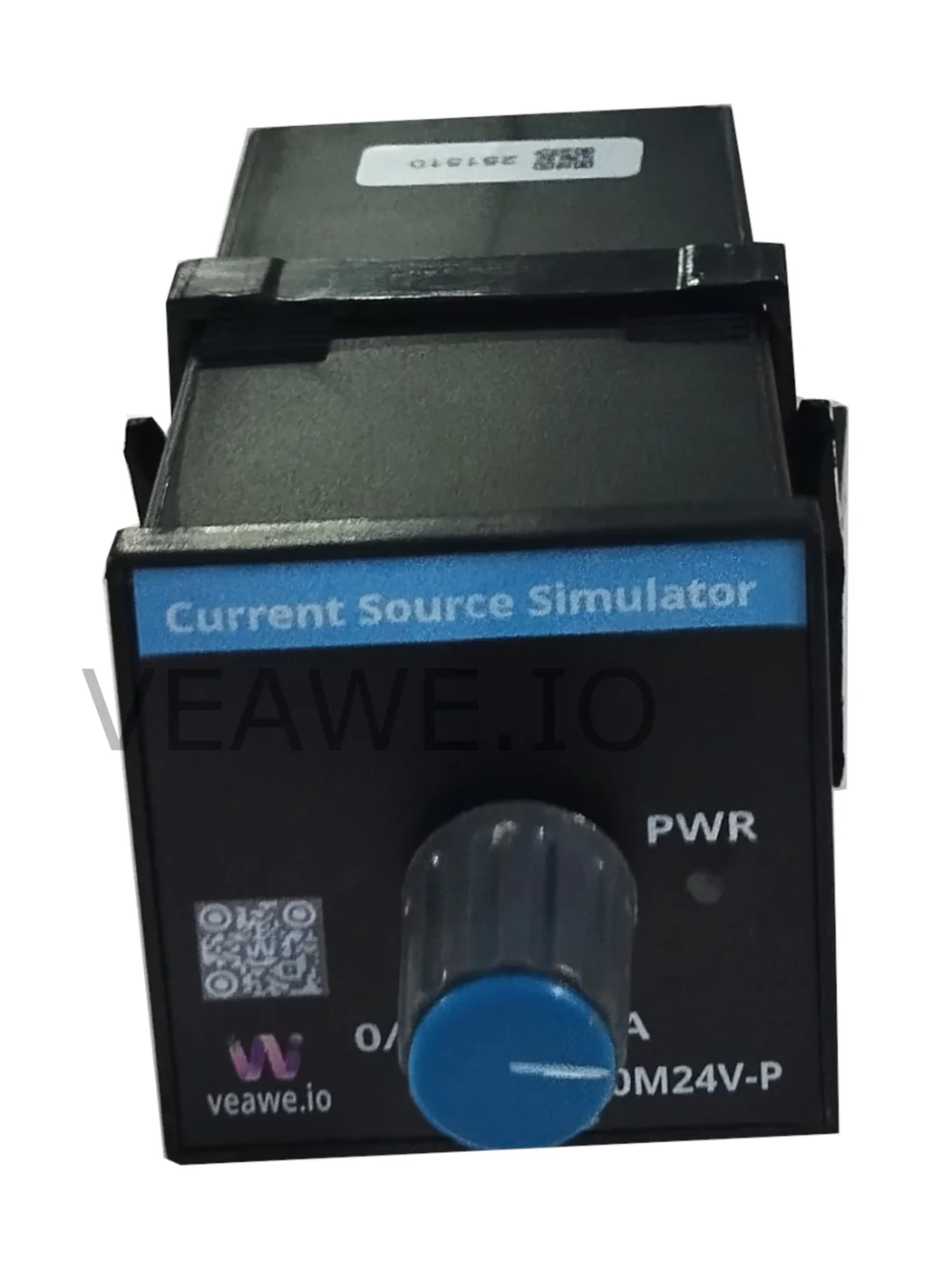

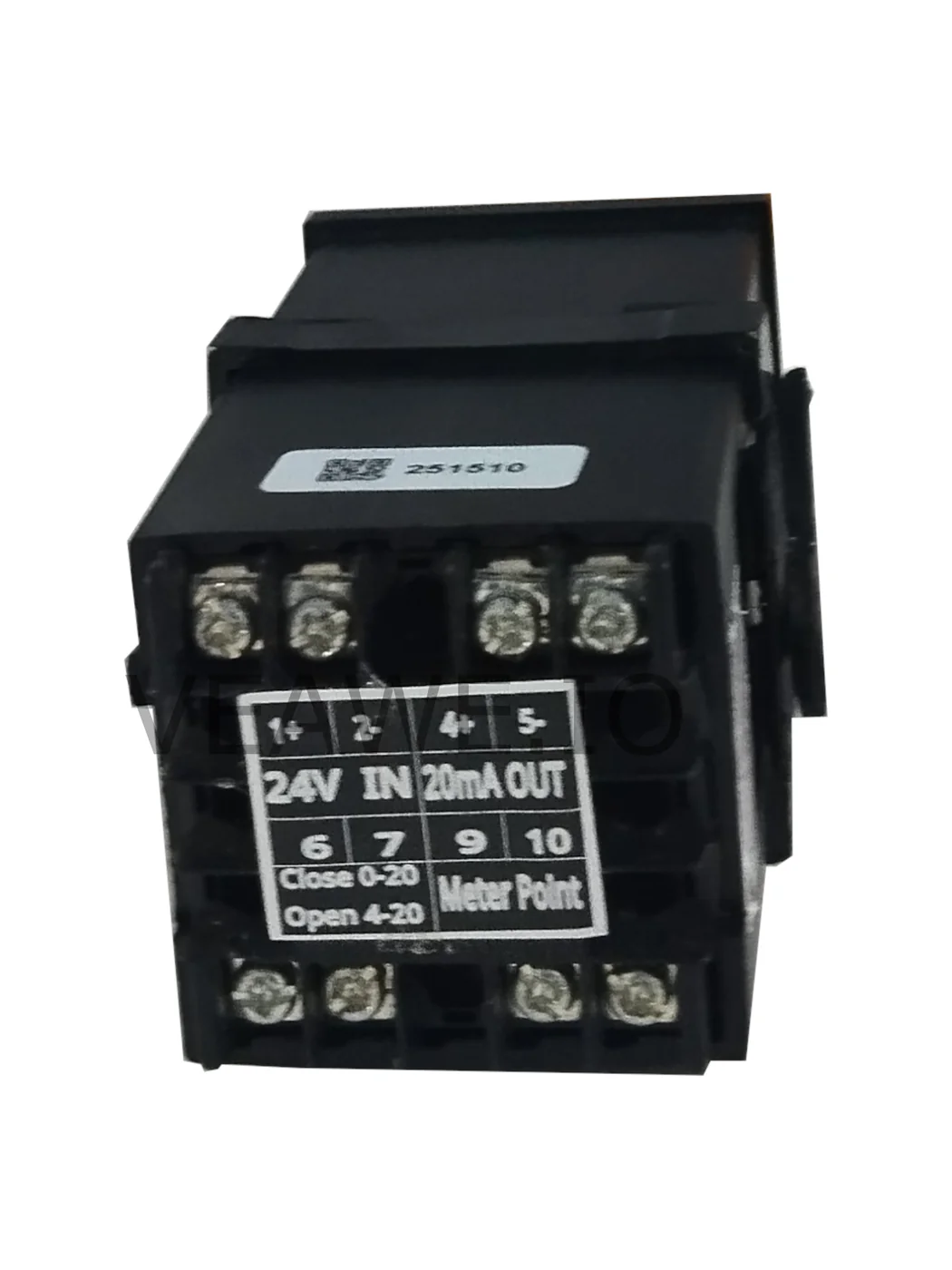

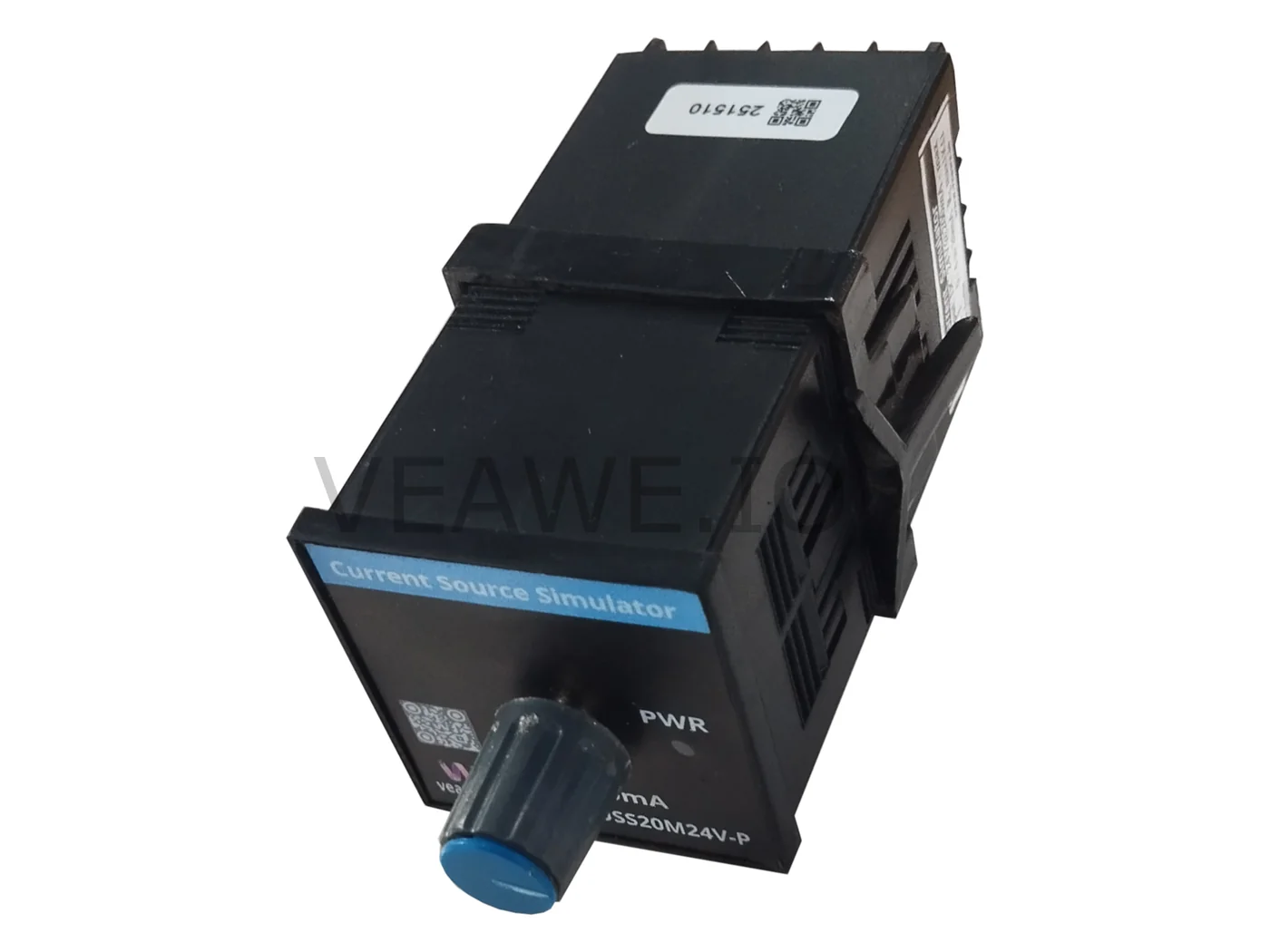

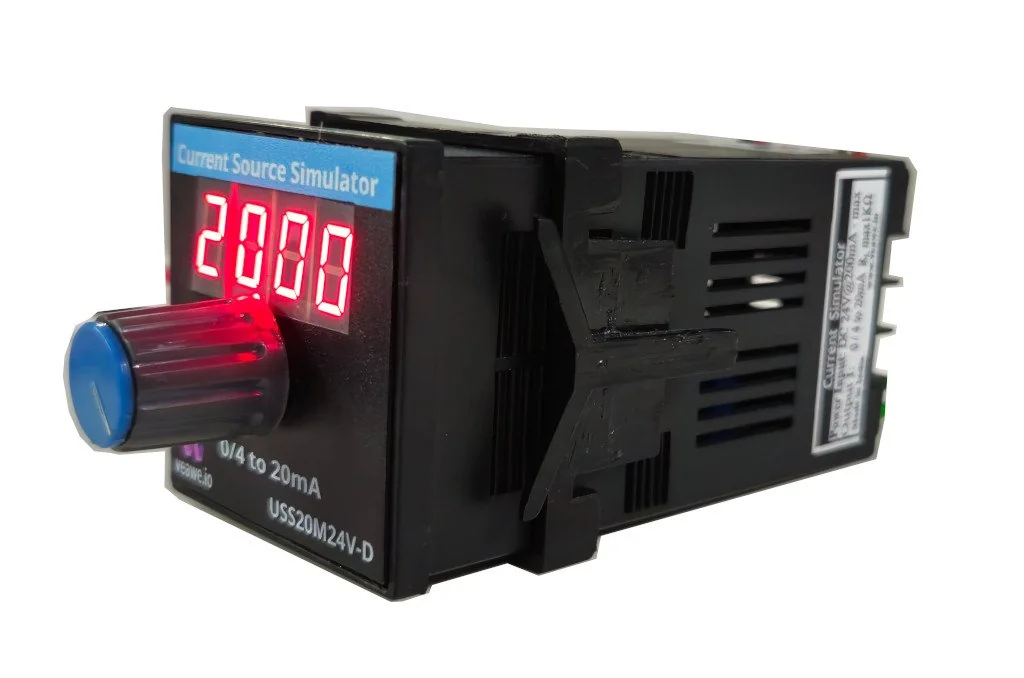

Current Source Simulator 0/4 to 20mA
Original price was: ₹7,000.00.₹5,000.00Current price is: ₹5,000.00.
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Specification
- Supports all Baud Rates from 300 to 250 kBaud.
- actual baud rate varies on the cable length - Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network - Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc. - RS485 Rx and Tx light indications for easy visibility and troubleshooting
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge - ESD protection for USB
– >±2-kV Human-Body Model (HBM)
– >±200-kV Machine Mode (MM)
– >±500-kV Charged device mode (CDM) - Very compact size 60mm x 40mm x 20mm
- Easy replaceable micro-USB Cable
- 1 Year Warranty against any manufacturing defects
Electrical characteristics
Power Input : 5V DC from USB Cable
Operating Temperature : 0 ~ 85 °C
Working Current : 200mA Max
RS485 in Receive input : ± 12V between A and B max
RS485 in Transmit output : A pulled up to +5V, B pulled down to 0V
RS485 Termination : 120 Ω between A and B built-in
| Dimensions |
60mm x 40mm x 20mm |
|---|
