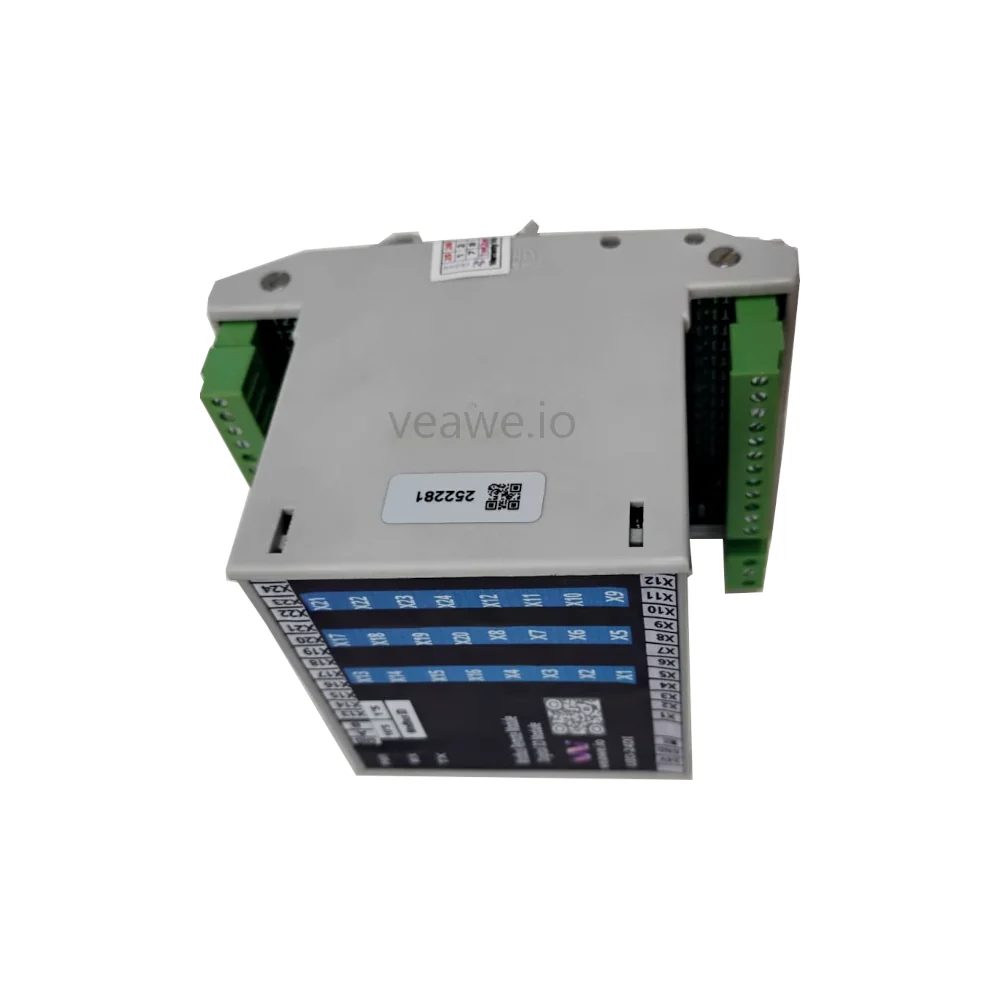

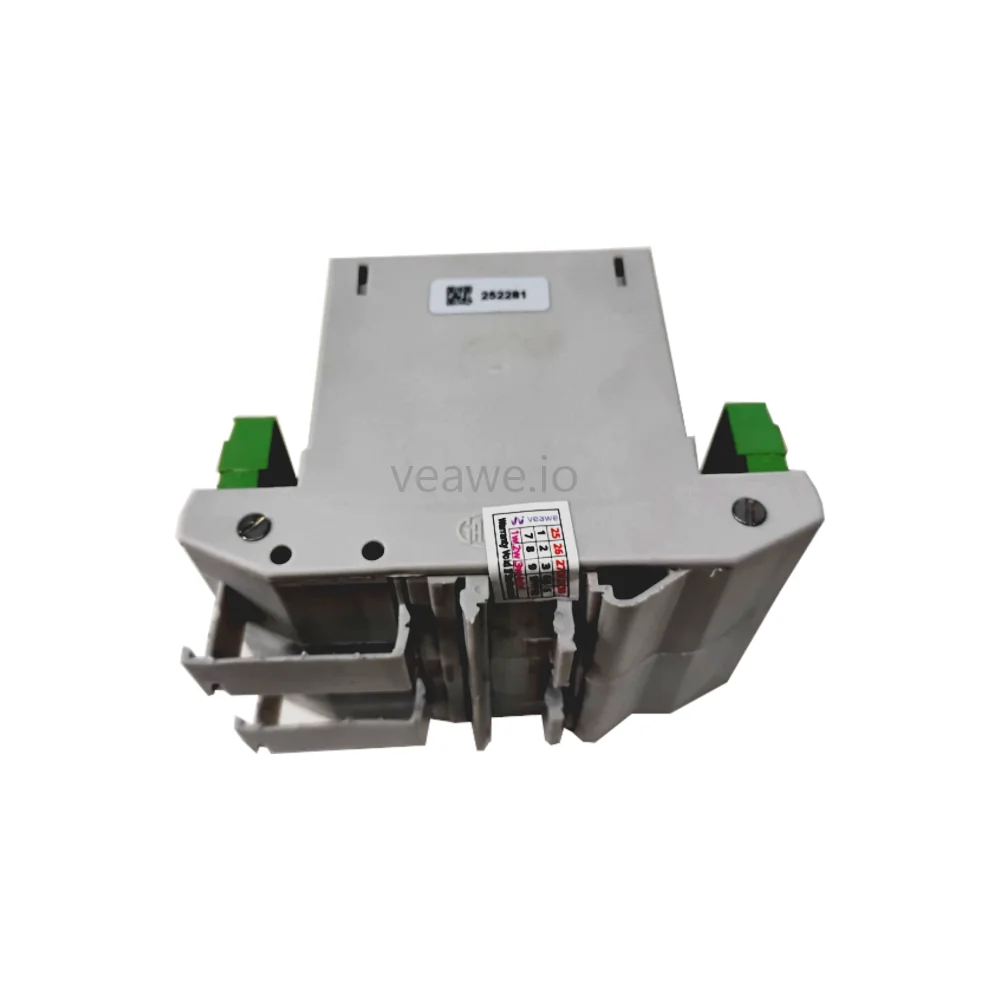

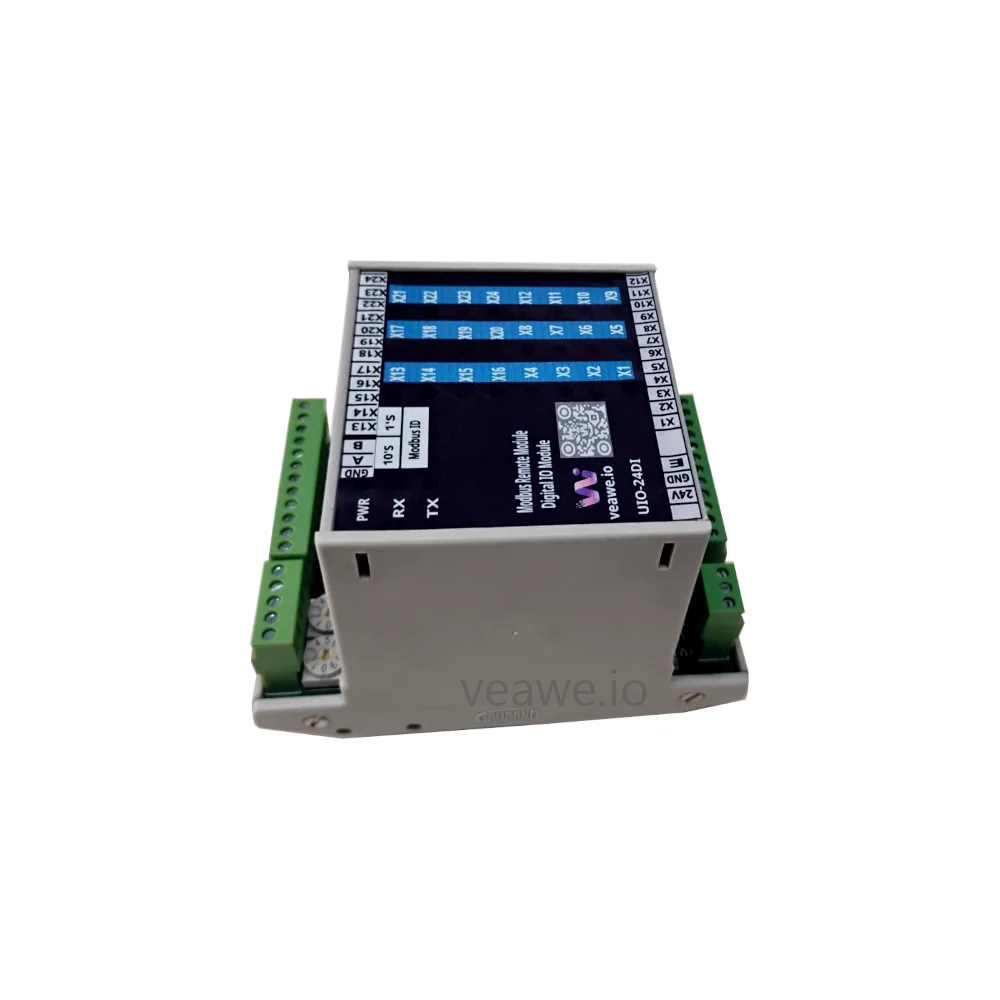

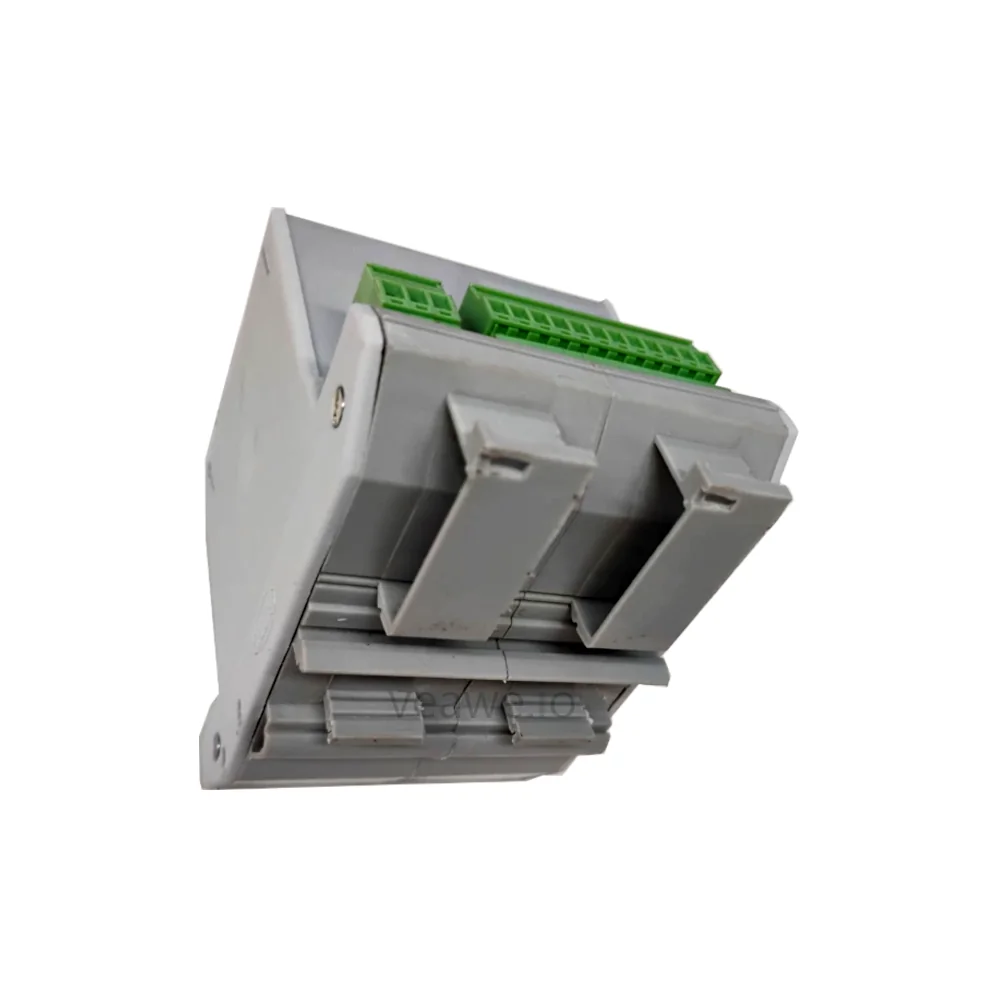

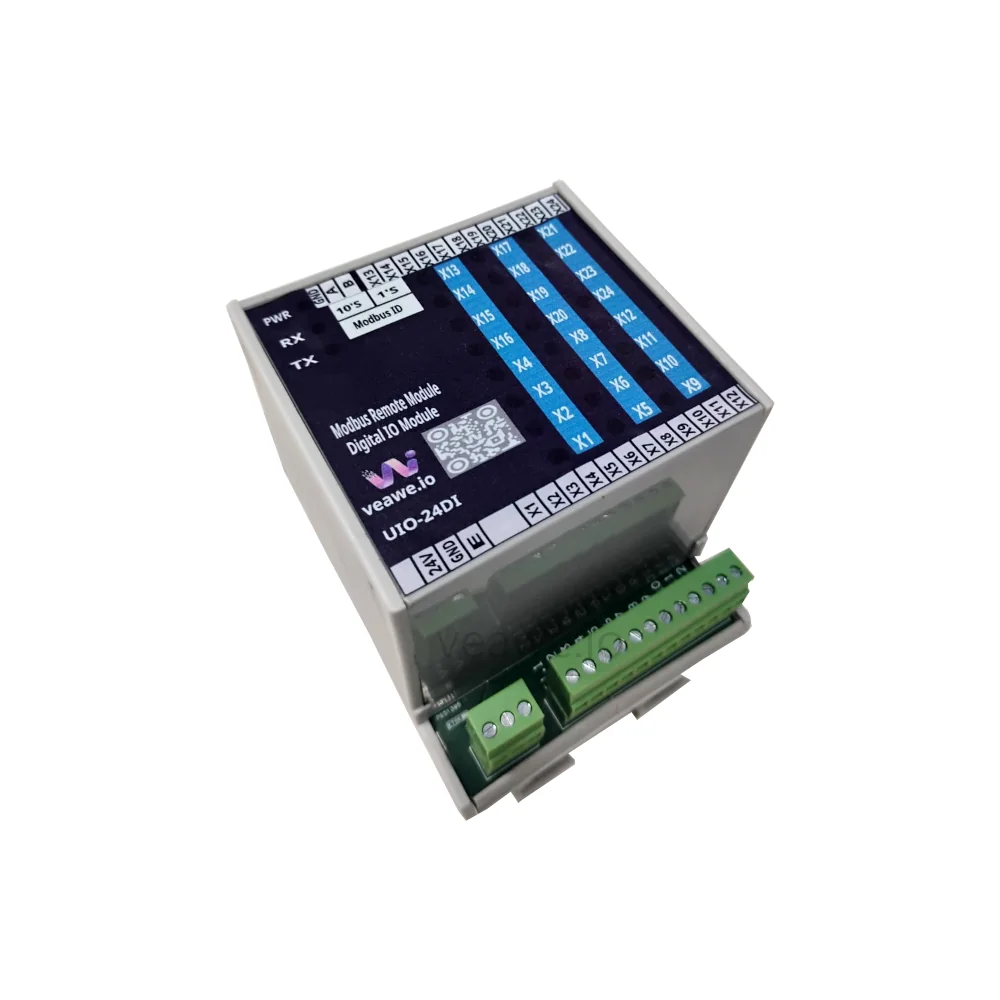

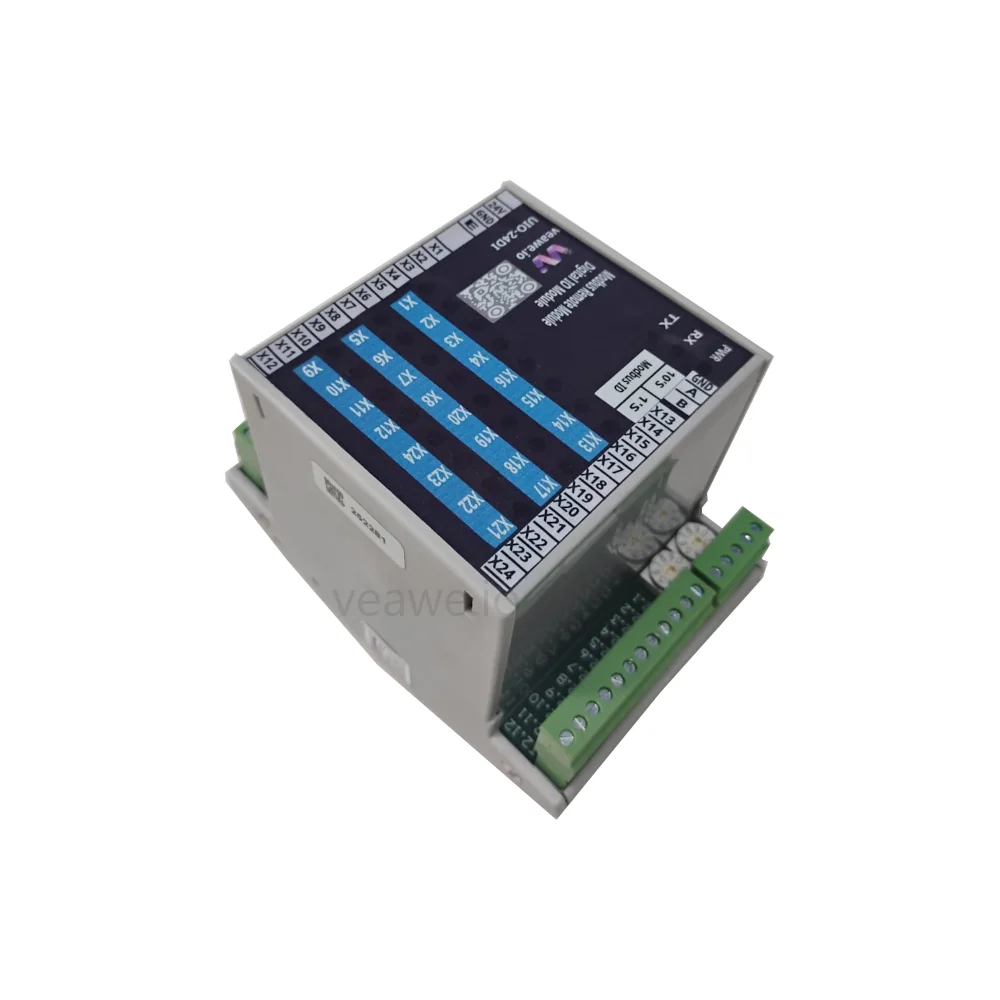

UIO- 24DI Modbus Module
Original price was: ₹8,000.00.₹7,000.00Current price is: ₹7,000.00.
Product Features
● 24 V DC Input Supply
● 24 PNP Digital Inputs
● Modbus RS-485 Protocol Interface
● Convenient address selection rotatory switch from 1 – 99 Address
Product Features
● 24 V DC Input Supply
● 24 PNP Digital Input
● Modbus RS-485 Protocol Interface
● Convenient address selection rotatory switch from 1 – 99 Address
● Dimension – 110 mm x 140 mm x 85 mm
Default Mode Switch
Default mode is handy when the serial communication setting are forgotten.
Setting the Address switch to 00 will put the device in default mode
Address Set to 00 - Default mode ON
– Slave Address – 1, Baud 19200, 8N1
Address Set to non 00 - Default mode OFF
– As per the saved configuration values.
Note:
No parameter selection is changed just by entering the default mode. All the parameters
remains same including the communication settings unless changed by the master or if there is a
corruption in data error indicated in normal mode the device will try to recover to Factory settings.
This mode can be used to read the present settings and/or change the settings
Sensor Open indication
If Channel 1 or 2 Sensor is not connected value is read as 0.0 mA and corresponding
Discrete Input bit is set.
Diagnostics
Tx LED - Quick Blink Indicates Tx Data in Normal operation
Rx LED - Quick Blink Indicates Rx Data in Normal operation
Power LED - Power Supply Status
| Material |
Wood |
|---|---|
| Height |
79.5 cm |
| Length |
46.5 cm |
