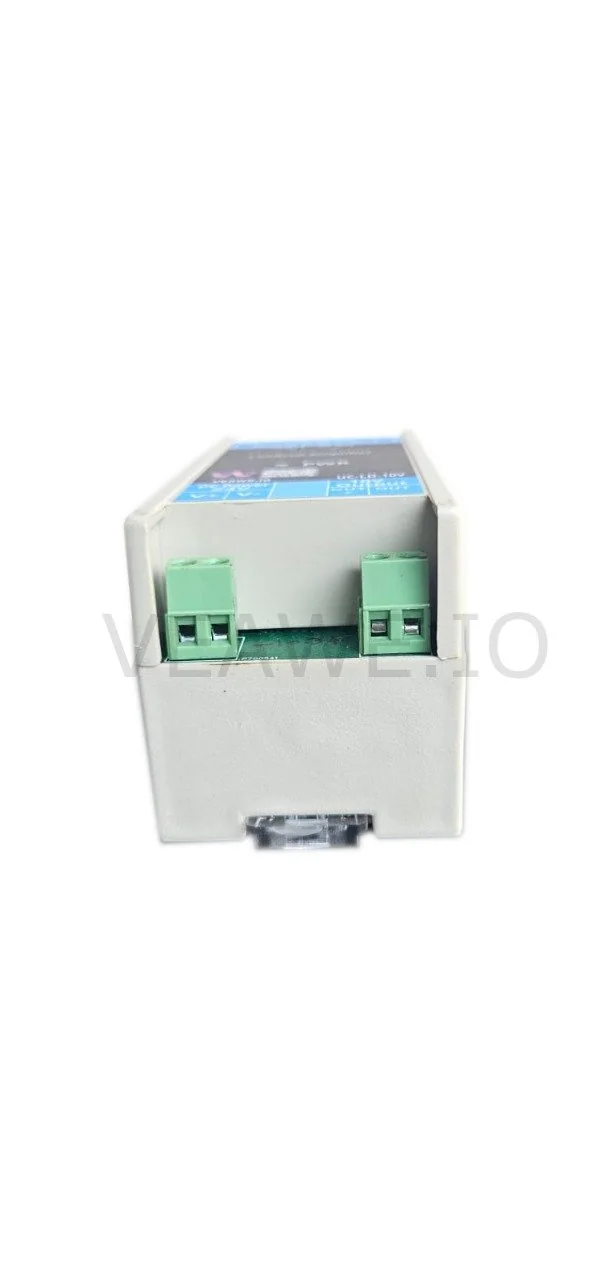

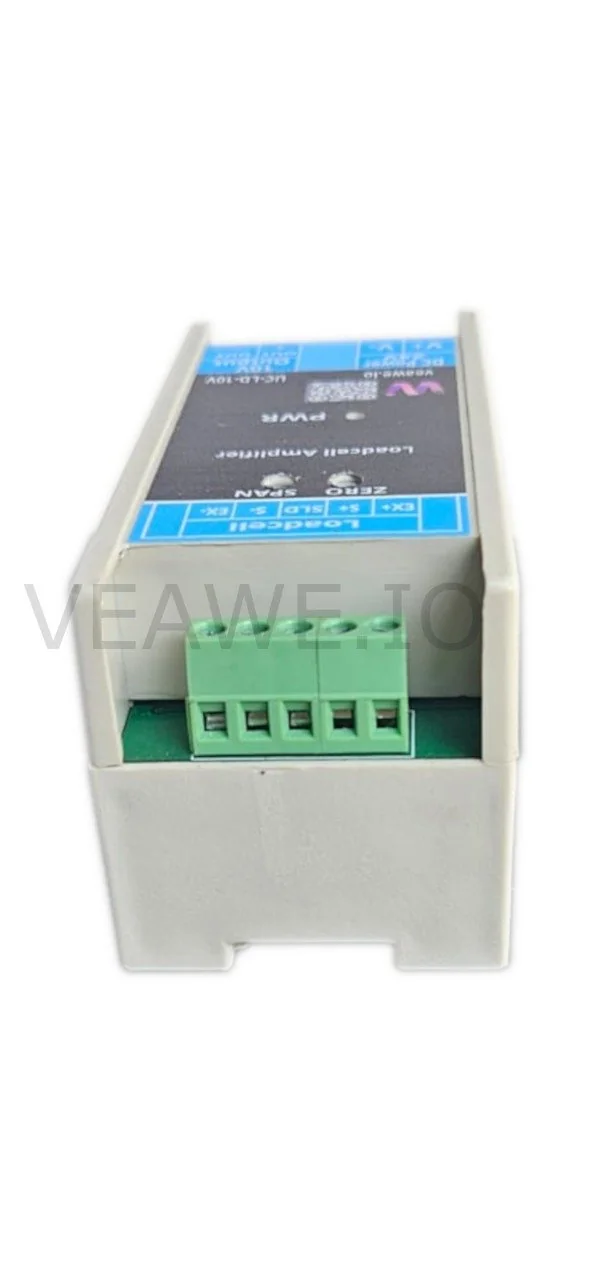

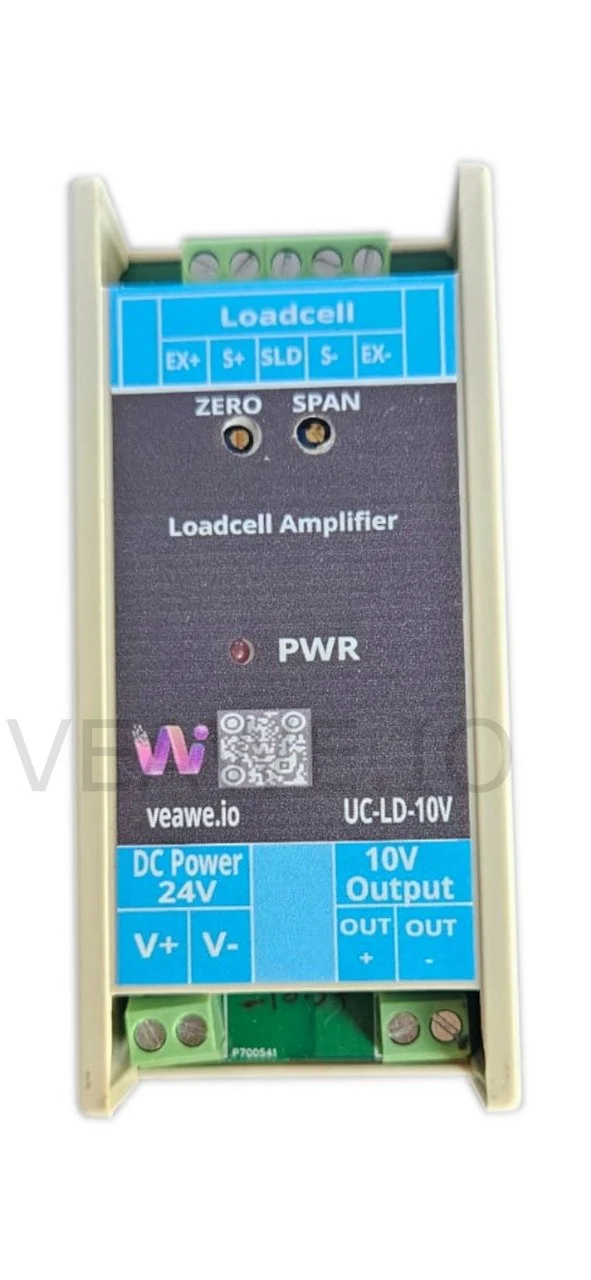

Loadcell Amplifier – ±10V
Original price was: ₹5,000.00.₹4,000.00Current price is: ₹4,000.00.
Features & Specification
* Suitable for all bridge sensor
* Precision excitation supply for the sensor
* Compact design suitable for both DIN Rail and
Wall mount
* Calibration with zero and span
* Lesser than 0.5% noise output for Full scale 0~20mA
* 1 Year Warranty against any manufacturing defects
Specification
* Suitable for all bridge sensor
* Precision excitation supply for the sensor
* Compact design suitable for both
DIN Rail and wall mount
* Calibration with zero and span
* Lesser than 0.5% noise output for Full scale 0~10V
* 1 Year Warranty against any manufacturing defectsefects
Zero Offset and Span Settings
Zero offset –
Connect the load cell sensor without load and and then
adjust the zero offset knob until you get ~0V in the
meter / display
Span offset –
Connect the load cell sensor in full load and then adjust
the span offset knob until you get ~10V in the
meter / display
Electrical characteristics
Input signal type: Load cell sensor with excitation
source
Output signal type: ±10V
Accuracy: Less than +/- 1% @ 25°C ambient temperature
Ripple Noise in output: Less than +/- 0.5%
Responds time: Less than 1 milliSec
ESD protection all input
and output pins:
±15-kV Human-Body Model (HBM)IEC1000-4-
2, Contact Discharge V IEC1000-4-2, Air-Gap
Discharge
Output short circuit
protection: 20mA @ 10V
Input Supply Voltage: 24V DC
Operating temperature: 0 to 85 C
Operating current: 200mA @ 24V DC
Dimension in mm: 110 x 50 x 55
Weight: 100g
| Dimensions |
60mm x 40mm x 20mm |
|---|
Related products
Isolated Analog Signal Converter 75mV to 20mA
Isolated Analog Signal Converter J Type

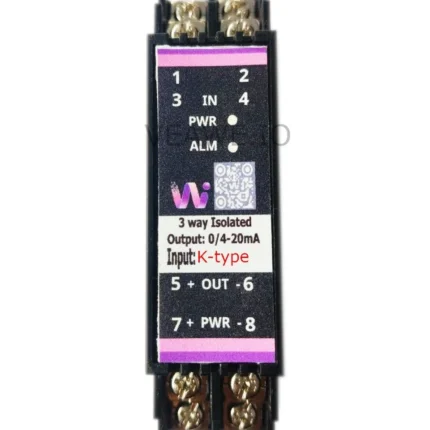

Isolated Analog Signal Converter K Type
