Isolated Analog Signal Converter K Type
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : K – type
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter Pt 100
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Pt 100
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter Pt 1000
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Pt 1000
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated Analog Signal Converter Resistance to 20mA
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : Ω
Output Signal type : 0/4 – 20mA
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Isolated RS232 To RS232 Repeater
Features and Specification
* Isolated RS485 Signals up to 2.5KVrms
* Isolated RS485 Power up to 1KVrms.
* Supports Auto-Direction Control. No flow
control signal required.
– actual baud rate varies on the cable length
– also depends on the other devices connected
in the RS485 network
* Works with all type of industrial equipment
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc.
* RS485 Rx and Tx light indications for easy
visibility and troubleshooting
* ESD protection for both RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
* Compact design suitable for both DIN Rail and Wall mount
* Dimension in mm – 110 x 74 x 35
* 1 Year Warranty against any manufacturing
defects
Isolated RS232 To RS485
Isolated RS485 Signals up to 2.5Vrms
Isolated RS485 Power up to 1KVrms.
Supports Auto-Direction Control. No flow
control signal required.
- Supports all Baud Rates from 300 to 250
kBaud.
– actual baud rate varies on the cable length
– also depends on the other devices
connected in the RS485 network
- Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc.
- RS485 Rx and Tx light indications for easy
visibility and troubleshooting
- ESD protection for RS232 and RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- Compact design suitable for both DIN Rail and
Wall mount
Dimension in mm – 110 x 74 x 35
1 Year Warranty against any manufacturing
defects
Isolated RS485 To RS485
Features and Specification
* Isolated RS485 Signals up to 2.5KVrms
* Isolated RS485 Power up to 1KVrms.
* Supports Auto-Direction Control. No flow
control signal required.
– actual baud rate varies on the cable length
– also depends on the other devices connected
in the RS485 network
* Works with all type of industrial equipment
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc.
* RS485 Rx and Tx light indications for easy
visibility and troubleshooting
* ESD protection for both RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
* Compact design suitable for both DIN Rail and Wall mount
* Dimension in mm – 110 x 74 x 35
* 1 Year Warranty against any manufacturing
defects
Signal Isolator 4 20ma
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 4-20mA DC
Output Signal type : 4-20mA DC
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC

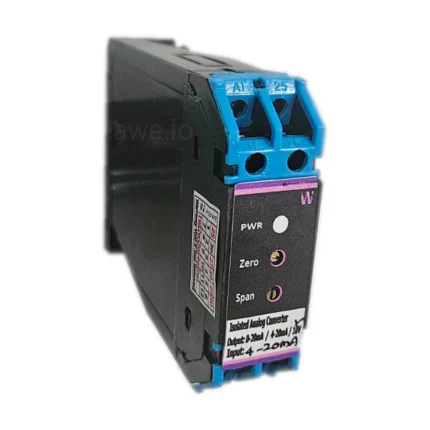

Signal Isolator 4 20ma to 10 V
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : 4-20mA DC
Output Signal type : 0-10V DC
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
USB to ISO RS485 Converter UC-ISO-RS485
Specification
Isolated RS485 Power up to 1KVrms
Isolated RS485 Signals up to 2.5KVrms
Extended Common mode voltage between A an B ±25V
Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
USB Power, RS485 Rx and Tx light indications for easy visibility and troubleshooting
ESD and Surge protection for USB, RS485 and Power
Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
- Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
Very compact size 60mm x 40mm x 20mm
ESD protection for RS485 pins
– ±16-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
- ESD protection for USB
– ±2-kV Human-Body Model (HBM)
– ±200-kV Machine Mode (MM)
– ±500-kV Charged device mode (CDM)
- 1 Year Warranty against any manufacturing defects
In most case of Windows 10/11 and Linux the driver will be installed automatically when the PC is connected to the Internet.
https://ftdichip.com/wp-content/uploads/2023/09/CDM-v2.12.36.4-WHQL-Certified.zip
