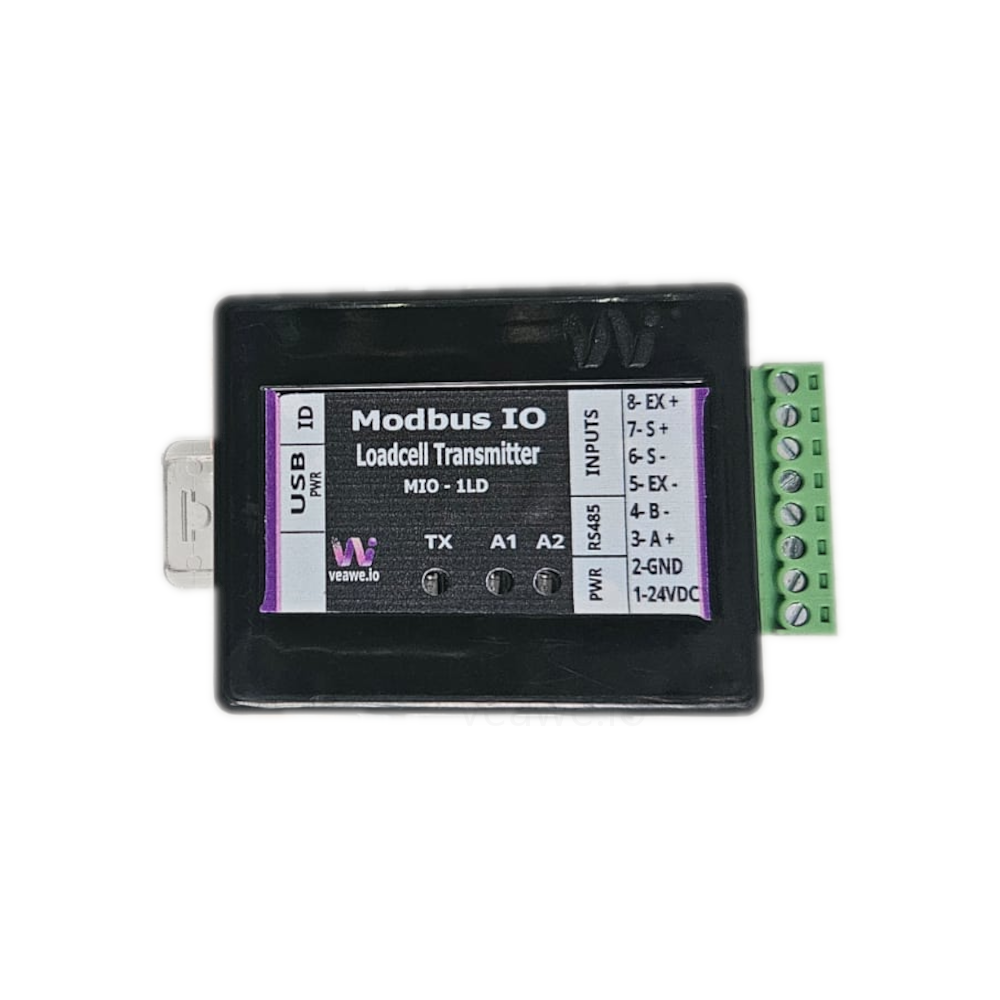

Loadcell to Modbus Transmitter
Original price was: ₹4,500.00.₹4,000.00Current price is: ₹4,000.00.
- One Load Cell / Strain Gauge input to Modbus RTU
- Two modes of operation – Scale Mode and Force Mode
- 20-bit resolution analog to digital precision conditioner
- Clean analog front-end designed for industrial environments
- Free software based easy configuration
- Integer and IEEE754 float value support
- Modbus RTU over RS-485
- DIP switch for address selection from 1 to 15
- Wide Supported baud rates from 300 to 115200
- DIN Rail mount support
- Dimensions: 60mm x 50mm x 20mm (L x W x H)
One 0 – 20mA and one 0 – 36V DC Analog Inputs
Modbus RTU over RS-485
Dip address switch for address selection from 1 to 15
Wide Supported baud rates from 300 to 115200
Dimensions: 60mm x 50mm x 20mm (L x W x H)
| Material | Wood |
|---|---|
| Height | 79.5 cm |
| Length | 46.5 cm |
