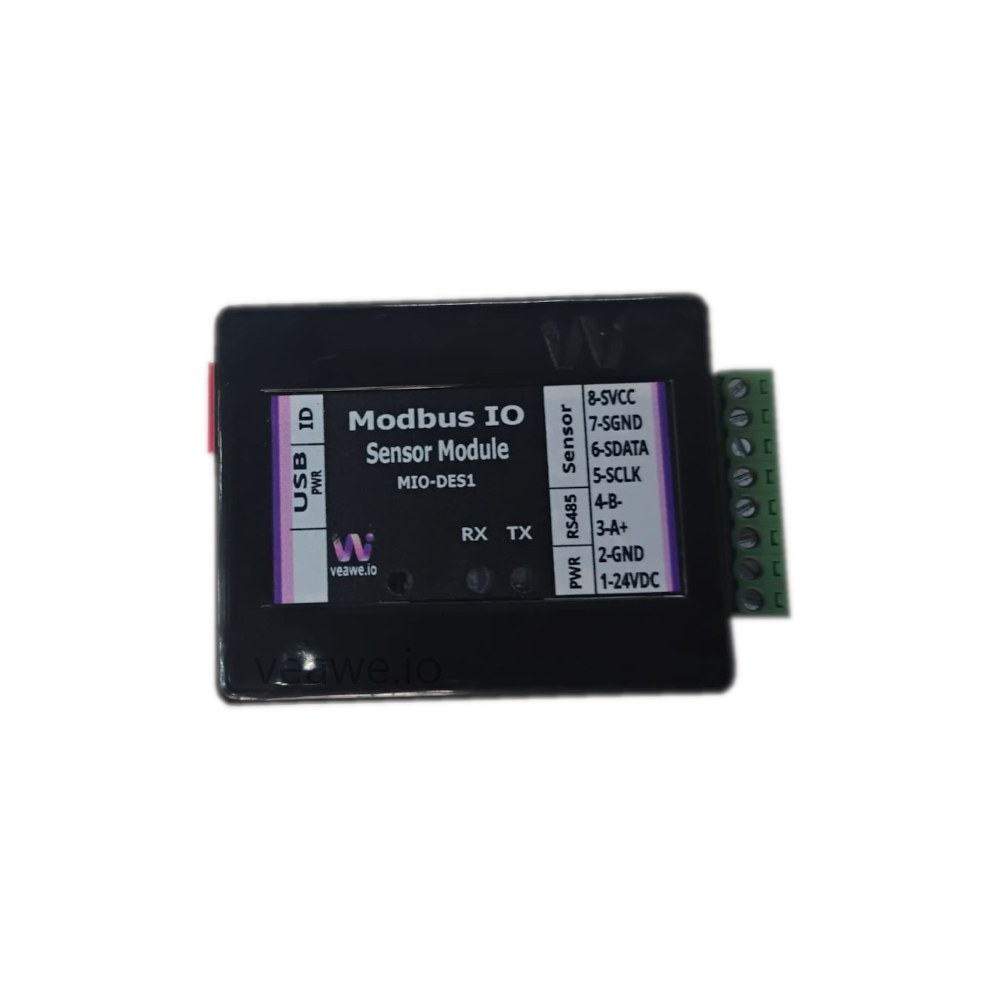

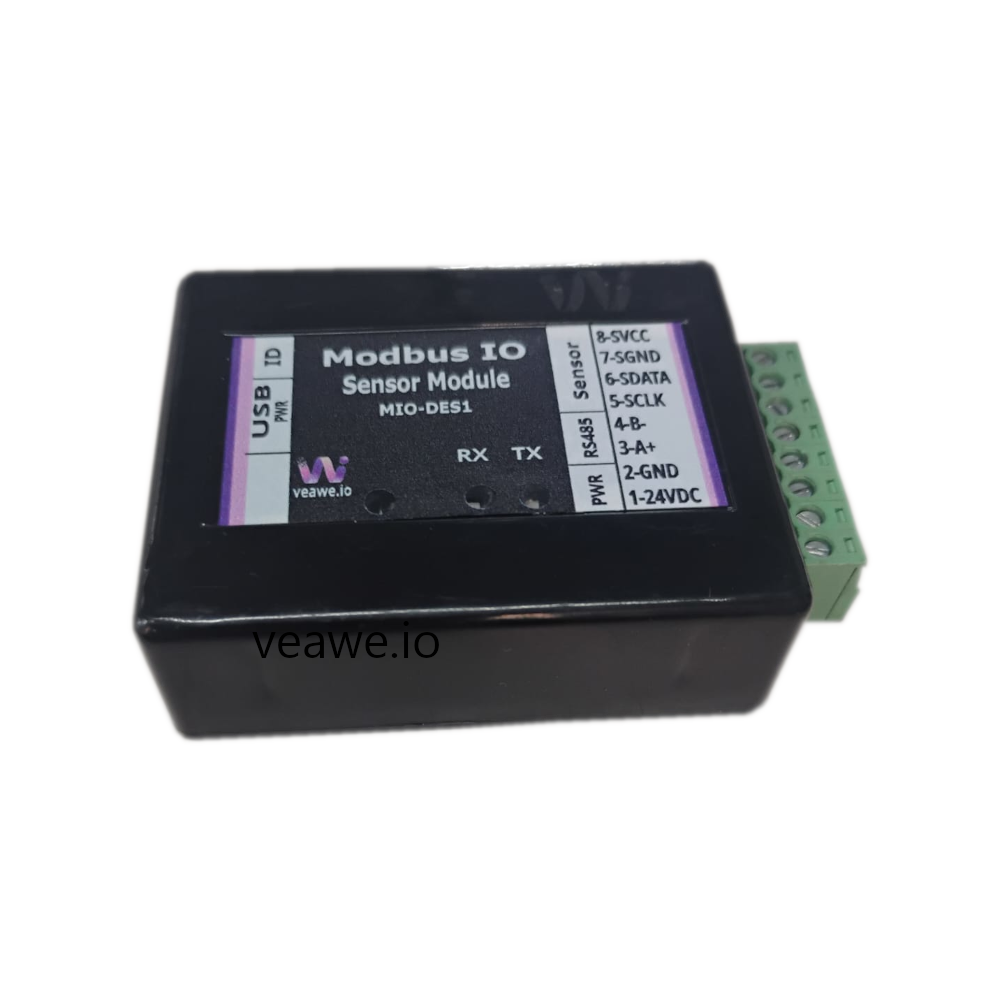

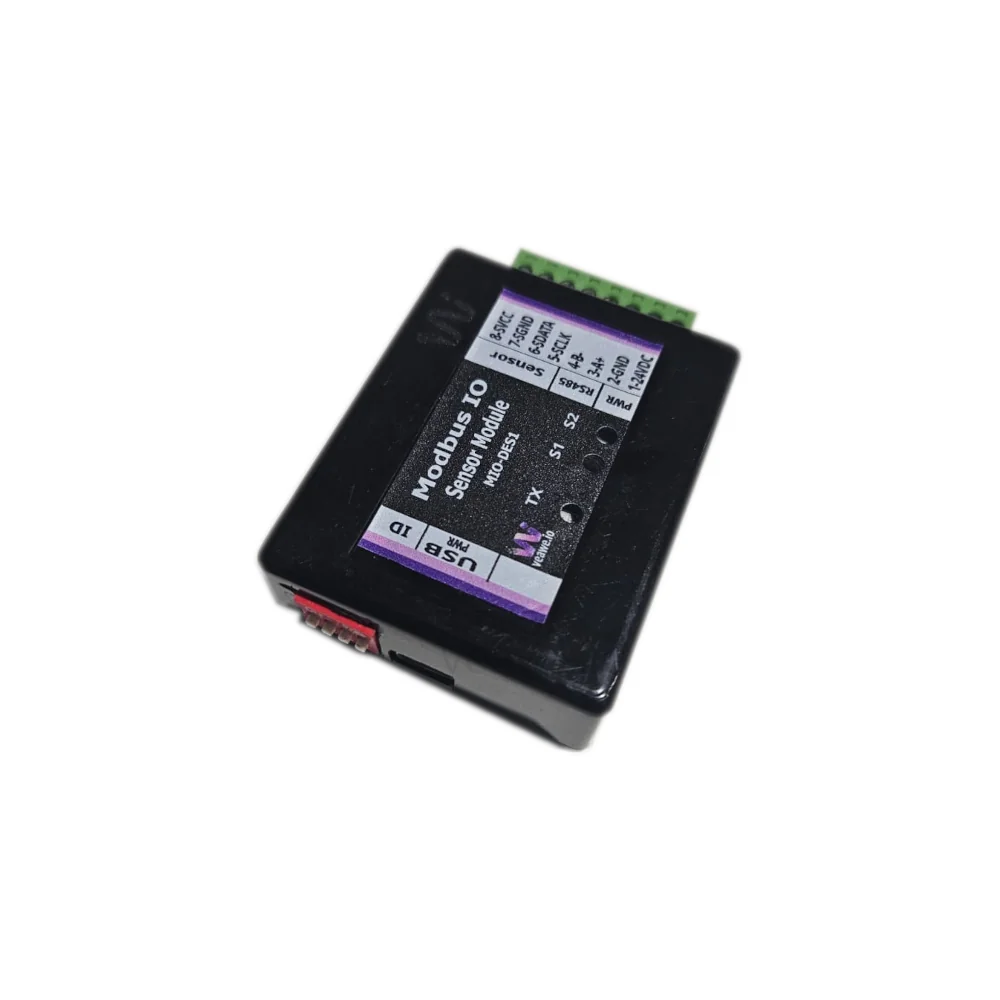

Modbus Temperature Transmitter – MIO-DES1
Original price was: ₹3,500.00.₹1,950.00Current price is: ₹1,950.00.
- ● Multiple Digital Sensors support
● Modbus RS-485 Protocol Interface.

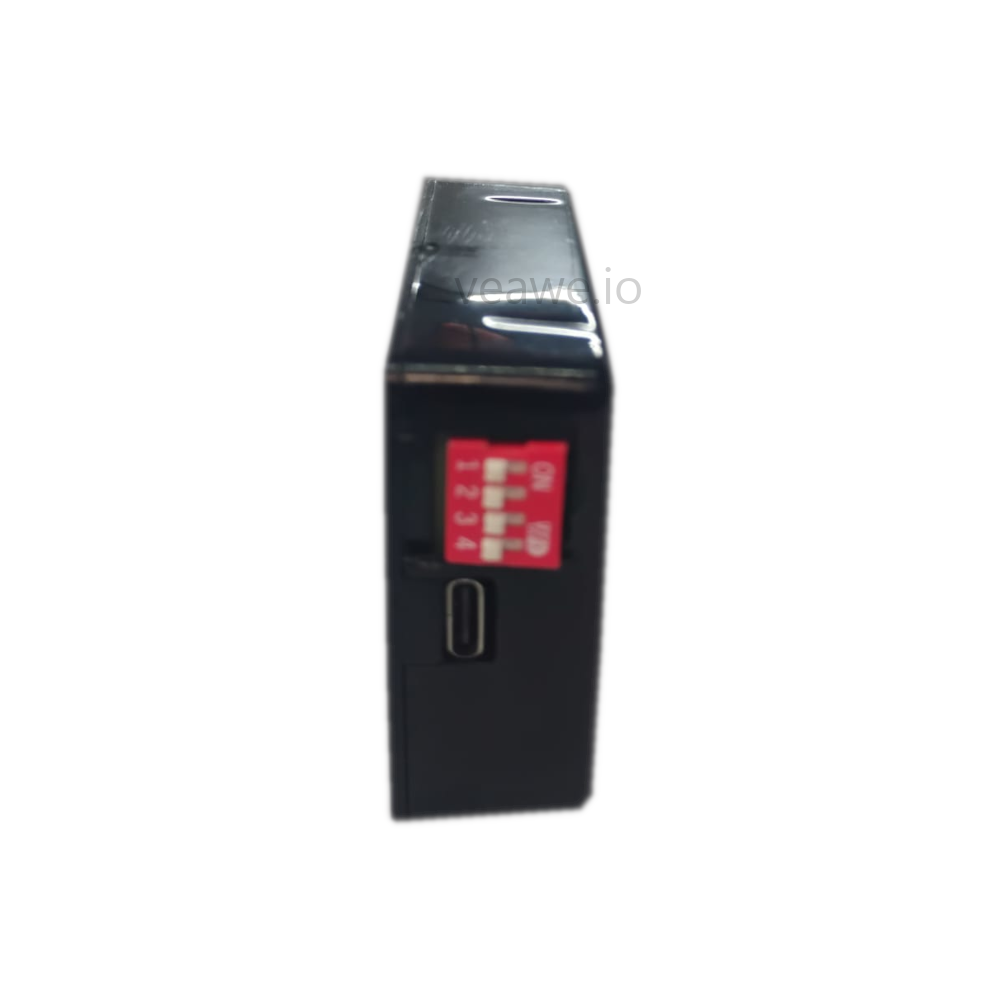

● Convenient address selection dip switch from 1 – 15 Address
● Complete range of baud rate settings supported
● Sensor open indication, Analog values in integer and float values
● Product Dimensions 60mm x 50mm x 20mm (L x W x H)
Supports Sensor Types
DS18B20 – Digital temperature sensor upto 4 channels
SHT40 – Digital temperature and humidity sensor
| Material | Wood |
|---|---|
| Height | 79.5 cm |
| Length | 46.5 cm |
