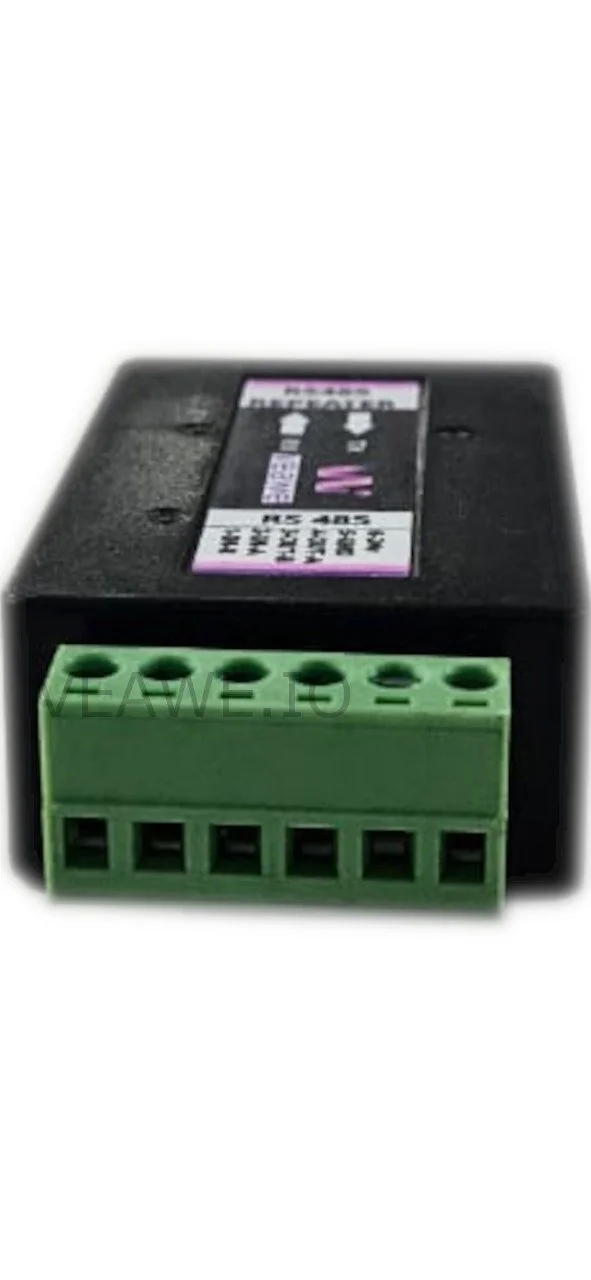

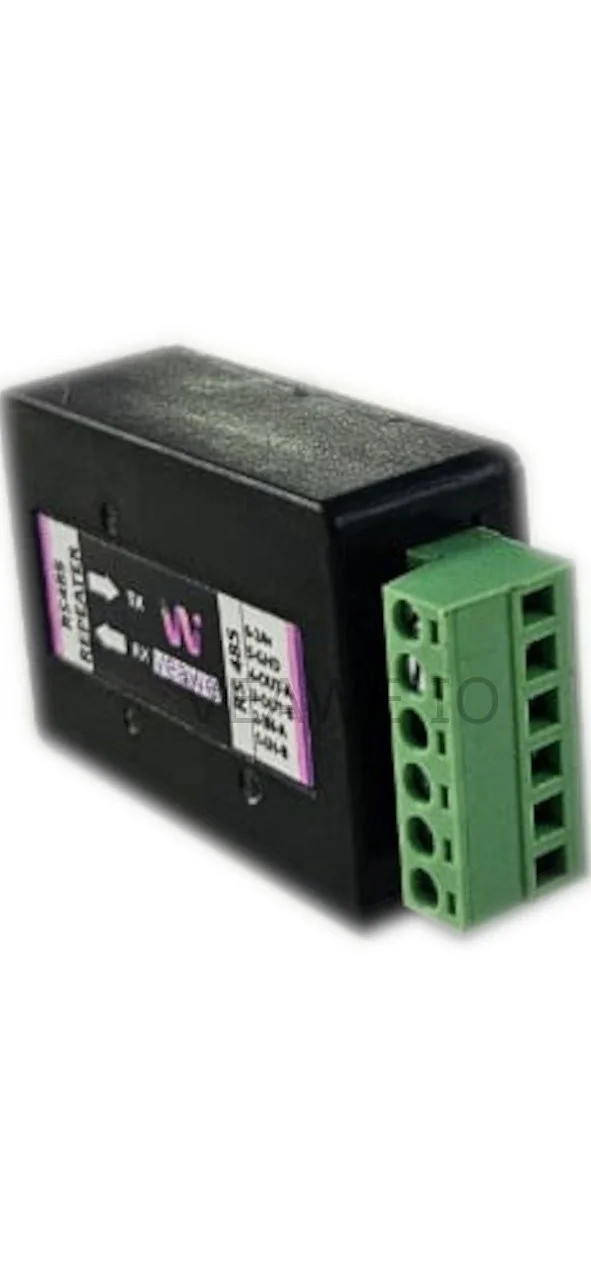

RS485 to RS485 Repeater UC-RS485-RS485
Original price was: ₹2,500.00.₹2,000.00Current price is: ₹2,000.00.
Connecting to Industrial Field buses, remote devices to a latest Computer becomes
difficult due to obsolete of the RS232C ports by Computer Manufactures. But with the vast
use of equipments with these interfaces needs a connection with PC for monitoring,
configuring and working. Most of the market available converters are not equipments with
proper ESD protection circuits to work longer and with an industry equipment. So we have our
most suitable converter for both Industrial environment and general usage.
Supports Auto-Direction Control.
* Supports all Baud Rates from 300 to 250 kBaud.
– actual baud rate varies on the cable length
* Supports up-to 256 receivers on the bus
– also depends on the other devices connected in
the RS485 network
* Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives,
Genset, UPS, Development Kits, etc.
* RS485 Rx and Tx light indications for easy visibility
and troubleshooting
* ESD protection for and RS485 pins at both ends
Specification
- Supports all Baud Rates from 300 to 250 kBaud.
- actual baud rate varies on the cable length - Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network - Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc. - RS485 Rx and Tx light indications for easy visibility and troubleshooting
- ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge - ESD protection for USB
– >±2-kV Human-Body Model (HBM)
– >±200-kV Machine Mode (MM)
– >±500-kV Charged device mode (CDM) - Very compact size 60mm x 40mm x 20mm
- Easy replaceable micro-USB Cable
- 1 Year Warranty against any manufacturing defects
Electrical characteristics
Power Input : 5V DC from USB Cable
Operating Temperature : 0 ~ 85 °C
Working Current : 200mA Max
RS485 in Receive input : ± 12V between A and B max
RS485 in Transmit output : A pulled up to +5V, B pulled down to 0V
RS485 Termination : 120 Ω between A and B built-in
