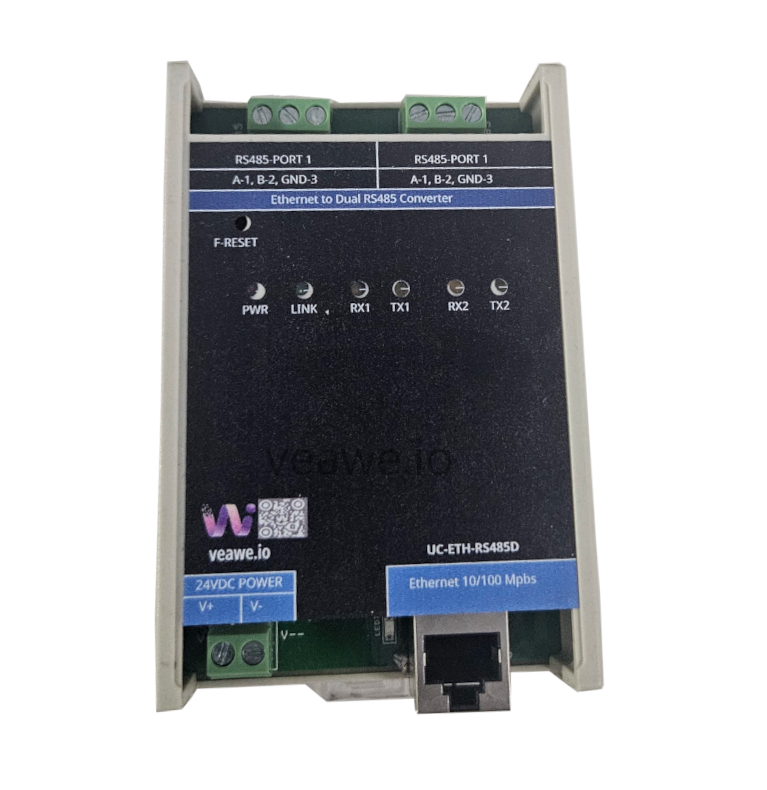

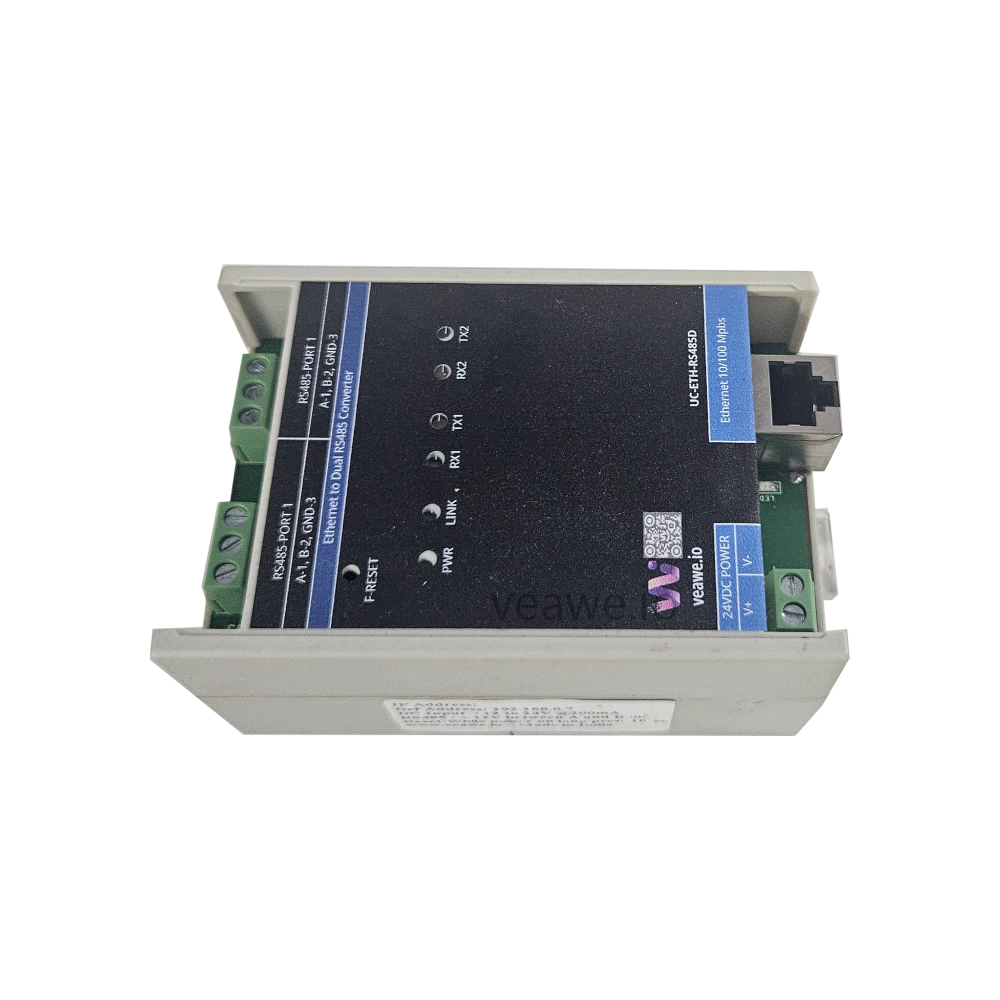

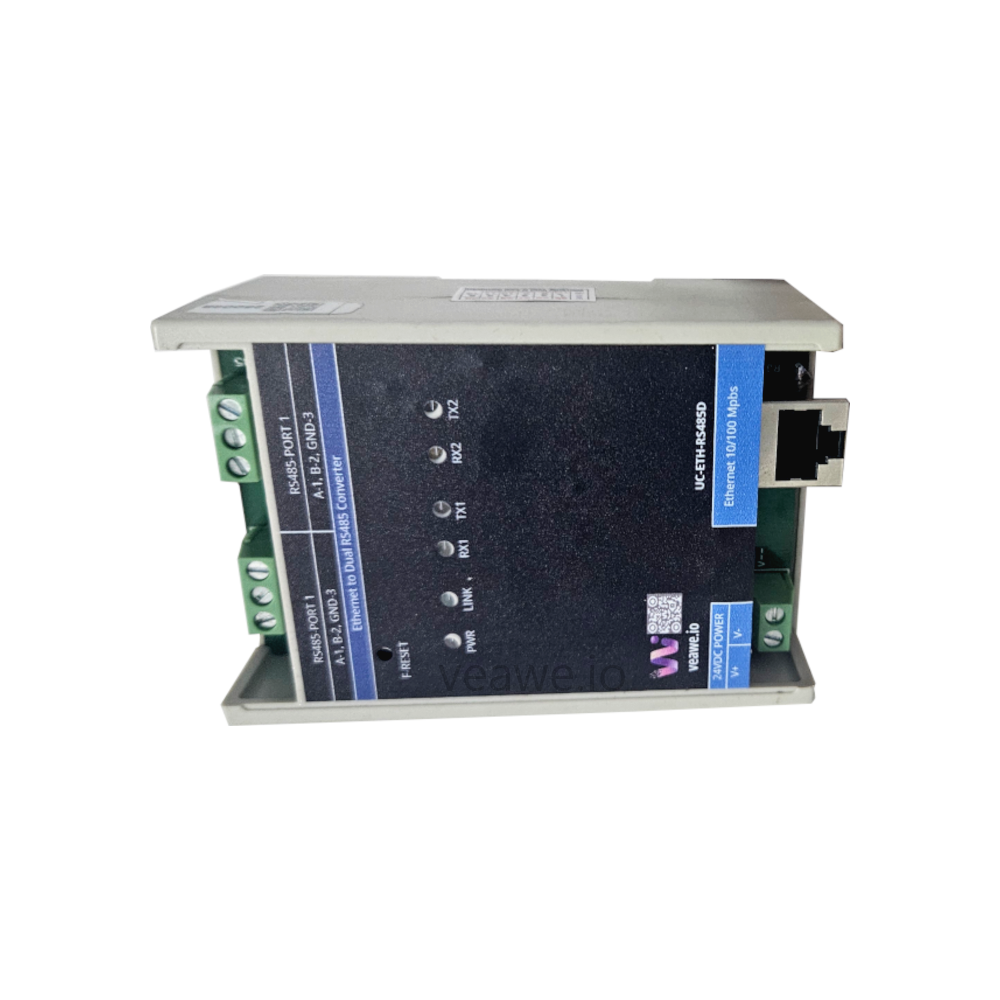

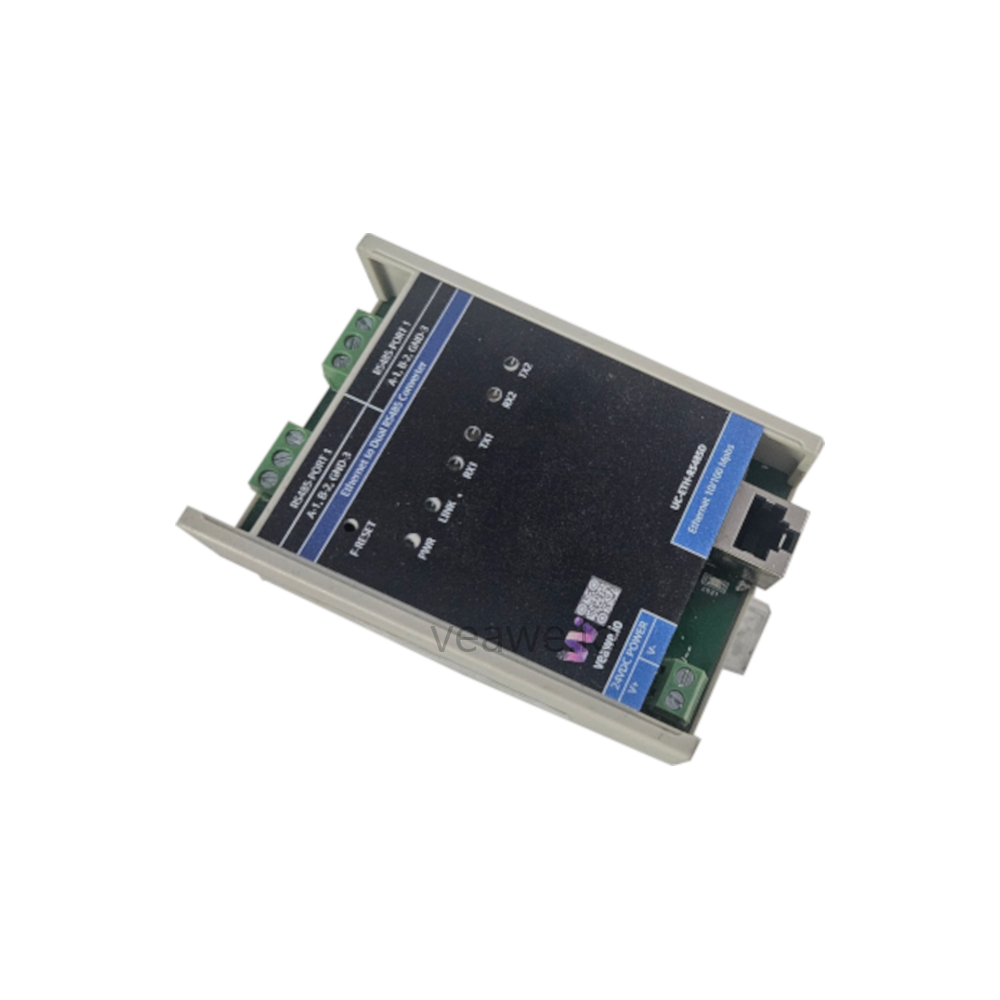

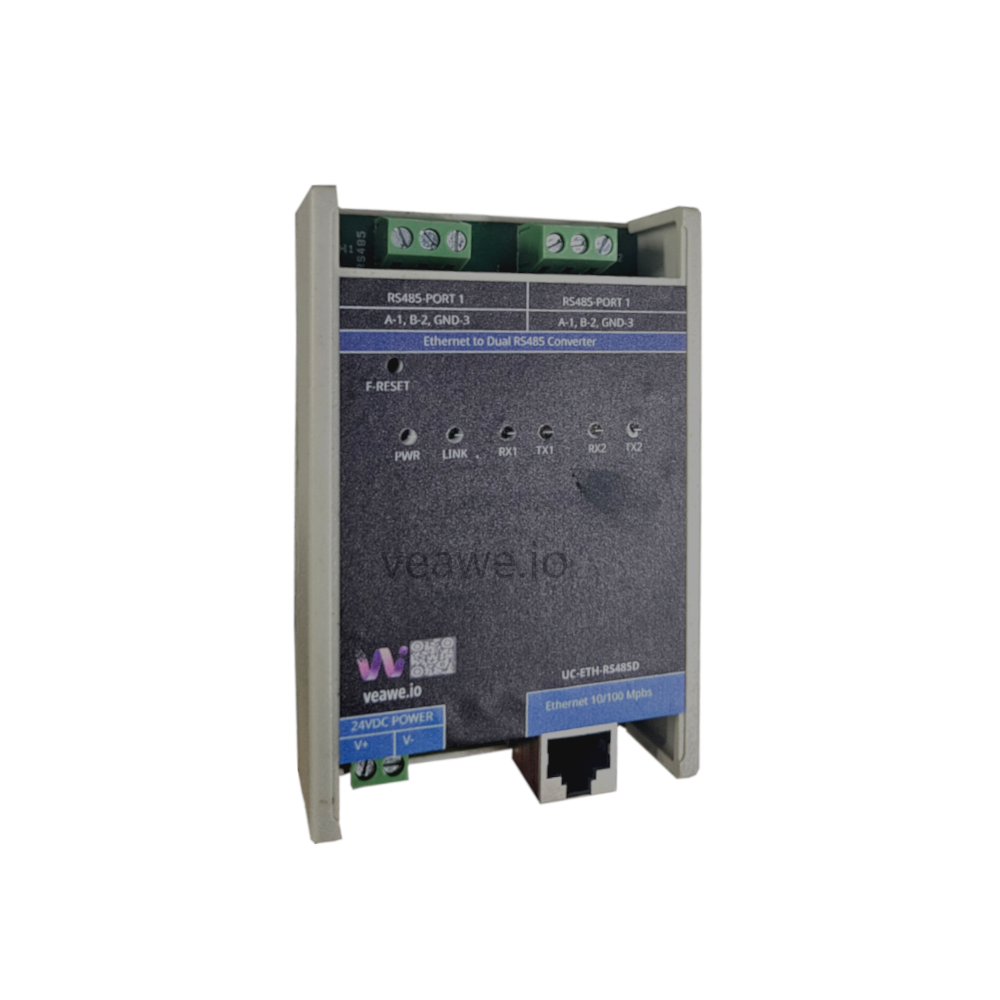

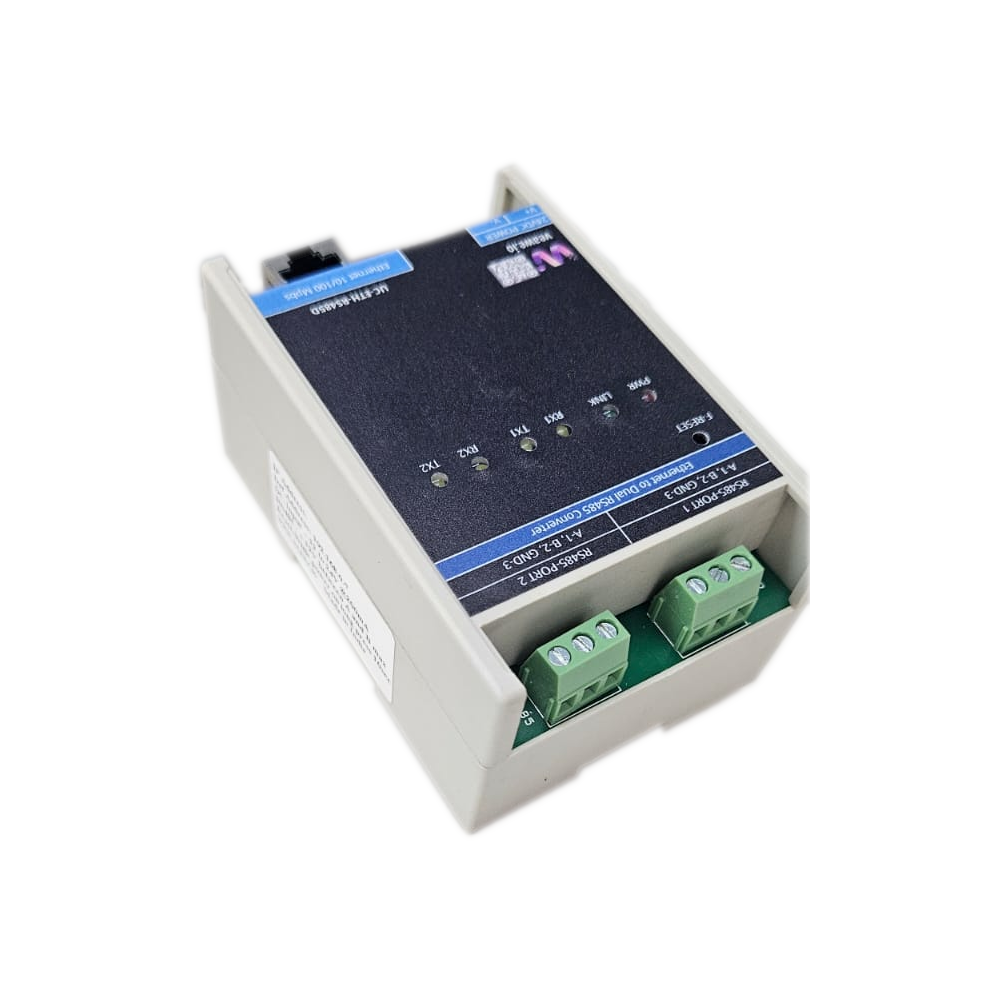

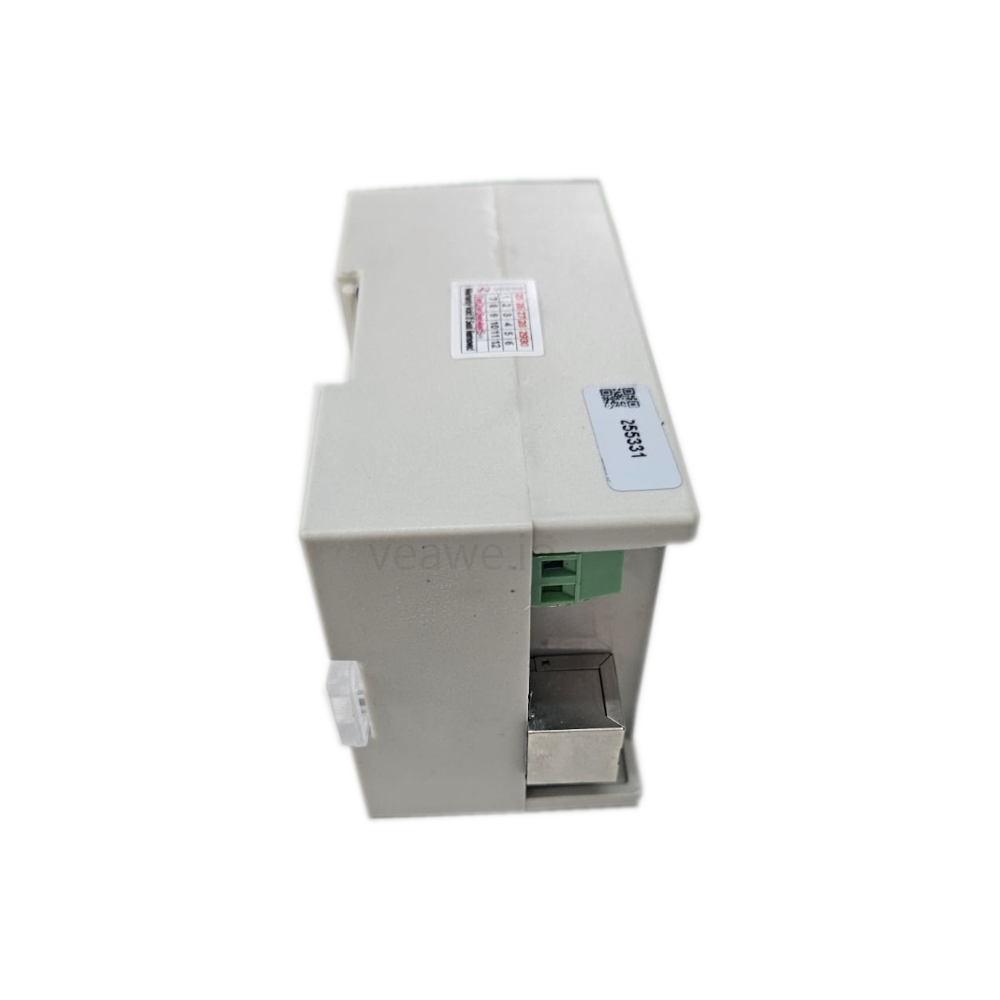

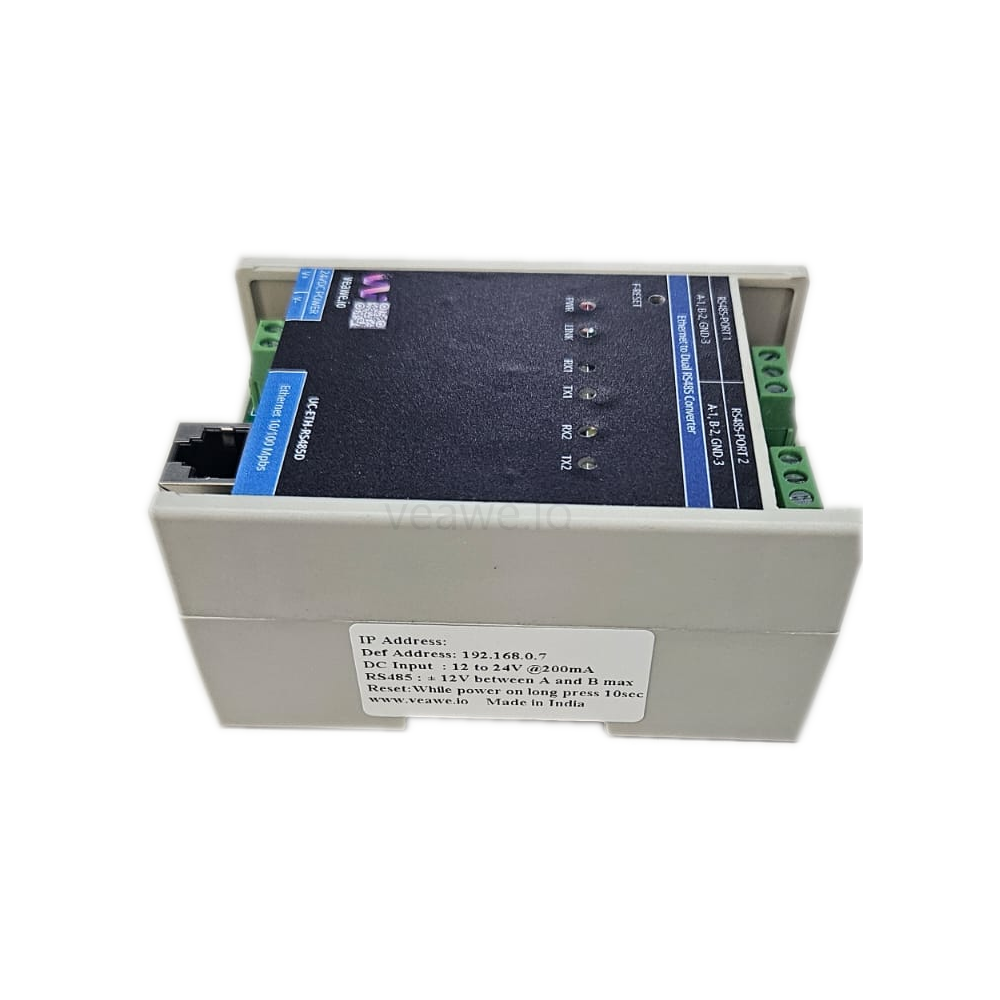

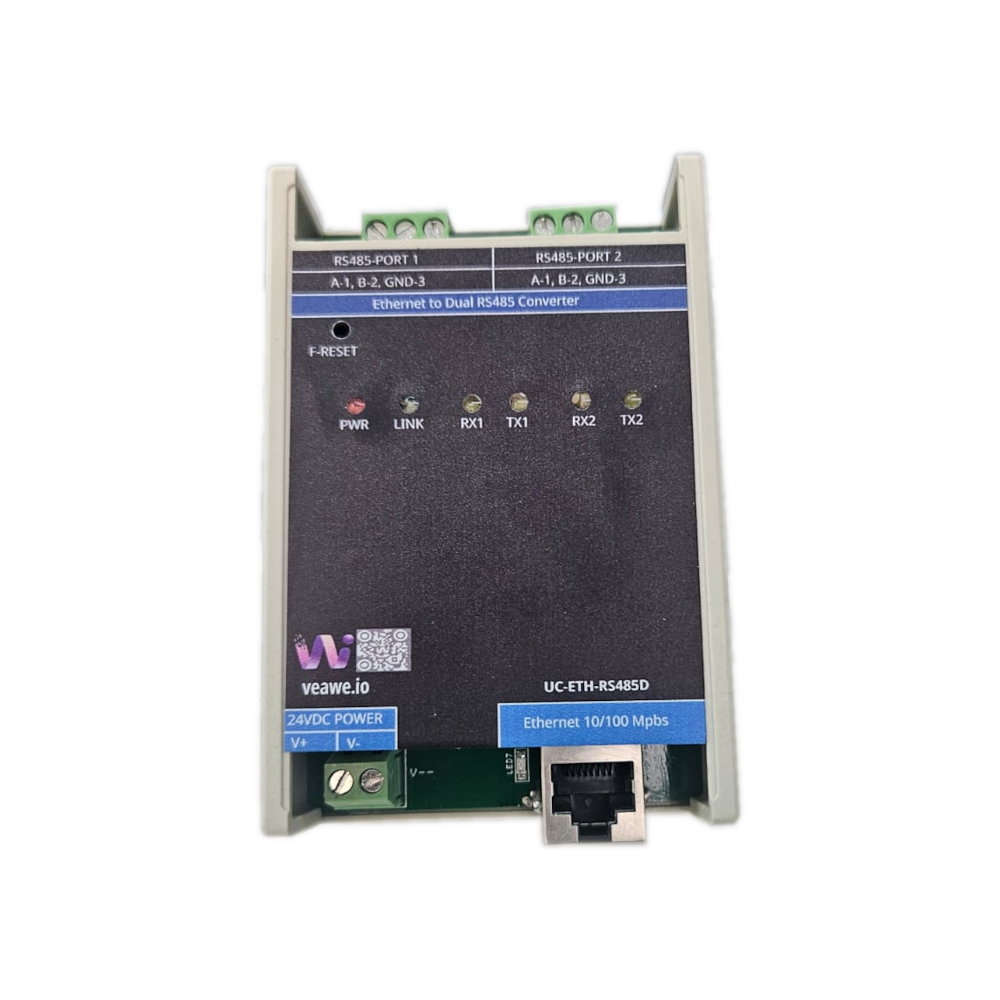

Ethernet to Dual RS485 Converter UC-ETH-RS485-D
Original price was: ₹7,000.00.₹6,000.00Current price is: ₹6,000.00.
Features
* Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
* RS485 Rx and Tx light indications for easy visibility and troubleshooting
* RJ45 Status light indications, RJ45 built-in 2KV isolation
* User Friendly Configuration Software
* Easy to use web page configuration option* Dimension in mm – 110 x 74 x 35
* Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
* Supports Transparent Mode data transmission
* Supports Modbus TCP to Modbus RTU protocol conversion
* ESD and Surge protection for Ethernet, RS485 and Power
* Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
* Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
* ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
* 12~24V DC Supply
* 1 Year Warranty against any manufacturing defects
* Unique MAC address

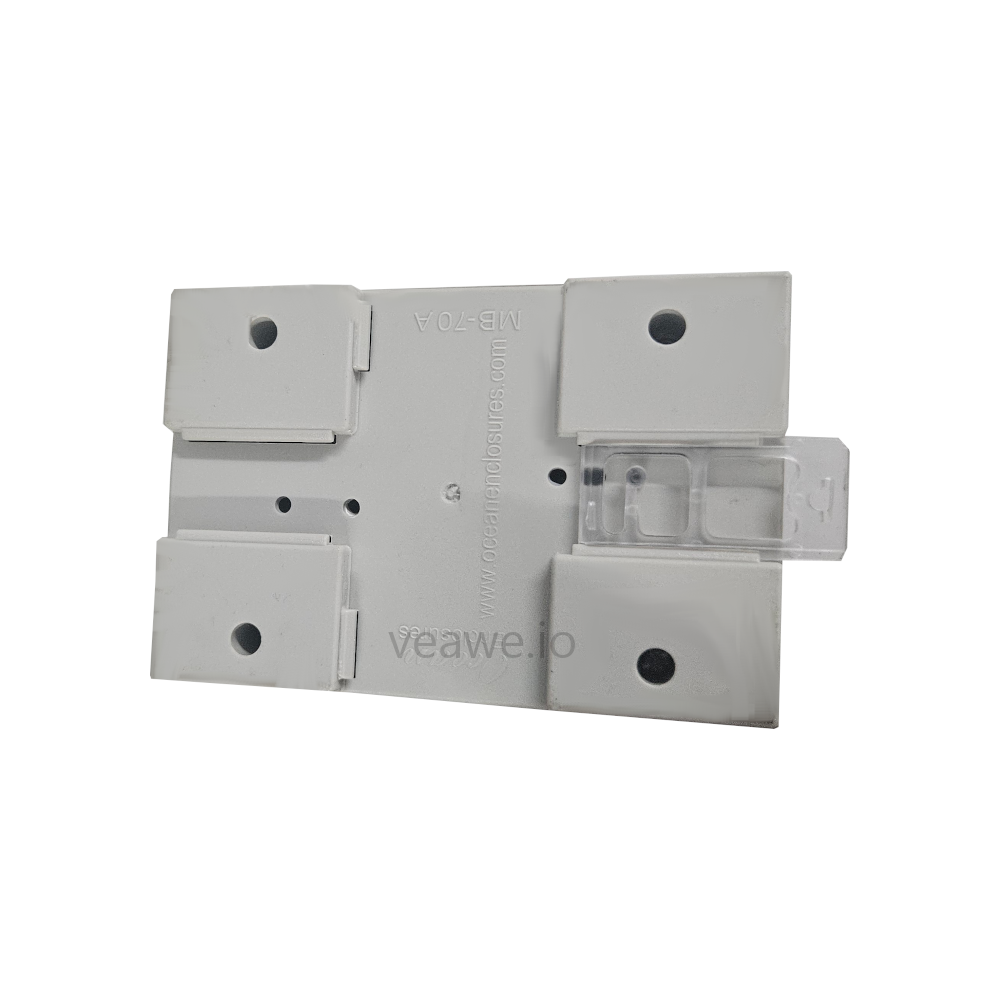

* Compact design suitable for both DIN Rail and Wall mount
5 in stock
Application:-
Features
* Works with all type of industrial equipments
– PC, PLC, SCADA, HMI, AC/DC Drives, Genset, UPS, Development Kits, etc.
* RS485 Rx and Tx light indications for easy visibility and troubleshooting
* RJ45 Status light indications, RJ45 built-in 2KV isolation
* User Friendly Configuration Software
* Easy to use web page configuration option
* Unique MAC address
* Compact design suitable for both DIN Rail and Wall mount
* Dimension in mm – 110 x 74 x 35
* Support 10/100M, TCP Server, TCP Client, UDP, Httpd Client, Web socket
* Supports Transparent Mode data transmission
* Supports Modbus TCP to Modbus RTU protocol conversion
* ESD and Surge protection for Ethernet, RS485 and Power
* Supports all Baud Rates from 300 to 250 kBaud.
– varies on cable length
* Supports up-to 256 receivers on the bus
– also depends on the other devices connected in the RS485 network
* ESD protection for RS485 pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC1000-4-2, Contact Discharge
– ±15-kV IEC1000-4-2, Air-Gap Discharge
* 12~24V DC Supply
* 1 Year Warranty against any manufacturing defects
| length |
Dimension in mm – 110 x 74 x 35 |
|---|
