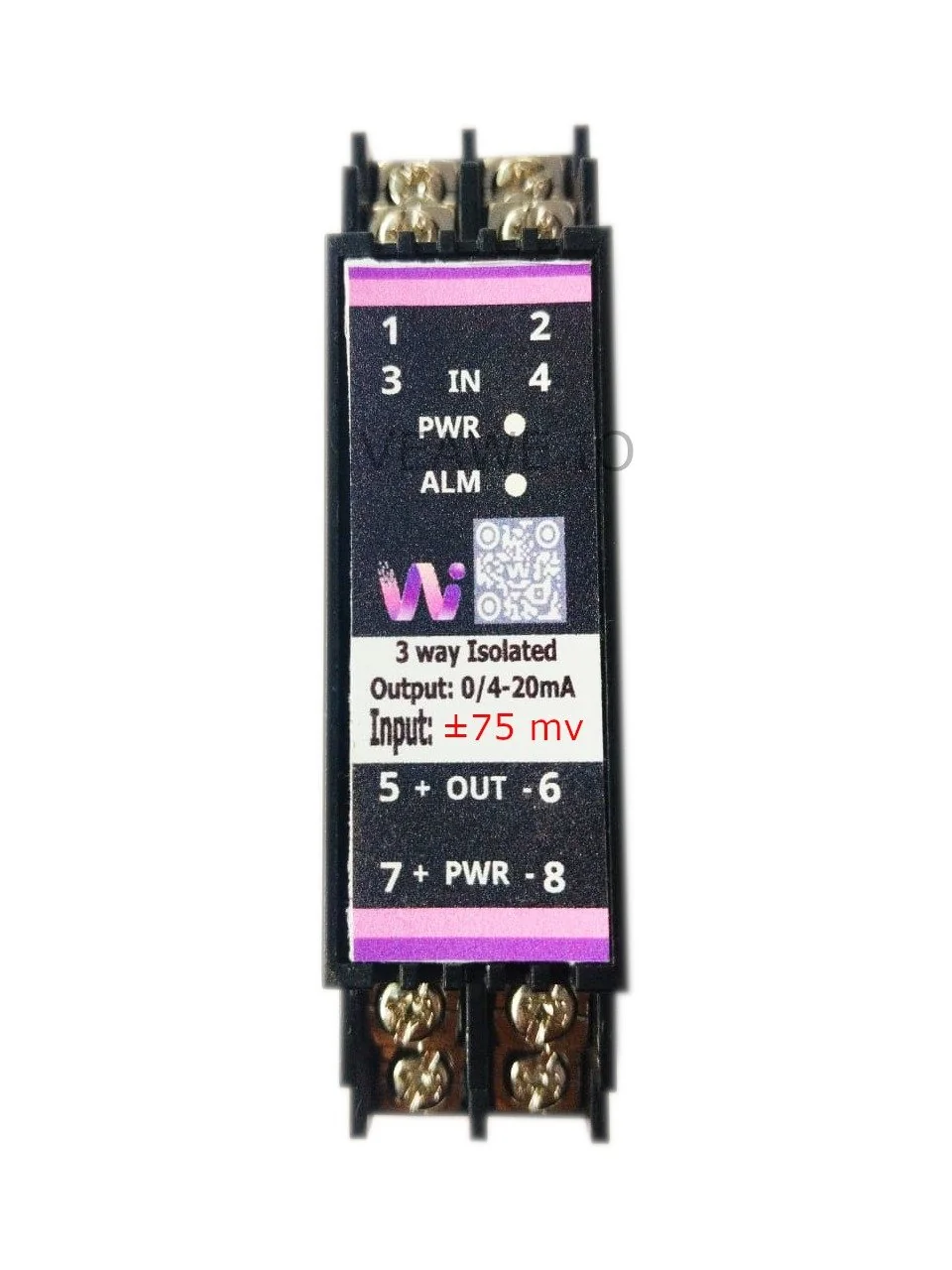

Isolated Analog Signal Converter ±75mV to 20mA
Original price was: ₹4,500.00.₹2,800.00Current price is: ₹2,800.00.
Features:-
2 Way isolation up to 1KVrms
Compact design suitable for both DIN Rail and wall
mount
1 Year Warranty against any manufacturing defects.
Customizable Input voltages available on order
Input Signal type : ±75mV DC (Bidirectional Shunt)
Output Signal type : 4-20mA DC (12mA zero center)
Accuracy : Less than +/- 1% @ 25°C ambient temperature
Input Supply Voltage : 24V DC
Application:-
- Bidirectional Battery Charge/Discharge Monitoring: Accurately monitors net energy flow in solar energy storage, UPS battery banks, and electric vehicle charging systems
- Four-Quadrant DC Motor Drives: Measures forward, reverse, and regenerative braking currents in heavy industrial drives
- Plating & Electrolysis Directional Monitoring: Tracks current polarity and amplitude in reversible electrochemical processes
- SCADA & PLC Integration: Safely provides bidirectional DC current data to standard single-ended analog PLC inputs without requiring bipolar input cards
- Control Panel Building: Compact 35 mm DIN rail mounting for clean and space-efficient cabinet wiring
Key Features:-
- Bidirectional Current Shunt Measurement: Interfaces ±75 mV DC bidirectional current shunts, converting forward and reverse current flow to a standardized 4–20 mA output (12 mA zero center)
- 2-Way Galvanic Isolation up to 1 kV RMS optical and magnetic isolation
- True Analog Signal Isolation – Preserves dynamic current fluctuations and direction with a pure linear amplifier stage
- No PWM conversion or digital reconstruction artifacts
- Fast dynamic response with minimal signal processing delay (< 50 ms)
- High noise immunity against electrical noise, inverter transients, and ground loops
- High linear conversion accuracy (< ±0.5% F.S.)
- Compact design suitable for both 35 mm DIN Rail and wall mount
- 1 Year Warranty against any manufacturing defects
- Customization of input millivolt spans (e.g. ±50mV, ±60mV, ±100mV) available on order
Dimension in mm: 110 x 74 x 22
Weight: 100g
| Part No | AC-B75mV-420 |
|---|---|
| Brand | Veawe |
| Signal Type | Bidirectional Millivolt Shunt Converter |
| Input Signal Type | ±75mV DC (Bidirectional Current Shunt) |
| Output Signal | 4-20mA DC (12mA zero center) |
| Supply Voltage | 24V DC (15 ~ 28V DC) |
| Mounting Type | DIN Rail, Wall Mount |
| Isolation | 1000 V RMS |
| Output Accuracy | < ±0.5% F.S. |
| Protection | Reverse Polarity, TVS Surge Clamping |
| Warranty | 1 Year |
| Country of Origin | Made in India |
| Dimensions | 110mm x 74mm x 22mm |
