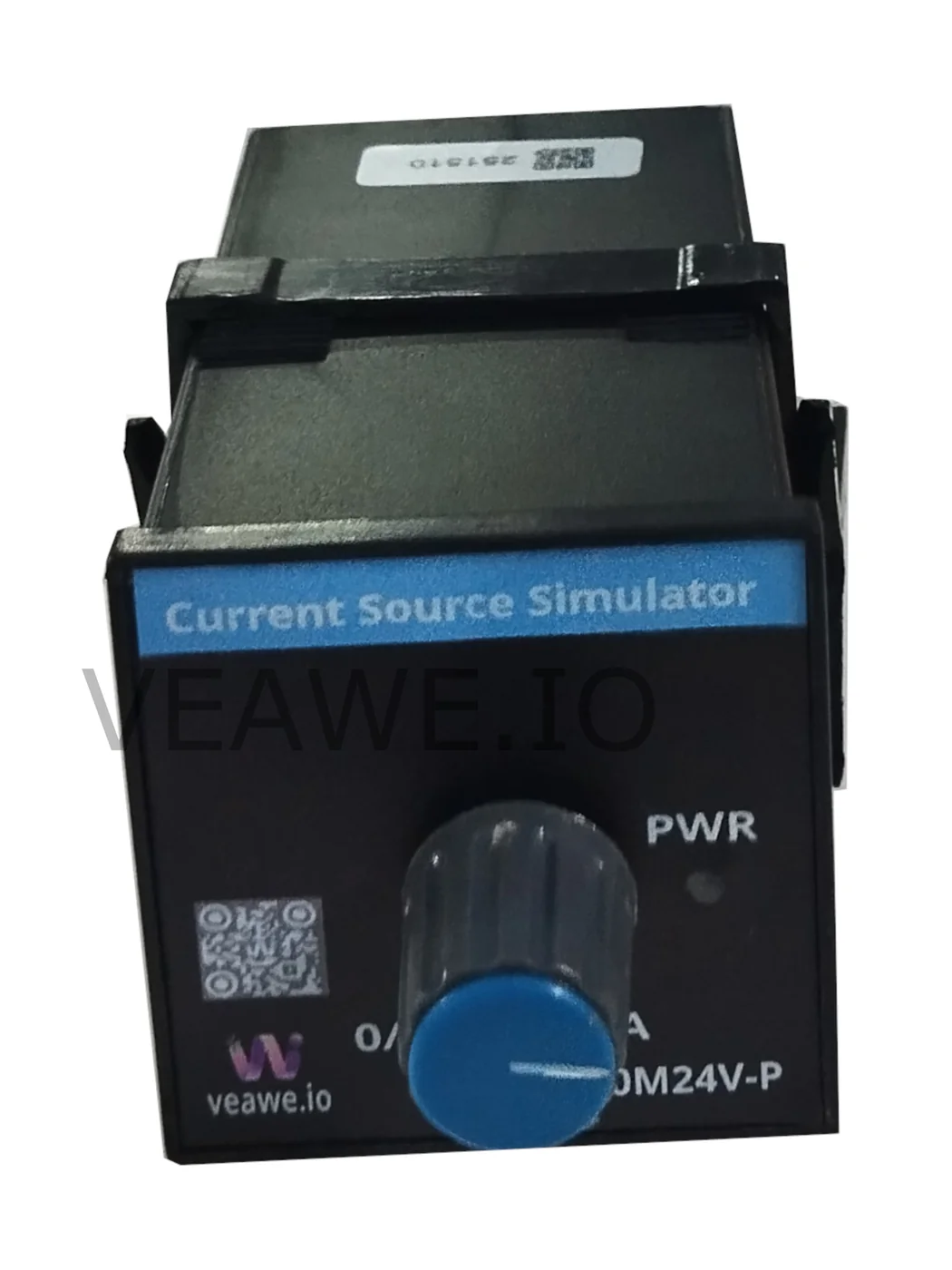

Current Source Simulator Without Display
Original price was: ₹5,000.00.₹2,800.00Current price is: ₹2,800.00.
The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.
Specification
- The Analog Source Generator(0-20mA) will assist
maintenance personnel and integrators in analog input testing
troubleshooting and application development.
This device is handy for testing Sensor data with PLC’s
analog input variants like gas/liquid sensor. Also useful for
measuring data from Pressure sensor, Strain Gauge Sensor,
Temperature Sensor, Level Sensor, Position Sensor etc.., - Functionality
Perfect 3 wire 0-20mA Signal Source Generator - Protection
Input Reverse Polarity , Output Short Circuit Protection - DIMENSION
Product size 48x48x90mm.
Preffered Panel cut out 45x45mm
Electrical characteristics
Power Supply
24V DC External
Current Output
Output Range 0/4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 1.1k Ω.
| Dimensions | 60mm x 40mm x 20mm |
|---|---|
| Part No | USS20M24V-P |
| Brand | Veawe |
| Mounting Type | DIN Rail |
| Warranty | 1 Year |
| Country of Origin | Made in India |
