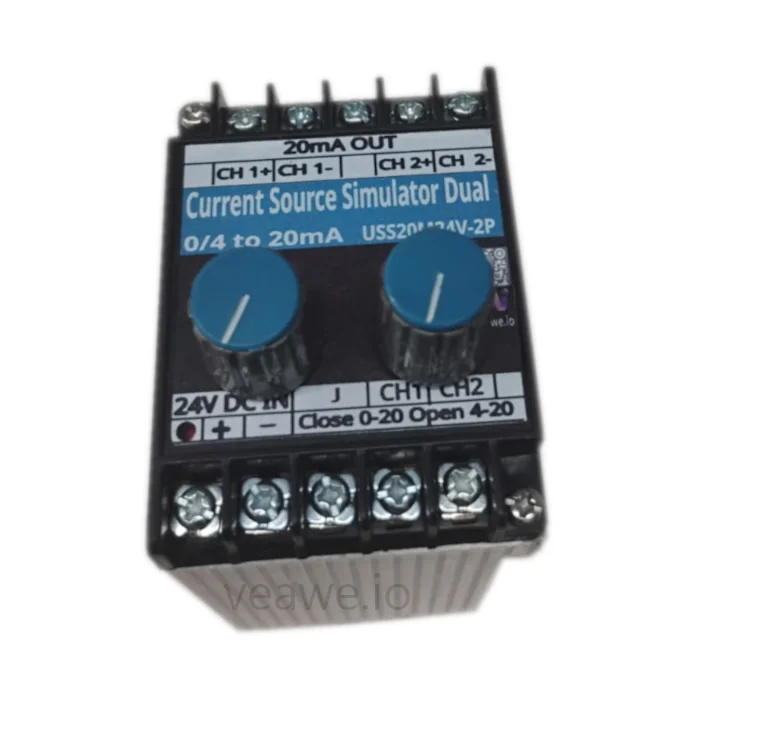

Dual Output Current Source Simulator 0 to 20mA
Original price was: ₹7,000.00.₹3,500.00Current price is: ₹3,500.00.
Perfect 3 wire 0-20mA Signal Source Generator – Dual
Output
Power Supply
24V DC External
Current Output
Output Range 0/4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 1.1k Ω
Protection
Input Reverse Polarity, Output Short Circuit Protection
DIMENSION
Product size 70 x 50 x 85 mm
Din rail mountable
Variable using 5 turns Potentiometer.
Selectable range 0 mA ~ 20 mA in 0.01mA steps
resolution or more.
0 ~ 20mA or 4 ~ 20mA selection by external jumper.
Current output values are set by rotating the knob.
Specification
–
Temperature Sensor, Level Sensor, Position Sensor etc..,
measuring data from Pressure sensor, Strain Gauge Sensor,
analog input variants like gas/liquid sensor. Also useful for
This device is handy for testing Sensor data with PLC’s
troubleshooting and application development.
maintenance personnel and integrators in analog input testing
The Analog Source Generator(0-20mA) will assist
- Functionality
Perfect 3 wire 0-20mA Signal Source Generator
– Protection
Input Reverse Polarity , Output Short Circuit Protection
DIMENSION
Product size – 48x48x90mm. Weight ~ 150 gms
Electrical characteristics
Power Supply
24V DC External
Display
4 digit Segment display
Current Output
Output Range 0/4-20mA
Output Accuracy ±1% of full scale
Load range 10 Ω ~ 1.1k Ω
| Dimensions | 60mm x 40mm x 20mm |
|---|---|
| Brand | Veawe |
| Channels | 2 channel |
| Country of Origin | Made in India |
| Mounting Type | DIN Rail |
| Part No | USS20M24V-2P |
| Supply Voltage | 24V DC |
| Warranty | 1 Year |
| Output Range | 0-20mA |
| Control Type | Analog |
